Re: [sumo-user] Vehicle won't park at roadside.

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

set flags=tc.STOP_PARKING_AREA + tc.STOP_PARKING

Unfortunately, this isn't set automatically yet (https://github.com/eclipse/sumo/issues/13041)

Am Fr., 14. Apr. 2023 um 18:21 Uhr schrieb Philip Daely <daely.philip@xxxxxxxxx>:

I created a custom network, and put a parkingArea shown below.


Then, I made a python script that basically add a new vehicle with a route to follow and then insert a new stop at the designated parkingArea above. The python script is as follows.

import traci

import traci.constants as tc

# Connect to the Sumo server

traci.start(['sumo-gui', '-c', "D:\sumoworks\customcityblock2.sumocfg"])

# Spawn a vehicle at (x1,y1) and set its destination to (x2,y2)

x1, y1 = 0, 0

x2, y2 = 100, 0

veh_id = "vehicle_1"

#traci.vehicle.add(veh_id, "route_1", depart=0, pos=x1, lane=0, typeID="CAR1")

#traci.vehicle.changeTarget(veh_id, (x2, y2))

#print("FINDROUTE: ", traci.simulation.findRoute("E45","E103","CAR1",50,0))

counter = 0

# Simulate for 1000 time steps

for i in range(1000):

    if i == 30:

        traci.vehicle.add(veh_id,"r_0","CAR1")

        traci.vehicle.moveToXY(veh_id,"E0",1,0,0)

        traci.vehicle.insertStop(veh_id,0,"pa_0",duration=100,flags=tc.STOP_PARKING_AREA)

        #traci.vehicle.setParkingAreaStop(veh_id,"pa_0",100,flags=tc.STOP_PARKING_AREA)

        traci.vehicle.insertStop(veh_id,1,"E86",duration=30)



        #traci.vehicle.moveTo(veh_id,"E0_1",(0,20),0)

        #traci.vehicle.changeTarget(veh_id,"E86")

    traci.simulationStep()

# Close the connection to the Sumo server

traci.close()

The additional xml file that define the parkingArea is as follows.

<?xml version="1.0" encoding="UTF-8"?>

<!-- generated on 2023-04-15 01:04:55 by Eclipse SUMO netedit Version 1.16.0

-->

<additional xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://sumo.dlr.de/xsd/additional_file.xsd">

    <!-- StoppingPlaces -->

    <parkingArea id="pa_0" name="park1" lane="-E118_0" startPos="100.75" endPos="120.75" roadsideCapacity="3" width="4.00" length="10.00" angle="45.00" departPos="0"/>

</additional>

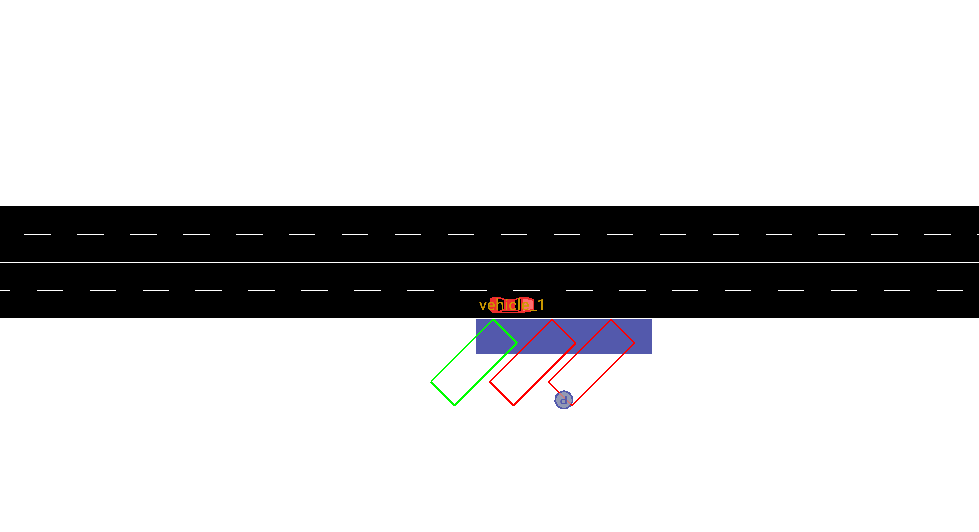

When I run the python script, the SUMO GUI pops up. I run the simulation. At time 30, the designated vehicle is added into simulation and starts to follow its route. Then when the vehicle reach the parkingArea, it stops at the road lane, not on the roadside, even though I already define roadsideCapacity = 3, as shown below.

After some time, it start to move again to next stop....

Why is the vehicle not parked at the parkingArea roadside?
