| Re: [sumo-user] Calibrating Vehicle Types |

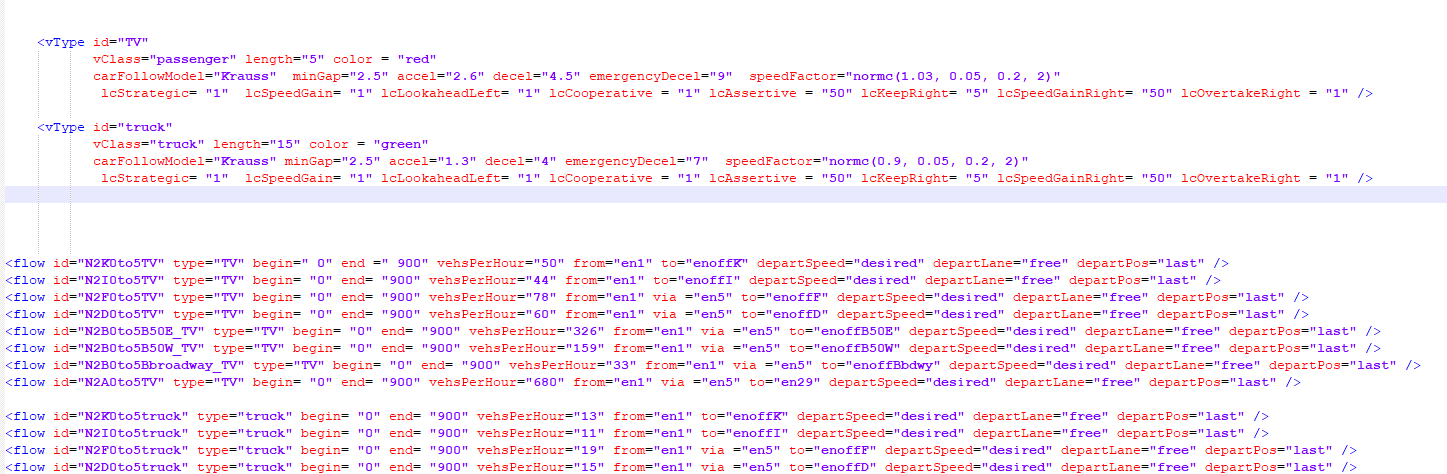

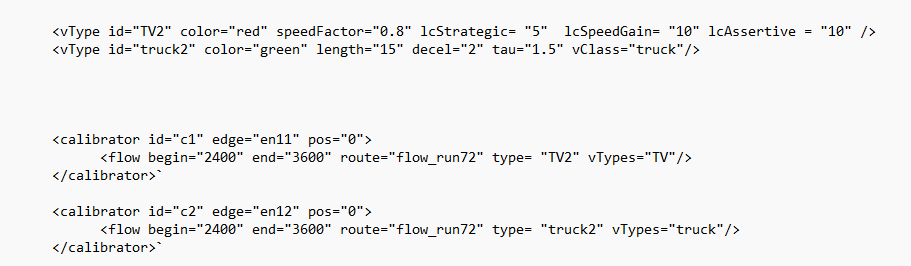

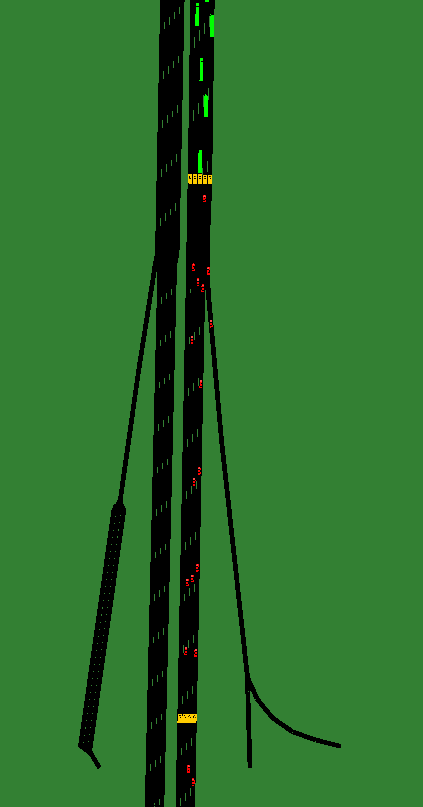

Like this:<calibrator vTypes="TV" .../><flow type="TV2" .../></calibrator>_______________________________________________Am Sa., 14. Mai 2022 um 12:18 Uhr schrieb Ahmad Abdallah via sumo-user <sumo-user@xxxxxxxxxxx>:Thank you very much for your responses, Jakob.I have tried doing what you suggested but there still seems to be something wrong or a bug somewhere..Here are my vType definitions in the route file:Here are the calibrator definitions in the additional files:This snippet is from the simulation, you can see that the first calibrator turns all vehicles into TV2, whereas the second turns them into "truck2"Any comments/ suggestions would be greatly appreciated!Best regards,Ahmad Abdallah._______________________________________________On Sat, May 14, 2022 at 3:52 AM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:The first calibrator requires the attribute vTypes="truck" and the second requires vTypes="TV"_______________________________________________Am Sa., 14. Mai 2022 um 01:48 Uhr schrieb Ahmad Abdallah via sumo-user <sumo-user@xxxxxxxxxxx>:Hi Jakob,When I do that, the first calibrator (for trucks) turns all vehicles into trucks and the second calibrator turns all vehicles into passenger cars..--On Fri, May 13, 2022 at 7:51 AM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:I recommend that you define 2 calibrators (one for each type).The rest of the input can stay the same._______________________________________________Am Fr., 13. Mai 2022 um 12:19 Uhr schrieb Ahmad Abdallah via sumo-user <sumo-user@xxxxxxxxxxx>:Hi Jakob,Thank you for sending the link.I am defining the flow in a different way from the example provided in the link. In the route file, I have two vehicle types defined and then a large set of flow IDs that contain the flow for each OD pair during each time step. In that case, do I only have to provide new vehicle type distribution in the "additional files: input or would I also have to provide new flow IDs under the calibrator?Best regards,Ahmad Abdallah._______________________________________________On Fri, May 13, 2022 at 1:43 AM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:_______________________________________________Am Fr., 13. Mai 2022 um 03:09 Uhr schrieb Ahmad Abdallah via sumo-user <sumo-user@xxxxxxxxxxx>:Hello Jakob,_______________________________________________I am trying to use Calibrator to calibrate the vehicle types over a specified time period in my simulation. I originally have two vehicle types in the route file: passenger cars and trucks. I also defined two modified types to mirror those in the additional input file. However, I am noticing that many passenger cars are being mapped into trucks once they pass into the calibrator edge and I am unable to figure out what is wrong. I am attaching the files I am using to run the simulation. Could you please help me figure out what I'm missing?Best regards,Ahmad Abdallah.
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To unsubscribe from this list, visit https://www.eclipse.org/mailman/listinfo/sumo-user
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To unsubscribe from this list, visit https://www.eclipse.org/mailman/listinfo/sumo-user
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To unsubscribe from this list, visit https://www.eclipse.org/mailman/listinfo/sumo-user
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To unsubscribe from this list, visit https://www.eclipse.org/mailman/listinfo/sumo-user
_______________________________________________Best regards,Ahmad Abdallah.
