Re: [sumo-user] How to impart yielding behaviors on Right Turns at Inter

[vincentobiako <vincentobiako@xxxxxxxxx>]

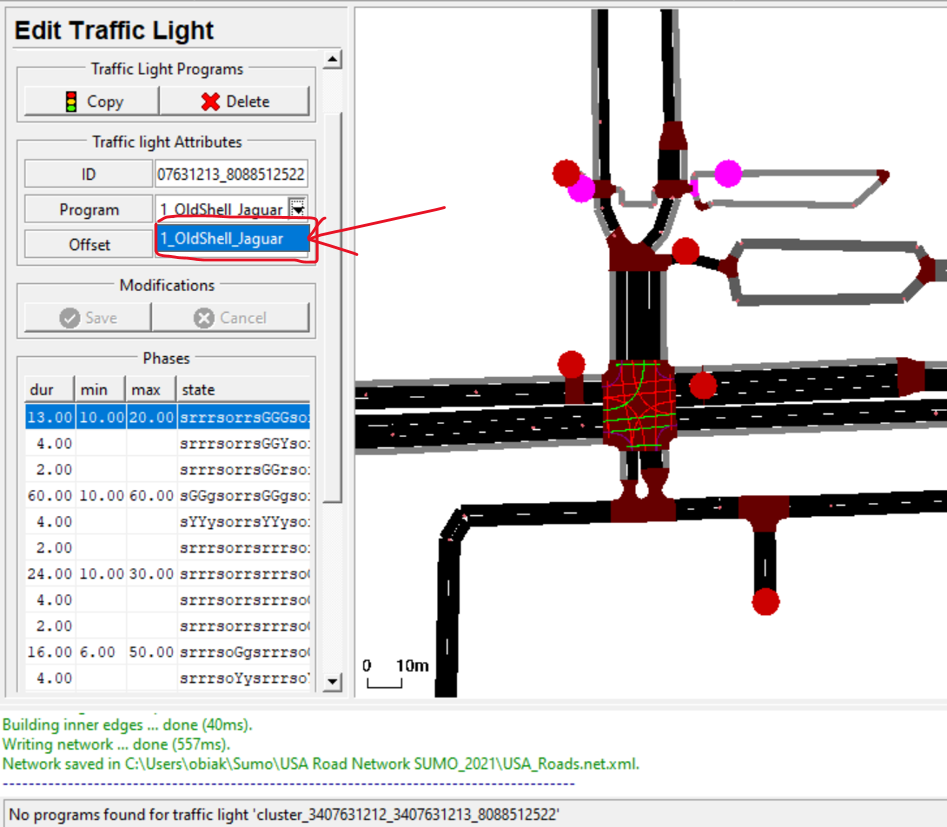

I  am also getting the message “No Programs found for traffic light ‘cluster_3407631212_3407631213_8088512522’” at the bottom of NetEdit.





This strange because NetEdit recognizes the program which can you can see here:



I am not sure what exactly is wrong with either my model or the program.



Sent from Mail for Windows



From: vincentobiako
Sent: Thursday, September 30, 2021 7:04 AM
To: Sumo project User discussions
Subject: RE: [sumo-user] How to impart yielding behaviors on Right Turns at Intersections and Removing Error in SUMO-Gui



Jakob



I actually already had this (https://sumo.dlr.de/docs/Simulation/Traffic_Lights.html#detectors) put in as detectors as part of the tlLogic within my network. For example, attached is the tlLogic or additional file for the junction cluster_3407631212_3407631213_8088512522 in my net-file. I am still getting those warnings within my simulation.



Thank you

Ifezue





Sent from Mail for Windows



From: Jakob Erdmann
Sent: Wednesday, September 29, 2021 2:04 PM
To: Sumo project User discussions
Subject: Re: [sumo-user] How to impart yielding behaviors on Right Turns at Intersections and Removing Error in SUMO-Gui



The warnings are from actuated traffic lights (https://sumo.dlr.de/docs/Simulation/Traffic_Lights.html#detectors).

If you want right turns to be permissive in all phases, use junction type 'traffic_light_right_on_red'.

If you want static rather than actuated traffic lights, set tlType="static"  (this will also get rid of detector warnings).

If you do not want an intersection to be controlled by a traffic light, set its type to 'priority' and the warnings will disappear.

For controlling who has right of way, see https://sumo.dlr.de/docs/Networks/PlainXML.html#right-of-way







Am Mi., 29. Sept. 2021 um 17:56 Uhr schrieb vincentobiako <vincentobiako@xxxxxxxxx>:

Hello everyone



I was looking at some of my intersections in SUMO and I was wondering if there is a way to impart yielding behavior rather than a traffic signal for vehicles taking a right turn at a typical four-way intersection? I want the vehicles at the right turn of an approach to yield to vehicles that may be coming from the through or left turn movement of other intersections. I am currently using the ‘off-blinking’ signal at my intersections, but I keep getting error messages that look something like this:





I didn’t think that right turn movements needed controlling detectors if they are intending to be yield movements. Does anyone know what can be done to remove these errors?



For reference, I have attached my net-file to visualize the error. Please refer to cluster_3407631212_3407631213_8088512522 in the network.



Thank you in advance

Ifezue

Sent from Mail for Windows
