Hi,



Have you checked this? https://sumo.dlr.de/docs/Simulation/Motorways.html

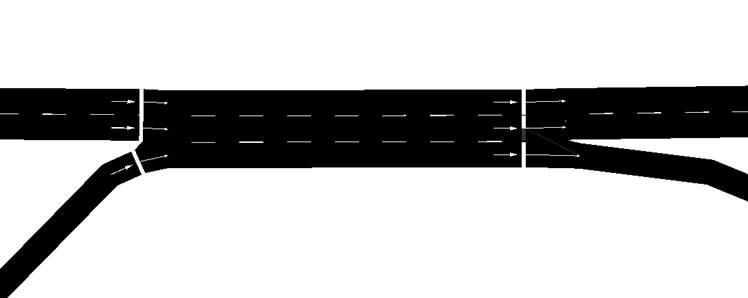

How did you connect the lanes? Because for on ramps it’s important not to add a connection to the main edge/road. But for the off-ramps its better to do it. Here’s an example:

Add connection from main roadConnectivity at on-off-ramp



Regards,

Giuliana



From: sumo-user-bounces@xxxxxxxxxxx [mailto:sumo-user-bounces@xxxxxxxxxxx] On Behalf Of Eugene Vinitsky
Sent: Mittwoch, 22. Juli 2020 18:42
To: Sumo project User discussions
Subject: [sumo-user] (no subject)



Dear all,



I have configured an on-ramp merge but am regularly seeing collisions on it as well as an odd phenomenon where the vehicles move incredibly slowly on the junction,
I've tried both:

1. setting speed mode to make sure it's set to 25

2. increasing the length of the merge section

Is there anything else that could be causing it? I can provide a picture if it's helpful.



Thanks!

Attachment: image005.emz
Description: image005.emz

Attachment: image007.emz
Description: image007.emz
