Re: [sumo-user] Vehicle stop line

[Jakob Erdmann <namdre.sumo@xxxxxxxxx>]

The vehicle behavior comes from https://sumo.dlr.de/docs/Simulation/Intersections.html#junction_blocking

In this case, the behavior is wrong due to a known bug when building intersection rules (https://github.com/eclipse/sumo/issues/4437)

You can work around this by editing the network and setting junction attribute keepClear=False at the junction that vehicles are trying to keep clear.

regards,

Jakob

Am Mi., 11. Dez. 2019 um 08:40 Uhr schrieb Albert Jeans <ajeans2@xxxxxxxxx>:

Hi SUMO Users,

I'm still relatively new at this. I recently encountered some odd vehicle behavior when approaching a junction (intersection) preceded by a junction which provides a merge in the opposite direction. Here's the network in NETEDIT:

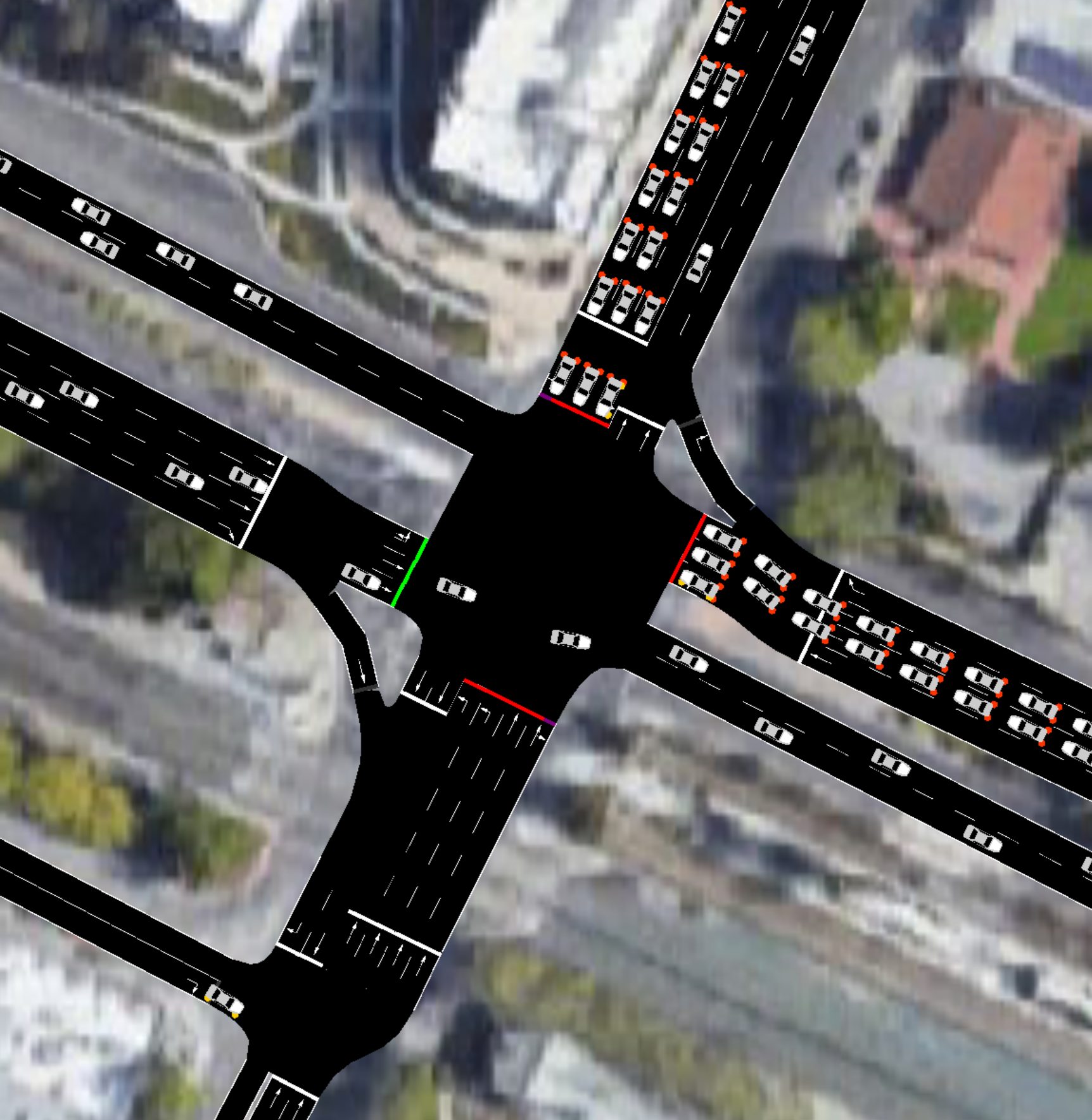

Here is what happens in SUMO-GUI:

The southbound vehicles consistently leave a gap by stopping at the white line. You can see this doesn't happen to the westbound vehicles.

It's not that big a deal, but has anyone seen this problem before?

Thanks,

Albert Jeans
