Hey Stefano,
i believe what you want is possible with SUMO-GUI:
- you can visualize vehicles as desired, e.g. as 'boxes'
(SUMO-GUI > view settings > Vehicles
- i see no option for a custom shape (like a custom svg or a
circle or so), not sure if this is supported. the wiki also
does not mention this
- you can set 'draw with constant size when zoomed out', which
will result in a form of highlighting
- e.g. when also setting 'color' to 'by accumulated waiting
time' you get a nice global overview of where waiting times as
high
- you can disable break lights also if desired
- in the same dialog, you can set the background color

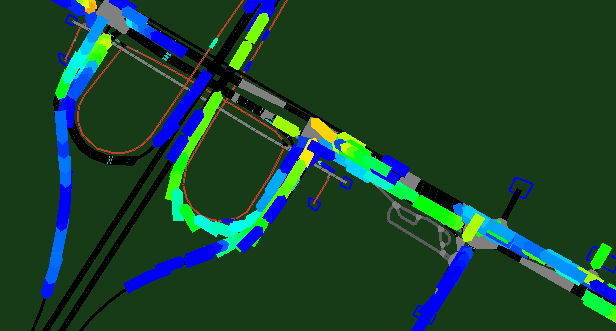

then I get:
would that suffice?
Greets, Menno
On 15-5-2019 11:52, steniero wrote:
Hi,
I was wondering wether there was the possibility, maybe with
an add-on program to visualize the simulation with a
different layout, I want to see a medium to big scenario and
I would like to see in a highlighted way how vehicles move
(I was thinking a dark background and vehicles viewed as
small lights). I have to present some results and I have
need a video with a high graphical impact.
Something close to this style
Thank you
Stefano
