Hello all,
after a while away from sumo and simulations, I have picked this
up again now. Great to see the new features! Eg. being able to
edit taz items within NETEDIT is really helpful.
I have noticed:
- when changing 'source' and 'sink' values for edges belonging
to a TAZ, after hitting "Save changed", the "Save additionals"
menu item stay disabled. Only after for example moving a
detector can those changes then be saved to an additionals file
that had been opened and saved before.
- NETEDIT sometime saves TAZ items like this:
<taz id="P2" shape="1183.39,406.32 1188.58,398.44
1194.54,402.09 1190.31,410.36 1183.39,406.32" color="blue">
<tazSource weight="0.00" id="gneE120"/>
<tazSink weight="1.00" id="gneE120"/>
<tazSource weight="1.00" id="gneE121"/>
<tazSink weight="0.00" id="gneE121"/>
</taz>
Important here is source-sink-source-sink: SUMO will be unable
to read this and report an error. It seems odd that this is
incorrect, because it is valid XML and the order of the items
should (in my opinion) be irrelevant. Saving, closing, opening
and saving again of the additionals file solves the problem:
then we have source-source-sink-sink.

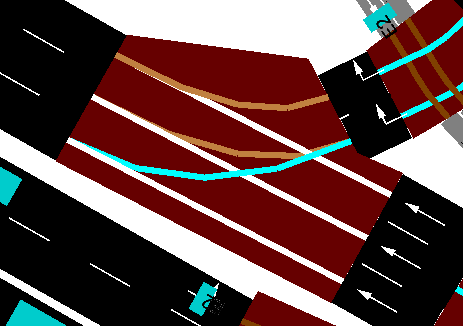

A question: given the junction in the picture below, SUMO
complains after a while of simulation: "Error: Zipper junctions
with more than two conflicting lanes are not supported". I wonder:
why? How to solve this?
Thanks, greets, Menno
|
