Re: [sumo-user] coredump loading sumocfg
Visualize the tls link indices as explained in the sumo gui documentation link I sent. Then you can check which of connections is referred to by index 3.
Do this for the original network and the network with removed connections.

If the phases are shifting as planned, than the error could refer to <tllogic> that is embedded in the .net.xml file (whereas the one you are loading from the additional file is correct).
Load the simulation without your additional file to investigate this.

2018-08-24 12:44 GMT+02:00 Jose Monreal Bailey <jmonreal@xxxxxxxxx>:
Or even easier, how to generate a grid with 3 lanes per edge,but the force the right most lane to only turn.

Best regards,
José

On Fri, 24 Aug 2018 at 11:38, Jose Monreal Bailey <jmonreal@xxxxxxxxx> wrote:

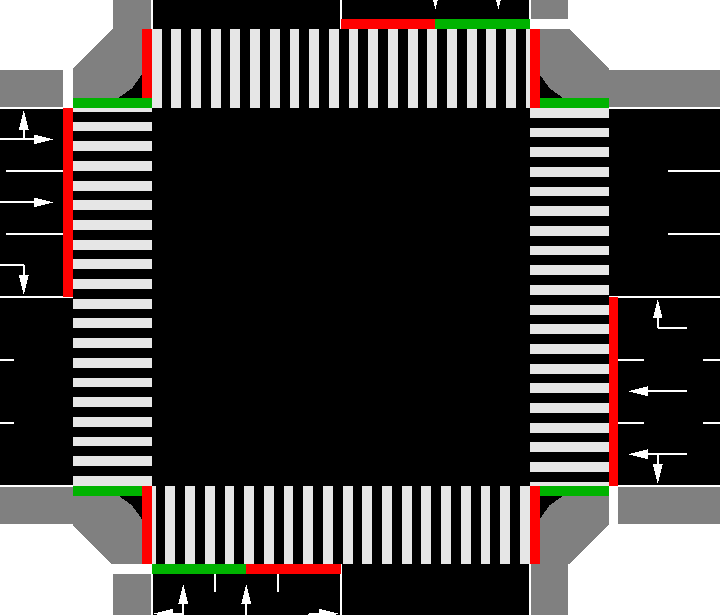

The only odd thing that I see in the visual of sumo-gui is that for the middle lane the green light goes until half of the width.
But the phases are shifting as planned.



I still do not understand what the warning means by tl-index 3, and could be missing there.
Is it just connections missing or something in the tl program?

Best regards,
José

On Fri, 24 Aug 2018 at 11:20, Jose Monreal Bailey <jmonreal@xxxxxxxxx> wrote:
Hi Jakob,

How can I see what is mismatched with the signal plan?
Should there be less letters in those phases?

Best regards,
Jose

On Fri, 24 Aug 2018 at 11:06, Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:
Yes. Most likely, the tls link indices were shifted due to the connection removal and now there is a mismatch with your custom signal plans. Visualize the indices in the old and patched network to figure this out: http://sumo.dlr.de/wiki/SUMO-GUI#Connectivity

2018-08-24 11:43 GMT+02:00 Jose Monreal Bailey <jmonreal@xxxxxxxxx>:
I have a question now regarding to the changes I made, I get the following warning for all of my Traffic Lights,

Warning: Missing green phase in tlLogic 'H6', program '1' for tl-index 3

would that be because of the straight lane removal?

Best regards,
José

On Fri, 24 Aug 2018 at 10:41, Jose Monreal Bailey <jmonreal@xxxxxxxxx> wrote:
I applied netconvert as suggested in the wiki and worked!
Thanks

On Fri, 24 Aug 2018 at 10:38, Jose Monreal Bailey <jmonreal@xxxxxxxxx> wrote:
Yes, I edited the .net.xml manually, removing the connections of the lane that was going straight and right. And just leaving it to got right, removing that connection entry.
Is there a simpler and faster way besides using netedit?

Best regards,
José

On Fri, 24 Aug 2018 at 10:31, Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:

2018-08-24 10:37 GMT+02:00 Jose Monreal Bailey <jmonreal@xxxxxxxxx>:
Hey everyone,

After removing the lane through in all the junctions, I am getting coredump when trying to load the scenario into sumo-gui.
I am attaching the files I have, any insights would be of great help.

Best regards,
José
