Re: [sumo-user] Left-hand network
|
Hello Jacob,
Thank you so much for providing me with the link and guiding me through.
I used the sumo in git repos : "Eclipse SUMO Version c310b0ad15"

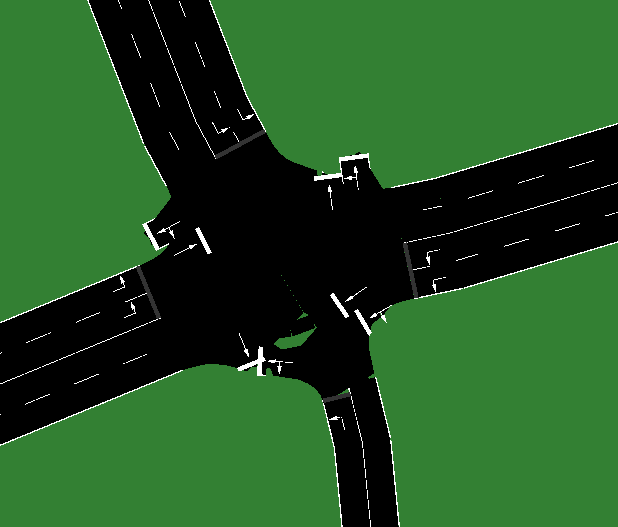

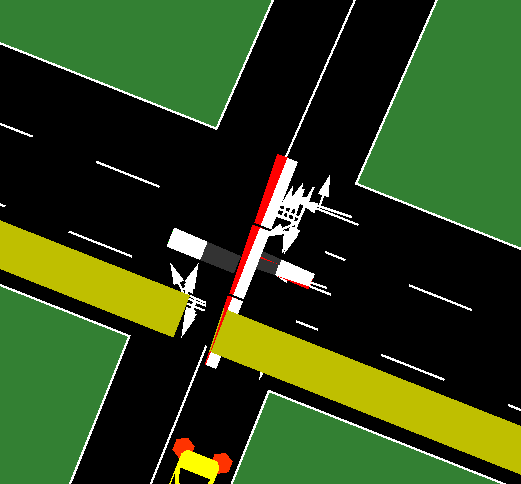

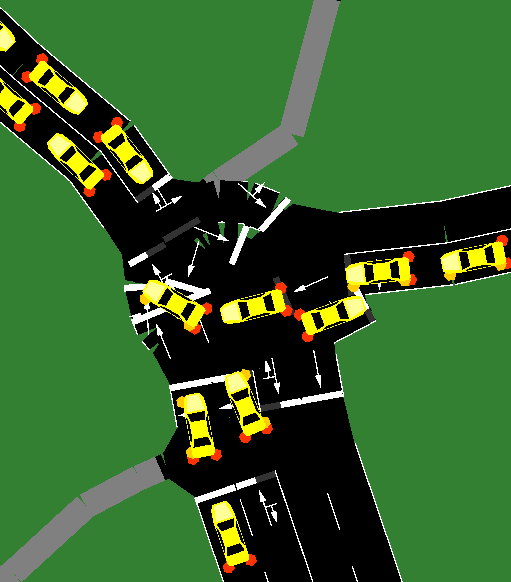

I found the streets much better, thanks once again, some wrong traffic lights which I guess can be because of wrong locations in OSM, but easy to fix with netedit, and very few wrong joints. I have attached three screenshots for your consideration.
Many thanksMohsen
On Wednesday, August 15, 2018, 9:16:00 PM GMT+12, mohsen hs <mohsenhs82@xxxxxxxxx> wrote:
Thank you Jacob. I am using 0.32, will try this option, dev version, and report the output.
Many thanksMohsen
Sent from Yahoo Mail on Android
On Wed, Aug 15, 2018 at 9:12 PM, Jakob Erdmann<namdre.sumo@xxxxxxxxx> wrote: try adding the --junctions.join option (see http://sumo.dlr.de/wiki/Networks/Import/OpenStreetMap#Recommended_NETCONVERT_Options)
Also, I strongly recommend upgrading to the latest development version as it contains a number of improvements in regard to joining junctions and computing their shape.
2018-08-15 11:06 GMT+02:00 mohsen hs <mohsenhs82@xxxxxxxxx>:
Thank you Jakob. Yes, I used that option, to be more precise, this is my commandnetconvert --osm-files map10_limitedWellington.osm --lefthand t --tls.guess-signals t --tls.set t --output.street-names t -o map10_limitedWellington.net. xml
On Tuesday, August 14, 2018, 9:05:34 PM GMT+12, Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:
did you set netconvert option --lefthand ?
2018-08-11 21:20 GMT+02:00 mohsen hs <mohsenhs82@xxxxxxxxx>:
Hello there,
Driving in my city is on the left hand and I noticed some issues with the network structure (e.g. Traffic light placements, junctions), and they are too much to be fixed manually, although I may do that as the last option. Is there any option to enhance the topology? I have used v32 for building the road network. Please see below some screenshots.
Many thanksMohsen

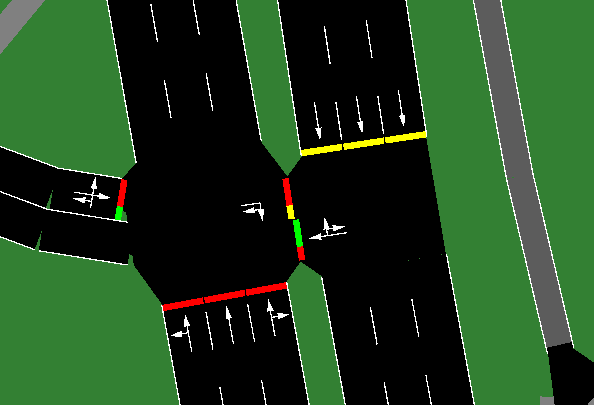

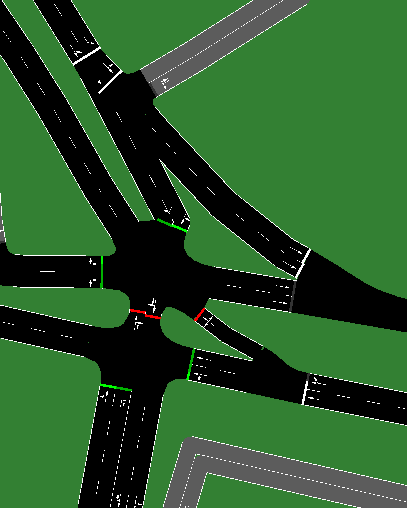

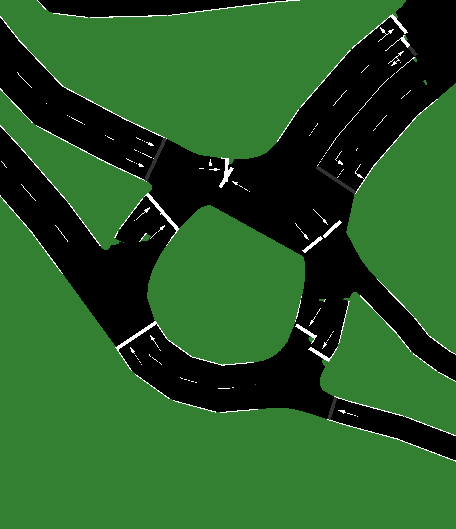

Screenshot1: Wrong traffic lightscreenshot2: wrong placement of traffic lightscreenshot3: wrong connection

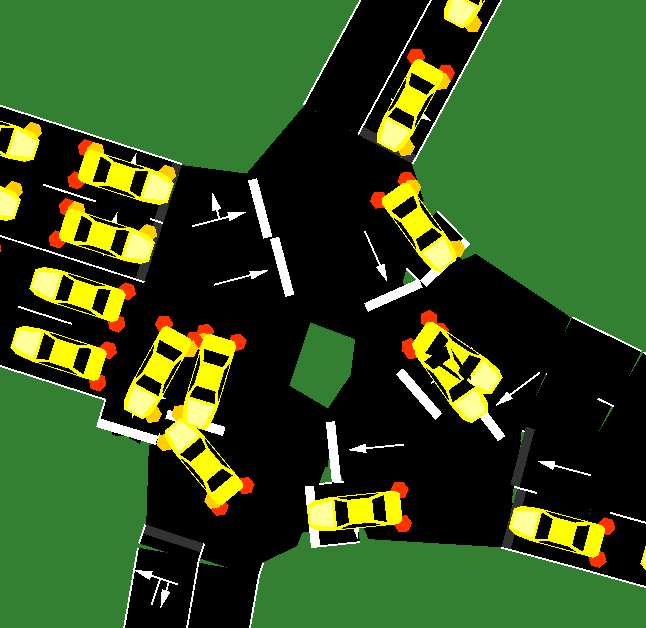

Screenshot4: Another wrong connection
