| Re: [sumo-user] couldChangeLane() error |

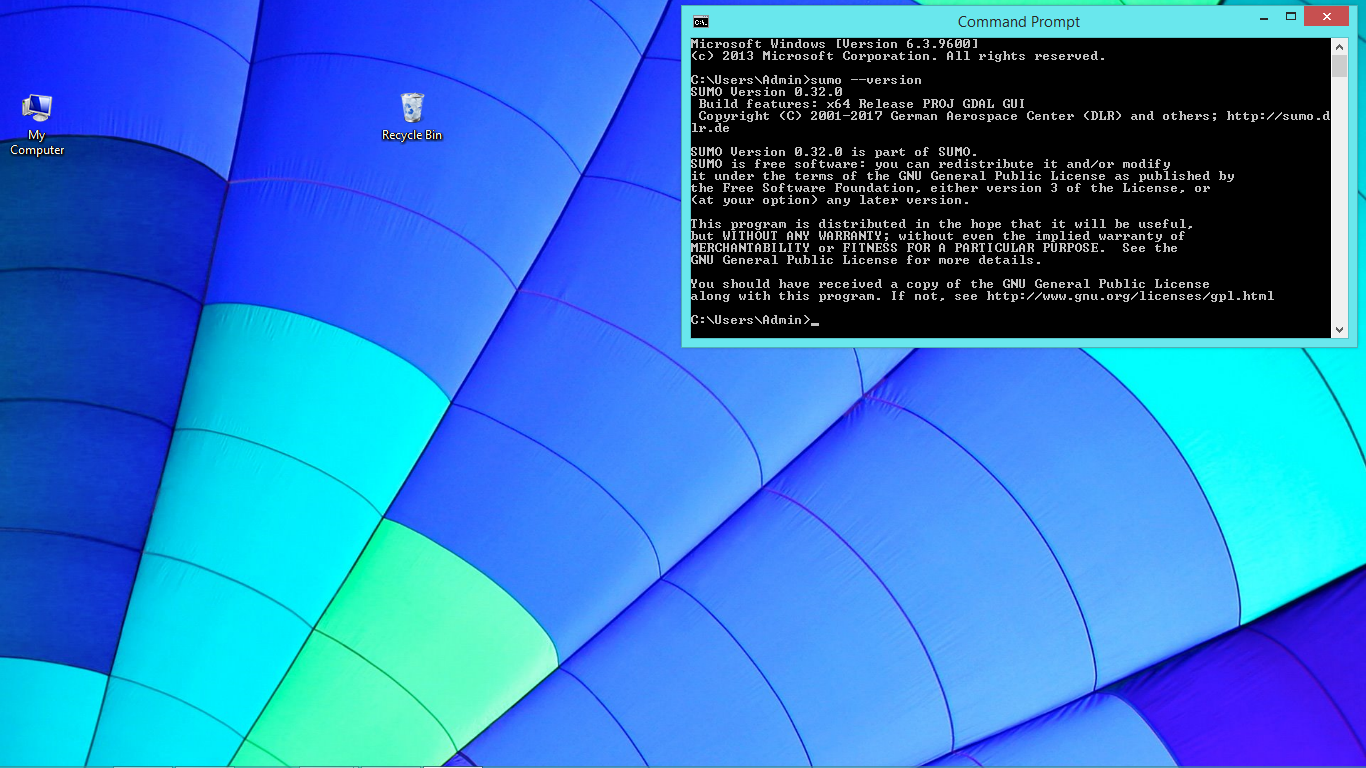

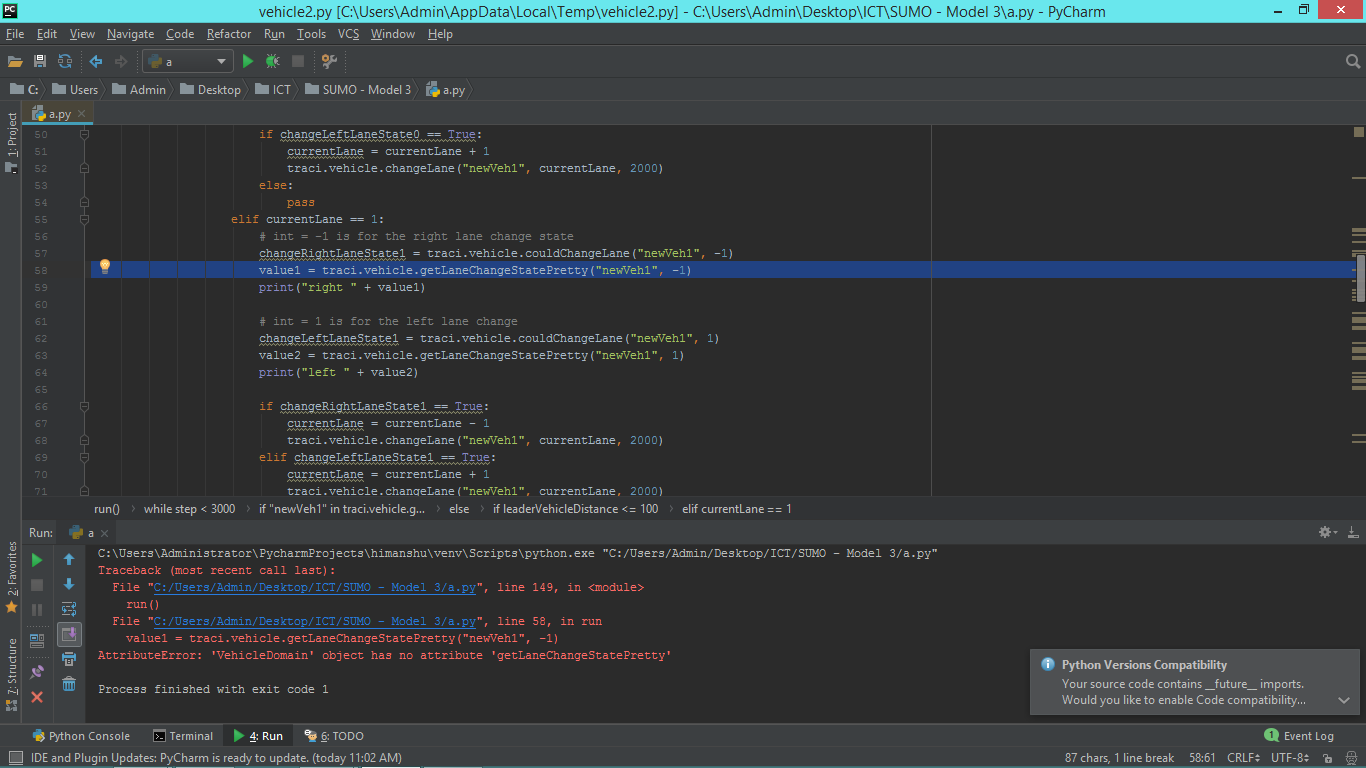

please select one situation from your simulation where the result of couldChangeLane does not match your expectationFor that situation, provide the following information:- the output of the calls getLaneChangeStatePretty(vehID, -1) and getLaneChangeStatePretty(vehID, 1)- a screenshot from sumo-gui centered on the vehicle with ~50m visible in all directionsAdditionally, please provide- the .sumocfg file- the .net.xml file- the output of the commandline call 'sumo --version'_______________________________________________2018-08-02 3:37 GMT+02:00 himanshu soni <himanshusoni1333@xxxxxxxxx>:Hello Jakob,Give me suggestions related to this!On Wed, Aug 1, 2018, 2:53 PM himanshu soni <himanshusoni1333@xxxxxxxxx> wrote:It doesn't help, using right-hand drive is giving me that error. Can you please go through the python code once. Corrected attachment is sent with this mail.RegardsOn Wed, Aug 1, 2018 at 2:27 AM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:The right of way rules are obviously different but apart from that, the largest difference is the lane numbering which you already encountered._______________________________________________2018-07-31 19:19 GMT+02:00 himanshu soni <himanshusoni1333@xxxxxxxxx>:Yes, it's left hand drive. Can you tell me what all things change in left hand drive?Thank youOn Tue, Jul 31, 2018, 10:28 PM Jakob Erdmann <namdre.sumo@xxxxxxxxx> wrote:Are you simulating left-hand traffic? In that case the lane numbering would be reversed._______________________________________________2018-07-31 18:03 GMT+02:00 himanshu soni <himanshusoni1333@xxxxxxxxx>:I don't understand why I'm getting the error in using the function couldChangeLane(), the error gets resolved when I define the right lane with value 1 and left with -1, but the converse is the true version of it.Help me understand if this is kind of logical error or something else.
_______________________________________________
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To change your delivery options, retrieve your password, or unsubscribe from this list, visit
https://dev.eclipse.org/mailman/listinfo/sumo-user
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To change your delivery options, retrieve your password, or unsubscribe from this list, visit
https://dev.eclipse.org/mailman/listinfo/sumo-user
_______________________________________________
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To change your delivery options, retrieve your password, or unsubscribe from this list, visit
https://dev.eclipse.org/mailman/listinfo/sumo-user
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To change your delivery options, retrieve your password, or unsubscribe from this list, visit
https://dev.eclipse.org/mailman/listinfo/sumo-user
_______________________________________________
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To change your delivery options, retrieve your password, or unsubscribe from this list, visit
https://dev.eclipse.org/mailman/listinfo/sumo-user
sumo-user mailing list
sumo-user@xxxxxxxxxxx
To change your delivery options, retrieve your password, or unsubscribe from this list, visit
https://dev.eclipse.org/mailman/listinfo/sumo-user
Attachment:
Screenshot (756).png
Description: PNG image
Attachment:
Screenshot (755).png
Description: PNG image
<additional>
<vType id="reroutingType" type="passenger" length="3.0" maxSpeed="80.0" color="1,0,0" sigma="0.5" guiShape="emergency">
<param key="has.rerouting.device" value="true"/>
</vType>
</additional>
Attachment:
config_file5.sumocfg
Description: application/sumo
Attachment:
Screenshot (754).png
Description: PNG image
<?xml version="1.0" encoding="UTF-8"?> <!-- generated on 25-07-2018 08:07:14 PM by Netedit Version 0.32.0 <?xml version="1.0" encoding="UTF-8"?> <configuration xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"; xsi:noNamespaceSchemaLocation="http://sumo.dlr.de/xsd/netconvertConfiguration.xsd";> <input> <sumo-net-file value="C:\Users\Admin\Desktop\ICT\SUMO6\net6.net.xml"/> </input> <output> <output-file value="C:\Users\Admin\Desktop\ICT\SUMO6\net6.net.xml"/> </output> <processing> <no-turnarounds value="true"/> <offset.disable-normalization value="true"/> <lefthand value="false"/> <junctions.corner-detail value="0"/> <rectangular-lane-cut value="false"/> <walkingareas value="false"/> </processing> </configuration> --> <net version="0.27" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"; xsi:noNamespaceSchemaLocation="http://sumo.dlr.de/xsd/net_file.xsd";> <location netOffset="0.00,0.00" convBoundary="-200.00,-2200.00,2400.01,400.00" origBoundary="-10000000000.00,-10000000000.00,10000000000.00,10000000000.00" projParameter="!"/> <edge id=":gneJ10_0" function="internal"> <lane id=":gneJ10_0_0" index="0" speed="50.00" length="28.29" shape="2401.65,85.35 2401.25,96.81 2400.05,105.00 2398.05,109.91 2395.25,111.55"/> </edge> <edge id=":gneJ10_1" function="internal"> <lane id=":gneJ10_1_0" index="0" speed="50.00" length="25.16" shape="2401.65,85.35 2401.25,95.37 2400.05,102.53 2398.05,106.82 2395.25,108.25"/> </edge> <edge id=":gneJ10_2" function="internal"> <lane id=":gneJ10_2_0" index="0" speed="50.00" length="22.07" shape="2401.65,85.35 2401.25,93.92 2400.05,100.05 2398.05,103.73 2395.25,104.95"/> </edge> <edge id=":gneJ10_3" function="internal"> <lane id=":gneJ10_3_0" index="0" speed="50.00" length="19.01" shape="2401.65,85.35 2401.25,92.48 2400.05,97.57 2398.05,100.63 2395.25,101.65"/> </edge> <edge id=":gneJ10_4" function="internal"> <lane id=":gneJ10_4_0" index="0" speed="50.00" length="5.00" shape="2395.25,88.45 2396.61,88.26 2397.57,87.68 2398.16,86.71 2398.35,85.35"/> </edge> <edge id=":gneJ11_0" function="internal"> <lane id=":gneJ11_0_0" index="0" speed="30.00" length="5.00" shape="2398.35,-1891.95 2398.16,-1893.31 2397.57,-1894.28 2396.61,-1894.86 2395.25,-1895.05"/> </edge> <edge id=":gneJ11_1" function="internal"> <lane id=":gneJ11_1_0" index="0" speed="30.00" length="7.85" shape="2398.35,-1891.95 2398.16,-1894.75 2397.57,-1896.75 2396.61,-1897.95 2395.25,-1898.35"/> </edge> <edge id=":gneJ11_2" function="internal"> <lane id=":gneJ11_2_0" index="0" speed="30.00" length="16.01" shape="2395.25,-1904.95 2398.05,-1904.14 2400.05,-1901.70 2401.25,-1897.64 2401.65,-1891.95"/> </edge> <edge id=":gneJ12_0" function="internal"> <lane id=":gneJ12_0_0" index="0" speed="50.00" length="5.00" shape="2091.75,-2195.25 2091.56,-2196.61 2090.97,-2197.57 2090.01,-2198.16 2088.65,-2198.35"/> </edge> <edge id=":gneJ12_1" function="internal"> <lane id=":gneJ12_1_0" index="0" speed="50.00" length="22.07" shape="2088.65,-2201.65 2097.23,-2201.25 2103.35,-2200.05 2107.03,-2198.05 2108.25,-2195.25"/> </edge> <edge id=":gneJ12_2" function="internal"> <lane id=":gneJ12_2_0" index="0" speed="50.00" length="19.01" shape="2088.65,-2201.65 2095.78,-2201.25 2100.88,-2200.05 2103.93,-2198.05 2104.95,-2195.25"/> </edge> <edge id=":gneJ12_3" function="internal"> <lane id=":gneJ12_3_0" index="0" speed="50.00" length="16.01" shape="2088.65,-2201.65 2094.34,-2201.25 2098.40,-2200.05 2100.84,-2198.05 2101.65,-2195.25"/> </edge> <edge id=":gneJ14_0" function="internal"> <lane id=":gneJ14_0_0" index="0" speed="60.00" length="22.07" shape="91.75,-2195.25 92.97,-2198.05 96.65,-2200.05 102.77,-2201.25 111.35,-2201.65"/> </edge> <edge id=":gneJ14_1" function="internal"> <lane id=":gneJ14_1_0" index="0" speed="60.00" length="5.00" shape="111.35,-2198.35 109.99,-2198.16 109.03,-2197.57 108.44,-2196.61 108.25,-2195.25"/> </edge> <edge id=":gneJ14_2" function="internal"> <lane id=":gneJ14_2_0" index="0" speed="60.00" length="7.85" shape="111.35,-2198.35 108.55,-2198.16 106.55,-2197.57 105.35,-2196.61 104.95,-2195.25"/> </edge> <edge id=":gneJ14_3" function="internal"> <lane id=":gneJ14_3_0" index="0" speed="60.00" length="10.88" shape="111.35,-2198.35 107.11,-2198.16 104.07,-2197.57 102.26,-2196.61 101.65,-2195.25"/> </edge> <edge id=":gneJ15_0" function="internal"> <lane id=":gneJ15_0_0" index="0" speed="50.00" length="16.01" shape="-201.65,-1891.95 -201.25,-1897.64 -200.05,-1901.70 -198.05,-1904.14 -195.25,-1904.95"/> </edge> <edge id=":gneJ15_1" function="internal"> <lane id=":gneJ15_1_0" index="0" speed="50.00" length="13.09" shape="-201.65,-1891.95 -201.25,-1896.19 -200.05,-1899.22 -198.05,-1901.04 -195.25,-1901.65"/> </edge> <edge id=":gneJ15_2" function="internal"> <lane id=":gneJ15_2_0" index="0" speed="50.00" length="5.00" shape="-195.25,-1895.05 -196.61,-1894.86 -197.58,-1894.27 -198.16,-1893.31 -198.35,-1891.95"/> </edge> <edge id=":gneJ16_0" function="internal"> <lane id=":gneJ16_0_0" index="0" speed="40.00" length="16.01" shape="-195.25,104.95 -198.05,104.14 -200.05,101.70 -201.25,97.64 -201.65,91.95"/> </edge> <edge id=":gneJ16_1" function="internal"> <lane id=":gneJ16_1_0" index="0" speed="40.00" length="5.00" shape="-198.35,91.95 -198.16,93.31 -197.57,94.28 -196.61,94.86 -195.25,95.05"/> </edge> <edge id=":gneJ16_2" function="internal"> <lane id=":gneJ16_2_0" index="0" speed="40.00" length="7.85" shape="-198.35,91.95 -198.16,94.75 -197.57,96.75 -196.61,97.95 -195.25,98.35"/> </edge> <edge id=":gneJ4_0" function="internal"> <lane id=":gneJ4_0_0" index="0" speed="50.00" length="10.88" shape="91.75,114.65 91.56,110.41 90.97,107.38 90.01,105.56 88.65,104.95"/> </edge> <edge id=":gneJ4_1" function="internal"> <lane id=":gneJ4_1_0" index="0" speed="70.00" length="29.30" shape="91.75,114.65 91.75,85.35"/> <lane id=":gneJ4_1_1" index="1" speed="70.00" length="29.30" shape="95.05,114.65 95.05,85.35"/> <lane id=":gneJ4_1_2" index="2" speed="70.00" length="29.30" shape="98.35,114.65 98.35,85.35"/> </edge> <edge id=":gneJ4_4" function="internal"> <lane id=":gneJ4_4_0" index="0" speed="90.00" length="9.23" shape="98.35,114.65 99.16,107.52 100.05,105.66"/> </edge> <edge id=":gneJ4_19" function="internal"> <lane id=":gneJ4_19_0" index="0" speed="90.00" length="14.45" shape="100.05,105.66 101.60,102.43 105.66,99.37 111.35,98.35"/> </edge> <edge id=":gneJ4_5" function="internal"> <lane id=":gneJ4_5_0" index="0" speed="90.00" length="5.00" shape="111.35,111.55 109.99,111.74 109.03,112.32 108.44,113.29 108.25,114.65"/> </edge> <edge id=":gneJ4_6" function="internal"> <lane id=":gneJ4_6_0" index="0" speed="80.00" length="23.89" shape="111.35,111.55 104.22,110.52 99.32,108.25 94.75,105.98 88.65,104.95"/> <lane id=":gneJ4_6_1" index="1" speed="80.00" length="23.89" shape="111.35,108.25 104.22,107.22 99.32,104.95 94.75,102.68 88.65,101.65"/> </edge> <edge id=":gneJ4_8" function="internal"> <lane id=":gneJ4_8_0" index="0" speed="100.00" length="6.91" shape="111.35,101.65 105.66,100.63 104.76,99.95"/> </edge> <edge id=":gneJ4_20" function="internal"> <lane id=":gneJ4_20_0" index="0" speed="100.00" length="16.77" shape="104.76,99.95 101.60,97.58 99.16,92.48 98.35,85.35"/> </edge> <edge id=":gneJ4_9" function="internal"> <lane id=":gneJ4_9_0" index="0" speed="100.00" length="5.00" shape="108.25,85.35 108.44,86.71 109.03,87.68 109.99,88.26 111.35,88.45"/> </edge> <edge id=":gneJ4_10" function="internal"> <lane id=":gneJ4_10_0" index="0" speed="70.00" length="29.30" shape="108.25,85.35 108.25,114.65"/> <lane id=":gneJ4_10_1" index="1" speed="70.00" length="29.30" shape="104.95,85.35 104.95,114.65"/> <lane id=":gneJ4_10_2" index="2" speed="70.00" length="29.30" shape="101.65,85.35 101.65,114.65"/> </edge> <edge id=":gneJ4_13" function="internal"> <lane id=":gneJ4_13_0" index="0" speed="60.00" length="9.23" shape="101.65,85.35 100.84,92.48 99.95,94.34"/> </edge> <edge id=":gneJ4_21" function="internal"> <lane id=":gneJ4_21_0" index="0" speed="60.00" length="14.45" shape="99.95,94.34 98.40,97.58 94.34,100.63 88.65,101.65"/> </edge> <edge id=":gneJ4_14" function="internal"> <lane id=":gneJ4_14_0" index="0" speed="60.00" length="10.88" shape="88.65,95.05 90.01,94.44 90.97,92.63 91.56,89.59 91.75,85.35"/> </edge> <edge id=":gneJ4_15" function="internal"> <lane id=":gneJ4_15_0" index="0" speed="80.00" length="22.90" shape="88.65,95.05 94.80,94.53 99.45,93.40 104.37,92.27 111.35,91.75"/> <lane id=":gneJ4_15_1" index="1" speed="80.00" length="22.90" shape="88.65,98.35 94.80,97.83 99.45,96.70 104.37,95.57 111.35,95.05"/> <lane id=":gneJ4_15_2" index="2" speed="80.00" length="22.90" shape="88.65,98.35 111.35,98.35"/> </edge> <edge id=":gneJ4_18" function="internal"> <lane id=":gneJ4_18_0" index="0" speed="50.00" length="11.27" shape="88.65,98.35 94.34,99.37 98.40,102.42 98.58,102.80"/> </edge> <edge id=":gneJ4_22" function="internal"> <lane id=":gneJ4_22_0" index="0" speed="50.00" length="12.41" shape="98.58,102.80 100.84,107.52 101.65,114.65"/> </edge> <edge id=":gneJ5_0" function="internal"> <lane id=":gneJ5_0_0" index="0" speed="80.00" length="7.85" shape="2095.05,114.65 2094.65,113.29 2093.45,112.32 2091.45,111.74 2088.65,111.55"/> </edge> <edge id=":gneJ5_1" function="internal"> <lane id=":gneJ5_1_0" index="0" speed="70.00" length="29.30" shape="2095.05,114.65 2095.05,85.35"/> <lane id=":gneJ5_1_1" index="1" speed="70.00" length="29.30" shape="2098.35,114.65 2098.35,85.35"/> </edge> <edge id=":gneJ5_3" function="internal"> <lane id=":gneJ5_3_0" index="0" speed="50.00" length="12.65" shape="2098.35,114.65 2099.16,107.52 2101.52,102.58"/> </edge> <edge id=":gneJ5_20" function="internal"> <lane id=":gneJ5_20_0" index="0" speed="50.00" length="11.04" shape="2101.52,102.58 2101.60,102.43 2105.66,99.37 2111.35,98.35"/> </edge> <edge id=":gneJ5_4" function="internal"> <lane id=":gneJ5_4_0" index="0" speed="50.00" length="7.85" shape="2111.35,111.55 2108.55,111.74 2106.55,112.32 2105.35,113.29 2104.95,114.65"/> </edge> <edge id=":gneJ5_5" function="internal"> <lane id=":gneJ5_5_0" index="0" speed="90.00" length="22.70" shape="2111.35,111.55 2088.65,111.55"/> <lane id=":gneJ5_5_1" index="1" speed="90.00" length="22.70" shape="2111.35,108.25 2088.65,108.25"/> <lane id=":gneJ5_5_2" index="2" speed="90.00" length="22.70" shape="2111.35,104.95 2088.65,104.95"/> <lane id=":gneJ5_5_3" index="3" speed="90.00" length="22.70" shape="2111.35,101.65 2088.65,101.65"/> </edge> <edge id=":gneJ5_9" function="internal"> <lane id=":gneJ5_9_0" index="0" speed="80.00" length="6.91" shape="2111.35,101.65 2105.66,100.63 2104.76,99.95"/> </edge> <edge id=":gneJ5_21" function="internal"> <lane id=":gneJ5_21_0" index="0" speed="80.00" length="16.77" shape="2104.76,99.95 2101.60,97.58 2099.16,92.48 2098.35,85.35"/> </edge> <edge id=":gneJ5_10" function="internal"> <lane id=":gneJ5_10_0" index="0" speed="80.00" length="5.00" shape="2108.25,85.35 2108.44,86.71 2109.03,87.67 2109.99,88.26 2111.35,88.45"/> </edge> <edge id=":gneJ5_11" function="internal"> <lane id=":gneJ5_11_0" index="0" speed="70.00" length="29.53" shape="2108.25,85.35 2107.73,94.74 2106.60,101.78 2105.47,107.93 2104.95,114.65"/> <lane id=":gneJ5_11_1" index="1" speed="70.00" length="29.53" shape="2104.95,85.35 2104.43,94.74 2103.30,101.78 2102.17,107.93 2101.65,114.65"/> </edge> <edge id=":gneJ5_13" function="internal"> <lane id=":gneJ5_13_0" index="0" speed="110.00" length="9.23" shape="2101.65,85.35 2100.84,92.48 2099.95,94.34"/> </edge> <edge id=":gneJ5_22" function="internal"> <lane id=":gneJ5_22_0" index="0" speed="110.00" length="14.45" shape="2099.95,94.34 2098.40,97.58 2094.34,100.63 2088.65,101.65"/> </edge> <edge id=":gneJ5_14" function="internal"> <lane id=":gneJ5_14_0" index="0" speed="110.00" length="5.00" shape="2088.65,88.45 2090.01,88.26 2090.97,87.68 2091.56,86.71 2091.75,85.35"/> </edge> <edge id=":gneJ5_15" function="internal"> <lane id=":gneJ5_15_0" index="0" speed="90.00" length="22.70" shape="2088.65,88.45 2111.35,88.45"/> <lane id=":gneJ5_15_1" index="1" speed="90.00" length="22.70" shape="2088.65,91.75 2111.35,91.75"/> <lane id=":gneJ5_15_2" index="2" speed="90.00" length="22.70" shape="2088.65,95.05 2111.35,95.05"/> <lane id=":gneJ5_15_3" index="3" speed="90.00" length="22.70" shape="2088.65,98.35 2111.35,98.35"/> </edge> <edge id=":gneJ5_19" function="internal"> <lane id=":gneJ5_19_0" index="0" speed="80.00" length="6.91" shape="2088.65,98.35 2094.34,99.37 2095.24,100.05"/> </edge> <edge id=":gneJ5_23" function="internal"> <lane id=":gneJ5_23_0" index="0" speed="80.00" length="16.77" shape="2095.24,100.05 2098.40,102.43 2100.84,107.52 2101.65,114.65"/> </edge> <edge id=":gneJ6_0" function="internal"> <lane id=":gneJ6_0_0" index="0" speed="80.00" length="5.00" shape="2091.75,-1891.95 2091.56,-1893.31 2090.97,-1894.28 2090.01,-1894.86 2088.65,-1895.05"/> </edge> <edge id=":gneJ6_1" function="internal"> <lane id=":gneJ6_1_0" index="0" speed="80.00" length="16.10" shape="2091.75,-1891.95 2091.75,-1908.05"/> <lane id=":gneJ6_1_1" index="1" speed="80.00" length="16.10" shape="2095.05,-1891.95 2095.05,-1908.05"/> <lane id=":gneJ6_1_2" index="2" speed="80.00" length="16.10" shape="2098.35,-1891.95 2098.35,-1908.05"/> </edge> <edge id=":gneJ6_4" function="internal"> <lane id=":gneJ6_4_0" index="0" speed="60.00" length="5.74" shape="2098.35,-1891.95 2099.16,-1896.19 2100.05,-1897.30"/> </edge> <edge id=":gneJ6_18" function="internal"> <lane id=":gneJ6_18_0" index="0" speed="60.00" length="12.64" shape="2100.05,-1897.30 2101.60,-1899.22 2105.66,-1901.04 2111.35,-1901.65"/> </edge> <edge id=":gneJ6_5" function="internal"> <lane id=":gneJ6_5_0" index="0" speed="60.00" length="5.00" shape="2111.35,-1895.05 2109.99,-1894.86 2109.03,-1894.27 2108.44,-1893.31 2108.25,-1891.95"/> </edge> <edge id=":gneJ6_6" function="internal"> <lane id=":gneJ6_6_0" index="0" speed="40.00" length="22.70" shape="2111.35,-1895.05 2088.65,-1895.05"/> <lane id=":gneJ6_6_1" index="1" speed="40.00" length="22.70" shape="2111.35,-1898.35 2088.65,-1898.35"/> </edge> <edge id=":gneJ6_8" function="internal"> <lane id=":gneJ6_8_0" index="0" speed="40.00" length="8.40" shape="2111.35,-1898.35 2105.66,-1898.96 2103.22,-1900.05"/> </edge> <edge id=":gneJ6_19" function="internal"> <lane id=":gneJ6_19_0" index="0" speed="40.00" length="9.99" shape="2103.22,-1900.05 2101.60,-1900.77 2099.16,-1903.81 2098.35,-1908.05"/> </edge> <edge id=":gneJ6_9" function="internal"> <lane id=":gneJ6_9_0" index="0" speed="40.00" length="5.00" shape="2108.25,-1908.05 2108.44,-1906.69 2109.03,-1905.72 2109.99,-1905.14 2111.35,-1904.95"/> </edge> <edge id=":gneJ6_10" function="internal"> <lane id=":gneJ6_10_0" index="0" speed="80.00" length="16.10" shape="2108.25,-1908.05 2108.25,-1891.95"/> <lane id=":gneJ6_10_1" index="1" speed="80.00" length="16.10" shape="2104.95,-1908.05 2104.95,-1891.95"/> <lane id=":gneJ6_10_2" index="2" speed="80.00" length="16.10" shape="2101.65,-1908.05 2101.65,-1891.95"/> </edge> <edge id=":gneJ6_13" function="internal"> <lane id=":gneJ6_13_0" index="0" speed="60.00" length="5.74" shape="2101.65,-1908.05 2100.84,-1903.81 2099.95,-1902.70"/> </edge> <edge id=":gneJ6_20" function="internal"> <lane id=":gneJ6_20_0" index="0" speed="60.00" length="12.64" shape="2099.95,-1902.70 2098.40,-1900.77 2094.34,-1898.96 2088.65,-1898.35"/> </edge> <edge id=":gneJ6_14" function="internal"> <lane id=":gneJ6_14_0" index="0" speed="60.00" length="5.00" shape="2088.65,-1904.95 2090.01,-1905.14 2090.97,-1905.72 2091.56,-1906.69 2091.75,-1908.05"/> </edge> <edge id=":gneJ6_15" function="internal"> <lane id=":gneJ6_15_0" index="0" speed="40.00" length="22.70" shape="2088.65,-1904.95 2111.35,-1904.95"/> <lane id=":gneJ6_15_1" index="1" speed="40.00" length="22.70" shape="2088.65,-1901.65 2111.35,-1901.65"/> </edge> <edge id=":gneJ6_17" function="internal"> <lane id=":gneJ6_17_0" index="0" speed="80.00" length="8.40" shape="2088.65,-1901.65 2094.34,-1901.04 2096.78,-1899.95"/> </edge> <edge id=":gneJ6_21" function="internal"> <lane id=":gneJ6_21_0" index="0" speed="80.00" length="9.98" shape="2096.78,-1899.95 2098.40,-1899.22 2100.84,-1896.19 2101.65,-1891.95"/> </edge> <edge id=":gneJ7_0" function="internal"> <lane id=":gneJ7_0_0" index="0" speed="70.00" length="5.00" shape="91.75,-1891.95 91.56,-1893.31 90.97,-1894.28 90.01,-1894.86 88.65,-1895.05"/> </edge> <edge id=":gneJ7_1" function="internal"> <lane id=":gneJ7_1_0" index="0" speed="80.00" length="16.10" shape="91.75,-1891.95 91.75,-1908.05"/> <lane id=":gneJ7_1_1" index="1" speed="80.00" length="16.10" shape="95.05,-1891.95 95.05,-1908.05"/> <lane id=":gneJ7_1_2" index="2" speed="80.00" length="16.10" shape="98.35,-1891.95 98.35,-1908.05"/> </edge> <edge id=":gneJ7_4" function="internal"> <lane id=":gneJ7_4_0" index="0" speed="70.00" length="5.74" shape="98.35,-1891.95 99.16,-1896.19 100.05,-1897.30"/> </edge> <edge id=":gneJ7_18" function="internal"> <lane id=":gneJ7_18_0" index="0" speed="70.00" length="12.64" shape="100.05,-1897.30 101.60,-1899.22 105.66,-1901.04 111.35,-1901.65"/> </edge> <edge id=":gneJ7_5" function="internal"> <lane id=":gneJ7_5_0" index="0" speed="70.00" length="5.00" shape="111.35,-1895.05 109.99,-1894.86 109.03,-1894.27 108.44,-1893.31 108.25,-1891.95"/> </edge> <edge id=":gneJ7_6" function="internal"> <lane id=":gneJ7_6_0" index="0" speed="60.00" length="22.70" shape="111.35,-1895.05 88.65,-1895.05"/> <lane id=":gneJ7_6_1" index="1" speed="60.00" length="22.70" shape="111.35,-1898.35 88.65,-1898.35"/> </edge> <edge id=":gneJ7_8" function="internal"> <lane id=":gneJ7_8_0" index="0" speed="70.00" length="8.40" shape="111.35,-1898.35 105.66,-1898.96 103.22,-1900.05"/> </edge> <edge id=":gneJ7_19" function="internal"> <lane id=":gneJ7_19_0" index="0" speed="70.00" length="9.98" shape="103.22,-1900.05 101.60,-1900.77 99.16,-1903.81 98.35,-1908.05"/> </edge> <edge id=":gneJ7_9" function="internal"> <lane id=":gneJ7_9_0" index="0" speed="70.00" length="5.00" shape="108.25,-1908.05 108.44,-1906.69 109.03,-1905.72 109.99,-1905.14 111.35,-1904.95"/> </edge> <edge id=":gneJ7_10" function="internal"> <lane id=":gneJ7_10_0" index="0" speed="80.00" length="16.10" shape="108.25,-1908.05 108.25,-1891.95"/> <lane id=":gneJ7_10_1" index="1" speed="80.00" length="16.10" shape="104.95,-1908.05 104.95,-1891.95"/> <lane id=":gneJ7_10_2" index="2" speed="80.00" length="16.10" shape="101.65,-1908.05 101.65,-1891.95"/> </edge> <edge id=":gneJ7_13" function="internal"> <lane id=":gneJ7_13_0" index="0" speed="70.00" length="5.74" shape="101.65,-1908.05 100.84,-1903.81 99.95,-1902.70"/> </edge> <edge id=":gneJ7_20" function="internal"> <lane id=":gneJ7_20_0" index="0" speed="70.00" length="12.64" shape="99.95,-1902.70 98.40,-1900.78 94.34,-1898.96 88.65,-1898.35"/> </edge> <edge id=":gneJ7_14" function="internal"> <lane id=":gneJ7_14_0" index="0" speed="70.00" length="5.00" shape="88.65,-1904.95 90.01,-1905.14 90.97,-1905.73 91.56,-1906.69 91.75,-1908.05"/> </edge> <edge id=":gneJ7_15" function="internal"> <lane id=":gneJ7_15_0" index="0" speed="60.00" length="22.70" shape="88.65,-1904.95 111.35,-1904.95"/> <lane id=":gneJ7_15_1" index="1" speed="60.00" length="22.70" shape="88.65,-1901.65 111.35,-1901.65"/> </edge> <edge id=":gneJ7_17" function="internal"> <lane id=":gneJ7_17_0" index="0" speed="70.00" length="8.40" shape="88.65,-1901.65 94.34,-1901.04 96.78,-1899.95"/> </edge> <edge id=":gneJ7_21" function="internal"> <lane id=":gneJ7_21_0" index="0" speed="70.00" length="9.98" shape="96.78,-1899.95 98.40,-1899.23 100.84,-1896.19 101.65,-1891.95"/> </edge> <edge id=":gneJ8_0" function="internal"> <lane id=":gneJ8_0_0" index="0" speed="50.00" length="22.07" shape="111.35,401.65 102.78,401.25 96.65,400.05 92.97,398.05 91.75,395.25"/> </edge> <edge id=":gneJ8_1" function="internal"> <lane id=":gneJ8_1_0" index="0" speed="50.00" length="19.01" shape="111.35,401.65 104.22,401.25 99.13,400.05 96.07,398.05 95.05,395.25"/> </edge> <edge id=":gneJ8_2" function="internal"> <lane id=":gneJ8_2_0" index="0" speed="50.00" length="16.01" shape="111.35,401.65 105.66,401.25 101.60,400.05 99.16,398.05 98.35,395.25"/> </edge> <edge id=":gneJ8_3" function="internal"> <lane id=":gneJ8_3_0" index="0" speed="50.00" length="5.00" shape="108.25,395.25 108.44,396.61 109.03,397.58 109.99,398.16 111.35,398.35"/> </edge> <edge id=":gneJ9_0" function="internal"> <lane id=":gneJ9_0_0" index="0" speed="40.00" length="16.01" shape="2104.95,395.25 2104.14,398.05 2101.70,400.05 2097.64,401.25 2091.95,401.65"/> </edge> <edge id=":gneJ9_1" function="internal"> <lane id=":gneJ9_1_0" index="0" speed="40.00" length="5.00" shape="2091.95,398.35 2093.31,398.16 2094.28,397.58 2094.86,396.61 2095.05,395.25"/> </edge> <edge id=":gneJ9_2" function="internal"> <lane id=":gneJ9_2_0" index="0" speed="40.00" length="7.85" shape="2091.95,398.35 2094.75,398.16 2096.75,397.58 2097.95,396.61 2098.35,395.25"/> </edge> <edge id="-gneE10" from="gneJ5" to="gneJ9" priority="1"> <lane id="-gneE10_0" index="0" speed="40.00" length="280.60" shape="2104.95,114.65 2104.95,395.25"/> <lane id="-gneE10_1" index="1" speed="40.00" length="280.60" shape="2101.65,114.65 2101.65,395.25"/> </edge> <edge id="-gneE11" from="gneJ10" to="gneJ5" priority="1"> <lane id="-gneE11_0" index="0" speed="60.00" length="283.90" shape="2395.25,111.55 2111.35,111.55"/> <lane id="-gneE11_1" index="1" speed="60.00" length="283.90" shape="2395.25,108.25 2111.35,108.25"/> <lane id="-gneE11_2" index="2" speed="60.00" length="283.90" shape="2395.25,104.95 2111.35,104.95"/> <lane id="-gneE11_3" index="3" speed="60.00" length="283.90" shape="2395.25,101.65 2111.35,101.65"/> </edge> <edge id="-gneE12" from="gneJ11" to="gneJ10" priority="1"> <lane id="-gneE12_0" index="0" speed="40.00" length="1977.30" shape="2401.65,-1891.95 2401.65,85.35"/> </edge> <edge id="-gneE13" from="gneJ6" to="gneJ11" priority="1" spreadType="center" shape="2099.96,-1903.30 2400.00,-1903.30"> <lane id="-gneE13_0" index="0" speed="20.00" length="283.90" shape="2111.35,-1904.95 2395.25,-1904.95"/> <lane id="-gneE13_1" index="1" speed="20.00" length="283.90" shape="2111.35,-1901.65 2395.25,-1901.65"/> </edge> <edge id="-gneE14" from="gneJ12" to="gneJ6" priority="1"> <lane id="-gneE14_0" index="0" speed="60.00" length="287.20" shape="2108.25,-2195.25 2108.25,-1908.05"/> <lane id="-gneE14_1" index="1" speed="60.00" length="287.20" shape="2104.95,-2195.25 2104.95,-1908.05"/> <lane id="-gneE14_2" index="2" speed="60.00" length="287.20" shape="2101.65,-2195.25 2101.65,-1908.05"/> </edge> <edge id="-gneE15" from="gneJ14" to="gneJ12" priority="1"> <lane id="-gneE15_0" index="0" speed="40.00" length="1977.30" shape="111.35,-2201.65 2088.65,-2201.65"/> </edge> <edge id="-gneE17" from="gneJ7" to="gneJ14" priority="1"> <lane id="-gneE17_0" index="0" speed="80.00" length="287.20" shape="91.75,-1908.05 91.75,-2195.25"/> <lane id="-gneE17_1" index="1" speed="80.00" length="287.20" shape="95.05,-1908.05 95.05,-2195.25"/> <lane id="-gneE17_2" index="2" speed="80.00" length="287.20" shape="98.35,-1908.05 98.35,-2195.25"/> </edge> <edge id="-gneE18" from="gneJ15" to="gneJ7" priority="1"> <lane id="-gneE18_0" index="0" speed="60.00" length="283.90" shape="-195.25,-1904.95 88.65,-1904.95"/> <lane id="-gneE18_1" index="1" speed="60.00" length="283.90" shape="-195.25,-1901.65 88.65,-1901.65"/> </edge> <edge id="-gneE19" from="gneJ16" to="gneJ15" priority="1"> <lane id="-gneE19_0" index="0" speed="40.00" length="1983.90" shape="-201.65,91.95 -201.65,-1891.95"/> </edge> <edge id="-gneE20" from="gneJ4" to="gneJ16" priority="1"> <lane id="-gneE20_0" index="0" speed="40.00" length="283.90" shape="88.65,104.95 -195.25,104.95"/> <lane id="-gneE20_1" index="1" speed="40.00" length="283.90" shape="88.65,101.65 -195.25,101.65"/> </edge> <edge id="-gneE4" from="gneJ5" to="gneJ4" priority="1"> <lane id="-gneE4_0" index="0" speed="120.00" length="1977.30" shape="2088.65,111.55 111.35,111.55"/> <lane id="-gneE4_1" index="1" speed="120.00" length="1977.30" shape="2088.65,108.25 111.35,108.25"/> <lane id="-gneE4_2" index="2" speed="120.00" length="1977.30" shape="2088.65,104.95 111.35,104.95"/> <lane id="-gneE4_3" index="3" speed="120.00" length="1977.30" shape="2088.65,101.65 111.35,101.65"/> </edge> <edge id="-gneE5" from="gneJ6" to="gneJ5" priority="1"> <lane id="-gneE5_0" index="0" speed="100.00" length="1977.30" shape="2108.25,-1891.95 2108.25,85.35"/> <lane id="-gneE5_1" index="1" speed="100.00" length="1977.30" shape="2104.95,-1891.95 2104.95,85.35"/> <lane id="-gneE5_2" index="2" speed="100.00" length="1977.30" shape="2101.65,-1891.95 2101.65,85.35"/> </edge> <edge id="-gneE6" from="gneJ7" to="gneJ6" priority="1" spreadType="center" shape="99.99,-1903.30 2100.00,-1903.30"> <lane id="-gneE6_0" index="0" speed="60.00" length="1977.30" shape="111.35,-1904.95 2088.65,-1904.95"/> <lane id="-gneE6_1" index="1" speed="60.00" length="1977.30" shape="111.35,-1901.65 2088.65,-1901.65"/> </edge> <edge id="-gneE7" from="gneJ4" to="gneJ7" priority="1"> <lane id="-gneE7_0" index="0" speed="80.00" length="1977.30" shape="91.75,85.35 91.75,-1891.95"/> <lane id="-gneE7_1" index="1" speed="80.00" length="1977.30" shape="95.05,85.35 95.05,-1891.95"/> <lane id="-gneE7_2" index="2" speed="80.00" length="1977.30" shape="98.35,85.35 98.35,-1891.95"/> </edge> <edge id="-gneE8" from="gneJ8" to="gneJ4" priority="1"> <lane id="-gneE8_0" index="0" speed="60.00" length="280.60" shape="91.75,395.25 91.75,114.65"/> <lane id="-gneE8_1" index="1" speed="60.00" length="280.60" shape="95.05,395.25 95.05,114.65"/> <lane id="-gneE8_2" index="2" speed="60.00" length="280.60" shape="98.35,395.25 98.35,114.65"/> </edge> <edge id="-gneE9" from="gneJ9" to="gneJ8" priority="1"> <lane id="-gneE9_0" index="0" speed="40.00" length="1980.60" shape="2091.95,401.65 111.35,401.65"/> </edge> <edge id="gneE10" from="gneJ9" to="gneJ5" priority="1"> <lane id="gneE10_0" index="0" speed="40.00" length="280.60" shape="2095.05,395.25 2095.05,114.65"/> <lane id="gneE10_1" index="1" speed="40.00" length="280.60" shape="2098.35,395.25 2098.35,114.65"/> </edge> <edge id="gneE11" from="gneJ5" to="gneJ10" priority="1" spreadType="center" shape="2099.97,93.40 2400.01,93.40"> <lane id="gneE11_0" index="0" speed="60.00" length="283.90" shape="2111.35,88.45 2395.25,88.45"/> <lane id="gneE11_1" index="1" speed="60.00" length="283.90" shape="2111.35,91.75 2395.25,91.75"/> <lane id="gneE11_2" index="2" speed="60.00" length="283.90" shape="2111.35,95.05 2395.25,95.05"/> <lane id="gneE11_3" index="3" speed="60.00" length="283.90" shape="2111.35,98.35 2395.25,98.35"/> </edge> <edge id="gneE12" from="gneJ10" to="gneJ11" priority="1"> <lane id="gneE12_0" index="0" speed="40.00" length="1977.30" shape="2398.35,85.35 2398.35,-1891.95"/> </edge> <edge id="gneE13" from="gneJ11" to="gneJ6" priority="1"> <lane id="gneE13_0" index="0" speed="20.00" length="283.90" shape="2395.25,-1895.05 2111.35,-1895.05"/> <lane id="gneE13_1" index="1" speed="20.00" length="283.90" shape="2395.25,-1898.35 2111.35,-1898.35"/> </edge> <edge id="gneE14" from="gneJ6" to="gneJ12" priority="1"> <lane id="gneE14_0" index="0" speed="60.00" length="287.20" shape="2091.75,-1908.05 2091.75,-2195.25"/> <lane id="gneE14_1" index="1" speed="60.00" length="287.20" shape="2095.05,-1908.05 2095.05,-2195.25"/> <lane id="gneE14_2" index="2" speed="60.00" length="287.20" shape="2098.35,-1908.05 2098.35,-2195.25"/> </edge> <edge id="gneE15" from="gneJ12" to="gneJ14" priority="1"> <lane id="gneE15_0" index="0" speed="40.00" length="1977.30" shape="2088.65,-2198.35 111.35,-2198.35"/> </edge> <edge id="gneE17" from="gneJ14" to="gneJ7" priority="1"> <lane id="gneE17_0" index="0" speed="80.00" length="287.20" shape="108.25,-2195.25 108.25,-1908.05"/> <lane id="gneE17_1" index="1" speed="80.00" length="287.20" shape="104.95,-2195.25 104.95,-1908.05"/> <lane id="gneE17_2" index="2" speed="80.00" length="287.20" shape="101.65,-2195.25 101.65,-1908.05"/> </edge> <edge id="gneE18" from="gneJ7" to="gneJ15" priority="1"> <lane id="gneE18_0" index="0" speed="60.00" length="283.90" shape="88.65,-1895.05 -195.25,-1895.05"/> <lane id="gneE18_1" index="1" speed="60.00" length="283.90" shape="88.65,-1898.35 -195.25,-1898.35"/> </edge> <edge id="gneE19" from="gneJ15" to="gneJ16" priority="1"> <lane id="gneE19_0" index="0" speed="40.00" length="1983.90" shape="-198.35,-1891.95 -198.35,91.95"/> </edge> <edge id="gneE20" from="gneJ16" to="gneJ4" priority="1"> <lane id="gneE20_0" index="0" speed="40.00" length="283.90" shape="-195.25,95.05 88.65,95.05"/> <lane id="gneE20_1" index="1" speed="40.00" length="283.90" shape="-195.25,98.35 88.65,98.35"/> </edge> <edge id="gneE4" from="gneJ4" to="gneJ5" priority="1" spreadType="center" shape="100.00,93.40 2100.02,93.40"> <lane id="gneE4_0" index="0" speed="120.00" length="1977.30" shape="111.35,88.45 2088.65,88.45"/> <lane id="gneE4_1" index="1" speed="120.00" length="1977.30" shape="111.35,91.75 2088.65,91.75"/> <lane id="gneE4_2" index="2" speed="120.00" length="1977.30" shape="111.35,95.05 2088.65,95.05"/> <lane id="gneE4_3" index="3" speed="120.00" length="1977.30" shape="111.35,98.35 2088.65,98.35"/> </edge> <edge id="gneE5" from="gneJ5" to="gneJ6" priority="1"> <lane id="gneE5_0" index="0" speed="100.00" length="1977.30" shape="2091.75,85.35 2091.75,-1891.95"/> <lane id="gneE5_1" index="1" speed="100.00" length="1977.30" shape="2095.05,85.35 2095.05,-1891.95"/> <lane id="gneE5_2" index="2" speed="100.00" length="1977.30" shape="2098.35,85.35 2098.35,-1891.95"/> </edge> <edge id="gneE6" from="gneJ6" to="gneJ7" priority="1"> <lane id="gneE6_0" index="0" speed="60.00" length="1977.30" shape="2088.65,-1895.05 111.35,-1895.05"/> <lane id="gneE6_1" index="1" speed="60.00" length="1977.30" shape="2088.65,-1898.35 111.35,-1898.35"/> </edge> <edge id="gneE7" from="gneJ7" to="gneJ4" priority="1"> <lane id="gneE7_0" index="0" speed="80.00" length="1977.30" shape="108.25,-1891.95 108.25,85.35"/> <lane id="gneE7_1" index="1" speed="80.00" length="1977.30" shape="104.95,-1891.95 104.95,85.35"/> <lane id="gneE7_2" index="2" speed="80.00" length="1977.30" shape="101.65,-1891.95 101.65,85.35"/> </edge> <edge id="gneE8" from="gneJ4" to="gneJ8" priority="1"> <lane id="gneE8_0" index="0" speed="60.00" length="280.60" shape="108.25,114.65 108.25,395.25"/> <lane id="gneE8_1" index="1" speed="60.00" length="280.60" shape="104.95,114.65 104.95,395.25"/> <lane id="gneE8_2" index="2" speed="60.00" length="280.60" shape="101.65,114.65 101.65,395.25"/> </edge> <edge id="gneE9" from="gneJ8" to="gneJ9" priority="1"> <lane id="gneE9_0" index="0" speed="40.00" length="1980.60" shape="111.35,398.35 2091.95,398.35"/> </edge> <tlLogic id="gneJ14" type="static" programID="0" offset="0"> <phase duration="42" state="GGGG"/> <phase duration="3" state="yyyy"/> <phase duration="42" state="GGGG"/> <phase duration="3" state="yyyy"/> </tlLogic> <tlLogic id="gneJ4" type="static" programID="0" offset="0"> <phase duration="31" state="rrrrrGGGgrrrrrGGGGg"/> <phase duration="21" state="rrrrryyygrrrrryyyyg"/> <phase duration="6" state="rrrrrrrrGrrrrrrrrrG"/> <phase duration="21" state="rrrrrrrryrrrrrrrrry"/> <phase duration="31" state="GGGGgrrrrGGGGgrrrrr"/> <phase duration="21" state="yyyygrrrryyyygrrrrr"/> <phase duration="6" state="rrrrGrrrrrrrrGrrrrr"/> <phase duration="21" state="rrrryrrrrrrrryrrrrr"/> </tlLogic> <tlLogic id="gneJ5" type="static" programID="0" offset="0"> <phase duration="31" state="rrrrGGGGGgrrrrGGGGGg"/> <phase duration="21" state="rrrryyyyygrrrryyyyyg"/> <phase duration="6" state="rrrrrrrrrGrrrrrrrrrG"/> <phase duration="21" state="rrrrrrrrryrrrrrrrrry"/> <phase duration="31" state="GGGgrrrrrrGGGgrrrrrr"/> <phase duration="21" state="yyygrrrrrryyygrrrrrr"/> <phase duration="6" state="rrrGrrrrrrrrrGrrrrrr"/> <phase duration="21" state="rrryrrrrrrrrryrrrrrr"/> </tlLogic> <tlLogic id="gneJ6" type="static" programID="1" offset="0"> <phase duration="31" state="GGGGgrrrrGGGGgrrrr"/> <phase duration="18" state="yyyygrrrryyyygrrrr"/> <phase duration="6" state="rrrrGrrrrrrrrGrrrr"/> <phase duration="18" state="rrrryrrrrrrrryrrrr"/> <phase duration="31" state="rrrrrGGGgrrrrrGGGg"/> <phase duration="18" state="rrrrryyygrrrrryyyg"/> <phase duration="6" state="rrrrrrrrGrrrrrrrrG"/> <phase duration="18" state="rrrrrrrryrrrrrrrry"/> </tlLogic> <tlLogic id="gneJ7" type="static" programID="0" offset="0"> <phase duration="9" state="GGGGgrrrrGGGGgrrrr"/> <phase duration="15" state="yyyygrrrryyyygrrrr"/> <phase duration="6" state="rrrrGrrrrrrrrGrrrr"/> <phase duration="15" state="rrrryrrrrrrrryrrrr"/> <phase duration="9" state="rrrrrGGGgrrrrrGGGg"/> <phase duration="15" state="rrrrryyygrrrrryyyg"/> <phase duration="6" state="rrrrrrrrGrrrrrrrrG"/> <phase duration="15" state="rrrrrrrryrrrrrrrry"/> </tlLogic> <junction id="gneJ10" type="priority" x="2400.00" y="100.00" incLanes="-gneE12_0 gneE11_0 gneE11_1 gneE11_2 gneE11_3" intLanes=":gneJ10_0_0 :gneJ10_1_0 :gneJ10_2_0 :gneJ10_3_0 :gneJ10_4_0" shape="2403.25,85.35 2396.75,85.35 2395.25,86.85 2395.25,113.15"> <request index="0" response="00000" foes="00000" cont="0"/> <request index="1" response="00000" foes="00000" cont="0"/> <request index="2" response="00000" foes="00000" cont="0"/> <request index="3" response="00000" foes="00000" cont="0"/> <request index="4" response="00000" foes="00000" cont="0"/> </junction> <junction id="gneJ11" type="priority" x="2400.00" y="-1900.00" incLanes="gneE12_0 -gneE13_0 -gneE13_1" intLanes=":gneJ11_0_0 :gneJ11_1_0 :gneJ11_2_0" shape="2396.75,-1891.95 2403.25,-1891.95 2395.25,-1906.55 2395.25,-1893.45"> <request index="0" response="000" foes="000" cont="0"/> <request index="1" response="000" foes="000" cont="0"/> <request index="2" response="000" foes="000" cont="0"/> </junction> <junction id="gneJ12" type="priority" x="2100.00" y="-2200.00" incLanes="gneE14_0 gneE14_1 gneE14_2 -gneE15_0" intLanes=":gneJ12_0_0 :gneJ12_1_0 :gneJ12_2_0 :gneJ12_3_0" shape="2090.15,-2195.25 2109.85,-2195.25 2088.65,-2203.25 2088.65,-2196.75"> <request index="0" response="0000" foes="0000" cont="0"/> <request index="1" response="0000" foes="0000" cont="0"/> <request index="2" response="0000" foes="0000" cont="0"/> <request index="3" response="0000" foes="0000" cont="0"/> </junction> <junction id="gneJ14" type="traffic_light" x="100.00" y="-2200.00" incLanes="-gneE17_0 -gneE17_1 -gneE17_2 gneE15_0" intLanes=":gneJ14_0_0 :gneJ14_1_0 :gneJ14_2_0 :gneJ14_3_0" shape="90.15,-2195.25 109.85,-2195.25 111.35,-2196.75 111.35,-2203.25"> <request index="0" response="0000" foes="0000" cont="0"/> <request index="1" response="0000" foes="0000" cont="0"/> <request index="2" response="0000" foes="0000" cont="0"/> <request index="3" response="0000" foes="0000" cont="0"/> </junction> <junction id="gneJ15" type="priority" x="-200.00" y="-1900.00" incLanes="-gneE19_0 gneE18_0 gneE18_1" intLanes=":gneJ15_0_0 :gneJ15_1_0 :gneJ15_2_0" shape="-203.25,-1891.95 -196.75,-1891.95 -195.25,-1893.45 -195.25,-1906.55"> <request index="0" response="000" foes="000" cont="0"/> <request index="1" response="000" foes="000" cont="0"/> <request index="2" response="000" foes="000" cont="0"/> </junction> <junction id="gneJ16" type="priority" x="-200.00" y="100.00" incLanes="-gneE20_0 -gneE20_1 gneE19_0" intLanes=":gneJ16_0_0 :gneJ16_1_0 :gneJ16_2_0" shape="-195.25,106.55 -195.25,93.45 -196.75,91.95 -203.25,91.95"> <request index="0" response="000" foes="000" cont="0"/> <request index="1" response="000" foes="000" cont="0"/> <request index="2" response="000" foes="000" cont="0"/> </junction> <junction id="gneJ4" type="traffic_light" x="100.00" y="100.00" incLanes="-gneE8_0 -gneE8_1 -gneE8_2 -gneE4_0 -gneE4_1 -gneE4_2 -gneE4_3 gneE7_0 gneE7_1 gneE7_2 gneE20_0 gneE20_1" intLanes=":gneJ4_0_0 :gneJ4_1_0 :gneJ4_1_1 :gneJ4_1_2 :gneJ4_19_0 :gneJ4_5_0 :gneJ4_6_0 :gneJ4_6_1 :gneJ4_20_0 :gneJ4_9_0 :gneJ4_10_0 :gneJ4_10_1 :gneJ4_10_2 :gneJ4_21_0 :gneJ4_14_0 :gneJ4_15_0 :gneJ4_15_1 :gneJ4_15_2 :gneJ4_22_0" shape="90.15,114.65 109.85,114.65 111.35,113.15 111.35,86.85 109.85,85.35 90.15,85.35 88.65,93.45 88.65,106.55"> <request index="0" response="0000000000011000000" foes="0000010000011000000" cont="0"/> <request index="1" response="1111100000111000000" foes="1111110000111000000" cont="0"/> <request index="2" response="1111100000111000000" foes="1111110000111000000" cont="0"/> <request index="3" response="1111100000111000000" foes="1111110000111000000" cont="0"/> <request index="4" response="1111001111111000000" foes="1111001111111000000" cont="1"/> <request index="5" response="0000000000000000000" foes="1000001110000000000" cont="0"/> <request index="6" response="0000000000000000000" foes="1000011110000011111" cont="0"/> <request index="7" response="0000000000000000000" foes="1000011110000011111" cont="0"/> <request index="8" response="0111100000000000000" foes="0111111110000011110" cont="1"/> <request index="9" response="0111000000000000000" foes="0111000000000010000" cont="0"/> <request index="10" response="1111000000111100000" foes="1111000000111110000" cont="0"/> <request index="11" response="1111000000111100000" foes="1111000000111110000" cont="0"/> <request index="12" response="1111000000111100000" foes="1111000000111110000" cont="0"/> <request index="13" response="1111000000111001111" foes="1111000000111001111" cont="1"/> <request index="14" response="0000000000000000000" foes="0000000000100001110" cont="0"/> <request index="15" response="0000000000000000000" foes="0000011111100011110" cont="0"/> <request index="16" response="0000000000000000000" foes="0000011111100011110" cont="0"/> <request index="17" response="0000000000000000000" foes="0000011111100011110" cont="0"/> <request index="18" response="0000000000011100000" foes="0000011110011111110" cont="1"/> </junction> <junction id="gneJ5" type="traffic_light" x="2100.00" y="100.00" incLanes="gneE10_0 gneE10_1 -gneE11_0 -gneE11_1 -gneE11_2 -gneE11_3 -gneE5_0 -gneE5_1 -gneE5_2 gneE4_0 gneE4_1 gneE4_2 gneE4_3" intLanes=":gneJ5_0_0 :gneJ5_1_0 :gneJ5_1_1 :gneJ5_20_0 :gneJ5_4_0 :gneJ5_5_0 :gneJ5_5_1 :gneJ5_5_2 :gneJ5_5_3 :gneJ5_21_0 :gneJ5_10_0 :gneJ5_11_0 :gneJ5_11_1 :gneJ5_22_0 :gneJ5_14_0 :gneJ5_15_0 :gneJ5_15_1 :gneJ5_15_2 :gneJ5_15_3 :gneJ5_23_0" shape="2093.45,114.65 2106.55,114.65 2111.35,113.15 2111.35,86.85 2109.85,85.35 2090.15,85.35 2088.65,86.85 2088.65,113.15"> <request index="0" response="00000000000111100000" foes="00000010000111100000" cont="0"/> <request index="1" response="11111100001111100000" foes="11111110001111100000" cont="0"/> <request index="2" response="11111100001111100000" foes="11111110001111100000" cont="0"/> <request index="3" response="11111001111111100000" foes="11111001111111100000" cont="1"/> <request index="4" response="00000000000000000000" foes="10000001100000000000" cont="0"/> <request index="5" response="00000000000000000000" foes="10000011100000001111" cont="0"/> <request index="6" response="00000000000000000000" foes="10000011100000001111" cont="0"/> <request index="7" response="00000000000000000000" foes="10000011100000001111" cont="0"/> <request index="8" response="00000000000000000000" foes="10000011100000001111" cont="0"/> <request index="9" response="01111100000000000000" foes="01111111100000001110" cont="1"/> <request index="10" response="01111000000000000000" foes="01111000000000001000" cont="0"/> <request index="11" response="11111000001111110000" foes="11111000001111111000" cont="0"/> <request index="12" response="11111000001111110000" foes="11111000001111111000" cont="0"/> <request index="13" response="11111000001111100111" foes="11111000001111100111" cont="1"/> <request index="14" response="00000000000000000000" foes="00000000001000000110" cont="0"/> <request index="15" response="00000000000000000000" foes="00000011111000001110" cont="0"/> <request index="16" response="00000000000000000000" foes="00000011111000001110" cont="0"/> <request index="17" response="00000000000000000000" foes="00000011111000001110" cont="0"/> <request index="18" response="00000000000000000000" foes="00000011111000001110" cont="0"/> <request index="19" response="00000000000111110000" foes="00000011100111111110" cont="1"/> </junction> <junction id="gneJ6" type="traffic_light" x="2100.00" y="-1900.00" incLanes="gneE5_0 gneE5_1 gneE5_2 gneE13_0 gneE13_1 -gneE14_0 -gneE14_1 -gneE14_2 -gneE6_0 -gneE6_1" intLanes=":gneJ6_0_0 :gneJ6_1_0 :gneJ6_1_1 :gneJ6_1_2 :gneJ6_18_0 :gneJ6_5_0 :gneJ6_6_0 :gneJ6_6_1 :gneJ6_19_0 :gneJ6_9_0 :gneJ6_10_0 :gneJ6_10_1 :gneJ6_10_2 :gneJ6_20_0 :gneJ6_14_0 :gneJ6_15_0 :gneJ6_15_1 :gneJ6_21_0" shape="2090.15,-1891.95 2109.85,-1891.95 2111.35,-1893.45 2111.35,-1906.55 2109.85,-1908.05 2090.15,-1908.05 2088.65,-1906.55 2088.65,-1893.45"> <request index="0" response="000000000000000000" foes="000010000011000000" cont="0"/> <request index="1" response="000000000000000000" foes="111110000111000000" cont="0"/> <request index="2" response="000000000000000000" foes="111110000111000000" cont="0"/> <request index="3" response="000000000000000000" foes="111110000111000000" cont="0"/> <request index="4" response="000001111000000000" foes="111001111111000000" cont="1"/> <request index="5" response="000001110000000000" foes="100001110000000000" cont="0"/> <request index="6" response="000011110000011111" foes="100011110000011111" cont="0"/> <request index="7" response="000011110000011111" foes="100011110000011111" cont="0"/> <request index="8" response="011111110000011110" foes="011111110000011110" cont="1"/> <request index="9" response="000000000000000000" foes="011000000000010000" cont="0"/> <request index="10" response="000000000000000000" foes="111000000111110000" cont="0"/> <request index="11" response="000000000000000000" foes="111000000111110000" cont="0"/> <request index="12" response="000000000000000000" foes="111000000111110000" cont="0"/> <request index="13" response="000000000000001111" foes="111000000111001111" cont="1"/> <request index="14" response="000000000000001110" foes="000000000100001110" cont="0"/> <request index="15" response="000011111000011110" foes="000011111100011110" cont="0"/> <request index="16" response="000011111000011110" foes="000011111100011110" cont="0"/> <request index="17" response="000011110011111110" foes="000011110011111110" cont="1"/> </junction> <junction id="gneJ7" type="traffic_light" x="100.00" y="-1900.00" incLanes="-gneE7_0 -gneE7_1 -gneE7_2 gneE6_0 gneE6_1 gneE17_0 gneE17_1 gneE17_2 -gneE18_0 -gneE18_1" intLanes=":gneJ7_0_0 :gneJ7_1_0 :gneJ7_1_1 :gneJ7_1_2 :gneJ7_18_0 :gneJ7_5_0 :gneJ7_6_0 :gneJ7_6_1 :gneJ7_19_0 :gneJ7_9_0 :gneJ7_10_0 :gneJ7_10_1 :gneJ7_10_2 :gneJ7_20_0 :gneJ7_14_0 :gneJ7_15_0 :gneJ7_15_1 :gneJ7_21_0" shape="90.15,-1891.95 109.85,-1891.95 111.35,-1893.45 111.35,-1906.55 109.85,-1908.05 90.15,-1908.05 88.65,-1906.55 88.65,-1893.45"> <request index="0" response="000000000000000000" foes="000010000011000000" cont="0"/> <request index="1" response="000000000000000000" foes="111110000111000000" cont="0"/> <request index="2" response="000000000000000000" foes="111110000111000000" cont="0"/> <request index="3" response="000000000000000000" foes="111110000111000000" cont="0"/> <request index="4" response="000001111000000000" foes="111001111111000000" cont="1"/> <request index="5" response="000001110000000000" foes="100001110000000000" cont="0"/> <request index="6" response="000011110000011111" foes="100011110000011111" cont="0"/> <request index="7" response="000011110000011111" foes="100011110000011111" cont="0"/> <request index="8" response="011111110000011110" foes="011111110000011110" cont="1"/> <request index="9" response="000000000000000000" foes="011000000000010000" cont="0"/> <request index="10" response="000000000000000000" foes="111000000111110000" cont="0"/> <request index="11" response="000000000000000000" foes="111000000111110000" cont="0"/> <request index="12" response="000000000000000000" foes="111000000111110000" cont="0"/> <request index="13" response="000000000000001111" foes="111000000111001111" cont="1"/> <request index="14" response="000000000000001110" foes="000000000100001110" cont="0"/> <request index="15" response="000011111000011110" foes="000011111100011110" cont="0"/> <request index="16" response="000011111000011110" foes="000011111100011110" cont="0"/> <request index="17" response="000011110011111110" foes="000011110011111110" cont="1"/> </junction> <junction id="gneJ8" type="priority" x="100.00" y="400.00" incLanes="-gneE9_0 gneE8_0 gneE8_1 gneE8_2" intLanes=":gneJ8_0_0 :gneJ8_1_0 :gneJ8_2_0 :gneJ8_3_0" shape="111.35,403.25 111.35,396.75 109.85,395.25 90.15,395.25"> <request index="0" response="0000" foes="0000" cont="0"/> <request index="1" response="0000" foes="0000" cont="0"/> <request index="2" response="0000" foes="0000" cont="0"/> <request index="3" response="0000" foes="0000" cont="0"/> </junction> <junction id="gneJ9" type="priority" x="2100.00" y="400.00" incLanes="-gneE10_0 -gneE10_1 gneE9_0" intLanes=":gneJ9_0_0 :gneJ9_1_0 :gneJ9_2_0" shape="2106.55,395.25 2093.45,395.25 2091.95,396.75 2091.95,403.25"> <request index="0" response="000" foes="000" cont="0"/> <request index="1" response="000" foes="000" cont="0"/> <request index="2" response="000" foes="000" cont="0"/> </junction> <junction id=":gneJ4_19_0" type="internal" x="100.05" y="105.66" incLanes=":gneJ4_4_0 gneE7_0 gneE7_1 gneE7_2" intLanes=":gneJ4_6_0 :gneJ4_6_1 :gneJ4_8_0 :gneJ4_9_0 :gneJ4_10_0 :gneJ4_10_1 :gneJ4_10_2 :gneJ4_15_0 :gneJ4_15_1 :gneJ4_15_2 :gneJ4_18_0"/> <junction id=":gneJ4_20_0" type="internal" x="104.76" y="99.95" incLanes=":gneJ4_8_0 gneE20_0 gneE20_1" intLanes=":gneJ4_1_0 :gneJ4_1_1 :gneJ4_1_2 :gneJ4_4_0 :gneJ4_10_0 :gneJ4_10_1 :gneJ4_10_2 :gneJ4_13_0 :gneJ4_14_0 :gneJ4_15_0 :gneJ4_15_1 :gneJ4_15_2"/> <junction id=":gneJ4_21_0" type="internal" x="99.95" y="94.34" incLanes=":gneJ4_13_0 -gneE8_0 -gneE8_1 -gneE8_2" intLanes=":gneJ4_0_0 :gneJ4_1_0 :gneJ4_1_1 :gneJ4_1_2 :gneJ4_6_0 :gneJ4_6_1 :gneJ4_8_0 :gneJ4_15_0 :gneJ4_15_1 :gneJ4_15_2 :gneJ4_18_0"/> <junction id=":gneJ4_22_0" type="internal" x="98.58" y="102.80" incLanes=":gneJ4_18_0 -gneE4_0 -gneE4_1" intLanes=":gneJ4_1_0 :gneJ4_1_1 :gneJ4_1_2 :gneJ4_4_0 :gneJ4_5_0 :gneJ4_6_0 :gneJ4_6_1 :gneJ4_10_0 :gneJ4_10_1 :gneJ4_10_2 :gneJ4_13_0"/> <junction id=":gneJ5_20_0" type="internal" x="2101.52" y="102.58" incLanes=":gneJ5_3_0 -gneE5_0 -gneE5_1" intLanes=":gneJ5_5_0 :gneJ5_5_1 :gneJ5_5_2 :gneJ5_5_3 :gneJ5_9_0 :gneJ5_10_0 :gneJ5_11_0 :gneJ5_11_1 :gneJ5_15_0 :gneJ5_15_1 :gneJ5_15_2 :gneJ5_15_3 :gneJ5_19_0"/> <junction id=":gneJ5_21_0" type="internal" x="2104.76" y="99.95" incLanes=":gneJ5_9_0 gneE4_0 gneE4_1 gneE4_2 gneE4_3" intLanes=":gneJ5_1_0 :gneJ5_1_1 :gneJ5_3_0 :gneJ5_11_0 :gneJ5_11_1 :gneJ5_13_0 :gneJ5_14_0 :gneJ5_15_0 :gneJ5_15_1 :gneJ5_15_2 :gneJ5_15_3"/> <junction id=":gneJ5_22_0" type="internal" x="2099.95" y="94.34" incLanes=":gneJ5_13_0 gneE10_0 gneE10_1" intLanes=":gneJ5_0_0 :gneJ5_1_0 :gneJ5_1_1 :gneJ5_5_0 :gneJ5_5_1 :gneJ5_5_2 :gneJ5_5_3 :gneJ5_9_0 :gneJ5_15_0 :gneJ5_15_1 :gneJ5_15_2 :gneJ5_15_3 :gneJ5_19_0"/> <junction id=":gneJ5_23_0" type="internal" x="2095.24" y="100.05" incLanes=":gneJ5_19_0 -gneE11_0 -gneE11_1 -gneE11_2 -gneE11_3" intLanes=":gneJ5_1_0 :gneJ5_1_1 :gneJ5_3_0 :gneJ5_4_0 :gneJ5_5_0 :gneJ5_5_1 :gneJ5_5_2 :gneJ5_5_3 :gneJ5_11_0 :gneJ5_11_1 :gneJ5_13_0"/> <junction id=":gneJ6_18_0" type="internal" x="2100.05" y="-1897.30" incLanes=":gneJ6_4_0 -gneE14_0 -gneE14_1 -gneE14_2" intLanes=":gneJ6_6_0 :gneJ6_6_1 :gneJ6_8_0 :gneJ6_9_0 :gneJ6_10_0 :gneJ6_10_1 :gneJ6_10_2 :gneJ6_15_0 :gneJ6_15_1 :gneJ6_17_0"/> <junction id=":gneJ6_19_0" type="internal" x="2103.22" y="-1900.05" incLanes=":gneJ6_8_0 -gneE6_0 -gneE6_1" intLanes=":gneJ6_1_0 :gneJ6_1_1 :gneJ6_1_2 :gneJ6_4_0 :gneJ6_10_0 :gneJ6_10_1 :gneJ6_10_2 :gneJ6_13_0 :gneJ6_14_0 :gneJ6_15_0 :gneJ6_15_1"/> <junction id=":gneJ6_20_0" type="internal" x="2099.95" y="-1902.70" incLanes=":gneJ6_13_0 gneE5_0 gneE5_1 gneE5_2" intLanes=":gneJ6_0_0 :gneJ6_1_0 :gneJ6_1_1 :gneJ6_1_2 :gneJ6_6_0 :gneJ6_6_1 :gneJ6_8_0 :gneJ6_15_0 :gneJ6_15_1 :gneJ6_17_0"/> <junction id=":gneJ6_21_0" type="internal" x="2096.78" y="-1899.95" incLanes=":gneJ6_17_0 gneE13_0 gneE13_1" intLanes=":gneJ6_1_0 :gneJ6_1_1 :gneJ6_1_2 :gneJ6_4_0 :gneJ6_5_0 :gneJ6_6_0 :gneJ6_6_1 :gneJ6_10_0 :gneJ6_10_1 :gneJ6_10_2 :gneJ6_13_0"/> <junction id=":gneJ7_18_0" type="internal" x="100.05" y="-1897.30" incLanes=":gneJ7_4_0 gneE17_0 gneE17_1 gneE17_2" intLanes=":gneJ7_6_0 :gneJ7_6_1 :gneJ7_8_0 :gneJ7_9_0 :gneJ7_10_0 :gneJ7_10_1 :gneJ7_10_2 :gneJ7_15_0 :gneJ7_15_1 :gneJ7_17_0"/> <junction id=":gneJ7_19_0" type="internal" x="103.22" y="-1900.05" incLanes=":gneJ7_8_0 -gneE18_0 -gneE18_1" intLanes=":gneJ7_1_0 :gneJ7_1_1 :gneJ7_1_2 :gneJ7_4_0 :gneJ7_10_0 :gneJ7_10_1 :gneJ7_10_2 :gneJ7_13_0 :gneJ7_14_0 :gneJ7_15_0 :gneJ7_15_1"/> <junction id=":gneJ7_20_0" type="internal" x="99.95" y="-1902.70" incLanes=":gneJ7_13_0 -gneE7_0 -gneE7_1 -gneE7_2" intLanes=":gneJ7_0_0 :gneJ7_1_0 :gneJ7_1_1 :gneJ7_1_2 :gneJ7_6_0 :gneJ7_6_1 :gneJ7_8_0 :gneJ7_15_0 :gneJ7_15_1 :gneJ7_17_0"/> <junction id=":gneJ7_21_0" type="internal" x="96.78" y="-1899.95" incLanes=":gneJ7_17_0 gneE6_0 gneE6_1" intLanes=":gneJ7_1_0 :gneJ7_1_1 :gneJ7_1_2 :gneJ7_4_0 :gneJ7_5_0 :gneJ7_6_0 :gneJ7_6_1 :gneJ7_10_0 :gneJ7_10_1 :gneJ7_10_2 :gneJ7_13_0"/> <connection from="-gneE10" to="-gneE9" fromLane="0" toLane="0" via=":gneJ9_0_0" dir="l" state="M"/> <connection from="-gneE11" to="-gneE10" fromLane="0" toLane="0" via=":gneJ5_4_0" tl="gneJ5" linkIndex="4" dir="r" state="o"/> <connection from="-gneE11" to="-gneE4" fromLane="0" toLane="0" via=":gneJ5_5_0" tl="gneJ5" linkIndex="5" dir="s" state="o"/> <connection from="-gneE11" to="-gneE4" fromLane="1" toLane="1" via=":gneJ5_5_1" tl="gneJ5" linkIndex="6" dir="s" state="o"/> <connection from="-gneE11" to="-gneE4" fromLane="2" toLane="2" via=":gneJ5_5_2" tl="gneJ5" linkIndex="7" dir="s" state="o"/> <connection from="-gneE11" to="-gneE4" fromLane="3" toLane="3" via=":gneJ5_5_3" tl="gneJ5" linkIndex="8" dir="s" state="o"/> <connection from="-gneE11" to="gneE5" fromLane="3" toLane="2" via=":gneJ5_9_0" tl="gneJ5" linkIndex="9" dir="l" state="o"/> <connection from="-gneE12" to="-gneE11" fromLane="0" toLane="0" via=":gneJ10_0_0" dir="l" state="M"/> <connection from="-gneE12" to="-gneE11" fromLane="0" toLane="1" via=":gneJ10_1_0" dir="l" state="M"/> <connection from="-gneE12" to="-gneE11" fromLane="0" toLane="2" via=":gneJ10_2_0" dir="l" state="M"/> <connection from="-gneE12" to="-gneE11" fromLane="0" toLane="3" via=":gneJ10_3_0" dir="l" state="M"/> <connection from="-gneE13" to="-gneE12" fromLane="0" toLane="0" via=":gneJ11_2_0" dir="l" state="M"/> <connection from="-gneE14" to="-gneE13" fromLane="0" toLane="0" via=":gneJ6_9_0" tl="gneJ6" linkIndex="9" dir="r" state="o"/> <connection from="-gneE14" to="-gneE5" fromLane="0" toLane="0" via=":gneJ6_10_0" tl="gneJ6" linkIndex="10" dir="s" state="o"/> <connection from="-gneE14" to="-gneE5" fromLane="1" toLane="1" via=":gneJ6_10_1" tl="gneJ6" linkIndex="11" dir="s" state="o"/> <connection from="-gneE14" to="-gneE5" fromLane="2" toLane="2" via=":gneJ6_10_2" tl="gneJ6" linkIndex="12" dir="s" state="o"/> <connection from="-gneE14" to="gneE6" fromLane="2" toLane="1" via=":gneJ6_13_0" tl="gneJ6" linkIndex="13" dir="l" state="o"/> <connection from="-gneE15" to="-gneE14" fromLane="0" toLane="0" via=":gneJ12_1_0" dir="l" state="M"/> <connection from="-gneE15" to="-gneE14" fromLane="0" toLane="1" via=":gneJ12_2_0" dir="l" state="M"/> <connection from="-gneE15" to="-gneE14" fromLane="0" toLane="2" via=":gneJ12_3_0" dir="l" state="M"/> <connection from="-gneE17" to="-gneE15" fromLane="0" toLane="0" via=":gneJ14_0_0" tl="gneJ14" linkIndex="0" dir="l" state="o"/> <connection from="-gneE18" to="-gneE17" fromLane="0" toLane="0" via=":gneJ7_14_0" tl="gneJ7" linkIndex="14" dir="r" state="o"/> <connection from="-gneE18" to="-gneE6" fromLane="0" toLane="0" via=":gneJ7_15_0" tl="gneJ7" linkIndex="15" dir="s" state="o"/> <connection from="-gneE18" to="-gneE6" fromLane="1" toLane="1" via=":gneJ7_15_1" tl="gneJ7" linkIndex="16" dir="s" state="o"/> <connection from="-gneE18" to="gneE7" fromLane="1" toLane="2" via=":gneJ7_17_0" tl="gneJ7" linkIndex="17" dir="l" state="o"/> <connection from="-gneE19" to="-gneE18" fromLane="0" toLane="0" via=":gneJ15_0_0" dir="l" state="M"/> <connection from="-gneE19" to="-gneE18" fromLane="0" toLane="1" via=":gneJ15_1_0" dir="l" state="M"/> <connection from="-gneE20" to="-gneE19" fromLane="0" toLane="0" via=":gneJ16_0_0" dir="l" state="M"/> <connection from="-gneE4" to="gneE8" fromLane="0" toLane="0" via=":gneJ4_5_0" tl="gneJ4" linkIndex="5" dir="r" state="o"/> <connection from="-gneE4" to="-gneE20" fromLane="0" toLane="0" via=":gneJ4_6_0" tl="gneJ4" linkIndex="6" dir="s" state="o"/> <connection from="-gneE4" to="-gneE20" fromLane="1" toLane="1" via=":gneJ4_6_1" tl="gneJ4" linkIndex="7" dir="s" state="o"/> <connection from="-gneE4" to="-gneE7" fromLane="3" toLane="2" via=":gneJ4_8_0" tl="gneJ4" linkIndex="8" dir="l" state="o"/> <connection from="-gneE5" to="gneE11" fromLane="0" toLane="0" via=":gneJ5_10_0" tl="gneJ5" linkIndex="10" dir="r" state="o"/> <connection from="-gneE5" to="-gneE10" fromLane="0" toLane="0" via=":gneJ5_11_0" tl="gneJ5" linkIndex="11" dir="s" state="o"/> <connection from="-gneE5" to="-gneE10" fromLane="1" toLane="1" via=":gneJ5_11_1" tl="gneJ5" linkIndex="12" dir="s" state="o"/> <connection from="-gneE5" to="-gneE4" fromLane="2" toLane="3" via=":gneJ5_13_0" tl="gneJ5" linkIndex="13" dir="l" state="o"/> <connection from="-gneE6" to="gneE14" fromLane="0" toLane="0" via=":gneJ6_14_0" tl="gneJ6" linkIndex="14" dir="r" state="o"/> <connection from="-gneE6" to="-gneE13" fromLane="0" toLane="0" via=":gneJ6_15_0" tl="gneJ6" linkIndex="15" dir="s" state="o"/> <connection from="-gneE6" to="-gneE13" fromLane="1" toLane="1" via=":gneJ6_15_1" tl="gneJ6" linkIndex="16" dir="s" state="o"/> <connection from="-gneE6" to="-gneE5" fromLane="1" toLane="2" via=":gneJ6_17_0" tl="gneJ6" linkIndex="17" dir="l" state="o"/> <connection from="-gneE7" to="gneE18" fromLane="0" toLane="0" via=":gneJ7_0_0" tl="gneJ7" linkIndex="0" dir="r" state="o"/> <connection from="-gneE7" to="-gneE17" fromLane="0" toLane="0" via=":gneJ7_1_0" tl="gneJ7" linkIndex="1" dir="s" state="o"/> <connection from="-gneE7" to="-gneE17" fromLane="1" toLane="1" via=":gneJ7_1_1" tl="gneJ7" linkIndex="2" dir="s" state="o"/> <connection from="-gneE7" to="-gneE17" fromLane="2" toLane="2" via=":gneJ7_1_2" tl="gneJ7" linkIndex="3" dir="s" state="o"/> <connection from="-gneE7" to="-gneE6" fromLane="2" toLane="1" via=":gneJ7_4_0" tl="gneJ7" linkIndex="4" dir="l" state="o"/> <connection from="-gneE8" to="-gneE20" fromLane="0" toLane="0" via=":gneJ4_0_0" tl="gneJ4" linkIndex="0" dir="r" state="o"/> <connection from="-gneE8" to="-gneE7" fromLane="0" toLane="0" via=":gneJ4_1_0" tl="gneJ4" linkIndex="1" dir="s" state="o"/> <connection from="-gneE8" to="-gneE7" fromLane="1" toLane="1" via=":gneJ4_1_1" tl="gneJ4" linkIndex="2" dir="s" state="o"/> <connection from="-gneE8" to="-gneE7" fromLane="2" toLane="2" via=":gneJ4_1_2" tl="gneJ4" linkIndex="3" dir="s" state="o"/> <connection from="-gneE8" to="gneE4" fromLane="2" toLane="3" via=":gneJ4_4_0" tl="gneJ4" linkIndex="4" dir="l" state="o"/> <connection from="-gneE9" to="-gneE8" fromLane="0" toLane="0" via=":gneJ8_0_0" dir="l" state="M"/> <connection from="-gneE9" to="-gneE8" fromLane="0" toLane="1" via=":gneJ8_1_0" dir="l" state="M"/> <connection from="-gneE9" to="-gneE8" fromLane="0" toLane="2" via=":gneJ8_2_0" dir="l" state="M"/> <connection from="gneE10" to="-gneE4" fromLane="0" toLane="0" via=":gneJ5_0_0" tl="gneJ5" linkIndex="0" dir="r" state="o"/> <connection from="gneE10" to="gneE5" fromLane="0" toLane="1" via=":gneJ5_1_0" tl="gneJ5" linkIndex="1" dir="s" state="o"/> <connection from="gneE10" to="gneE5" fromLane="1" toLane="2" via=":gneJ5_1_1" tl="gneJ5" linkIndex="2" dir="s" state="o"/> <connection from="gneE10" to="gneE11" fromLane="1" toLane="3" via=":gneJ5_3_0" tl="gneJ5" linkIndex="3" dir="l" state="o"/> <connection from="gneE11" to="gneE12" fromLane="0" toLane="0" via=":gneJ10_4_0" dir="r" state="M"/> <connection from="gneE12" to="gneE13" fromLane="0" toLane="0" via=":gneJ11_0_0" dir="r" state="M"/> <connection from="gneE12" to="gneE13" fromLane="0" toLane="1" via=":gneJ11_1_0" dir="r" state="M"/> <connection from="gneE13" to="-gneE5" fromLane="0" toLane="0" via=":gneJ6_5_0" tl="gneJ6" linkIndex="5" dir="r" state="o"/> <connection from="gneE13" to="gneE6" fromLane="0" toLane="0" via=":gneJ6_6_0" tl="gneJ6" linkIndex="6" dir="s" state="o"/> <connection from="gneE13" to="gneE6" fromLane="1" toLane="1" via=":gneJ6_6_1" tl="gneJ6" linkIndex="7" dir="s" state="o"/> <connection from="gneE13" to="gneE14" fromLane="1" toLane="2" via=":gneJ6_8_0" tl="gneJ6" linkIndex="8" dir="l" state="o"/> <connection from="gneE14" to="gneE15" fromLane="0" toLane="0" via=":gneJ12_0_0" dir="r" state="M"/> <connection from="gneE15" to="gneE17" fromLane="0" toLane="0" via=":gneJ14_1_0" tl="gneJ14" linkIndex="1" dir="r" state="o"/> <connection from="gneE15" to="gneE17" fromLane="0" toLane="1" via=":gneJ14_2_0" tl="gneJ14" linkIndex="2" dir="r" state="o"/> <connection from="gneE15" to="gneE17" fromLane="0" toLane="2" via=":gneJ14_3_0" tl="gneJ14" linkIndex="3" dir="r" state="o"/> <connection from="gneE17" to="-gneE6" fromLane="0" toLane="0" via=":gneJ7_9_0" tl="gneJ7" linkIndex="9" dir="r" state="o"/> <connection from="gneE17" to="gneE7" fromLane="0" toLane="0" via=":gneJ7_10_0" tl="gneJ7" linkIndex="10" dir="s" state="o"/> <connection from="gneE17" to="gneE7" fromLane="1" toLane="1" via=":gneJ7_10_1" tl="gneJ7" linkIndex="11" dir="s" state="o"/> <connection from="gneE17" to="gneE7" fromLane="2" toLane="2" via=":gneJ7_10_2" tl="gneJ7" linkIndex="12" dir="s" state="o"/> <connection from="gneE17" to="gneE18" fromLane="2" toLane="1" via=":gneJ7_13_0" tl="gneJ7" linkIndex="13" dir="l" state="o"/> <connection from="gneE18" to="gneE19" fromLane="0" toLane="0" via=":gneJ15_2_0" dir="r" state="M"/> <connection from="gneE19" to="gneE20" fromLane="0" toLane="0" via=":gneJ16_1_0" dir="r" state="M"/> <connection from="gneE19" to="gneE20" fromLane="0" toLane="1" via=":gneJ16_2_0" dir="r" state="M"/> <connection from="gneE20" to="-gneE7" fromLane="0" toLane="0" via=":gneJ4_14_0" tl="gneJ4" linkIndex="14" dir="r" state="o"/> <connection from="gneE20" to="gneE4" fromLane="0" toLane="1" via=":gneJ4_15_0" tl="gneJ4" linkIndex="15" dir="s" state="o"/> <connection from="gneE20" to="gneE4" fromLane="1" toLane="2" via=":gneJ4_15_1" tl="gneJ4" linkIndex="16" dir="s" state="o"/> <connection from="gneE20" to="gneE4" fromLane="1" toLane="3" via=":gneJ4_15_2" tl="gneJ4" linkIndex="17" dir="s" state="o"/> <connection from="gneE20" to="gneE8" fromLane="1" toLane="2" via=":gneJ4_18_0" tl="gneJ4" linkIndex="18" dir="l" state="o"/> <connection from="gneE4" to="gneE5" fromLane="0" toLane="0" via=":gneJ5_14_0" tl="gneJ5" linkIndex="14" dir="r" state="o"/> <connection from="gneE4" to="gneE11" fromLane="0" toLane="0" via=":gneJ5_15_0" tl="gneJ5" linkIndex="15" dir="s" state="o"/> <connection from="gneE4" to="gneE11" fromLane="1" toLane="1" via=":gneJ5_15_1" tl="gneJ5" linkIndex="16" dir="s" state="o"/> <connection from="gneE4" to="gneE11" fromLane="2" toLane="2" via=":gneJ5_15_2" tl="gneJ5" linkIndex="17" dir="s" state="o"/> <connection from="gneE4" to="gneE11" fromLane="3" toLane="3" via=":gneJ5_15_3" tl="gneJ5" linkIndex="18" dir="s" state="o"/> <connection from="gneE4" to="-gneE10" fromLane="3" toLane="1" via=":gneJ5_19_0" tl="gneJ5" linkIndex="19" dir="l" state="o"/> <connection from="gneE5" to="gneE6" fromLane="0" toLane="0" via=":gneJ6_0_0" tl="gneJ6" linkIndex="0" dir="r" state="o"/> <connection from="gneE5" to="gneE14" fromLane="0" toLane="0" via=":gneJ6_1_0" tl="gneJ6" linkIndex="1" dir="s" state="o"/> <connection from="gneE5" to="gneE14" fromLane="1" toLane="1" via=":gneJ6_1_1" tl="gneJ6" linkIndex="2" dir="s" state="o"/> <connection from="gneE5" to="gneE14" fromLane="2" toLane="2" via=":gneJ6_1_2" tl="gneJ6" linkIndex="3" dir="s" state="o"/> <connection from="gneE5" to="-gneE13" fromLane="2" toLane="1" via=":gneJ6_4_0" tl="gneJ6" linkIndex="4" dir="l" state="o"/> <connection from="gneE6" to="gneE7" fromLane="0" toLane="0" via=":gneJ7_5_0" tl="gneJ7" linkIndex="5" dir="r" state="o"/> <connection from="gneE6" to="gneE18" fromLane="0" toLane="0" via=":gneJ7_6_0" tl="gneJ7" linkIndex="6" dir="s" state="o"/> <connection from="gneE6" to="gneE18" fromLane="1" toLane="1" via=":gneJ7_6_1" tl="gneJ7" linkIndex="7" dir="s" state="o"/> <connection from="gneE6" to="-gneE17" fromLane="1" toLane="2" via=":gneJ7_8_0" tl="gneJ7" linkIndex="8" dir="l" state="o"/> <connection from="gneE7" to="gneE4" fromLane="0" toLane="0" via=":gneJ4_9_0" tl="gneJ4" linkIndex="9" dir="r" state="o"/> <connection from="gneE7" to="gneE8" fromLane="0" toLane="0" via=":gneJ4_10_0" tl="gneJ4" linkIndex="10" dir="s" state="o"/> <connection from="gneE7" to="gneE8" fromLane="1" toLane="1" via=":gneJ4_10_1" tl="gneJ4" linkIndex="11" dir="s" state="o"/> <connection from="gneE7" to="gneE8" fromLane="2" toLane="2" via=":gneJ4_10_2" tl="gneJ4" linkIndex="12" dir="s" state="o"/> <connection from="gneE7" to="-gneE20" fromLane="2" toLane="1" via=":gneJ4_13_0" tl="gneJ4" linkIndex="13" dir="l" state="o"/> <connection from="gneE8" to="gneE9" fromLane="0" toLane="0" via=":gneJ8_3_0" dir="r" state="M"/> <connection from="gneE9" to="gneE10" fromLane="0" toLane="0" via=":gneJ9_1_0" dir="r" state="M"/> <connection from="gneE9" to="gneE10" fromLane="0" toLane="1" via=":gneJ9_2_0" dir="r" state="M"/> <connection from=":gneJ10_0" to="-gneE11" fromLane="0" toLane="0" dir="l" state="M"/> <connection from=":gneJ10_1" to="-gneE11" fromLane="0" toLane="1" dir="l" state="M"/> <connection from=":gneJ10_2" to="-gneE11" fromLane="0" toLane="2" dir="l" state="M"/> <connection from=":gneJ10_3" to="-gneE11" fromLane="0" toLane="3" dir="l" state="M"/> <connection from=":gneJ10_4" to="gneE12" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ11_0" to="gneE13" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ11_1" to="gneE13" fromLane="0" toLane="1" dir="r" state="M"/> <connection from=":gneJ11_2" to="-gneE12" fromLane="0" toLane="0" dir="l" state="M"/> <connection from=":gneJ12_0" to="gneE15" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ12_1" to="-gneE14" fromLane="0" toLane="0" dir="l" state="M"/> <connection from=":gneJ12_2" to="-gneE14" fromLane="0" toLane="1" dir="l" state="M"/> <connection from=":gneJ12_3" to="-gneE14" fromLane="0" toLane="2" dir="l" state="M"/> <connection from=":gneJ14_0" to="-gneE15" fromLane="0" toLane="0" dir="l" state="M"/> <connection from=":gneJ14_1" to="gneE17" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ14_2" to="gneE17" fromLane="0" toLane="1" dir="r" state="M"/> <connection from=":gneJ14_3" to="gneE17" fromLane="0" toLane="2" dir="r" state="M"/> <connection from=":gneJ15_0" to="-gneE18" fromLane="0" toLane="0" dir="l" state="M"/> <connection from=":gneJ15_1" to="-gneE18" fromLane="0" toLane="1" dir="l" state="M"/> <connection from=":gneJ15_2" to="gneE19" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ16_0" to="-gneE19" fromLane="0" toLane="0" dir="l" state="M"/> <connection from=":gneJ16_1" to="gneE20" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ16_2" to="gneE20" fromLane="0" toLane="1" dir="r" state="M"/> <connection from=":gneJ4_0" to="-gneE20" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ4_1" to="-gneE7" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ4_1" to="-gneE7" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ4_1" to="-gneE7" fromLane="2" toLane="2" dir="s" state="M"/> <connection from=":gneJ4_4" to="gneE4" fromLane="0" toLane="3" via=":gneJ4_19_0" dir="l" state="m"/> <connection from=":gneJ4_19" to="gneE4" fromLane="0" toLane="3" dir="l" state="M"/> <connection from=":gneJ4_5" to="gneE8" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ4_6" to="-gneE20" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ4_6" to="-gneE20" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ4_8" to="-gneE7" fromLane="0" toLane="2" via=":gneJ4_20_0" dir="l" state="m"/> <connection from=":gneJ4_20" to="-gneE7" fromLane="0" toLane="2" dir="l" state="M"/> <connection from=":gneJ4_9" to="gneE4" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ4_10" to="gneE8" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ4_10" to="gneE8" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ4_10" to="gneE8" fromLane="2" toLane="2" dir="s" state="M"/> <connection from=":gneJ4_13" to="-gneE20" fromLane="0" toLane="1" via=":gneJ4_21_0" dir="l" state="m"/> <connection from=":gneJ4_21" to="-gneE20" fromLane="0" toLane="1" dir="l" state="M"/> <connection from=":gneJ4_14" to="-gneE7" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ4_15" to="gneE4" fromLane="0" toLane="1" dir="s" state="M"/> <connection from=":gneJ4_15" to="gneE4" fromLane="1" toLane="2" dir="s" state="M"/> <connection from=":gneJ4_15" to="gneE4" fromLane="2" toLane="3" dir="s" state="M"/> <connection from=":gneJ4_18" to="gneE8" fromLane="0" toLane="2" via=":gneJ4_22_0" dir="l" state="m"/> <connection from=":gneJ4_22" to="gneE8" fromLane="0" toLane="2" dir="l" state="M"/> <connection from=":gneJ5_0" to="-gneE4" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ5_1" to="gneE5" fromLane="0" toLane="1" dir="s" state="M"/> <connection from=":gneJ5_1" to="gneE5" fromLane="1" toLane="2" dir="s" state="M"/> <connection from=":gneJ5_3" to="gneE11" fromLane="0" toLane="3" via=":gneJ5_20_0" dir="l" state="m"/> <connection from=":gneJ5_20" to="gneE11" fromLane="0" toLane="3" dir="l" state="M"/> <connection from=":gneJ5_4" to="-gneE10" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ5_5" to="-gneE4" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ5_5" to="-gneE4" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ5_5" to="-gneE4" fromLane="2" toLane="2" dir="s" state="M"/> <connection from=":gneJ5_5" to="-gneE4" fromLane="3" toLane="3" dir="s" state="M"/> <connection from=":gneJ5_9" to="gneE5" fromLane="0" toLane="2" via=":gneJ5_21_0" dir="l" state="m"/> <connection from=":gneJ5_21" to="gneE5" fromLane="0" toLane="2" dir="l" state="M"/> <connection from=":gneJ5_10" to="gneE11" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ5_11" to="-gneE10" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ5_11" to="-gneE10" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ5_13" to="-gneE4" fromLane="0" toLane="3" via=":gneJ5_22_0" dir="l" state="m"/> <connection from=":gneJ5_22" to="-gneE4" fromLane="0" toLane="3" dir="l" state="M"/> <connection from=":gneJ5_14" to="gneE5" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ5_15" to="gneE11" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ5_15" to="gneE11" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ5_15" to="gneE11" fromLane="2" toLane="2" dir="s" state="M"/> <connection from=":gneJ5_15" to="gneE11" fromLane="3" toLane="3" dir="s" state="M"/> <connection from=":gneJ5_19" to="-gneE10" fromLane="0" toLane="1" via=":gneJ5_23_0" dir="l" state="m"/> <connection from=":gneJ5_23" to="-gneE10" fromLane="0" toLane="1" dir="l" state="M"/> <connection from=":gneJ6_0" to="gneE6" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ6_1" to="gneE14" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ6_1" to="gneE14" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ6_1" to="gneE14" fromLane="2" toLane="2" dir="s" state="M"/> <connection from=":gneJ6_4" to="-gneE13" fromLane="0" toLane="1" via=":gneJ6_18_0" dir="l" state="m"/> <connection from=":gneJ6_18" to="-gneE13" fromLane="0" toLane="1" dir="l" state="M"/> <connection from=":gneJ6_5" to="-gneE5" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ6_6" to="gneE6" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ6_6" to="gneE6" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ6_8" to="gneE14" fromLane="0" toLane="2" via=":gneJ6_19_0" dir="l" state="m"/> <connection from=":gneJ6_19" to="gneE14" fromLane="0" toLane="2" dir="l" state="M"/> <connection from=":gneJ6_9" to="-gneE13" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ6_10" to="-gneE5" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ6_10" to="-gneE5" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ6_10" to="-gneE5" fromLane="2" toLane="2" dir="s" state="M"/> <connection from=":gneJ6_13" to="gneE6" fromLane="0" toLane="1" via=":gneJ6_20_0" dir="l" state="m"/> <connection from=":gneJ6_20" to="gneE6" fromLane="0" toLane="1" dir="l" state="M"/> <connection from=":gneJ6_14" to="gneE14" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ6_15" to="-gneE13" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ6_15" to="-gneE13" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ6_17" to="-gneE5" fromLane="0" toLane="2" via=":gneJ6_21_0" dir="l" state="m"/> <connection from=":gneJ6_21" to="-gneE5" fromLane="0" toLane="2" dir="l" state="M"/> <connection from=":gneJ7_0" to="gneE18" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ7_1" to="-gneE17" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ7_1" to="-gneE17" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ7_1" to="-gneE17" fromLane="2" toLane="2" dir="s" state="M"/> <connection from=":gneJ7_4" to="-gneE6" fromLane="0" toLane="1" via=":gneJ7_18_0" dir="l" state="m"/> <connection from=":gneJ7_18" to="-gneE6" fromLane="0" toLane="1" dir="l" state="M"/> <connection from=":gneJ7_5" to="gneE7" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ7_6" to="gneE18" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ7_6" to="gneE18" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ7_8" to="-gneE17" fromLane="0" toLane="2" via=":gneJ7_19_0" dir="l" state="m"/> <connection from=":gneJ7_19" to="-gneE17" fromLane="0" toLane="2" dir="l" state="M"/> <connection from=":gneJ7_9" to="-gneE6" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ7_10" to="gneE7" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ7_10" to="gneE7" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ7_10" to="gneE7" fromLane="2" toLane="2" dir="s" state="M"/> <connection from=":gneJ7_13" to="gneE18" fromLane="0" toLane="1" via=":gneJ7_20_0" dir="l" state="m"/> <connection from=":gneJ7_20" to="gneE18" fromLane="0" toLane="1" dir="l" state="M"/> <connection from=":gneJ7_14" to="-gneE17" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ7_15" to="-gneE6" fromLane="0" toLane="0" dir="s" state="M"/> <connection from=":gneJ7_15" to="-gneE6" fromLane="1" toLane="1" dir="s" state="M"/> <connection from=":gneJ7_17" to="gneE7" fromLane="0" toLane="2" via=":gneJ7_21_0" dir="l" state="m"/> <connection from=":gneJ7_21" to="gneE7" fromLane="0" toLane="2" dir="l" state="M"/> <connection from=":gneJ8_0" to="-gneE8" fromLane="0" toLane="0" dir="l" state="M"/> <connection from=":gneJ8_1" to="-gneE8" fromLane="0" toLane="1" dir="l" state="M"/> <connection from=":gneJ8_2" to="-gneE8" fromLane="0" toLane="2" dir="l" state="M"/> <connection from=":gneJ8_3" to="gneE9" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ9_0" to="-gneE9" fromLane="0" toLane="0" dir="l" state="M"/> <connection from=":gneJ9_1" to="gneE10" fromLane="0" toLane="0" dir="r" state="M"/> <connection from=":gneJ9_2" to="gneE10" fromLane="0" toLane="1" dir="r" state="M"/> </net>
