Good point, thankyou ;). Yes the document text is below, planning to put the code on our dawn-eclipse next week.





Eclipse Rich Beans

Primary tabs

• Overview(active tab)
• Edit

BASICS

This proposal is in the Project Proposal Phase (as defined in the Eclipse Development Process) and is written to declare its intent and scope. We solicit additional participation and input from the community. Please add your feedback in the comments section.

Parent Project:

Technology Project

Background:

Diamond Light Source are part of the eclipse science working group and have developed several Eclipse RCP products both for user interface and for data analysis and acquisition servers. This project has come from that development work and exists already. It has some overlap with other eclipse projects, but we don't think this should be an issue and the ecosystem is richer with multiple solutions!

Scope:

The scope is to:

1. Provide a set of widgets which allow values to be entered and validated in a standard way.
2. Provide a service which synchronizes these widgets with beans, including complex object trees.
3. Provide a mechanism to auto-generate user interface components from beans using the standard widget set including 'on-the-fly' user interface generation
4. Provide a mechanism for design of experiments (DOE https://en.wikipedia.org/wiki/Design_of_experiments) to be carried out with beans by allowing some fields to be ranges
5. Provide a very simple to reuse design with many examples

Not in the scope:

1. Serialization: Rich Beans is agnostic as to whether XML, JSON or any other technology be used. It is just widgets<->beans

Description:

This project will allow user interface to be created from beans or graphs of beans. The user interface will have standard widgets which are already used in DAWNSci and other RCP products from Diamond Light Source but that which may be used by users of the Rich Beans API. For instance there are widgets for editing numbers with bounds validation, units and that allow expressions of other boxes. There are widgets for entering a range of values and expanding out bean graphs to complete Design of Experiments work.



This kind of thing already exists in other Eclipse project but Eclipse is described as an ecosystem and not a monoculture

The API will be simple to use, have great widgets for science and be fast for huge field lists. So even though it is a minnow in the world of models, data binding and UI generation, it has some strong points.

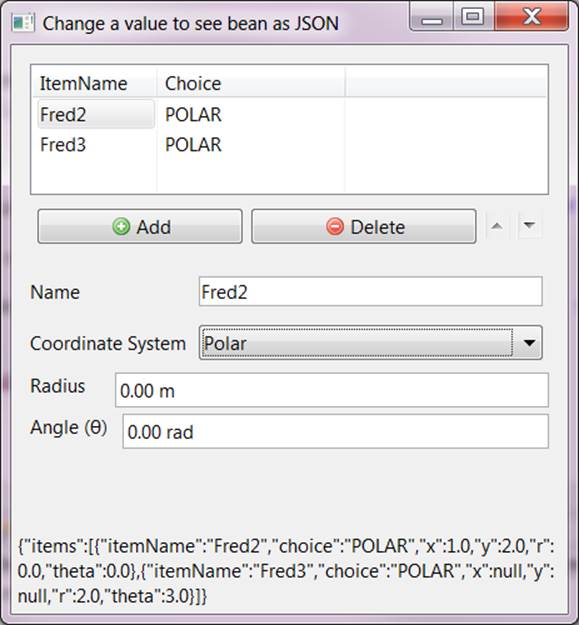

Screenshots from three of the examples:

UI	BEAN GRAPH
	public class ExampleBean {          private List<ExampleItem> items; //…   public class ExampleItem {               public enum ItemChoice {              XY, POLAR;                public static Map<String, ItemChoice> names() {                     final Map<String,ItemChoice> ret = newHashMap<String,ItemChoice>(2);                     ret.put("X-Y Graph", XY);                     ret.put("Polar",     POLAR);                     return ret;              }        }          private String     itemName;        private ItemChoice choice = ItemChoice.XY;        private Double x,y;        private double r,theta; //…

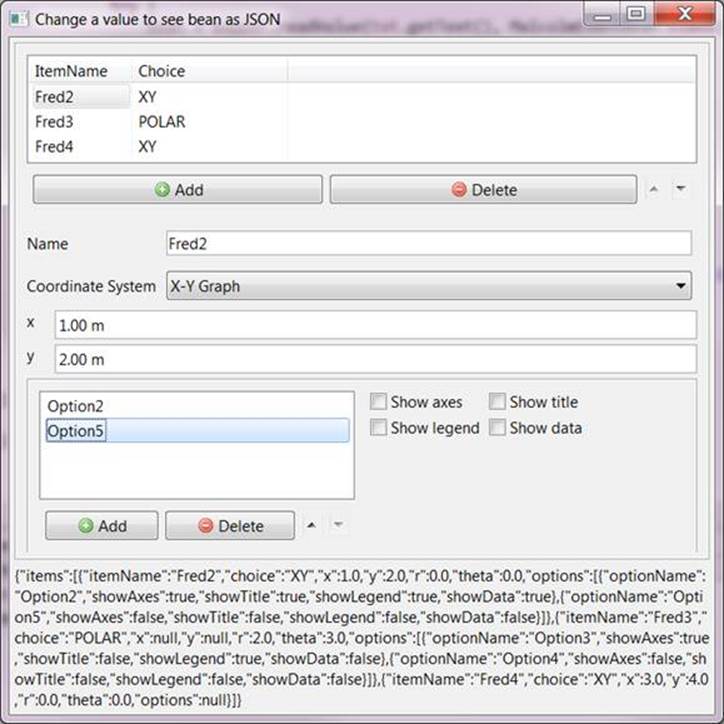

	public class ExampleBean {          private List<ExampleItem> items;        //…   public class ExampleItem {               private String     itemName;        private ItemChoice choice = ItemChoice.XY;        private Double x,y;        private double r,theta;               private List<OptionItem> options;   //…   public class OptionItem {       private String optionName;        private boolean showAxes, showTitle, showLegend, showData;        private static int count = 0;   //…

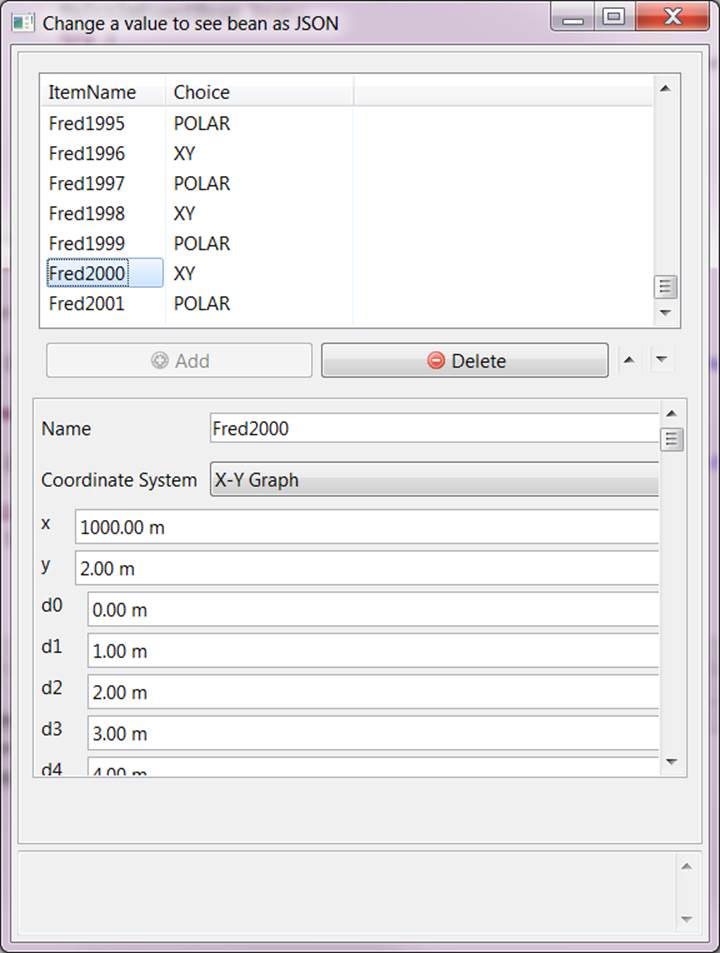

So more than 200,000 fields are linked and editable in a speedy fashion!	public class ExampleBean {          private List<ExampleItem> items;   //… Example has 2000 items     public class ExampleItem {               private String     itemName;        private ItemChoice choice = ItemChoice.XY;        private Double x,y;        private double r,theta;               private double d0, d1,d2,d3,d4,d5,d6,d7,d8, d9;        private double d10, d11,d12,d13,d14,d15,d16,d17,d18, d19;        private double d20, d21,d22,d23,d24,d25,d26,d27,d28, d29;        private double d30, d31,d32,d33,d34,d35,d36,d37,d38, d39;        private double d40, d41,d42,d43,d44,d45,d46,d47,d48, d49;        private double d50, d51,d52,d53,d54,d55,d56,d57,d58, d59;        private double d60, d61,d62,d63,d64,d65,d66,d67,d68, d69;        private double d70, d71,d72,d73,d74,d75,d76,d77,d78, d79;        private double d80, d81,d82,d83,d84,d85,d86,d87,d88, d89;        private double d90, d91,d92,d93,d94,d95,d96,d97,d98, d99;   //… Example has 100 fields





Why Here?:

This project is of interest to multiple members of the science working group and it will directly address requirements of those members - and others in the community - that results in tighter integration and reuse across the projects.

Diamond Light Source are a member and supporter of the Eclipse Foundation and currently see this as the best route to making an RCP project truly open source.

Licenses:

Eclipse Public License 1.0

Legal Issues:

The code exists and is licensed already as EPL. It might have some apache dependencies. The name rich beans is owned by: www.richbeans.com of India but we hope that the project will be known as 'Eclipse Rich Beans' and have packages org.eclipse.richbeans

Project Scheduling:

• Initial contribution Autumn 2015 - September or October ideally
• This project exists and once we have made it ready for release and passed the IP checking, it could be part of the Eclipse Release Train.



Future Work:

We plan to increase the auto-generation capability by using the metawidgets project more. Currently the UI generation is by statically generated classes at compile time and does not support bean graphs. Metawidgets are dynamic and support nesting and would work better with our widget set.  http://metawidget.org/

HIDEPEOPLE

Project Leads:

Matthew Gerring

Committers:

Colin Palmer

James Mudd

Baha El-Kassaby

Mentors:

Marcel Bruch

Jay Billings

HIDESOURCE CODE

Initial Contribution:

Bundle names (copywright Diamond Light Source):

1.     org.eclipse.richbeans.api

2.     org.eclipse.richbeans.widgets

3.     org.eclipse.richbeans.reflection

4.     org.eclipse.richbeans.generator

5.     org.eclipse.richbeans.examples

6.     org.eclipse.richbeans.validation

7.     org.eclipse.richbeans.doe

What they do

1.      API no dependency interface plugin for services and other interfaces.

2.     Bunch of widgets

3.     Implementation of bean to UI and UI to bean service used to do data binding using reflection

4.     Automatic generation of user interface, might depend on metawidgets, http://metawidget.org/, EPL licensed code

5.     Examples of how to use

6.     Validation plugin for checking beans are legal and UI in legal state

7.     Design of expriments plugin for expanding beans that use DOE annotations

Source Repository Type:

GitHub

Source Repositories:

https://github.com/DawnScience/dawn-eclipse





From: science-iwg-bounces@xxxxxxxxxxx [mailto:science-iwg-bounces@xxxxxxxxxxx] On Behalf Of Jonah Graham
Sent: 28 July 2015 14:25
To: Science Industry Working Group
Subject: Re: [science-iwg] Eclipse Rich Beans proposal



Hi Matt,

I can't seem to access the document on the Eclipse website. Any help would be appreciated.

Thanks,
Jonah

Hello,



We (Diamond guys) are thinking of releasing the widget library we use for parts of DAWN and GDA as a separate eclipse project. It features automatic data binding using reflection and has scientific widgets for editing bean trees. We are currently adding on-the-fly generation by linking to a library called metawidgets. I have not submitted the proposal yet (maybe next week), but it is here:



https://projects.eclipse.org/proposals/eclipse-rich-beans



My question is what do you think? I suspect you will find this project more intuitive to understand than what DAWNSci does! I know this kind of thing already exists in Eclipse but it is an ecosystem after all and not a monocultureJ



To put its point over positively; the API is, I think, simple to use, has better widgets for science and is fast for huge field lists. So even though it is a minnow in the world of models and data binding, it has some strong points.



Matt

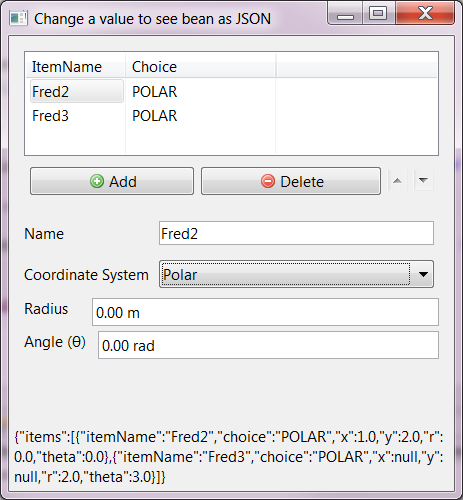

And some screenshots from the examples (not very jazzy, there are some nicer widgets). These ones sync to JSON but obviously exporting the beans to a specific format is a detail the library is agnostic to:

UI	BEAN GRAPH
	public class ExampleBean {          private List<ExampleItem> items; //…   public class ExampleItem {               public enum ItemChoice {              XY, POLAR;                public static Map<String, ItemChoice> names() {                     final Map<String,ItemChoice> ret = new HashMap<String,ItemChoice>(2);                     ret.put("X-Y Graph", XY);                     ret.put("Polar",     POLAR);                     return ret;              }        }          private String     itemName;        private ItemChoice choice = ItemChoice.XY;        private Double x,y;        private double r,theta; //…
	public class ExampleBean {          private List<ExampleItem> items;        //…   public class ExampleItem {               private String     itemName;        private ItemChoice choice = ItemChoice.XY;        private Double x,y;        private double r,theta;               private List<OptionItem> options;   //…   public class OptionItem {       private String optionName;        private boolean showAxes, showTitle, showLegend, showData;        private static int count = 0;   //…

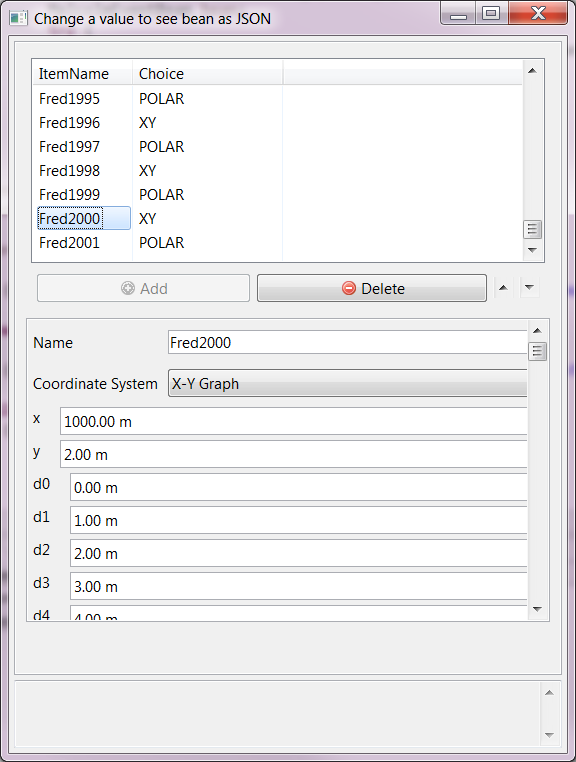

So more than 200,000 fields are linked and editable with in speedy fashion!	public class ExampleBean {          private List<ExampleItem> items;   //… Example has 2000 items     public class ExampleItem {               private String     itemName;        private ItemChoice choice = ItemChoice.XY;        private Double x,y;        private double r,theta;               private double d0, d1,d2,d3,d4,d5,d6,d7,d8, d9;        private double d10, d11,d12,d13,d14,d15,d16,d17,d18, d19;        private double d20, d21,d22,d23,d24,d25,d26,d27,d28, d29;        private double d30, d31,d32,d33,d34,d35,d36,d37,d38, d39;        private double d40, d41,d42,d43,d44,d45,d46,d47,d48, d49;        private double d50, d51,d52,d53,d54,d55,d56,d57,d58, d59;        private double d60, d61,d62,d63,d64,d65,d66,d67,d68, d69;        private double d70, d71,d72,d73,d74,d75,d76,d77,d78, d79;        private double d80, d81,d82,d83,d84,d85,d86,d87,d88, d89;        private double d90, d91,d92,d93,d94,d95,d96,d97,d98, d99;   //… Example has 100 fields









--
