Re: [polarsys-iwg] HTML Export from Papyrus

["etienne.juliot@xxxxxxx" <etienne.juliot@xxxxxxx>]

Dear James,

You have to use the UML2 URI, instead of Ecore URI.
After doing this, Acceleo will provide code assist and error detection relative to UML.

If you want to see some exemples of UML generators created with Acceleo, have a look at UML2Java: https://github.com/ObeoNetwork/UML-Java-Generation/tree/master/plugins/org.obeonetwork.pim.uml2.gen.java

Etienne JULIOT
Vice President, Obeo

Le 24/02/2014 16:10, WALLIS, James a écrit :

To the PolarSys-IWG Community



I am trying to create some html export from a Papyrus UML Diagram and am having little success.



I am a novice at using PolarSys and I have only been able to find one tutorial that is along the lines of what I want to do, and following this I have successfully created the html export from an ECore diagram; I now need to do the same thing but for a Papyrus diagram.



The tutorial simply taught me how to print the name of a class into html and I’m struggling to understand how to convert this to work for Papyrus.

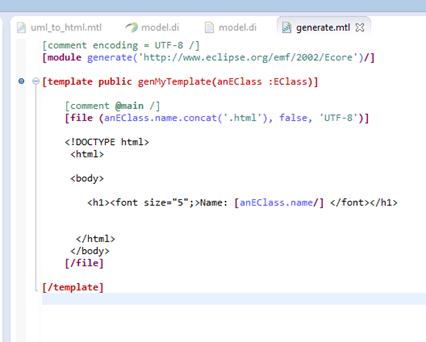

Below is the code that works for the ECore Diagram.



I think the issue is in line 2, where I am unsure as to what it should say after “[module generate(‘ ”?





I am aware that using the “EClass” string will not work when it comes to running it with papyrus; so this is a trivial matter for the moment (I believe).







James Wallis

Simulation Projects Intern

Engineering – Simulation Projects – EZMM



Tel: +44 (0) 11793 63824

Mailto: james.wallis@xxxxxxxxxx



Airbus Operations Ltd.

Pegasus House

Filton, Bristol

BS99 7AR

United Kingdom

(satnav use BS34 7PA)
