[mdt-papyrus.dev] Element types configuration: apply stereotype advice
|
Hello all. I have a question about element-types configuration for a custom DSML. I'm not sure if this is the right place to ask it, or the user-forum. In fact that's a question on its own: which is the right forum/list for Papyrus DSML designers/implementers?

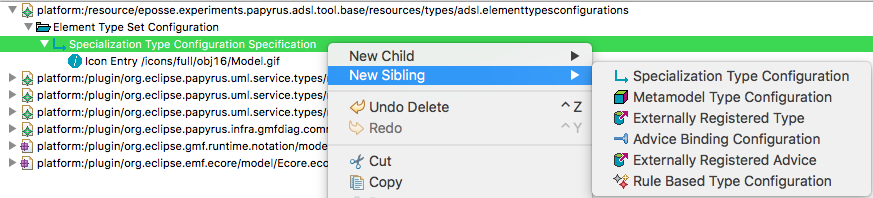

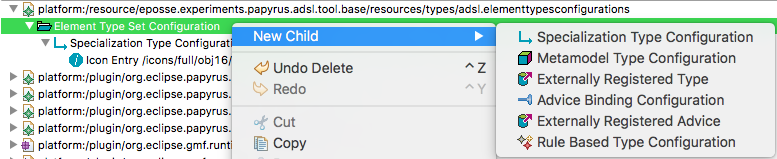

Anyway, the question is this: how do you create an "Apply Stereotype" advice in an element-types configuration model with Papyrus for Toolsmiths 1.0 (on Papyrus 3.0/Oxygen)? In previous versions of Papyrus, and according to Florian's slides at [1], there is an "Apply Stereotype Advice Configuration" child node type to "Element Type Set Configuration", but I do not see that option in either the "New child" menu for the "Element Type Set Configuration" nor the "New sibling" menu for the "Specialization Type Configuration". See the attached screenshots.
I found ElementTypesConfigurations.ecore in org.eclipse.papyrus.infra.types, but the slides say the meta-model is in org.eclipse.papyrus.infra.elementtypesconfiguration, which I cannot find. I assume it was renamed, is this the right meta-model?
In any case, this model doesn't seem to have a meta-class for ApplyStereotypeAdviceConfiguration, so how do you do this now?
Thanks,
--
Ernesto Posse
Zeligsoft
--
--
Attachment:
Screenshot 2017-08-14 11.06.43.png
Description: PNG image
Attachment:
Screenshot 2017-08-14 11.06.27.png
Description: PNG image
