Completion assist shows that self.extension_NFP exists but self.extensionASIL does not. Both should exist.
Looking closer there is no extension_ASIL.
ASIL is a derived Stereotype. The extension association is base_Operation <=> extension_Generic, so as you expected you need to use extension_Generic but as:
self.extension_NFP->notEmpty() implies self.extension_Generic->selectByKind(AutoML::VehicleFeatureNFP::ASIL)->notEmpty()
or if you really like oclIsKindOf
self.extension_NFP->notEmpty() implies self.extension_Generic->select(oclIsKindOf(AutoML::VehicleFeatureNFP::ASIL))->notEmpty()
Regards
Ed Willink
Hi all,
First of all, thanks to Christain, Johan, and ED for their responses on my previous question. Finally, it was ok. The pb is indeed that I did not know really suddenly it was ok…. :-(

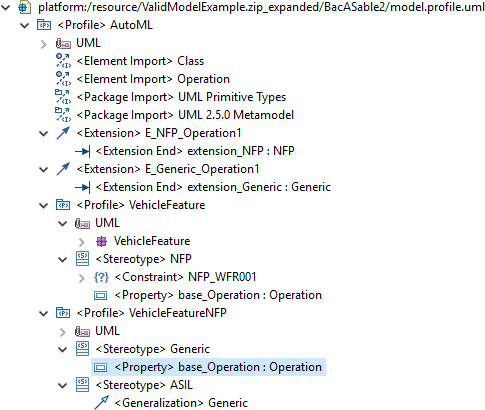

I did a modification on my profile introducing an intermediate stereotype called <<Generic>> which extends Operation, and now the <<ASIL>> stereotype is a generalization of <<Generic>>.
Following constraint allow me to check that an Operation on which <<NFP>> is applied must also have the applied <<Generic>> stereotype:
self.extension_NFP->notEmpty() implies self.extension_Generic->notEmpty()
I would like also to check that
an Operation on which <<NFP>> is applied must also have the applied stereotype <<ASIL>>.
I tried to write the following OCL statement (using the Xtext console directly on my model):
self.extension_NFP->notEmpty() implies self.extension_ASIL->notEmpty()
But in that case .extension_ASIL is not resolved. Why?
I tried the following alternative:
self.extension_NFP->notEmpty() implies self.extension_Generic.ocIsKindOf()->notEmpty() but it does not work.
AM I wrong?
Thanks,
Best,
Sébastien
|
|
|
|
|
Sébastien Gérard
Head of the LISE labs
CEA Research Director
Papyrus project Leader (www.eclipse.org/papyrus)
Commissariat à l’énergie atomique et aux énergies alternatives
Institut List
|
CEA Saclay Nano-INNOV
|
Bât. 862- PC174
F-91191 Gif-sur-Yvette Cedex
M. +33 6 88 20 00 47
T. +33 1
69 08 58 24
sebastien.gerard@xxxxxx
www-list.cea.fr
|
|
|
|
|
|
|
|
|
|
|
|
