Hi Séb,
It seems your example is working fine for me.
I did do the following things:
·
Created a new model test2
·
I opened your profile and defined it once more by saving (initially, it didn’t seem to work and I only had
one of the two profiles available…)
·
On the RootElement, I applied both sub-profiles
·
I created a class diagram, a class and an operation
·
I applied NFP
·
I validated
à model validation
lists the issue
·
I applied ASIL as well
·
I validated
à model validation
disappears as expected.
I also changed Eclipse OCL executor’s preference from LPG to Pivot (the one I typically use).
Unfortunately, I don’t understand all and aspects of this choice, but for this case it doesn’t make any difference
afaik.
Beware: Papyrus gives an error in the following scenario:
·
Redefine the profile
·
Open a model to which the profile was applied
·
Allow the automatic update (re-application)
·
Then validate
You first need to save the model, close it and reopen it in order to have a valid validation.
In attachment the current profile & test2 model.
Does this work for you as well?
BR,
Johan
Van: mdt-papyrus.dev-bounces@xxxxxxxxxxx
[mailto:mdt-papyrus.dev-bounces@xxxxxxxxxxx] Namens GERARD Sebastien
Verzonden: vrijdag 19 mei 2017 16:28
Aan: Papyrus Project list <mdt-papyrus.dev@xxxxxxxxxxx>
Onderwerp: Re: [mdt-papyrus.dev] OCL question on a profile
My test is on NEON
|
|
|
|
|
|
|
Sébastien Gérard
Head of the LISE labs
CEA Research Director
Papyrus project Leader (www.eclipse.org/papyrus)
Commissariat à l’énergie atomique et aux énergies alternatives
Institut List
|
CEA Saclay Nano-INNOV
|
Bât. 862- PC174
F-91191 Gif-sur-Yvette Cedex
M. +33 6 88 20 00 47
T. +33 1
69 08 58 24
sebastien.gerard@xxxxxx
www-list.cea.fr
|
|
|
|
|
|

|
|
|
|
|
|
|
Not yet running…
Here is my example model. There is an additional complexity coming from the fact my profile consists of two subprofiles…

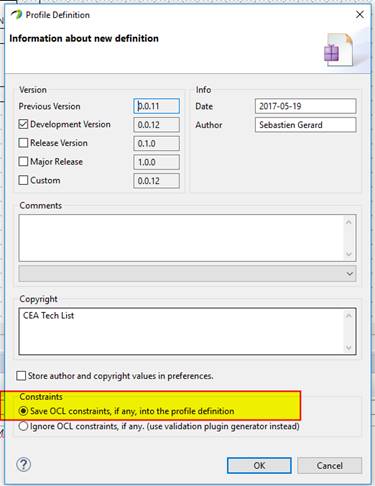

And when I define the profile, I try to use the option to save the OCL constraint in the profile as shown below:
|
|
|
|
|
|
|
Sébastien Gérard
Head of the LISE labs
CEA Research Director
Papyrus project Leader (www.eclipse.org/papyrus)
Commissariat à l’énergie atomique et aux énergies alternatives
Institut List
|
CEA Saclay Nano-INNOV
|
Bât. 862- PC174
F-91191 Gif-sur-Yvette Cedex
M. +33 6 88 20 00 47
T. +33 1
69 08 58 24
sebastien.gerard@xxxxxx
www-list.cea.fr
|
|
|
|
|
|
|
|
|
|
|
|
|
Hi Sebastien
This is the magic/horror of profiles. You define it in one place and it works somewhere else. What is defined in a Stereotype is kind of added to the stereotyped Element.
Regards
Ed
On 19/05/2017 14:34, GERARD Sebastien wrote:
It could work if I define this constraint a model. In my case, the constraint is defined in the profile defining the aforementioned
stereotype.
|
|
|
|
|
|
|
Sébastien Gérard
Head of the LISE labs
CEA Research Director
Papyrus project Leader (www.eclipse.org/papyrus)
Commissariat à l’énergie atomique et aux énergies alternatives
Institut List
|
CEA Saclay Nano-INNOV
|
Bât. 862- PC174
F-91191 Gif-sur-Yvette Cedex
M. +33 6 88 20 00 47
T. +33 1
69 08 58 24
sebastien.gerard@xxxxxx
www-list.cea.fr
|
|
|
|
|
|
|
|
|
|
|
|
|
Hi, Sébastien,
Try this: self.extension_NFP->notEmpty() implies self.extension_ASIL->notEmpty()
On May 19, 2017, 08:56 -0400, GERARD Sebastien <Sebastien.GERARD@xxxxxx>,
wrote:
Hi all,
Who can tell how to write the following rule in OCL?

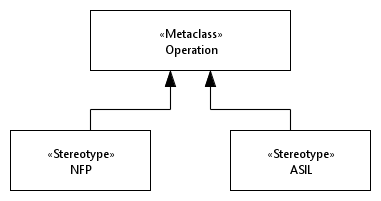

On the profile denoted below, I would like to have a rule to check that is an Operation has the <<NFP>>
applied stereotype, then it has also the <<ASIL>> one.
Thanks.
|
|
|
|
|
|
|
Sébastien Gérard
Head of the LISE labs
CEA Research Director
Papyrus project Leader (www.eclipse.org/papyrus)
Commissariat à l’énergie atomique et aux énergies alternatives
Institut List
|
CEA Saclay Nano-INNOV
|
Bât. 862- PC174
F-91191 Gif-sur-Yvette Cedex
M. +33 6 88 20 00 47
T.
+33 1
69 08 58 24
sebastien.gerard@xxxxxx
www-list.cea.fr
|
|
|
|
|
|
|
|
|
|
|
|
|
