Re: [mdt-papyrus.dev] OCL question on a profile

[Christian Damus <give.a.damus@xxxxxxxxx>]

If you’re defining this in the profile, is it the OpaqueExpression body of a Constraint owned by the NFP stereotype?

If so, then you be able to specify just this _expression_:

    self.base_Operation.extension_ASIL->notEmpty()

because the context implied by the placement in the profile is the NFP stereotype.

If it’s in an OCL document somehow associated with the profile application and loaded separately, then something like this:

    context uml::Operation

    inv ‘nfp_requires_asil’:

        self.extension_NFP->notEmpty() implies self.extension_ASIL->notEmpty()

In either case, this relies on the ability of OCL to navigate association ends (including metaclass extension ends) that are non-navigable according to ordinary UML semantics.  AFAIK, the Eclipse OCL implementation’s pivot implementation for UML supports this.

Cheers,

Christian

On May 19, 2017, 09:35 -0400, GERARD Sebastien <Sebastien.GERARD@xxxxxx>, wrote:

It could work if I define this constraint a model. In my case, the constraint is defined in the profile defining the aforementioned stereotype.



			Sébastien Gérard Head of the LISE labs CEA Research Director Papyrus project Leader (www.eclipse.org/papyrus) Commissariat à l’énergie atomique et aux énergies alternatives Institut List | CEA Saclay Nano-INNOV | Bât. 862- PC174 F-91191 Gif-sur-Yvette Cedex M. +33 6 88 20 00 47 T. +33 1 69 08 58 24 sebastien.gerard@xxxxxx  www-list.cea.fr





De : mdt-papyrus.dev-bounces@xxxxxxxxxxx [mailto:mdt-papyrus.dev-bounces@xxxxxxxxxxx] De la part de Christian Damus
Envoyé : vendredi 19 mai 2017 14:59
À : Papyrus Project list <mdt-papyrus.dev@xxxxxxxxxxx>
Objet : Re: [mdt-papyrus.dev] OCL question on a profile



Hi, Sébastien,



Try this:  self.extension_NFP->notEmpty() implies self.extension_ASIL->notEmpty()

HTH,



Christian

On May 19, 2017, 08:56 -0400, GERARD Sebastien <Sebastien.GERARD@xxxxxx>, wrote:

Hi all,



Who can tell how to write the following rule in OCL?

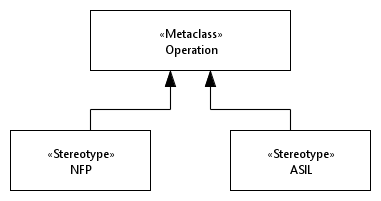

On the profile denoted below, I would like to have a rule to check that is an Operation has the <<NFP>> applied stereotype, then it has also the <<ASIL>> one.







Thanks.



			Sébastien Gérard Head of the LISE labs CEA Research Director Papyrus project Leader (www.eclipse.org/papyrus) Commissariat à l’énergie atomique et aux énergies alternatives Institut List|CEA Saclay Nano-INNOV|Bât. 862- PC174 F-91191 Gif-sur-Yvette Cedex M. +33 6 88 20 00 47 T. +33 1 69 08 58 24 sebastien.gerard@xxxxxx  www-list.cea.fr
