Hi Gery,
You can’t rename
base_XXXX attributes, their name follow a naming convention
imposed by stereotype mechanism tooling.
I think Ed gave us
the right solution (thanks Ed!): " Child must provide an
Extension association to redefine the two inherited
Extensions to eliminate the ambiguity."
I'm currently trying
to implement it[1].
Unfortunately don’t
see any effect.
I tried to see how

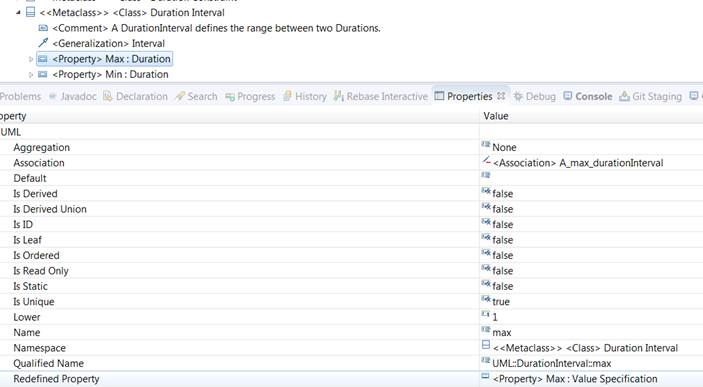

UML metamodel is implemented. I randomly chose a redefined
property example : “DurationInterval::max” redefines
“Interval::max”. [2]
In the corresponding
.ecore file, we can find a corresponding “duplicates”
annotation [3].
It seems to be the
clue for a correct code generation.
How can we trigger
its generation? By default, I don’t have it in my test
example.
Is it due to the fact
that we have a multiple redefinition?
[1]
[2]From :
org.eclipse.uml2.uml\model\UML.merged.uml
[3] From
org.eclipse.uml2.uml\model\UML.ecore
-----Message
d'origine-----
De : mdt-papyrus.dev-bounces@xxxxxxxxxxx
[mailto:mdt-papyrus.dev-bounces@xxxxxxxxxxx] De la part de
DELOGE Gery 249233
Envoyé : mardi 28 mars 2017 16:34
À : Papyrus Project list <mdt-papyrus.dev@xxxxxxxxxxx>
Objet : [PROVENANCE INTERNET] Re: [mdt-papyrus.dev] multiple
inheritance in profile
Hi,
No problem Ed.
Another issue raised while using
generated code with "DUPLICATE_FEATURE_INHERITANCE : process".
I cannot set anymore two stereotypes on the same element.
I'm currently testing the other solution
(ie. rename duplicate attribute in BPMN profile).
I'm still not sure where the problem is
: BPMN profile, UPR implementation of the profile,
generator...
Cheers,
Géry
De :
mdt-papyrus.dev-bounces@xxxxxxxxxxx
[mailto:mdt-papyrus.dev-bounces@xxxxxxxxxxx]
De la part de Ed Willink Envoyé : mardi 28 mars 2017 13:49 À :
Papyrus Project list <mdt-papyrus.dev@xxxxxxxxxxx>
Objet : Re: [mdt-papyrus.dev] multiple inheritance in profile
Hi
Gery: Apologies , I thought you were a
user not developer. A repro is ideally a simple zipped project
that may be downloaded and used to examine the problem free
from the complexity of a large application.
I recall struggling with
multi-metaclassing for the OCL evaluation since exactly one
set of Element slots should be reified regardless of whether
Stereo1, Stereo2 or Child is instantiated.
After a bit of thought the problem seems
very simple:
Child must provide an Extension
association to redefine the two inherited Extensions to
eliminate the ambiguity.
In Papyrus, you perhaps just draw a
Child to Element metaclass relationship and add the
redefinitions in the properties pages.
I think my OCL tests have some Extension
redefinitions, so perhaps it's a simple OMG model bug
requiring the missing redefinition. Add it to the model and
the tooling may work.
Regards
Ed Willink
On 28/03/2017 11:08, REVOL Sébastien
wrote:
Hi all,
To complete the discussion, the
duplicated features are those generated by the "extends

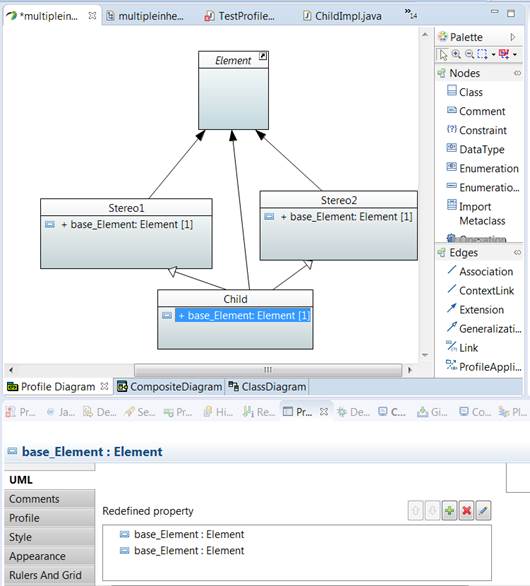

relationship" : let's consider a stereotype "Child" that
inherits from Stereo1 and Stereo2 [1]. Both of them extend
the same "Element" metaclass.
In practice ecore generates a
"base_Element" eRef for both Stereo1 and Stereo2.
In theory, those features have the same
meaning and they should be merged in Child.
By default, with the "discard" option
for duplicated feature inheritance, the UML to Ecore generator
directly removes the Stereo2 inheritance [2].
"Process" option preserves the
inheritance, but renames the one of the features [3].
"Ignore" option preserve feature names
and inheritance, but a model validation error occurs [4].
Last, "Report" option directly stops the
process when the UML model loaded [5].
I don't know if it's a known issue and
if there is an existing solution? (feature redefinition?)
[1]
[2]
[3]
[4]
[5]
-----Message d'origine-----
De :
mdt-papyrus.dev-bounces@xxxxxxxxxxx
[mailto:mdt-papyrus.dev-bounces@xxxxxxxxxxx]
De la part de MAGGI Benoit Envoyé : mardi 28 mars 2017 11:39
À : Papyrus Project list <mdt-papyrus.dev@xxxxxxxxxxx>
Objet : [PROVENANCE INTERNET] Re: [mdt-papyrus.dev] multiple
inheritance in profile
Hi Ed,
Gery is currently working on the BPMN
Papyrus DSML, you may find all sources in this eclipse
repository [1].
I think it's quite natural for him to
use this mailing list for such tricky dev question.
The root issue is that OMG BPMN profile
is indeed using multi-inheritance and same property name [2].
(IMHO: very bad idea, but I didn't check
if it's valid for an UML profile)
Maybe it should be reported as OMG bug?
Regards,
Benoit
1:
https://git.eclipse.org/c/papyrus/org.eclipse.papyrus-bpmn.git/
2: BPMNActivity extends InteractionNode
and BaseElement BaseElement and InteractionNode both have a
base_Element property.
-----Message d'origine-----
De :
mdt-papyrus.dev-bounces@xxxxxxxxxxx
[mailto:mdt-papyrus.dev-bounces@xxxxxxxxxxx]
De la part de Ed Willink Envoyé : mardi 28 mars 2017 11:22 À :
Papyrus Project list <mdt-papyrus.dev@xxxxxxxxxxx>
Objet : Re: [mdt-papyrus.dev] multiple inheritance in profile
Hi
This is the Papyrus developers list.
Please use the Papyrus forum for Papyrus usage questions. Use
the UML2 forum for UML questions.
You haven't provided a repro so I may be
misunderstanding what is nasty.
base_XXX/extension_XXX is effectively
reserved for use by the Stereotype implementation mechanics.
Very bad practice to re-use it. Imperfect tooling may get
confused.
Duplicate feature names are prohibited
in Ecore and UML. In Ecore (for the reified Stereotype) you
would be in trouble. However UML provides a redefinition
capability. This should be used to break the conflict. I've
only used it in some superficial OCL test cases, so you may
have some bugs to circumvent. Raise Bugzillas with fulll
project repros.
Regards
Ed Willink
On 28/03/2017 09:53, DELOGE Gery 249233
wrote:
> Hi,
>
> I had annoying exceptions in BPMN.
The root cause was an issue in BPMN profile generated code
with multiple inheritance.
> A stereotype inherits from two
parents who have each a property named with the same name.
> Basically BPMNActivity inherits
from InteractionNode and from BaseElement who have both a
base_element attribute.
>
> Initial configuration was UML2
generator
(xmlns:genmodel="http://www.eclipse.org/uml2/2.2.0/GenModel in
genmodel file) and DUPLICATE_FEATURE_INHERITANCE set to
DISCARD.
> In this case, the inheritance from
InteractionNode is not present in generated code and effect is
IllegalArgumentException.
>
> First test was renaming
base_element attribute in InterractionNode and keeping
DUPLICATE_FEATURE_INHERITANCE to discard.
> Code was generated without error
and multiple inheritance is fine.
>
> Second test was setting
DUPLICATE_FEATURE_INHERITANCE to Process. In
> that case multiple inheritance is
generated correctly but I have one
> error in generated code in a switch
case in eIsSet method
> case
BPMNProfilePackage.INTERACTION_NODE__BASE_ELEMENT:
> return
isSetBase_Element();
> INTERACTION_NODE__BASE_ELEMENT
cannot be resolved or is not a field
> Commenting this case and everything
look fine.
>
> Does anyone already have this issue
?
> What is the best solution ?
>
> Cheers,
> Géry
>
>
>
