| RE: [mdt-papyrus.dev] Custom code and code generation |

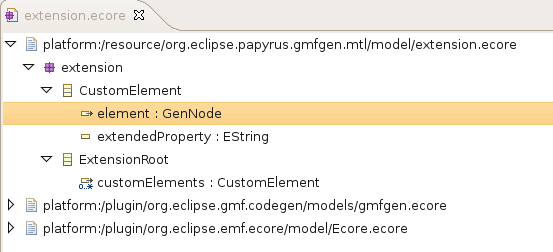

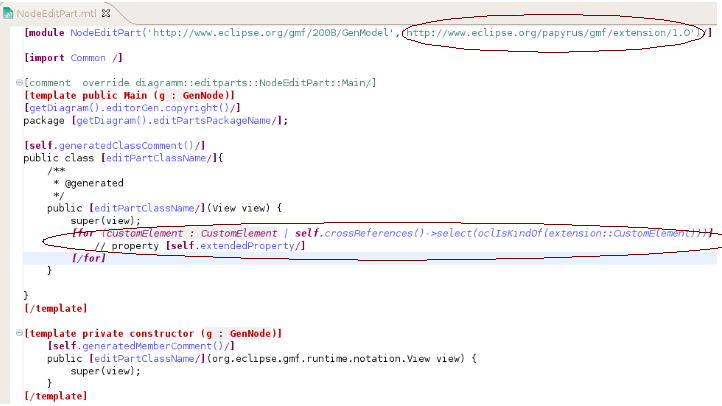

Hi All, I make some experimentations in order to modify GMF default generation. I think model extension mechanism and overriden default GMF.Xpand templates is a simple and good way! But IMHO, the GMF.Xpand language isn't the better language to generate code. Indeed, it required to learn a new language and the xpand template editor is very basic (poor completion, validation and syntax colorization) to develop templates. Yesterday, I searched an pragmatic alternative to provide a productive way to solve our code generation problem. I write plugin to extend GMF.Codegen and overwrite default template by Eclipse MTL templates. MTL is the implementation of the MOF to Text Langage based OMG standard. It offers excellent and productive IDE (exellent completion, validation and syntax colorizatio) and navigation is based on the OCL language. You can see my test in attachement : - GmfGenExtensionMetamodel : the metamodel to extend GmfGen metamodel - MTLTemplateWithExtension : the MTL to template to override the diagramm::editparts::NodeEditPart::Main GMF.Xpand template. Are you agree to combine extension metamodel and MTL templates in Papyrus? my +1 for me If all agrees, i plan to commit org.eclipse.papyrus.gmfgen.mtl plugin and write a short doc Cheers, Jérôme. Le vendredi 09 janvier 2009 à 10:28 +0100, TESSIER Patrick 202707 a écrit : > Hi, > > Very thanks for your responses, > > Thibault, I will use your work done at: > org.eclipse.papyrus.codegen > org.eclipse.papyrus.def > I will also use model extension mecanism. > > Before commit modification, I will send extensions that I would like > to add. > Patrick > --------------------------------------------------------- > Patrick Tessier > Research Engineer > DRT LIST/DTSI/SOL/LISE CEA-Saclay > 91191 Gif sur Yvette Cedex > Tel: 01 69 08 48 63 > www.papyrusuml.org > --------------------------------------------------------- > > > > ______________________________________________________________________ > De : mdt-papyrus.dev-bounces@xxxxxxxxxxx > [mailto:mdt-papyrus.dev-bounces@xxxxxxxxxxx] De la part de Gabriel > Merin Cubero > Envoyé : jeudi 8 janvier 2009 11:48 > À : Papyrus Project list > Objet : RE: [mdt-papyrus.dev] Custom code and code generation > > > > Hi Gerard, > > I agree that improving our communication would really increase our > efficency. No doubt ^-^. > > About the second issue, I think it would be interesting to clear up > what are you referring to when talking about the lack of abstract > elements and inheritance in GMF. If you are talking about, for > example, abstract palettes that can be reused later, we did not have > that need. Thanks to the dynamic-templates all code is generated > automatically accordingly to the described model. > > Thanks. > Regards, > Gabriel. > > P.D.: Happy new year to every one ;) > > El jue, 08-01-2009 a las 09:43 +0100, GERARD Sebastien 166342 > escribió: > > Hi Javier, > > > > Thanks for this very interesting information. That is the proof (if required) that we need to improve communication between each other in order to avoid to lost time... > > > > BTW, one of the pb with using the current tools around GMF is the absence of two very important concept: abstract element and inheritance. Do you have deal with such issue in your extensions? > > > > > > Thanks, > > Cheers... Sébastien. > > > > -----Message d'origine----- > > De : mdt-papyrus.dev-bounces@xxxxxxxxxxx [mailto:mdt-papyrus.dev-bounces@xxxxxxxxxxx] De la part de Francisco Javier Cano > > Envoyé : mercredi 7 janvier 2009 17:18 > > À : Papyrus Project list > > Objet : RE: [mdt-papyrus.dev] Custom code and code generation > > > > Hello Patrick, > > > > we at MOSKitt make heavy use of dynamic templates to make MOSKitt have the required functionality. > > > > As an example, we use dynamic templates to provide MOSKitt with this new functionality: > > - multidiagram for graphical editors. > > - specify which elements are viewed in each diagram. > > - editing domains shared among editors that are editing the same resource. > > - drag and drop in graphical editors. > > - view filtering by type. > > - install edit policies on created edit parts > > - customization of the editor palette via extension points. > > - customization of the modeler assistant via extension points. > > > > Some of this extra functionality uses other mechanisms such as extension points and new runtime classes. > > > > You can take a look at MOSKitt dynamic templates in this subversion repository: > > http://subversion.moskitt.org/gvcase-mdt/ > > or, more precisely, here: > > http://subversion.moskitt.org/gvcase-mdt/trunk/es.cv.gvcase.mdt.common/dynamic-templates/ > > > > > > You can, also, make an extension of the gmfgen model. In MOSKitt we have two extensions to the gmfgen model, one that allows the definition of several elements as canvas and another that allows the definition of appearance behavior for the node figures. > > You can find the source code of the plugins with these gmfgen model extensions here: > > http://subversion.moskitt.org/gvcase-mdt/trunk/es.cv.gvcase.mdt.common.gmfextension.mutating/ > > http://subversion.moskitt.org/gvcase-mdt/trunk/es.cv.gvcase.mdt.common.gmfextension.appearance/ > > > > The model extensions you make to gmfgen can be taken into account in your own dynamic templates. You only need to add an IMPORT statement to make your model extension visible to XPAND. > > You can see an example at the start of this dynamic template: > > http://subversion.moskitt.org/gvcase-mdt/trunk/es.cv.gvcase.mdt.common/dynamic-templates/codegen/aspects/xpt/diagram/editpolicies/DiagramItemSemanticEditPolicy.xpt > > > > We have achieved a lot in MOSKitt using dynamic templates, gmfgen model extension and extension points; and it has helped us a lot in keeping our code under control. > > > > If you have any further questions, don't hesitate to ask. > > > > Regards, > > Javi > > -- > > > > > > ---- > > Francisco Javier Cano Muñoz > > Programador senior > > Prodevelop > > www.prodevelop.es > > > > > > > > -----Original Message----- > > From: mdt-papyrus.dev-bounces@xxxxxxxxxxx on behalf of TESSIER Patrick 202707 > > Sent: Wed 1/7/2009 12:21 > > To: Papyrus Project list > > Subject: [mdt-papyrus.dev] Custom code and code generation > > > > Hi, > > > > I was continuing working on the class diagram editor but I have some > > problems that needs to be solved between going further. I have more and > > more customized code and the regeneration whe modifying the GMF models > > becomes more and more difficult. > > For some custumization I want to do, I cannot use the "not generated" > > tag. For example, for modeling the template signature, there is a > > particular locator and in this case I cannot use the "not generated" > > tag, because in this case there are sideeffects that will impact the > > possiblities to modify the compartiment of a class. In this case, I > > think that the best solution is to modify the generation template > > itself. > > Questions: > > ==> Do you confirm, I am right? > > ==> Who has some experience in modifying the generation template? If yes > > what are the modifications that you may have done for example? > > > > An addiitonal need I will have is to work on the gmfgen model in order > > to add specific behavior, e.g. on the edit parts. But I think it will > > not be sufficient, I think I will have to extend the gmfgen meta model > > (and also its editor) in order to add new concepts : e.g., specific > > locators, very specific parsers for stereotype label, etc. My purpose > > for such modifications, is to add information in the gmfgen model that > > will be needed to provide a more precise/complete, and above all > > efficient, code generation. In parallel, I have post this question in > > gmf newsgroup, but I would like to have your opinion also and help if > > possible. > > > > Cheers... Patrick > > > > --------------------------------------------------------- > > Patrick Tessier > > Research Engineer > > DRT LIST/DTSI/SOL/LISE CEA-Saclay > > 91191 Gif sur Yvette Cedex > > Tel: 01 69 08 48 63 > > www.papyrusuml.org <http://www.papyrusuml.org/> > > --------------------------------------------------------- > > > > > > _______________________________________________ > > mdt-papyrus.dev mailing list > > mdt-papyrus.dev@xxxxxxxxxxx > > https://dev.eclipse.org/mailman/listinfo/mdt-papyrus.dev > Gabriel Merin > Analista/Modelador > gmerin@xxxxxxxxxxxxx > > > Tel 96 371 6852 - Fax 96 337 8533 > _______________________________________________ > mdt-papyrus.dev mailing list > mdt-papyrus.dev@xxxxxxxxxxx > https://dev.eclipse.org/mailman/listinfo/mdt-papyrus.dev
Attachment:
Description: PNG image
Attachment:
Description: PNG image
