Hi Reiner, thanks for the quick reply! I have posted another observation on the eclipse forum about this problem, see here:
http://www.eclipse.org/forums/index.php/m/903216/#msg_903216
The complete BPMN2 doc is included here:
<?xml version="1.0" encoding="UTF-8"?>
<bpmn2:definitions xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:bpmn2="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" xmlns:di="http://www.omg.org/spec/DD/20100524/DI" id="Definitions_1" targetNamespace="http://sample.bpmn2.org/bpmn2/sample/process">
<bpmn2:process id="process_3" name="Default Process">
<bpmn2:laneSet id="LaneSet_1" name="Lane Set 1">
<bpmn2:lane id="Lane_1" name="Lane 1">
<bpmn2:flowNodeRef>StartEvent_1</bpmn2:flowNodeRef>
<bpmn2:flowNodeRef>EndEvent_1</bpmn2:flowNodeRef>
<bpmn2:flowNodeRef>Task_1</bpmn2:flowNodeRef>
</bpmn2:lane>
</bpmn2:laneSet>
<bpmn2:startEvent id="StartEvent_1">
<bpmn2:outgoing>SequenceFlow_2</bpmn2:outgoing>
</bpmn2:startEvent>
<bpmn2:endEvent id="EndEvent_1">
<bpmn2:incoming>SequenceFlow_1</bpmn2:incoming>
</bpmn2:endEvent>
<bpmn2:sequenceFlow id="SequenceFlow_2" name="" sourceRef="StartEvent_1" targetRef="Task_1"/>
<bpmn2:task id="Task_1" name="Task 1">
<bpmn2:incoming>SequenceFlow_2</bpmn2:incoming>
<bpmn2:outgoing>SequenceFlow_1</bpmn2:outgoing>
</bpmn2:task>
<bpmn2:sequenceFlow id="SequenceFlow_1" sourceRef="Task_1" targetRef="EndEvent_1"/>
</bpmn2:process>
<bpmndi:BPMNDiagram id="BPMNDiagram_1" name="Default Process Diagram">
<bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="process_3">
<bpmndi:BPMNShape id="BPMNShape_1" bpmnElement="StartEvent_1">
<dc:Bounds height="36.0" width="36.0" x="190.0" y="285.0"/>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="BPMNShape_2" bpmnElement="EndEvent_1">
<dc:Bounds height="36.0" width="36.0" x="640.0" y="285.0"/>
</bpmndi:BPMNShape>
<bpmndi:BPMNEdge id="BPMNEdge_SequenceFlow_1" bpmnElement="SequenceFlow_1" sourceElement="BPMNShape_Task_1" targetElement="BPMNShape_2">
<di:waypoint xsi:type="dc:Point" x="490.0" y="303.0"/>
<di:waypoint xsi:type="dc:Point" x="640.0" y="303.0"/>
</bpmndi:BPMNEdge>
<bpmndi:BPMNShape id="BPMNShape_Lane_1" bpmnElement="Lane_1" isHorizontal="true">
<dc:Bounds height="100.0" width="600.0" x="140.0" y="252.0"/>
<bpmndi:BPMNPlane>
<bpmndi:BPMNShape id="BPMNShape_Task_1" bpmnElement="Task_1">
<dc:Bounds height="50.0" width="110.0" x="380.0" y="278.0"/>
</bpmndi:BPMNShape>
</bpmndi:BPMNPlane>
</bpmndi:BPMNShape>
<bpmndi:BPMNEdge id="BPMNEdge_SequenceFlow_2" bpmnElement="SequenceFlow_2" sourceElement="BPMNShape_1" targetElement="BPMNShape_Task_1">
<di:waypoint xsi:type="dc:Point" x="226.0" y="303.0"/>
<di:waypoint xsi:type="dc:Point" x="380.0" y="303.0"/>
</bpmndi:BPMNEdge>
</bpmndi:BPMNPlane>
</bpmndi:BPMNDiagram>
</bpmn2:definitions>
This is simply a Process with a single Lane, Start/End events and a Task; the Task should be contained in BPMNPlane which is a child of the Lane's BPMNShape.

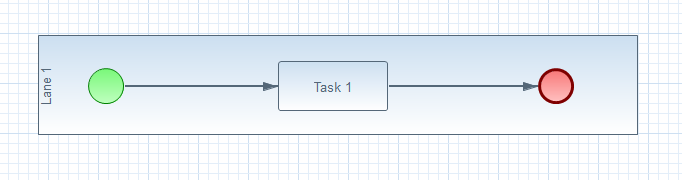

The whole thing looks like this:
Thanks again for your help!
Bob
Hi Bob,
yes, this is allowed and I have several examples that worked.
Could you please provide the full sample?
Thanks,
Reiner.
-----Original Message-----
From: mdt-bpmn2.dev-bounces@xxxxxxxxxxx
[mailto:mdt-bpmn2.dev-bounces@xxxxxxxxxxx] On Behalf Of Bob Brodt
Sent: Mittwoch, 22. August 2012 16:25
To: BPMN2 Developers Mailing List
Subject: [mdt-bpmn2.dev] Question about BPMNPlanes
Hi all,
I'm not sure I understand the relationship of BPMNPlane elements to
other DI model elements. It seems to me that you should be able to
have containment of a BPMNPlane in a BPMNShape, something like this:
<bpmndi:BPMNDiagram id="BPMNDiagram_1" name="Default Process
Diagram">
<bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="process_1">
<bpmndi:BPMNShape id="BPMNShape_1" bpmnElement="StartEvent_1">
<dc:Bounds height="36.0" width="36.0" x="100.0" y="100.0"/>
<bpmndi:BPMNPlane>
<bpmndi:BPMNShape id="BPMNShape_2"
bpmnElement="EndEvent_1">
<dc:Bounds height="36.0" width="36.0" x="500.0"
y="100.0"/>
</bpmndi:BPMNShape>
</bpmndi:BPMNPlane>
</bpmndi:BPMNShape>
</bpmndi:BPMNPlane>
</bpmndi:BPMNDiagram>
When I try this, the XML parser tells me that "Feature 'BPMNPlane'
not found." What am I missing here? Is this even allowed?
Thanks!
________________________
Robert ("Bob") Brodt
Senior Software Engineer
JBoss by Red Hat
