Re: [lyo-dev] How to add Resources to DOORS modules?

[Gabriel Ruelas/Mexico/IBM <gra@xxxxxxxxxxx>]

Hi, Thomas,
        Rational
Doors Next Generation does not support Module updates via OSLC API. Modules
are exposed as read only collections.

Best regards.

Gabriel Ruelas
  Senior Developer in Requirements Management & OSLC
  Member of IBM Academy of Technology
   Phone ( 33 ) 36697608  T/L 877-7608



From:
 Samuel Padgett <spadgett@xxxxxxxxxx>
To:
 Lyo project developer
discussions <lyo-dev@xxxxxxxxxxx>
Cc:
 lyo-dev-bounces@xxxxxxxxxxx
Date:
 03/18/2015 12:56 PM
Subject:
   Re: [lyo-dev]
How to add Resources to DOORS modules?
Sent by:
   lyo-dev-bounces@xxxxxxxxxxx

---

Hi, Thomas. I'd suggest you ask on the
jazz.net forums. As you've found, modules are not part of OSLC Requirements
Management, so someone from the DOORS Next Generation development team
would need to help you understand their support for modules in their OSLC
implementation. Unfortunately, I don't know the answer.

Good luck,
--
Samuel Padgett | IBM Rational | spadgett@xxxxxxxxxx
Eclipse Lyo: Enabling tool integration with OSLC

"Noack,
Thomas" ---03/18/2015 02:33:36 PM---Hello,  my name is Thomas
and I am a Requirements and Test Engineering methodologist and DOORS DXL
a

From:	"Noack, Thomas" <thomas.noack@xxxxxxxxxxxxxxxxxxxxxxx>
To:	"lyo-dev@xxxxxxxxxxx" <lyo-dev@xxxxxxxxxxx>
Date:	03/18/2015 02:33 PM
Subject:	[lyo-dev] How to add Resources to DOORS modules?
Sent by:	lyo-dev-bounces@xxxxxxxxxxx

---

Hello,

my name is Thomas and I am a Requirements and Test Engineering methodologist
and DOORS DXL and DNG OSLC programmer.

I am currently trying to migrate System Requirement Specification (SRS)
templates and their methods from DOORS Classic to DOORS Next. Therefore,
I’m trying to implement a SRS-Module tailoring. The goal is to compose
SRS modules from several mini-templates (which can exist multiple times
in one SRS). Each mini template has several (sub)heading, example and working
instruction artifacts.

I am using DOORS Next Generation 5.0.1 (Build-ID RMS5.0.1-I20140805_2017)

I understand, that
- OSLC RmSpecificationV2 describes Requirement and RequirementCollection
Resources
- RequirementCollection corresponds to a DNG collection (rather a set than
a list)

I experienced (see example below), that
- DNG modules can be retrieved by Lyo as a RequirementCollection
- DNG modules can be updated if no resources have been added by "addUses(URI
pURI)“ (see line "instanceModule.addUses(new
URI(duplURL));“)
- DNG modules can be created (converted by client.createResource())
as a new RequirementCollection (i.e. DOORS collection)
- Interestingly, my DNG version shows the newly added resources
- But it is not showing the previously existing resources (more exactly
it shows their existence but do not actually displays them, see screenshots
below)

My question is, if there exists any possibility to add resources to existing
modules (i.e. sorted lists).

Best regards from Berlin (Germany)
-- Thomas Noack

############# Example code #############

##### Step 1. Get the already existing template and instance modules #####
ClientResponse response
= client.getResource(„path
to module", OslcMediaType.APPLICATION_RDF_XML);
RequirementCollection templateModule
= response.getEntity(RequirementCollection.class);

response = client.getResource(„path
to module", OslcMediaType.APPLICATION_RDF_XML);
RequirementCollection instanceModule
= response.getEntity(RequirementCollection.class);
String instanceEtag
= response.getHeaders().getFirst(OSLCConstants.ETAG);

##### Step 2. Get the artifacts from the template module, duplicate them
an add them to the instance module #####
URI[] uriL = templateModule.getUses();
for(URI uri : uriL)
{
    response
= client.getResource(uri.toString()
, OslcMediaType.APPLICATION_RDF_XML);
    Requirement r
= response.getEntity(Requirement.class);

    Requirement duplR
= new Requirement();
    duplR.setInstanceShape(r.getInstanceShape());
    duplR.setTitle("It's
really new: " + r.getTitle());
    org.w3c.dom.Element obj
= RmUtil.convertStringToHTML(duplR.getTitle());
    duplR.getExtendedProperties().put(RmConstants.PROPERTY_PRIMARY_TEXT,
obj);

    ClientResponse creationResponse
= client.createResource(requirementFactory,
duplR, OslcMediaType.APPLICATION_RDF_XML,
OslcMediaType.APPLICATION_RDF_XML);
    String duplURL
= creationResponse.getHeaders().getFirst(HttpHeaders.LOCATION);
    creationResponse.consumeContent();

    instanceModule.addUses(new
URI(duplURL)); //
uncommenting this leads to success (i.e. status code 200)
}

##### Step 3. Update instance module - RESULT: Update - Oh NO: 400 - Bad
Request #####
response = client.updateResource(instanceURL,
instanceModule, OslcMediaType.APPLICATION_RDF_XML,
OslcMediaType.APPLICATION_RDF_XML,
instanceEtag);
int statusCode
= response.getStatusCode();
String statusMsg
= response.getMessage();
response.consumeContent();

if(statusCode
== HttpStatus.SC_OK)
{
    System.out.println("Update
- Oh YEAH: " + statusCode
+ " - "
+ statusMsg);
} else {
    System.out.println("Update
- Oh NO: " + statusCode
+ " - "
+ statusMsg);
}

##### Step 4. Create new instance module - RESULT: Create - Oh YEAH: 201
- Created #####
response = client.createResource(requirementFactory,
instanceModule, OslcMediaType.APPLICATION_RDF_XML,
OslcMediaType.APPLICATION_RDF_XML);
statusCode = response.getStatusCode();
statusMsg = response.getMessage();
response.consumeContent();

if(statusCode
== HttpStatus.SC_CREATED)
{
    System.out.println("Create
- Oh YEAH: " + statusCode
+ " - "
+ statusMsg);
} else {
    System.out.println("Create
- Oh NO: " + statusCode
+ " - "
+ statusMsg);
}

##### Screenshot after step 4 #####

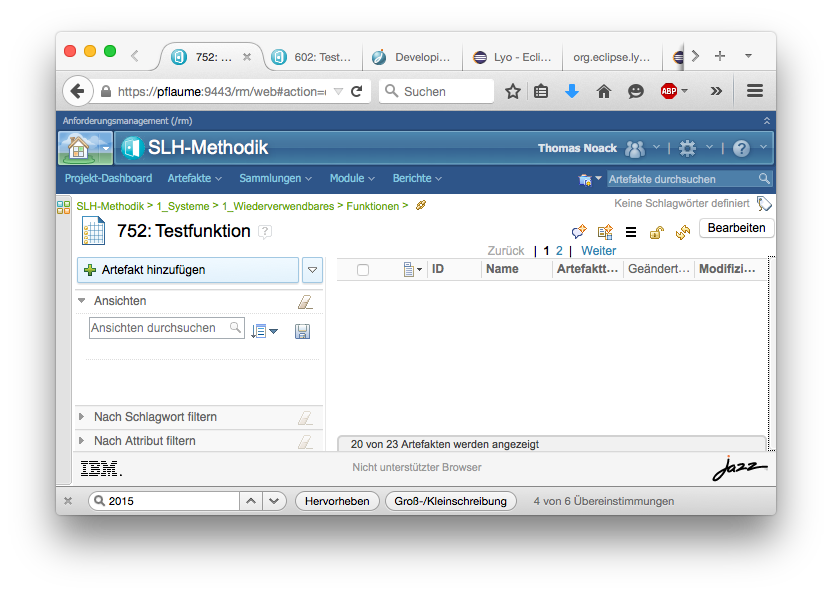

Screenshot 1: DNG says that 20 of 23 artifacts exist but actually nothing
is displayed (page 1/2)

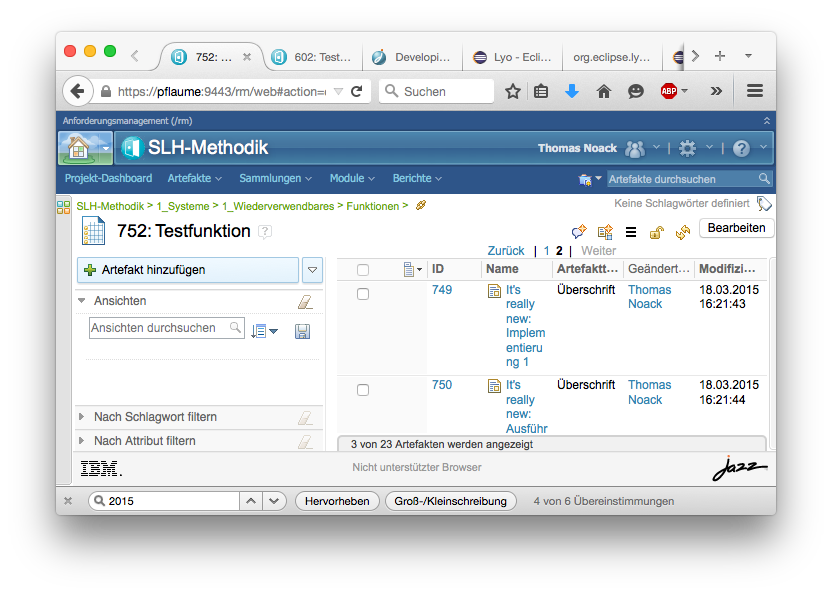

Screenshot 2: DNG only displays the newly added artifacts (page 2/2)
