Re: [january-dev] Reshaping and slicing RGBA image byte buffer for android screen capture

Hi Yannick,



Can you confirm my interpretation of your definitions is correct. I am assume row-major pixel storage.



Pixel stride = position difference (in byte buffer) between pixels (4, in this case)

Row stride = position difference between one row and the next (at same column)

Width = width of image

Height = height of image

Full width = (row stride /  pixel stride)

Size of buffer in bytes  = pixel stride * full width * height



Copying all the imageBuffer to a byte array then using data = "" CompoundByteDataset.class, height, full width)

To grab the left portion, take a slice with



slicedData = data.getSlice(new SliceND(data.getShapeRef(), null, new Slice(width)))



So the flattened bytes are in

slicedDataBytes = slicedData.getData()



Regards,

Peter



From: january-dev-bounces@xxxxxxxxxxx <january-dev-bounces@xxxxxxxxxxx> On Behalf Of Yannick De Visscher
Sent: 25 June 2019 10:52
To: january-dev@xxxxxxxxxxx
Cc: Erwin De Ley <erwin.de.ley@xxxxxxxxxxxxxxxx>
Subject: [january-dev] Reshaping and slicing RGBA image byte buffer for android screen capture



Hi,

Erwin contacted you earlier today about slicing an image represented in a bytebuffer (on android).
I’m trying to accomplish this with a CompoundByteDataset as suggested by Peter, but I’m having some problems.

Below is my current code. I’ve added some additional comments marked in yellow
Could someone point me in the right direction here?


private class ImageAvailableListener implements ImageReader.OnImageAvailableListener {

private ByteBuffer imageBuffer;


@Override

public void onImageAvailable(ImageReader reader) {

try (Image latestImage = imageReader.acquireLatestImage()) {

if (latestImage == null) {

return;
                }


final Image.Plane plane = latestImage.getPlanes()[0];

final ByteBuffer buffer = plane.getBuffer();


if (imageBuffer == null) {

// prepare a buffer for ABGR to ARGB conversion

imageBuffer = ByteBuffer.allocateDirect(buffer.capacity());
                }

// clear the buffer and reset to position 0

imageBuffer.clear();

imageBuffer.position(0);


int width = latestImage.getWidth();

int height = latestImage.getHeight();


int pixelStride = plane.getPixelStride();

int rowStride = plane.getRowStride();

int rowPadding = rowStride - (pixelStride * width);


// convert from ABGR to ARGB to get the correct color space for OpenTOK

RoboticChameleon.fromABGR().toARGB(buffer, rowStride, imageBuffer, rowStride, width, height);


int paddedWidth = width + (rowPadding / pixelStride);

if (paddedWidth > width) {

// we need to remove padding on the right side of this image (some devices show this behaviour in portrait mode)

imageBuffer.position(0);

int size = rowStride * height;    -> had to define a new byte array, since the byte array backed by the buffer had 7 extra bytes (which caused the reshaping to fail)

byte[] pixels = new byte[size];

imageBuffer.get(pixels, 0, size);


// create a compound dataset with itemsize 4 (RGBA pixel) and reshape it

Dataset dataset = DatasetFactory.createFromObject(4, CompoundByteDataset.class, pixels, rowStride / pixelStride, height);


// slice to width and height

Dataset slicedDataset = dataset.getSlice(new Slice(0, width), new Slice(0, height));   -> this takes a very long time


imageBuffer.clear();

imageBuffer.position(0);

// convert the sliced dataset back to a byte array

imageBuffer.put(((CompoundDataset) slicedDataset.flatten()).getByteArray());    -> not sure about this
                }

//                frame = new Frame(imageBuffer, paddedWidth, height);

frame = new Frame(imageBuffer, width, height);

newFrameAvailable = true;

            }
catch (Exception e) {
                Log.e(
LOG_TAG, "Error processing screen capture frame");
            }
        }
    }

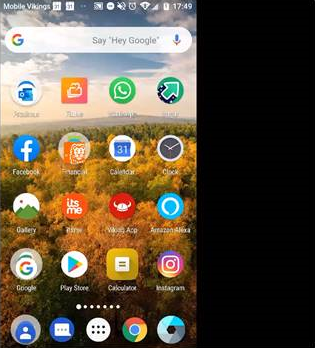

This is an example image, from which I want to remove the black bar on the right.

cid:image001.png@01D52B4E.94459810


Kind regards,
Yannick





--
