[henshin-user] How to easily increment (add 1 to) a parameter?

Dear Henshin Users,
in the process of creating a set of Henshin Units and Rules I stumbled upon a task, which ideally should be easy to deal with: I want to increment an integer parameter. I attached an image of the units and rules I set up to do this. It feels very bloated if you consider the only thing which should be done is incrementing a parameter.

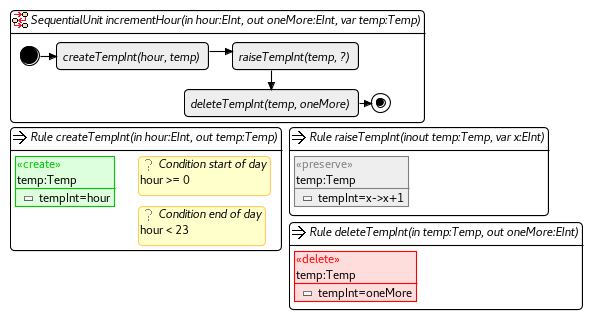

The attached image shows the unit incrementHour which takes the IN parameter "hour" and outputs the OUT parameter "oneMore" which is hour+1. The object Temp you can see in the rules exists for the sole purpose to make incrementing possible. It has one attribute "tempInt" of type EInt, which temporarily stores the parameter value that is going to be incremented.

Do you have any idea how to do this "better"? E.g. one of the following properties:
- less rules/units,
- without an instance object,
- or whatever you consider smarter

I would be happy to hear any suggestions from you.

Kind regards,

Attachment: universityCourses-incrementHour.png
Description: PNG image
