Re: [flux-dev] QuickFix prototype in Github

Hello Eric,

Thanks for the valuable information. Since I pushed the quickfix changes, I haven't had time to look at integrating things with Orion. I am planning to spend some time this week on this.
I will take a look at the QuickFixTest you pointed out and hopefully it will not as complicated as I feared initially :)

Regards,
Jay



From:        Eric Moffatt <emoffatt@xxxxxxxxxx>
To:        Flux developer discussions <flux-dev@xxxxxxxxxxx>
Date:        11/07/2014 10:02 PM
Subject:        Re: [flux-dev] QuickFix prototype in Github
Sent by:        flux-dev-bounces@xxxxxxxxxxx




Jay, we've committed the code for 'quickfix' commands to the Orion GIT repo...you should be able to try it out !

The basic idea is that you can create a pretty well vanilla 'editor' command to provide the fix for a given annotation. When the hover comes up over an annotation we use the commands' 'validationProperties' to filter out only the ones appropriate to the annotation we're over and render a toolbar from any commands that pass the filter, giving us this:




There's an example provided called QuickFixTest that implements fixes for two different annotations (showing that you can implement all your quick fixes in one plugin). The two things to note when looking at the example are that the commands have a 'scopeId' of 'quickfix' (marking these commands as candidates for the quickfix hover) and that the validationProperties filter based on the annotation's 'title'. This is an interim hack until we can get folks to add a unique 'id' to each annotation, then we'll change over to check that (which will be trivial).


To use the example install the QuickFixTest plugin and open a CSS file containing the following code...


/* $HeaderHeight */
.headerLayout {
height: 0px;
}


.foo {


}


If it's working you should see two annotations. Hovering over either should provide you with a popup that shows the annotation and has a button which, when clicked, will 'fix' the problem (see above).


On the hover popup side of things Curtis Windatt has been doing some excellent work on providing a 'UI Delegate' for the hover popup. We can't directly allow HTML as input since plugin code is 'untrusted'; the delegate pattern allows HTML but sandboxes it in an IFRAME to prevent it from possibly corrupting the actual page. Here are a few examples...(from
https://bugs.eclipse.org/bugs/show_bug.cgi?id=449240):

This one shows using an external service to define an image for some css class...

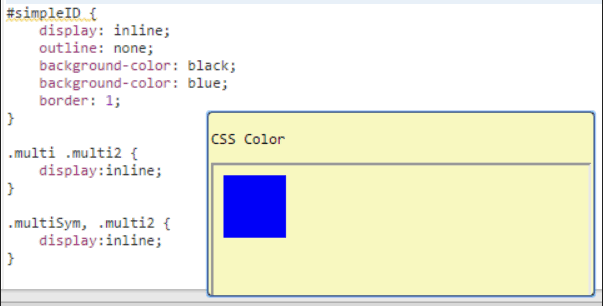

This one shows a naive 'color' display (we're already looking into using a more refined color 'picker')...




Coming soon to tooling near Orion...


Command Bindings
: We'll have a command that will 'show' the tooltip on demand as opposed to on a 'hover', This command will be parameterized allowing for a subset of the existing hover plugins to be invoked. This allows for Ctrl-1 like operations for folks who keep their hands on the KB all the time...input welcome, now's the time !


Editors in the tooltip:
While this one will likely take some time the goal is to allow us to match (for some definition of 'match...;-) what you see in Chrome's debugger where it'll show you the actual code for a method if you hover over it or the code for a CSS class...


Feel free to provide feedback or scenarios that you think would be useful,
Eric





Inactive hide details for Jayaprakash Arthanareeswaran ---11/04/2014 11:57:09 PM---Hi Martin, Right now, this is how it's done:Jayaprakash Arthanareeswaran ---11/04/2014 11:57:09 PM---Hi Martin, Right now, this is how it's done:

From:

Jayaprakash Arthanareeswaran <jarthana@xxxxxxxxxx>

To:

Flux developer discussions <flux-dev@xxxxxxxxxxx>,

Date:

11/04/2014 11:57 PM

Subject:

Re: [flux-dev] QuickFix prototype in Github

Sent by:

flux-dev-bounces@xxxxxxxxxxx





Hi Martin,


Right now, this is how it's done:


On request for applying a particular proposal, the JDT service simply asks the proposal for the preview content and replace the current document's content. After this, the service sends a "
liveResourceChanged" message back to the editor. Here is some bits of relevant code:

String
preview = proposal.getPreviewContent();
...

document
.addDocumentListener(this.documentListener);
document
.replace(0, preview.length(), preview);
...

responseMessage
.put("offset", this.documentListener.event.getOffset());
responseMessage
.put("removedCharCount", this.documentListener.event.getLength());
responseMessage
.put("addedCharacters", this.documentListener.event.getText());
this
.messagingConnector.send("liveResourceChanged", responseMessage);

Replacing the whole content is definitely not ideal. The JDT/UI code that updates the document (in the IDE) seems to be tied closely to some UI elements. But I believe there's still a way to compute this, but I haven't gotten there yet.


Regards,

Jay




From:
Martin Lippert <mlippert@xxxxxxxxx>
To:
Flux developer discussions <flux-dev@xxxxxxxxxxx>
Date:
11/05/2014 01:16 AM
Subject:
Re: [flux-dev] QuickFix prototype in Github
Sent by:
flux-dev-bounces@xxxxxxxxxxx




Hey Jay,

this is awesome. Haven’t looked at the code yet, but I am curious to learn how you are doing the file rewrite. Wanna share and discuss details here?

Cheers,
-Martin

>
> Hello,
>
> I have pushed a first cut prototype of a quickfix prototype here:
https://github.com/jarthana/flux
>
> Even for a prototype, this is in initial stage and I have added only the JDT side of things. Just so people can try out this feature, I have put some stuff in the embeddededitor.js.
>
> Currently the way the feature can be used is:
>
> 1. Keep the cursor at the problem location and press F6 - this will display the suggested quick fixes as bullet list in a hover.
> 2. Keep the cursor at the problem location and press Ctrl + F6 - This will compute the quick fixes and apply the first quick fix automatically and rewrite the file being edited.
>
> The way I see the above use cases being integrated eventually: The quick fix service will cache the last quick fixes it sent to the editor in user session. The quick fixes are recognized by an ID, which will be sent back to the JDT service when the user selects one of them in the editor. Upon receiving confirmation, the fix will be applied.
>
> I have also put up a demo of the prototype here:
http://youtu.be/DfQTuX2Kd8c
>
> Regards,
> Jay
