Ummmm .....
After reflexion, I can't find any SafetyElement which need a general
association to an ArchitectureElement.
In fact, the safety artefacts are Events, Feared events, Barrier,
Failure Modes, etc. They will all have a ownership, potentially with
an ArchitecturalElement (like Block), but non of them will
'reference' an ArchitecturalElement.
What is the purpose of this link ?

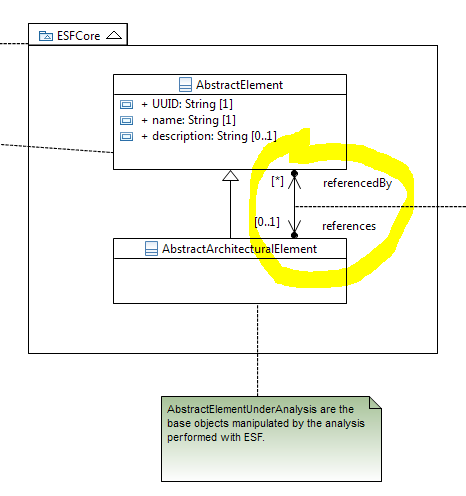

Initially it was :
Here, the aim of the 'reference' link is to ensure that the abstract
element can reference several analysis, using the copied
architectural element.
Do you want to make something similar, by having several analysis
per architectural element ?
Regards,
Jonathan
Le 22/04/2015 14:02, Jonathan DUMONT a
écrit :
This seems to be interesting !
It solves to problem to have an architectural element which has
the to properties 'reference' and 'is referenced by', in the
previous version.
This proposal is also a right way to separate the architectural
concepts and safety concepts.
Moreover the [0..1] is important on the 'reference' role, as there
are safety elements which doesn't reference an architectural
element, even if they are linked to some of them by another way.
For example, the failure modes and feared events don't reference
any architectural element.
Regards,
Jonathan
Le 22/04/2015 11:24, MUNOZ JULHO
Yupanqui a écrit :
Hi everybody,

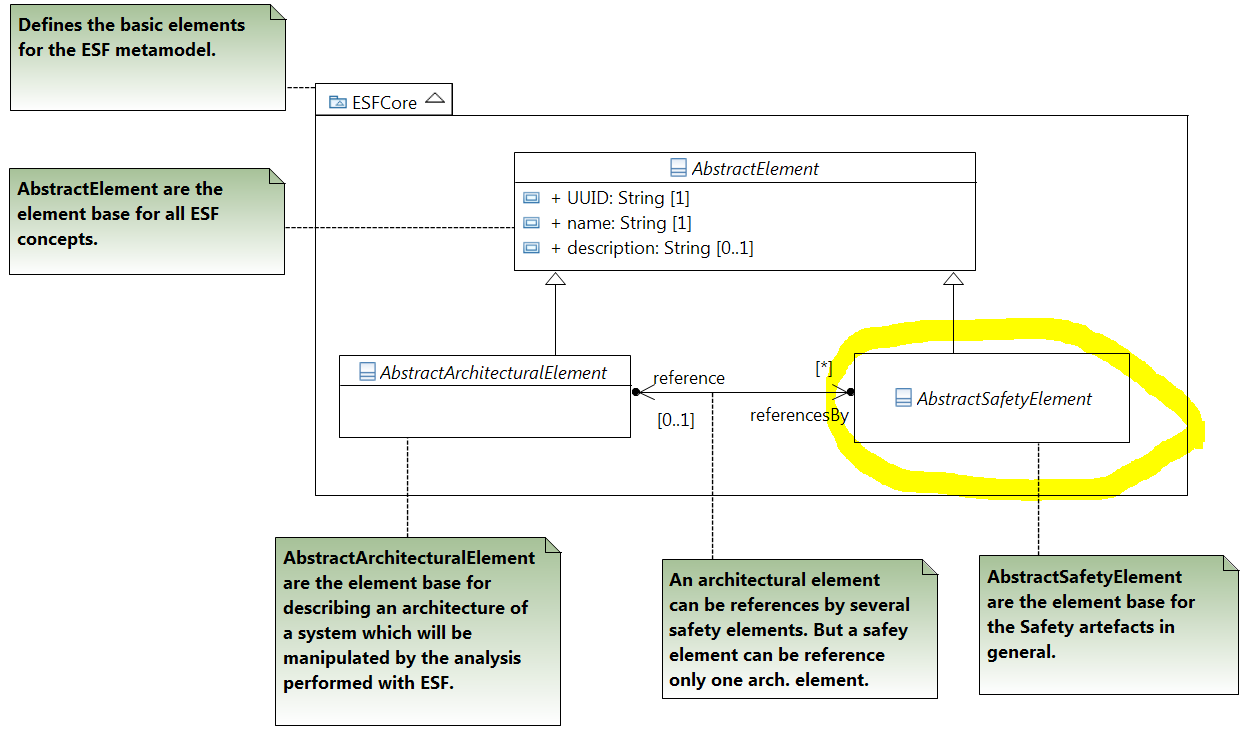

What do you think
about this new proposal ESFCore metamodel?
Thanks
Yupanqui
