Re: [eclipselink-users] Order of mapping initialization error in Eclipse

[Zeb Ford-Reitz <Zeb.Ford-Reitz@xxxxxxxxx>]

A description with some code is easier for the moment. I'm experiencing
the problem in the Eclipse project Jubula (see
https://bugs.eclipse.org/bugs/show_bug.cgi?id=345106), so maybe that
could count as a recreation (although it's far from small or automated).
We're using JPA 2.0 with annotations in an OSGi environment.

The root of a class hierarchy is the NodePO class, which has a
unidirectional list of children:

    @ManyToMany(fetch = FetchType.EAGER,
                cascade = CascadeType.ALL,
                targetEntity = NodePO.class)
    @JoinTable(name = "NODE_LIST",
               joinColumns = @JoinColumn(name = "PARENT"),
               inverseJoinColumns = @JoinColumn(name = "CHILD"))
    @OrderColumn(name = "IDX")
    List<INodePO> getHbmNodeList() {
        return m_nodeList;
    }

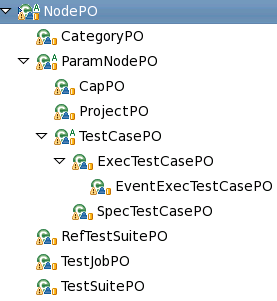

I am attaching an image of the class hierarchy for NodePO. In this
hierarchy are the classes SpecTestCasePO (NodePO -> ParamNodePO ->
TestCasePO -> SpecTestCasePO) and ExecTestCasePO (NodePO -> ParamNodePO
-> TestCasePO -> ExecTestCasePO). This is the multiple levels of
inheritance that I was talking about.

I can successfully add an ExecTestCasePO to a SpectTestCasePO's node
list and persist those changes. I can also successfully call
EntityManager.remove(). However, an attempt to commit the removal causes
a foreign key violation in NODE_LIST.

Thanks for your time. Please let me know if you need more information.

On 05/17/2011 08:03 PM, Tom Ware wrote:
> I am not aware of an existing problem.  Can you provide us with more
> information?  (ideally an recreation, but otherwise a description of
> your class structure, the mappings and the code you are running)
>
> Zeb Ford-Reitz wrote:
> > Hello,
> >
> > I'm encountering a problem with EclipseLink 2.3 RC1 that I did not
> > encounter in EclipseLink 2.2.
> >
> > The problem involves multiple levels of inheritance and
> > "preDeleteMappings". The resulting error is a foreign key violation
> > in a join table when committing the removal an entity with a
> > ManyToMany association.
> >
> > The source of the problem seems to be missing preDeleteMappings,
> > which would remove the necessary entry from the join table before
> > removing the entity itself. Essentially, the order in which the
> > mappings are initialized (and post-initialized) causes several of our
> > entites to contain the preDeleteMappings from their corresponding
> > direct parents, but *not* from all of their ancestors.
> >
> > Is this a known issue? If so, is it expected to be fixed in the near
> > future? If not, can anyone suggest a workaround?
> >
> > Thanks for your time.
> >
> > With best regards,
> > Zeb Ford-Reitz
> >
> >
> > ------------------------------------------------------------------------
> >
> > _______________________________________________
> > eclipselink-users mailing list
> > eclipselink-users@xxxxxxxxxxx
> > https://dev.eclipse.org/mailman/listinfo/eclipselink-users
> _______________________________________________
> eclipselink-users mailing list
> eclipselink-users@xxxxxxxxxxx
> https://dev.eclipse.org/mailman/listinfo/eclipselink-users


--
