Just FYI,

I also tried using the static weaving workaround suggested and it made no difference in the outcome. I can see that the classes used for persistence from the persistence.xml changed in byte size and are larger in size but the outcome is the same.

Here is the ant task I added. I made sure there was META-INF\persistence.xml in the current directory since persistenceinfo points to the location of persistence.xml. I then compared the classes versus the original classes and could see the weaved classes were larger in size. I then verified the jar file contained the weaved classses and that the jar file was indeed the same one inside the WAR file.

      <target name="run-weaver">
      <taskdef name="weave" classname="org.eclipse.persistence.tools.weaving.jpa.StaticWeaveAntTask">
        <classpath>
          <pathelement path="../3rdparty_jars/javax.persistence_1.0.0.jar"/>
          <pathelement path="../3rdparty_jars/eclipselink_1.2.jar"/>
          <pathelement path="etc/persistence_1_0.xsd"/>
        </classpath>
      </taskdef>


      <weave source="build/classes"
        target="build/weaved_classes"
        persistenceinfo="."
        loglevel="FINEST">
      </weave>

This brings a question I have about weaving; Even if this would have fixed the issue, which it did not, if static weaving is required later for any reason, doesn't that mean that we are really instrumenting the code ourselves? I apologize if this question seem kind of basic but what I am trying to determine is if I would then be forced to do instrumentation for each target platform and jvm for each customer?

Anyway, I also tried moving the eclipselink_1.2.jar into the server\default\lib directory and the common\lib directory from the original location (DMWS.war\WEB-INF\lib) to see if it made a difference with the MalformedURLException and it did not. So I am eagerly awaiting your comments on how to resolve this. I can also provide a test case if you need it but you will need to have your own Oracle 11g db and run a couple of sql scripts to setup the tables first.

Thanks,

Joe

On 2/12/2010 8:16 PM, carl roberts wrote:

Hi Michael,

I am afraid I am not out of the woods yet. It would seem I have gotten past the initial errors on JBOSS 5.1.0 but now I am running into this. I am not sure if it has to anything to do with Weaving or not but I am getting a MalformedURLException when processing persistence.xml.
I think the BaseClassLoader cannot find it but I am not sure. Reason I am stating this is that I run FileMon.exe on the jboss java process and I could see where it looked for persistence.xml file a second time and kept issuing the NOT FOUND error. Can you please tell me how to resolve this (I am attaching my persistence.xml file just in case).

PS: I tried including the xsd referenced in the persistence.xml locally to see if it resolved the error but the result was the same (attached is also the xsd, which resides on the same WEB-INF\classes\META-INF directory of the war where persistence.xml file is located).

20:07:32,109 INFO [TomcatDeployment] deploy, ctxPath=/admin-console
20:07:32,234 INFO [config] Initializing Mojarra (1.2_12-b01-FCS) for context '/admin-console'
20:07:36,078 INFO [PersistenceUnitDeployment] Starting persistence unit persistence.unit:unitName=#ContextPersistence
20:07:36,437 INFO [STDOUT] [EL Warning]: 2010-02-12 20:07:36.421--Thread(Thread[main,5,jboss])--The temporary classLoader for PersistenceLoadProcessor [ContextPersistenc
e] is not available. Switching classLoader to [BaseClassLoader@101dfa5{vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/}]. Weaving has been disabled for t
his session. EclipseLink may be unable to get a spec mandated temporary class loader from the server, you may be able to use static weaving as an optional workaround.
20:07:36,468 INFO [STDOUT] [EL Finest]: 2010-02-12 20:07:36.437--ServerSession(22232282)--Thread(Thread[main,5,jboss])--Begin predeploying Persistence Unit ContextPersis
tence; state Initial; factoryCount 0
20:07:36,468 INFO [STDOUT] [EL Finest]: 2010-02-12 20:07:36.468--ServerSession(22232282)--Thread(Thread[main,5,jboss])--property=eclipselink.orm.throw.exceptions; defaul
t value=true
20:07:36,500 INFO [STDOUT] [EL Finer]: 2010-02-12 20:07:36.5--ServerSession(22232282)--Thread(Thread[main,5,jboss])--Searching for default mapping file in vfszip:/C:/jav
a/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/classes/
20:07:36,578 INFO [STDOUT] [EL Finer]: 2010-02-12 20:07:36.578--ServerSession(22232282)--Thread(Thread[main,5,jboss])--Searching for default mapping file in vfszip:/C:/j
ava/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/classes/
20:07:36,796 INFO [STDOUT] [EL Config]: 2010-02-12 20:07:36.796--ServerSession(22232282)--Thread(Thread[main,5,jboss])--The access type for the persistent class [class o
racle.documaker.config.db.AppConfigContext] is set to [FIELD].
20:07:38,062 INFO [STDOUT] [EL Config]: 2010-02-12 20:07:38.062--ServerSession(22232282)--Thread(Thread[main,5,jboss])--The access type for the persistent class [class o
racle.documaker.config.db.ALConfigContext] is set to [FIELD].
20:07:38,062 INFO [STDOUT] [EL Config]: 2010-02-12 20:07:38.062--ServerSession(22232282)--Thread(Thread[main,5,jboss])--The access type for the persistent class [class o
racle.documaker.config.db.SysConfigContext] is set to [FIELD].
20:07:38,062 INFO [STDOUT] [EL Config]: 2010-02-12 20:07:38.062--ServerSession(22232282)--Thread(Thread[main,5,jboss])--The alias name for the entity class [class oracle
.documaker.config.db.AppConfigContext] is being defaulted to: AppConfigContext.
20:07:38,078 INFO [STDOUT] [EL Config]: 2010-02-12 20:07:38.078--ServerSession(22232282)--Thread(Thread[main,5,jboss])--The table name for entity [class oracle.documaker
.config.db.AppConfigContext] is being defaulted to: APPCONFIGCONTEXT.
20:07:38,125 INFO [STDOUT] [EL Config]: 2010-02-12 20:07:38.125--ServerSession(22232282)--Thread(Thread[main,5,jboss])--The alias name for the entity class [class oracle
.documaker.config.db.ALConfigContext] is being defaulted to: ALConfigContext.
20:07:38,125 INFO [STDOUT] [EL Config]: 2010-02-12 20:07:38.125--ServerSession(22232282)--Thread(Thread[main,5,jboss])--The table name for entity [class oracle.documaker
.config.db.ALConfigContext] is being defaulted to: ALCONFIGCONTEXT.
20:07:38,125 INFO [STDOUT] [EL Config]: 2010-02-12 20:07:38.125--ServerSession(22232282)--Thread(Thread[main,5,jboss])--The alias name for the entity class [class oracle
.documaker.config.db.SysConfigContext] is being defaulted to: SysConfigContext.
20:07:38,125 INFO [STDOUT] [EL Config]: 2010-02-12 20:07:38.125--ServerSession(22232282)--Thread(Thread[main,5,jboss])--The table name for entity [class oracle.documaker
.config.db.SysConfigContext] is being defaulted to: SYSCONFIGCONTEXT.
20:07:38,125 INFO [STDOUT] [EL Finest]: 2010-02-12 20:07:38.125--ServerSession(22232282)--Thread(Thread[main,5,jboss])--End predeploying Persistence Unit ContextPersiste
nce; state Predeployed; factoryCount 1
20:07:38,593 INFO [DefaultEndpointRegistry] register: jboss.ws:context=DMWS,endpoint=CompositionService
20:07:38,593 INFO [DefaultEndpointRegistry] register: jboss.ws:context=DMWS,endpoint=PublishingService
20:07:38,593 INFO [DefaultEndpointRegistry] register: jboss.ws:context=DMWS,endpoint=CompositionServiceSoap12
20:07:38,593 INFO [DefaultEndpointRegistry] register: jboss.ws:context=DMWS,endpoint=PublishingServiceSoap12
20:07:40,968 INFO [TomcatDeployment] deploy, ctxPath=/DMWS
20:07:42,203 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/Composit
ionServices.xsd
20:07:42,218 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:42,437 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:42,437 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/Composit
ionServices.xsd
20:07:42,484 WARN [WSDL11Reader] UsingAddressing extensibility element not supported yet.
20:07:42,500 WARN [WSDL11Reader] UsingAddressing extensibility element not supported yet.
20:07:43,093 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/Composit
ionServices.xsd
20:07:43,109 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:43,140 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:43,140 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/Composit
ionServices.xsd
20:07:43,171 WARN [WSDL11Reader] UsingAddressing extensibility element not supported yet.
20:07:43,171 WARN [WSDL11Reader] UsingAddressing extensibility element not supported yet.
20:07:43,281 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/Publishi
ngServices.xsd
20:07:43,296 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:43,296 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/job.xsd
20:07:43,296 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:43,312 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:43,312 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/Publishi
ngServices.xsd
20:07:43,328 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/job.xsd
20:07:43,343 WARN [WSDL11Reader] UsingAddressing extensibility element not supported yet.
20:07:43,343 WARN [WSDL11Reader] UsingAddressing extensibility element not supported yet.
20:07:43,437 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/Publishi
ngServices.xsd
20:07:43,453 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:43,453 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/job.xsd
20:07:43,453 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:43,468 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:43,468 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/Publishi
ngServices.xsd
20:07:43,484 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/job.xsd
20:07:43,562 WARN [WSDL11Reader] UsingAddressing extensibility element not supported yet.
20:07:43,562 WARN [WSDL11Reader] UsingAddressing extensibility element not supported yet.
20:07:43,828 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/Composit
ionServices.xsd
20:07:43,859 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:43,875 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:43,875 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/Composit
ionServices.xsd
20:07:43,890 WARN [WSDL11Reader] UsingAddressing extensibility element not supported yet.
20:07:43,890 WARN [WSDL11Reader] UsingAddressing extensibility element not supported yet.
20:07:44,062 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/Publishi
ngServices.xsd
20:07:44,062 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:44,078 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/job.xsd
20:07:44,078 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:44,093 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/common.x
sd
20:07:44,093 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/Publishi
ngServices.xsd
20:07:44,093 WARN [JBossEntityResolver] Trying to resolve systemId as a non-file URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/wsdl/job.xsd
20:07:44,109 WARN [WSDL11Reader] UsingAddressing extensibility element not supported yet.
20:07:44,109 WARN [WSDL11Reader] UsingAddressing extensibility element not supported yet.
20:07:44,484 INFO [WSDLFilePublisher] WSDL published to: file:/C:/java/jboss-5.1.0.GA/server/default/data/wsdl/DMWS.war/CompositionServices.wsdl
20:07:44,531 INFO [WSDLFilePublisher] WSDL published to: file:/C:/java/jboss-5.1.0.GA/server/default/data/wsdl/DMWS.war/PublishingServices.wsdl
20:07:44,578 INFO [WSDLFilePublisher] WSDL published to: file:/C:/java/jboss-5.1.0.GA/server/default/data/wsdl/DMWS.war/CompositionServices.wsdl
20:07:44,625 INFO [WSDLFilePublisher] WSDL published to: file:/C:/java/jboss-5.1.0.GA/server/default/data/wsdl/DMWS.war/PublishingServices.wsdl
20:07:44,750 INFO [TomcatDeployment] deploy, ctxPath=/
20:07:44,875 INFO [TomcatDeployment] deploy, ctxPath=/jmx-console
20:07:45,062 INFO [TomcatDeployment] deploy, ctxPath=/test
20:07:45,156 INFO [Http11Protocol] Starting Coyote HTTP/1.1 on http-127.0.0.1-8080
20:07:45,203 INFO [AjpProtocol] Starting Coyote AJP/1.3 on ajp-127.0.0.1-8009
20:07:45,203 INFO [ServerImpl] JBoss (Microcontainer) [5.1.0.GA (build: SVNTag=JBoss_5_1_0_GA date=200905221634)] Started in 1m:27s:594ms
20:07:56,531 INFO [STDOUT] 2010-02-12 20:07:56,531 DEBUG LoggingHandler :*****LoggingHandler Input Message:
20:07:56,593 INFO [STDOUT] 2010-02-12 20:07:56,593 DEBUG LoggingHandler :
<tns:DoCallIDSRequest xmlns:tns="oracle/documaker/schema/ws/composition" xmlns:cmn="oracle/documaker/schema/common" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi
="http://www.w3.org/2001/XMLSchema-instance" schemaVersion="1.0">
      <tns:DSIMSG>
        <tns:MSGVARS>
          <tns:VAR NAME="reqtype">sss</tns:VAR>
        </tns:MSGVARS>
      </tns:DSIMSG>
    </tns:DoCallIDSRequest>
20:07:56,625 INFO [STDOUT] 2010-02-12 20:07:56,625 DEBUG CompositionService :org.jboss.web.tomcat.service.WebCtxLoader$ENCLoader@12cbf47
20:07:56,640 INFO [STDOUT] 2010-02-12 20:07:56,640 DEBUG Proxy :org.jboss.web.tomcat.service.WebCtxLoader$ENCLoader@12cbf47
20:07:56,890 INFO [STDOUT] 2010-02-12 20:07:56,890 DEBUG CompositionService :*****oracle.documaker.ws.server.CompositionServiceSoap11Impl - Calling doCallIDS.
20:07:56,906 INFO [STDOUT] 2010-02-12 20:07:56,906 DEBUG Proxy :*****VARS*****
20:07:56,906 INFO [STDOUT] 2010-02-12 20:07:56,906 DEBUG Proxy :reqtype=<sss>
20:07:56,906 INFO [STDOUT] 2010-02-12 20:07:56,906 DEBUG DMWSConfiguration :useJNDI=<true>
20:07:56,906 INFO [STDOUT] 2010-02-12 20:07:56,906 DEBUG DMWSConfiguration :props=<{system.id=1, assemblyline.id=1}>
20:07:56,906 INFO [STDOUT] 2010-02-12 20:07:56,906 DEBUG DataSourceConfigurationFactory :************DataSource Configuration Factory Properties**************
20:07:56,906 INFO [STDOUT] 2010-02-12 20:07:56,906 DEBUG DataSourceConfigurationFactory :assemblyline.id=<1>
20:07:56,906 INFO [STDOUT] 2010-02-12 20:07:56,906 DEBUG DataSourceConfigurationFactory :system.id=<1>
20:07:56,906 INFO [STDOUT] 2010-02-12 20:07:56,906 DEBUG DataSourceConfigurationFactory :*********************************************************************
20:07:57,265 INFO [Version] Hibernate Annotations 3.4.0.GA
20:07:57,312 INFO [Environment] Hibernate 3.3.1.GA
20:07:57,328 INFO [Environment] hibernate.properties not found
20:07:57,328 INFO [Environment] Bytecode provider name : javassist
20:07:57,343 INFO [Environment] using JDK 1.4 java.sql.Timestamp handling
20:07:57,593 INFO [Version] Hibernate Commons Annotations 3.1.0.GA
20:07:57,609 INFO [Version] Hibernate EntityManager 3.4.0.GA
20:07:57,765 INFO [STDOUT] [EL Finer]: 2010-02-12 20:07:57.765--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--JavaSECMPInitializer - initializing org.eclipse.persistenc
e.internal.jpa.deployment.JarInputStreamURLArchive@ef4c18.
20:07:57,796 INFO [STDOUT] 2010-02-12 20:07:57,796 ERROR Proxy :Local Exception Stack:
Exception [EclipseLink-30005] (Eclipse Persistence Services - 1.2.0.v20091016-r5565): org.eclipse.persistence.exceptions.PersistenceUnitLoadingException
Exception Description: An exception was thrown while searching for persistence archives with ClassLoader: BaseClassLoader@101dfa5{vfszip:/C:/java/jboss-5.1.0.GA/server/de
fault/deploy/DMWS.war/}
Internal Exception: Exception [EclipseLink-30004] (Eclipse Persistence Services - 1.2.0.v20091016-r5565): org.eclipse.persistence.exceptions.PersistenceUnitLoadingExcepti
on
Exception Description: An exception was thrown while processing persistence.xml from URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/classes/
Internal Exception: java.net.MalformedURLException
        at org.eclipse.persistence.exceptions.PersistenceUnitLoadingException.exceptionSearchingForPersistenceResources(PersistenceUnitLoadingException.java:123)
        at org.eclipse.persistence.jpa.PersistenceProvider.createEntityManagerFactory(PersistenceProvider.java:133)
        at org.eclipse.persistence.jpa.PersistenceProvider.createEntityManagerFactory(PersistenceProvider.java:67)
        at javax.persistence.Persistence.createEntityManagerFactory(Persistence.java:52)
        at javax.persistence.Persistence.createEntityManagerFactory(Persistence.java:34)
        at oracle.documaker.config.db.DataSourceConfiguration.<init>(DataSourceConfiguration.java:28)
        at oracle.documaker.config.db.DataSourceConfigurationFactory.getConfiguration(DataSourceConfigurationFactory.java:38)
        at oracle.documaker.ws.config.DMWSConfiguration.getConfiguration(DMWSConfiguration.java:67)
        at oracle.documaker.ws.ids.Proxy.getProperties(Proxy.java:93)
        at oracle.documaker.ws.ids.Proxy.parseProperties(Proxy.java:213)
        at oracle.documaker.ws.ids.Proxy.doCallIDS(Proxy.java:121)
        at oracle.documaker.ws.server.CompositionService.doCallIDS(CompositionService.java:110)
        at oracle.documaker.ws.server.CompositionServiceSoap11Impl.doCallIDS(CompositionServiceSoap11Impl.java:58)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)
        at java.lang.reflect.Method.invoke(Method.java:597)
        at org.jboss.wsf.container.jboss50.invocation.InvocationHandlerJSE.invoke(InvocationHandlerJSE.java:108)
        at org.jboss.ws.core.server.ServiceEndpointInvoker.invoke(ServiceEndpointInvoker.java:222)
        at org.jboss.wsf.stack.jbws.RequestHandlerImpl.processRequest(RequestHandlerImpl.java:474)
        at org.jboss.wsf.stack.jbws.RequestHandlerImpl.handleRequest(RequestHandlerImpl.java:295)
        at org.jboss.wsf.stack.jbws.RequestHandlerImpl.doPost(RequestHandlerImpl.java:205)
        at org.jboss.wsf.stack.jbws.RequestHandlerImpl.handleHttpRequest(RequestHandlerImpl.java:131)
        at org.jboss.wsf.common.servlet.AbstractEndpointServlet.service(AbstractEndpointServlet.java:85)
        at javax.servlet.http.HttpServlet.service(HttpServlet.java:717)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:290)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
        at org.jboss.web.tomcat.filters.ReplyHeaderFilter.doFilter(ReplyHeaderFilter.java:96)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:235)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
        at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:235)
        at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:191)
        at org.jboss.web.tomcat.security.SecurityAssociationValve.invoke(SecurityAssociationValve.java:190)
        at org.jboss.web.tomcat.security.JaccContextValve.invoke(JaccContextValve.java:92)
        at org.jboss.web.tomcat.security.SecurityContextEstablishmentValve.process(SecurityContextEstablishmentValve.java:126)
        at org.jboss.web.tomcat.security.SecurityContextEstablishmentValve.invoke(SecurityContextEstablishmentValve.java:70)
        at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:127)
        at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:102)
        at org.jboss.web.tomcat.service.jca.CachedConnectionValve.invoke(CachedConnectionValve.java:158)
        at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:109)
        at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:330)
        at org.apache.coyote.http11.Http11Processor.process(Http11Processor.java:829)
        at org.apache.coyote.http11.Http11Protocol$Http11ConnectionHandler.process(Http11Protocol.java:598)
        at org.apache.tomcat.util.net.JIoEndpoint$Worker.run(JIoEndpoint.java:447)
        at java.lang.Thread.run(Thread.java:619)
Caused by: Exception [EclipseLink-30004] (Eclipse Persistence Services - 1.2.0.v20091016-r5565): org.eclipse.persistence.exceptions.PersistenceUnitLoadingException
Exception Description: An exception was thrown while processing persistence.xml from URL: vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/classes/
Internal Exception: java.net.MalformedURLException
        at org.eclipse.persistence.exceptions.PersistenceUnitLoadingException.exceptionProcessingPersistenceXML(PersistenceUnitLoadingException.java:114)
        at org.eclipse.persistence.internal.jpa.deployment.PersistenceUnitProcessor.processPersistenceXML(PersistenceUnitProcessor.java:413)
        at org.eclipse.persistence.internal.jpa.deployment.PersistenceUnitProcessor.processPersistenceArchive(PersistenceUnitProcessor.java:370)
        at org.eclipse.persistence.internal.jpa.deployment.PersistenceUnitProcessor.getPersistenceUnits(PersistenceUnitProcessor.java:279)
        at org.eclipse.persistence.internal.jpa.deployment.JPAInitializer.initPersistenceUnits(JPAInitializer.java:155)
        at org.eclipse.persistence.internal.jpa.deployment.JPAInitializer.initialize(JPAInitializer.java:144)
        at org.eclipse.persistence.jpa.PersistenceProvider.createEntityManagerFactory(PersistenceProvider.java:105)
        ... 43 more
Caused by: java.net.MalformedURLException
        at java.net.URL.<init>(URL.java:601)
        at java.net.URL.<init>(URL.java:464)
        at java.net.URL.<init>(URL.java:413)
        at org.apache.xerces.impl.XMLEntityManager.setupCurrentEntity(Unknown Source)
        at org.apache.xerces.impl.XMLVersionDetector.determineDocVersion(Unknown Source)
        at org.apache.xerces.parsers.XML11Configuration.parse(Unknown Source)
        at org.apache.xerces.parsers.XML11Configuration.parse(Unknown Source)
        at org.apache.xerces.parsers.XMLParser.parse(Unknown Source)
        at org.apache.xerces.parsers.AbstractSAXParser.parse(Unknown Source)
        at org.apache.xerces.jaxp.SAXParserImpl$JAXPSAXParser.parse(Unknown Source)
        at org.eclipse.persistence.internal.jpa.deployment.PersistenceUnitProcessor.processPersistenceXML(PersistenceUnitProcessor.java:411)
        ... 48 more
20:07:57,796 INFO [STDOUT] 2010-02-12 20:07:57,796 DEBUG Proxy :********Message Properties**************
20:07:57,796 INFO [STDOUT] 2010-02-12 20:07:57,796 ERROR Proxy :java.lang.NullPointerException
        at oracle.documaker.ws.ids.Proxy.parseProperties(Proxy.java:509)
        at oracle.documaker.ws.ids.Proxy.doCallIDS(Proxy.java:121)
        at oracle.documaker.ws.server.CompositionService.doCallIDS(CompositionService.java:110)
        at oracle.documaker.ws.server.CompositionServiceSoap11Impl.doCallIDS(CompositionServiceSoap11Impl.java:58)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)
        at java.lang.reflect.Method.invoke(Method.java:597)
        at org.jboss.wsf.container.jboss50.invocation.InvocationHandlerJSE.invoke(InvocationHandlerJSE.java:108)
        at org.jboss.ws.core.server.ServiceEndpointInvoker.invoke(ServiceEndpointInvoker.java:222)
        at org.jboss.wsf.stack.jbws.RequestHandlerImpl.processRequest(RequestHandlerImpl.java:474)
        at org.jboss.wsf.stack.jbws.RequestHandlerImpl.handleRequest(RequestHandlerImpl.java:295)
        at org.jboss.wsf.stack.jbws.RequestHandlerImpl.doPost(RequestHandlerImpl.java:205)
        at org.jboss.wsf.stack.jbws.RequestHandlerImpl.handleHttpRequest(RequestHandlerImpl.java:131)
        at org.jboss.wsf.common.servlet.AbstractEndpointServlet.service(AbstractEndpointServlet.java:85)
        at javax.servlet.http.HttpServlet.service(HttpServlet.java:717)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:290)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
        at org.jboss.web.tomcat.filters.ReplyHeaderFilter.doFilter(ReplyHeaderFilter.java:96)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:235)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
        at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:235)
        at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:191)
        at org.jboss.web.tomcat.security.SecurityAssociationValve.invoke(SecurityAssociationValve.java:190)
        at org.jboss.web.tomcat.security.JaccContextValve.invoke(JaccContextValve.java:92)
        at org.jboss.web.tomcat.security.SecurityContextEstablishmentValve.process(SecurityContextEstablishmentValve.java:126)
        at org.jboss.web.tomcat.security.SecurityContextEstablishmentValve.invoke(SecurityContextEstablishmentValve.java:70)
        at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:127)
        at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:102)
        at org.jboss.web.tomcat.service.jca.CachedConnectionValve.invoke(CachedConnectionValve.java:158)
        at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:109)
        at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:330)
        at org.apache.coyote.http11.Http11Processor.process(Http11Processor.java:829)
        at org.apache.coyote.http11.Http11Protocol$Http11ConnectionHandler.process(Http11Protocol.java:598)
        at org.apache.tomcat.util.net.JIoEndpoint$Worker.run(JIoEndpoint.java:447)
        at java.lang.Thread.run(Thread.java:619)
20:07:57,796 ERROR [SOAPFaultHelperJAXWS] SOAP request exception
oracle.documaker.schema.ws.composition.CompositionFault_Exception
        at oracle.documaker.ws.ids.Proxy.doCallIDS(Proxy.java:181)
        at oracle.documaker.ws.server.CompositionService.doCallIDS(CompositionService.java:110)
        at oracle.documaker.ws.server.CompositionServiceSoap11Impl.doCallIDS(CompositionServiceSoap11Impl.java:58)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)
        at java.lang.reflect.Method.invoke(Method.java:597)
        at org.jboss.wsf.container.jboss50.invocation.InvocationHandlerJSE.invoke(InvocationHandlerJSE.java:108)
        at org.jboss.ws.core.server.ServiceEndpointInvoker.invoke(ServiceEndpointInvoker.java:222)
        at org.jboss.wsf.stack.jbws.RequestHandlerImpl.processRequest(RequestHandlerImpl.java:474)
        at org.jboss.wsf.stack.jbws.RequestHandlerImpl.handleRequest(RequestHandlerImpl.java:295)
        at org.jboss.wsf.stack.jbws.RequestHandlerImpl.doPost(RequestHandlerImpl.java:205)
        at org.jboss.wsf.stack.jbws.RequestHandlerImpl.handleHttpRequest(RequestHandlerImpl.java:131)
        at org.jboss.wsf.common.servlet.AbstractEndpointServlet.service(AbstractEndpointServlet.java:85)
        at javax.servlet.http.HttpServlet.service(HttpServlet.java:717)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:290)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
        at org.jboss.web.tomcat.filters.ReplyHeaderFilter.doFilter(ReplyHeaderFilter.java:96)
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:235)
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
        at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:235)
        at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:191)
        at org.jboss.web.tomcat.security.SecurityAssociationValve.invoke(SecurityAssociationValve.java:190)
        at org.jboss.web.tomcat.security.JaccContextValve.invoke(JaccContextValve.java:92)
        at org.jboss.web.tomcat.security.SecurityContextEstablishmentValve.process(SecurityContextEstablishmentValve.java:126)
        at org.jboss.web.tomcat.security.SecurityContextEstablishmentValve.invoke(SecurityContextEstablishmentValve.java:70)
        at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:127)
        at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:102)
        at org.jboss.web.tomcat.service.jca.CachedConnectionValve.invoke(CachedConnectionValve.java:158)
        at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:109)
        at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:330)
        at org.apache.coyote.http11.Http11Processor.process(Http11Processor.java:829)
        at org.apache.coyote.http11.Http11Protocol$Http11ConnectionHandler.process(Http11Protocol.java:598)
        at org.apache.tomcat.util.net.JIoEndpoint$Worker.run(JIoEndpoint.java:447)
        at java.lang.Thread.run(Thread.java:619)

On 2/12/2010 9:48 AM, carl roberts wrote:
Thank you Michael for all your hard work on this. Your testing notes were very helpful to me. I was able to get EclipseLink working on JBOSS 5.1.0 after going over your notes.

Basically, I noticed the following differences between your setup and mine:

1 - Don't include the javax.persistence*.jar (Previously I was under the impression that I have to include and override the persistence layer of JBOSS, which had me worry a little).

2 - Don't include this section in the web.xml (came from my tomcat testing):

    <resource-ref>
        <description>JNDI Data Source</description>
        <res-ref-name>DMWS</res-ref-name>
        <res-type>javax.sql.DataSource</res-type>
        <res-auth>Container</res-auth>
    </resource-ref>

BTW, this section was causing the following exception I reported previously:

java.lang.RuntimeException: mapped-name is required for DMWS of deployment DMWS.war

3 - Include the EclipeLink 2.0 jar in common\lib directory (previously I had tried to place this jar file in server\default\lib and in the main lib directory.   Also, I was under the impression that I needed to use the eclipse 1.1.x jar on JBOSS 5.1.0).

BTW, I just tried moving the jar file back into the WEB-INF\lib directory and this also works.

Now I am getting this with logging level set to FINEST (SUCCESS):

09:38:55,375 INFO [PersistenceUnitDeployment] Starting persistence unit persistence.unit:unitName=#ContextPersistence
09:38:55,703 INFO [STDOUT] [EL Warning]: 2010-02-12 09:38:55.687--Thread(Thread[main,5,jboss])--The temporary classLoader for PersistenceLoadProcessor [ContextPersisten
e] is not available. Switching classLoader to [BaseClassLoader@9ccd0a{vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/}]. Weaving has been disabled for t
is session. EclipseLink may be unable to get a spec mandated temporary class loader from the server, you may be able to use static weaving as an optional workaround.
09:38:55,718 INFO [STDOUT] [EL Finest]: 2010-02-12 09:38:55.703--ServerSession(28622485)--Thread(Thread[main,5,jboss])--Begin predeploying Persistence Unit ContextPersi
tence; session vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/classes/_ContextPersistence; state Initial; factoryCount 0
09:38:55,750 INFO [STDOUT] [EL Finest]: 2010-02-12 09:38:55.75--ServerSession(28622485)--Thread(Thread[main,5,jboss])--property=eclipselink.orm.throw.exceptions; defaul
value=true
09:38:55,750 INFO [STDOUT] [EL Finest]: 2010-02-12 09:38:55.75--ServerSession(28622485)--Thread(Thread[main,5,jboss])--property=eclipselink.weaving.changetracking; defa
lt value=true
09:38:55,750 INFO [STDOUT] [EL Finest]: 2010-02-12 09:38:55.75--ServerSession(28622485)--Thread(Thread[main,5,jboss])--property=eclipselink.weaving.lazy; default value=
rue
09:38:55,750 INFO [STDOUT] [EL Finest]: 2010-02-12 09:38:55.75--ServerSession(28622485)--Thread(Thread[main,5,jboss])--property=eclipselink.weaving.eager; default value
false
09:38:55,750 INFO [STDOUT] [EL Finest]: 2010-02-12 09:38:55.75--ServerSession(28622485)--Thread(Thread[main,5,jboss])--property=eclipselink.weaving.fetchgroups; default
value=true
09:38:55,750 INFO [STDOUT] [EL Finest]: 2010-02-12 09:38:55.75--ServerSession(28622485)--Thread(Thread[main,5,jboss])--property=eclipselink.weaving.internal; default va
ue=true
09:38:55,781 INFO [STDOUT] [EL Finer]: 2010-02-12 09:38:55.781--ServerSession(28622485)--Thread(Thread[main,5,jboss])--Searching for default mapping file in vfszip:/C:/
ava/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/classes/
09:38:55,796 INFO [STDOUT] [EL Finer]: 2010-02-12 09:38:55.796--ServerSession(28622485)--Thread(Thread[main,5,jboss])--Searching for default mapping file in vfszip:/C:/
ava/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/classes/
09:38:57,218 INFO [STDOUT] [EL Config]: 2010-02-12 09:38:57.218--ServerSession(28622485)--Thread(Thread[main,5,jboss])--The access type for the persistent class [class
racle.documaker.config.db.AppConfigContext] is set to [FIELD].
09:38:57,265 INFO [STDOUT] [EL Config]: 2010-02-12 09:38:57.265--ServerSession(28622485)--Thread(Thread[main,5,jboss])--The access type for the persistent class [class
racle.documaker.config.db.ALConfigContext] is set to [FIELD].
09:38:57,265 INFO [STDOUT] [EL Config]: 2010-02-12 09:38:57.265--ServerSession(28622485)--Thread(Thread[main,5,jboss])--The access type for the persistent class [class
racle.documaker.config.db.SysConfigContext] is set to [FIELD].
09:38:57,265 INFO [STDOUT] [EL Config]: 2010-02-12 09:38:57.265--ServerSession(28622485)--Thread(Thread[main,5,jboss])--The alias name for the entity class [class oracl
.documaker.config.db.AppConfigContext] is being defaulted to: AppConfigContext.
09:38:57,281 INFO [STDOUT] [EL Config]: 2010-02-12 09:38:57.281--ServerSession(28622485)--Thread(Thread[main,5,jboss])--The table name for entity [class oracle.documake
.config.db.AppConfigContext] is being defaulted to: APPCONFIGCONTEXT.
09:38:57,312 INFO [STDOUT] [EL Config]: 2010-02-12 09:38:57.312--ServerSession(28622485)--Thread(Thread[main,5,jboss])--The alias name for the entity class [class oracl
.documaker.config.db.ALConfigContext] is being defaulted to: ALConfigContext.
09:38:57,312 INFO [STDOUT] [EL Config]: 2010-02-12 09:38:57.312--ServerSession(28622485)--Thread(Thread[main,5,jboss])--The table name for entity [class oracle.documake
.config.db.ALConfigContext] is being defaulted to: ALCONFIGCONTEXT.
09:38:57,312 INFO [STDOUT] [EL Config]: 2010-02-12 09:38:57.312--ServerSession(28622485)--Thread(Thread[main,5,jboss])--The alias name for the entity class [class oracl
.documaker.config.db.SysConfigContext] is being defaulted to: SysConfigContext.
09:38:57,312 INFO [STDOUT] [EL Config]: 2010-02-12 09:38:57.312--ServerSession(28622485)--Thread(Thread[main,5,jboss])--The table name for entity [class oracle.documake
.config.db.SysConfigContext] is being defaulted to: SYSCONFIGCONTEXT.
09:38:57,328 INFO [STDOUT] [EL Finer]: 2010-02-12 09:38:57.328--ServerSession(28622485)--Thread(Thread[main,5,jboss])--Class [oracle.documaker.config.db.AppConfigContex
] registered to be processed by weaver.
09:38:57,328 INFO [STDOUT] [EL Finer]: 2010-02-12 09:38:57.328--ServerSession(28622485)--Thread(Thread[main,5,jboss])--Class [oracle.documaker.config.db.ALConfigContext
registered to be processed by weaver.
09:38:57,328 INFO [STDOUT] [EL Finer]: 2010-02-12 09:38:57.328--ServerSession(28622485)--Thread(Thread[main,5,jboss])--Class [oracle.documaker.config.db.SysConfigContex
] registered to be processed by weaver.
09:38:57,328 INFO [STDOUT] [EL Finest]: 2010-02-12 09:38:57.328--ServerSession(28622485)--Thread(Thread[main,5,jboss])--End predeploying Persistence Unit ContextPersist
nce; session vfszip:/C:/java/jboss-5.1.0.GA/server/default/deploy/DMWS.war/WEB-INF/classes/_ContextPersistence; state Predeployed; factoryCount 1
09:38:57,484 INFO [DefaultEndpointRegistry] register: jboss.ws:context=DMWS,endpoint=CompositionService
09:38:57,484 INFO [DefaultEndpointRegistry] register: jboss.ws:context=DMWS,endpoint=PublishingService
09:38:57,484 INFO [DefaultEndpointRegistry] register: jboss.ws:context=DMWS,endpoint=CompositionServiceSoap12
09:38:57,484 INFO [DefaultEndpointRegistry] register: jboss.ws:context=DMWS,endpoint=PublishingServiceSoap12

This is enough for me. I will continue using EclipseLink on my project and start testing on WLS 10.3.2 and WAS 7.0 and see how that goes.

Much appreciated Michael. Also, thanks to all of you involved in this (Tom, Gordon, etc.).

Joe

Joe Roberts | Senior Applications Engineer, Insurance Global Business Unit
Phone: +1 770 910 8257 | Mobile: +1 678 439 6635

Oracle Insurance Global Business Unit
3353 Peachtree Road, NE | Suite 800 | Atlanta, GA 30326

On 2/12/2010 2:54 AM, Michael O'Brien wrote:
Joe,
    All the following experiments PASS for EclipseLink 2.0 on JBoss 5 (JPA 1.0) and 6.0.0M1 (JPA 2.0).

1) Testing Scenario:
EAR
ejb-jar
    persistence.xml - JTA TX datasource using the default Hypersonic database
    @Stateless @Local session bean with injected @PersistenceContext (default TRANSACTION type) container managed entityManager
     2 entities with @OneToOne and @ManyToMany orm relationships
web.war
     Servlet with (no @EJB or @Resource injection) - uses recommended org.jnp context lookup for the SSB above containing the CM EM
JBoss 5.1.0
   add the EclipseLink 2.0 jar to
   C:\opt\jboss510\common\lib\eclipselink.jar
   (optionally override ejb3-persistence.jar with javax.persistence_2.0.jar)
JBoss 6.0.0M1
   C:\opt\jboss600m1\common\lib\eclipselink.jar
   <no javax.persistence_2.0.jar override required>

2) Results:

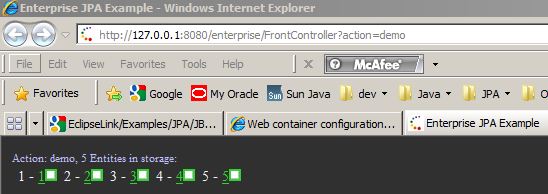

- A non-graphical very basic client meant to verify CRUD operations

2a) On JEE5 compliant server
        EclipseLink 2.0 on JBoss 5.1.0 and 6.0.0M1 running JPA 1.0 API - working *OK*

2b) On JPA 2.0 compliant server
        EclipseLink 2.0 on JBoss 6.0.0M1 running JPA 2.0 API and the persistence.xml 2.0 XSD schema - working *OK* (no errors on the 2.0 XSD)

<persistence version="2.0" xmlns="http://java.sun.com/xml/ns/persistence" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://java.sun.com/xml/ns/persistence http://java.sun.com/xml/ns/persistence/persistence_2_0.xsd">
    <persistence-unit name="example" transaction-type="JTA">
        <provider>org.eclipse.persistence.jpa.PersistenceProvider</provider>
        <jta-data-source>java:/DefaultDS</jta-data-source>
        <class>org.eclipse.persistence.example.jpa.server.business.Cell</class>
        <class>org.eclipse.persistence.example.jpa.server.business.CellAttribute</class>
        <shared-cache-mode>NONE</shared-cache-mode>
        <properties>
            <property name="eclipselink.target-server" value="JBoss"/>
            <property name="eclipselink.target-database" value="HSQL"/>
            <property name="eclipselink.ddl-generation" value="drop-and-create-tables"/>
            <property name="eclipselink.ddl-generation.output-mode" value="database"/>
            <property name="eclipselink.logging.level" value="FINEST"/>
        </properties>
    </persistence-unit>
</persistence>

02:08:55,471 INFO [STDOUT] [EL Finest]: 2010-02-12 02:08:55.471--ServerSession(20380496)--Thread(Thread[http-127.0.0.1-8080-4,5,jboss])--End deploying Persistence Unit example; session vfszip:/C:/opt/jboss600m1/server/default/deploy/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar/_example; state Deployed; factoryCount 1
02:08:55,471 INFO [STDOUT] _Test: JPA 2.0 Metamodel: MetamodelImpl@5488846 [ 5 Types: , 2 ManagedTypes: , 2 EntityTypes: , 0 MappedSuperclassTypes: , 0 EmbeddableTypes: ]
02:08:55,471 INFO [STDOUT] [EL Finer]: 2010-02-12 02:08:55.471--ServerSession(20380496)--Thread(Thread[http-127.0.0.1-8080-4,5,jboss])--client acquired

2c) Note: Configuring datasources in JBoss 5.0.1 - 5.1.0 and 6.0.0M1 is different than on JBoss 4.x possibly because of the following issues with the JBoss 5/6 server
        These issues with manually configuring your *-ds.xml need to be worked out and documented on the wiki - however this JBoss config issue is out of the scope of EclipseLink

https://jira.jboss.org/jira/browse/SOA-1606
https://jira.jboss.org/jira/browse/JBAS-7438
https://jira.jboss.org/jira/browse/JBAS-4926

thank you
/michael
http://www.eclipselink.org

3) Full Logs for JBoss 6.0.0M1 running EclipseLink 2.0
http://127.0.0.1:8080/enterprise/FrontController?action="">

02:32:07,538 INFO [AbstractJBossASServerBase] Server Configuration:

    JBOSS_HOME URL: file:/C:/opt/jboss600m1/
    Bootstrap: $JBOSS_HOME\server/default/conf/bootstrap.xml
    Common Base: $JBOSS_HOME\common/
    Common Library: $JBOSS_HOME\common/lib/
    Server Name: default
    Server Base: $JBOSS_HOME\server/
    Server Library: $JBOSS_HOME\server/default/lib/
    Server Config: $JBOSS_HOME\server/default/conf/
    Server Home: $JBOSS_HOME\server/default/
    Server Data: $JBOSS_HOME\server/default/data/
    Server Log: $JBOSS_HOME\server/default/log/
    Server Temp: $JBOSS_HOME\server/default/tmp/

02:32:07,554 INFO [AbstractServer] Starting: JBossAS [6.0.0.M1 (build: SVNTag=JBoss_6_0_0_M1 date=200912040958)]
02:32:08,022 INFO [AbstractMCServerBase] Starting Microcontainer, Main bootstrapURL=file:/C:/opt/jboss600m1/server/default/conf/bootstrap.xml
02:32:08,506 INFO [VFSCacheFactory] Initializing VFSCache [org.jboss.virtual.plugins.cache.CombinedVFSCache]
02:32:08,506 INFO [VFSCacheFactory] Using VFSCache [CombinedVFSCache[real-cache: null]]
02:32:08,756 INFO [CopyMechanism] VFS temp dir: C:\opt\jboss600m1\server\default\tmp
02:32:08,756 INFO [ZipEntryContext] VFS force nested jars copy-mode is enabled.
02:32:09,630 INFO [ServerInfo] Java version: 1.6.0_17,Sun Microsystems Inc.
02:32:09,630 INFO [ServerInfo] Java Runtime: Java(TM) SE Runtime Environment (build 1.6.0_17-b04)
02:32:09,630 INFO [ServerInfo] Java VM: Java HotSpot(TM) Client VM 14.3-b01,Sun Microsystems Inc.
02:32:09,630 INFO [ServerInfo] OS-System: Windows 7 6.1,x86
02:32:09,630 INFO [ServerInfo] VM arguments: -Dprogram.name=run.bat -Xms128m -Xmx512m -XX:MaxPermSize=256m -Dfile.encoding=Cp1252
02:32:09,662 INFO [JMXKernel] Legacy JMX core initialized
02:32:12,688 INFO [Log4jService$URLWatchTimerTask] Configuring from URL: resource:jboss-log4j.xml
02:32:12,798 INFO [WebService] Using RMI server codebase: http://127.0.0.1:8083/
02:32:17,572 INFO [AbstractServerConfig] JBoss Web Services - Native Server
02:32:17,572 INFO [AbstractServerConfig] 3.2.1.GA
02:32:24,625 INFO [LogNotificationListener] Adding notification listener for logging mbean "jboss.system:service=Logging,type=Log4jService" to server org.jboss.mx.server.MBeanServerImpl@172c47b[ defaultDomain='null' ]
02:32:31,771 INFO [Ejb3DependenciesDeployer] Encountered deployment AbstractVFSDeploymentContext@13440889{vfszip:/C:/opt/jboss600m1/server/default/deploy/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar/}
02:32:31,771 INFO [Ejb3DependenciesDeployer] Encountered deployment AbstractVFSDeploymentContext@13440889{vfszip:/C:/opt/jboss600m1/server/default/deploy/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar/}
02:32:33,784 INFO [JMXConnectorServerService] JMX Connector server: service:jmx:rmi://127.0.0.1/jndi/rmi://127.0.0.1:1090/jmxconnector
02:32:33,941 INFO [MailService] Mail Service bound to java:/Mail
02:32:36,937 WARN [JBossASSecurityMetadataStore] WARNING! POTENTIAL SECURITY RISK. It has been detected that the MessageSucker component which sucks messages from one node to another has not had its password changed from the installation default. Please see the JBoss Messaging user guide for instructions on how to do this.
02:32:37,126 INFO [TransactionManagerService] JBossTS Transaction Service (JTA version - tag:JBOSSTS_4_6_1_GA) - JBoss Inc.
02:32:37,126 INFO [TransactionManagerService] Setting up property manager MBean and JMX layer
02:32:37,391 INFO [TransactionManagerService] Initializing recovery manager
02:32:37,563 INFO [TransactionManagerService] Recovery manager configured
02:32:37,563 INFO [TransactionManagerService] Binding TransactionManager JNDI Reference
02:32:37,578 INFO [TransactionManagerService] Starting transaction recovery manager
02:32:38,297 INFO [Http11Protocol] Initializing Coyote HTTP/1.1 on http-127.0.0.1-8080
02:32:38,328 INFO [AjpProtocol] Initializing Coyote AJP/1.3 on ajp-127.0.0.1-8009
02:32:38,359 INFO [StandardService] Starting service jboss.web
02:32:38,359 INFO [StandardEngine] Starting Servlet Engine: JBoss Web/2.1.6.GA
02:32:38,422 INFO [Catalina] Server startup in 96 ms
02:32:38,437 INFO [TomcatDeployment] deploy, ctxPath=/jbossws
02:32:39,748 INFO [TomcatDeployment] deploy, ctxPath=/invoker
02:32:39,827 INFO [TomcatDeployment] deploy, ctxPath=/web-console
02:32:40,248 INFO [RARDeployment] Required license terms exist, view vfszip:/C:/opt/jboss600m1/server/default/deploy/jboss-local-jdbc.rar/META-INF/ra.xml
02:32:40,263 INFO [RARDeployment] Required license terms exist, view vfszip:/C:/opt/jboss600m1/server/default/deploy/jboss-xa-jdbc.rar/META-INF/ra.xml
02:32:40,263 INFO [RARDeployment] Required license terms exist, view vfszip:/C:/opt/jboss600m1/server/default/deploy/jms-ra.rar/META-INF/ra.xml
02:32:40,279 INFO [RARDeployment] Required license terms exist, view vfszip:/C:/opt/jboss600m1/server/default/deploy/mail-ra.rar/META-INF/ra.xml
02:32:40,295 INFO [RARDeployment] Required license terms exist, view vfszip:/C:/opt/jboss600m1/server/default/deploy/quartz-ra.rar/META-INF/ra.xml
02:32:40,435 INFO [SimpleThreadPool] Job execution threads will use class loader of thread: Thread-2
02:32:40,466 INFO [QuartzScheduler] Quartz Scheduler v.1.5.2 created.
02:32:40,466 INFO [RAMJobStore] RAMJobStore initialized.
02:32:40,466 INFO [StdSchedulerFactory] Quartz scheduler 'DefaultQuartzScheduler' initialized from default resource file in Quartz package: 'quartz.properties'
02:32:40,466 INFO [StdSchedulerFactory] Quartz scheduler version: 1.5.2
02:32:40,466 INFO [QuartzScheduler] Scheduler DefaultQuartzScheduler_$_NON_CLUSTERED started.
02:32:40,997 INFO [ConnectionFactoryBindingService] Bound ConnectionManager 'jboss.jca:service=DataSourceBinding,name=DefaultDS' to JNDI name 'java:DefaultDS'
02:32:42,121 INFO [ServerPeer] JBoss Messaging 1.4.3.GA server [0] started
02:32:42,293 INFO [ConnectionFactory] Connector bisocket://127.0.0.1:4457 has leasing enabled, lease period 10000 milliseconds
02:32:42,293 INFO [ConnectionFactory] org.jboss.jms.server.connectionfactory.ConnectionFactory@c9ab5a started
02:32:42,293 INFO [ConnectionFactory] Connector bisocket://127.0.0.1:4457 has leasing enabled, lease period 10000 milliseconds
02:32:42,293 INFO [ConnectionFactory] org.jboss.jms.server.connectionfactory.ConnectionFactory@b800d7 started
02:32:42,309 INFO [ConnectionFactoryJNDIMapper] supportsFailover attribute is true on connection factory: jboss.messaging.connectionfactory:service=ClusteredConnectionFactory but post office is non clustered. So connection factory will *not* support failover
02:32:42,309 INFO [ConnectionFactoryJNDIMapper] supportsLoadBalancing attribute is true on connection factory: jboss.messaging.connectionfactory:service=ClusteredConnectionFactory but post office is non clustered. So connection factory will *not* support load balancing
02:32:42,309 INFO [ConnectionFactory] Connector bisocket://127.0.0.1:4457 has leasing enabled, lease period 10000 milliseconds
02:32:42,309 INFO [ConnectionFactory] org.jboss.jms.server.connectionfactory.ConnectionFactory@16203a7 started
02:32:42,325 INFO [QueueService] Queue[/queue/DLQ] started, fullSize=200000, pageSize=2000, downCacheSize=2000
02:32:42,325 INFO [QueueService] Queue[/queue/ExpiryQueue] started, fullSize=200000, pageSize=2000, downCacheSize=2000
02:32:42,434 INFO [ConnectionFactoryBindingService] Bound ConnectionManager 'jboss.jca:service=ConnectionFactoryBinding,name=JmsXA' to JNDI name 'java:JmsXA'
02:32:42,637 INFO [TomcatDeployment] deploy, ctxPath=/admin-console
02:32:42,808 ERROR [MyfacesConfig] Both MyFaces and the RI are on your classpath. Please make sure to use only one of the two JSF-implementations.
02:32:43,151 WARN [LocaleUtils] Locale name in faces-config.xml null or empty, setting locale to default locale : en_US
02:32:46,366 INFO [TomcatDeployment] deploy, ctxPath=/
02:32:46,429 INFO [TomcatDeployment] deploy, ctxPath=/jmx-console
02:32:46,476 WARN [InterceptorInfoRepository] EJBTHREE-1852: InterceptorInfoRepository is deprecated
02:32:46,913 INFO [JBossASKernel] Created KernelDeployment for: org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar
02:32:46,913 INFO [JBossASKernel] installing bean: jboss.j2ee:ear=org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear,jar=org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar,name=ApplicationService,service=EJB3
02:32:46,913 INFO [JBossASKernel]   with dependencies:
02:32:46,913 INFO [JBossASKernel]   and demands:
02:32:46,913 INFO [JBossASKernel]     jboss.ejb:service=EJBTimerService
02:32:46,913 INFO [JBossASKernel]     persistence.unit:unitName=org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar#example
02:32:46,913 INFO [JBossASKernel]   and supplies:
02:32:46,913 INFO [JBossASKernel]     jndi:org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR/ApplicationService/local
02:32:46,913 INFO [JBossASKernel]     jndi:org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR/ApplicationService/local-org.eclipse.persistence.example.jpa.server.business.ApplicationServiceLocal
02:32:46,913 INFO [JBossASKernel]     Class:org.eclipse.persistence.example.jpa.server.business.ApplicationServiceLocal
02:32:46,913 INFO [JBossASKernel]     jndi:org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR/ApplicationService/remote
02:32:46,913 INFO [JBossASKernel] Added bean(jboss.j2ee:ear=org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear,jar=org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar,name=ApplicationService,service=EJB3) to KernelDeployment of: org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar
02:32:47,007 INFO [PersistenceUnitDeployment] Starting persistence unit persistence.unit:unitName=org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar#example
02:32:47,131 INFO [Version] Hibernate Validator 4.0.2.GA
02:32:47,163 INFO [DefaultTraversableResolver] Instantiated an instance of org.hibernate.validator.engine.resolver.JPATraversableResolver.
02:32:47,599 INFO [STDOUT] [EL Warning]: 2010-02-12 02:32:47.568--Thread(Thread[Thread-2,5,jboss])--The temporary classLoader for PersistenceLoadProcessor [example] is not available. Switching classLoader to [BaseClassLoader@60abc5{vfszip:/C:/opt/jboss600m1/server/default/deploy/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear/}]. Weaving has been disabled for this session. EclipseLink may be unable to get a spec mandated temporary class loader from the server, you may be able to use static weaving as an optional workaround.
02:32:47,615 INFO [STDOUT] [EL Finest]: 2010-02-12 02:32:47.599--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--Begin predeploying Persistence Unit example; session vfszip:/C:/opt/jboss600m1/server/default/deploy/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar/_example; state Initial; factoryCount 0
02:32:47,615 INFO [STDOUT] [EL Finest]: 2010-02-12 02:32:47.615--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--property=eclipselink.orm.throw.exceptions; default value=true
02:32:47,615 INFO [STDOUT] [EL Finest]: 2010-02-12 02:32:47.615--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--property=eclipselink.weaving.changetracking; default value=true
02:32:47,615 INFO [STDOUT] [EL Finest]: 2010-02-12 02:32:47.615--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--property=eclipselink.weaving.lazy; default value=true
02:32:47,615 INFO [STDOUT] [EL Finest]: 2010-02-12 02:32:47.615--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--property=eclipselink.weaving.eager; default value=false
02:32:47,615 INFO [STDOUT] [EL Finest]: 2010-02-12 02:32:47.615--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--property=eclipselink.weaving.fetchgroups; default value=true
02:32:47,615 INFO [STDOUT] [EL Finest]: 2010-02-12 02:32:47.615--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--property=eclipselink.weaving.internal; default value=true
02:32:48,380 INFO [STDOUT] [EL Finer]: 2010-02-12 02:32:48.38--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--Searching for default mapping file in vfszip:/C:/opt/jboss600m1/server/default/deploy/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar/
02:32:48,396 INFO [STDOUT] [EL Finer]: 2010-02-12 02:32:48.396--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--Searching for default mapping file in vfszip:/C:/opt/jboss600m1/server/default/deploy/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar/
02:32:48,630 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.63--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The access type for the persistent class [class org.eclipse.persistence.example.jpa.server.business.Cell] is set to [FIELD].
02:32:48,756 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.756--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The target entity (reference) class for the many to many mapping element [field references] is being defaulted to: class org.eclipse.persistence.example.jpa.server.business.Cell.
02:32:48,756 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.756--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The element [field aCellAttribute] is being defaulted to a one to one mapping.
02:32:48,771 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.771--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The target entity (reference) class for the one to one mapping element [field aCellAttribute] is being defaulted to: class org.eclipse.persistence.example.jpa.server.business.CellAttribute.
02:32:48,771 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.771--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The target entity (reference) class for the many to many mapping element [field peers] is being defaulted to: class org.eclipse.persistence.example.jpa.server.business.Cell.
02:32:48,771 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.771--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The target entity (reference) class for the one to one mapping element [field left] is being defaulted to: class org.eclipse.persistence.example.jpa.server.business.Cell.
02:32:48,771 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.771--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The target entity (reference) class for the one to one mapping element [field right] is being defaulted to: class org.eclipse.persistence.example.jpa.server.business.Cell.
02:32:48,771 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.771--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The access type for the persistent class [class org.eclipse.persistence.example.jpa.server.business.CellAttribute] is set to [FIELD].
02:32:48,771 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.771--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The alias name for the entity class [class org.eclipse.persistence.example.jpa.server.business.Cell] is being defaulted to: Cell.
02:32:48,834 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.834--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The column name for element [field id] is being defaulted to: ID.
02:32:48,849 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.849--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The alias name for the entity class [class org.eclipse.persistence.example.jpa.server.business.CellAttribute] is being defaulted to: CellAttribute.
02:32:48,849 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.849--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The table name for entity [class org.eclipse.persistence.example.jpa.server.business.CellAttribute] is being defaulted to: CELLATTRIBUTE.
02:32:48,849 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.849--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The column name for element [field id] is being defaulted to: ID.
02:32:48,927 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.927--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The join table name for the many to many mapping [field references] is being defaulted to: EL_CELL_EL_CELL.
02:32:48,927 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.927--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The source primary key column name for the many to many mapping [field references] is being defaulted to: ID.
02:32:48,927 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.927--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The source foreign key column name for the many to many mapping [field references] is being defaulted to: peers_ID.
02:32:48,927 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.927--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The target primary key column name for the many to many mapping [field references] is being defaulted to: ID.
02:32:48,943 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.927--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The target foreign key column name for the many to many mapping [field references] is being defaulted to: references_ID.
02:32:48,959 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.959--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The primary key column name for the mapping element [field right] is being defaulted to: ID.
02:32:48,959 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.959--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The foreign key column name for the mapping element [field right] is being defaulted to: RIGHT_ID.
02:32:48,959 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.959--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The primary key column name for the mapping element [field aCellAttribute] is being defaulted to: ID.
02:32:48,959 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.959--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--The foreign key column name for the mapping element [field aCellAttribute] is being defaulted to: ACELLATTRIBUTE_ID.
02:32:48,959 INFO [STDOUT] [EL Finer]: 2010-02-12 02:32:48.959--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--Class [org.eclipse.persistence.example.jpa.server.business.Cell] registered to be processed by weaver.
02:32:48,959 INFO [STDOUT] [EL Config]: 2010-02-12 02:32:48.959--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--Class org.eclipse.persistence.example.jpa.server.business.Cell could not be weaved for change tracking as it is not supported by its mappings.
02:32:48,974 INFO [STDOUT] [EL Finer]: 2010-02-12 02:32:48.974--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--Class [org.eclipse.persistence.example.jpa.server.business.CellAttribute] registered to be processed by weaver.
02:32:48,974 INFO [STDOUT] [EL Finest]: 2010-02-12 02:32:48.974--ServerSession(27187993)--Thread(Thread[Thread-2,5,jboss])--End predeploying Persistence Unit example; session vfszip:/C:/opt/jboss600m1/server/default/deploy/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar/_example; state Predeployed; factoryCount 1
02:32:49,052 INFO [SessionSpecContainer] Starting jboss.j2ee:ear=org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear,jar=org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar,name=ApplicationService,service=EJB3
02:32:49,083 INFO [EJBContainer] STARTED EJB: org.eclipse.persistence.example.jpa.server.business.ApplicationService ejbName: ApplicationService
02:32:49,146 INFO [JndiSessionRegistrarBase] Binding the following Entries in Global JNDI:

    org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR/ApplicationService/local - EJB3.x Default Local Business Interface
    org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR/ApplicationService/local-org.eclipse.persistence.example.jpa.server.business.ApplicationServiceLocal - EJB3.x Local Business Interface

02:32:49,317 INFO [TomcatDeployment] deploy, ctxPath=/enterprise
02:32:49,411 INFO [ProfileServiceBootstrap] Loading profile: ProfileKey@1c32b82[domain=default, server=default, name=default]
02:32:49,427 INFO [Http11Protocol] Starting Coyote HTTP/1.1 on http-127.0.0.1-8080
02:32:49,520 INFO [AjpProtocol] Starting Coyote AJP/1.3 on ajp-127.0.0.1-8009
02:32:49,520 INFO [AbstractServer] JBossAS [6.0.0.M1 (build: SVNTag=JBoss_6_0_0_M1 date=200912040958)] Started in 41s:966ms

>http://127.0.0.1:8080/enterprise/FrontController?action="">

02:33:54,136 INFO [STDOUT] FrontController.getApplicationService() JNDI lookup of org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR/ApplicationService/local
02:33:54,246 INFO [STDOUT] [EL Example]: enterprise: Action: demo Proxy to jboss.j2ee:ear=org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear,jar=org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar,name=ApplicationService,service=EJB3 implementing [interface org.eclipse.persistence.example.jpa.server.business.ApplicationServiceLocal]
02:33:54,246 INFO [STDOUT] FrontController.getApplicationService() JNDI lookup of org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR/ApplicationService/local
02:33:54,324 INFO [STDOUT] [EL Example]: enterprise: ApplicationService persisting: org.eclipse.persistence.example.jpa.server.business.Cell@18722630( id: null state: null left: null right: null parent: HashSet@17563935 references: HashSet@17563935) on EM: org.jboss.jpa.tx.TransactionScopedEntityManager@d6d6d4
02:33:54,339 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.339--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Begin deploying Persistence Unit example; session vfszip:/C:/opt/jboss600m1/server/default/deploy/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar/_example; state Predeployed; factoryCount 1
02:33:54,386 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.386--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--property=eclipselink.target-server; value=JBoss; translated value=org.eclipse.persistence.platform.server.jboss.JBossPlatform
02:33:54,386 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.386--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--property=eclipselink.logging.level; value=FINEST; translated value=FINEST
02:33:54,386 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.386--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--property=eclipselink.logging.level; value=FINEST; translated value=FINEST
02:33:54,386 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.386--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--property=eclipselink.target-database; value=HSQL; translated value=org.eclipse.persistence.platform.database.HSQLPlatform
02:33:54,433 INFO [STDOUT] [EL Info]: 2010-02-12 02:33:54.433--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--EclipseLink, version: Eclipse Persistence Services - 2.1.0.qualifier
02:33:54,449 INFO [STDOUT] [EL Config]: 2010-02-12 02:33:54.449--ServerSession(27187993)--Connection(13280798)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--connecting(DatabaseLogin(
    platform=>HSQLPlatform
    user name=> ""
    connector=>JNDIConnector datasource name=>null
))
02:33:54,480 INFO [STDOUT] [EL Config]: 2010-02-12 02:33:54.48--ServerSession(27187993)--Connection(14191759)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Connected: jdbc:hsqldb:C:\opt\jboss600m1\server\default\data\hypersonic\localDB
    User: SA
    Database: HSQL Database Engine Version: 1.8.0
    Driver: HSQL Database Engine Driver Version: 1.8.0
02:33:54,480 INFO [STDOUT] [EL Config]: 2010-02-12 02:33:54.48--ServerSession(27187993)--Connection(19153097)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--connecting(DatabaseLogin(
    platform=>HSQLPlatform
    user name=> ""
    connector=>JNDIConnector datasource name=>null
))
02:33:54,480 INFO [STDOUT] [EL Config]: 2010-02-12 02:33:54.48--ServerSession(27187993)--Connection(18447858)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Connected: jdbc:hsqldb:C:\opt\jboss600m1\server\default\data\hypersonic\localDB
    User: SA
    Database: HSQL Database Engine Version: 1.8.0
    Driver: HSQL Database Engine Driver Version: 1.8.0
02:33:54,480 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.48--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--sequencing connected, state is Preallocation_NoTransaction_State
02:33:54,480 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.48--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--sequence EL_CELL_SEQ: preallocation size 25
02:33:54,589 INFO [STDOUT] [EL Info]: 2010-02-12 02:33:54.589--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--vfszip:/C:/opt/jboss600m1/server/default/deploy/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar/_example login successful
02:33:54,636 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.636--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="ALTER TABLE EL_CELL DROP CONSTRAINT FK_EL_CELL_RIGHT_ID")
02:33:54,651 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,651 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Connection(1875129)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--ALTER TABLE EL_CELL DROP CONSTRAINT FK_EL_CELL_RIGHT_ID
02:33:54,651 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="ALTER TABLE EL_CELL DROP CONSTRAINT FK_EL_CELL_ACELLATTRIBUTE_ID")
02:33:54,651 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,651 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Connection(29090776)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--ALTER TABLE EL_CELL DROP CONSTRAINT FK_EL_CELL_ACELLATTRIBUTE_ID
02:33:54,651 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="ALTER TABLE EL_CELL_EL_CELL DROP CONSTRAINT FK_EL_CELL_EL_CELL_references_ID")
02:33:54,651 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,651 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Connection(15485686)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--ALTER TABLE EL_CELL_EL_CELL DROP CONSTRAINT FK_EL_CELL_EL_CELL_references_ID
02:33:54,651 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="ALTER TABLE EL_CELL_EL_CELL DROP CONSTRAINT FK_EL_CELL_EL_CELL_peers_ID")
02:33:54,651 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,651 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Connection(20013678)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--ALTER TABLE EL_CELL_EL_CELL DROP CONSTRAINT FK_EL_CELL_EL_CELL_peers_ID
02:33:54,651 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="DROP TABLE EL_CELL")
02:33:54,651 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,651 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Connection(10630283)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--DROP TABLE EL_CELL
02:33:54,651 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="CREATE TABLE EL_CELL (ID BIGINT NOT NULL, STATE VARCHAR(255), TSEQ VARCHAR(255), RIGHT_ID BIGINT, ACELLATTRIBUTE_ID INTEGER, PRIMARY KEY (ID))")
02:33:54,651 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,651 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Connection(6801725)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--CREATE TABLE EL_CELL (ID BIGINT NOT NULL, STATE VARCHAR(255), TSEQ VARCHAR(255), RIGHT_ID BIGINT, ACELLATTRIBUTE_ID INTEGER, PRIMARY KEY (ID))
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.651--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="DROP TABLE EL_CELL_EL_CELL")
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,667 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Connection(29182892)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--DROP TABLE EL_CELL_EL_CELL
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="CREATE TABLE EL_CELL_EL_CELL (peers_ID BIGINT NOT NULL, references_ID BIGINT NOT NULL, PRIMARY KEY (peers_ID, references_ID))")
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,667 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Connection(5058680)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--CREATE TABLE EL_CELL_EL_CELL (peers_ID BIGINT NOT NULL, references_ID BIGINT NOT NULL, PRIMARY KEY (peers_ID, references_ID))
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="DROP TABLE CELLATTRIBUTE")
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,667 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Connection(10527852)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--DROP TABLE CELLATTRIBUTE
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="CREATE TABLE CELLATTRIBUTE (ID INTEGER NOT NULL, PRIMARY KEY (ID))")
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,667 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Connection(32687092)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--CREATE TABLE CELLATTRIBUTE (ID INTEGER NOT NULL, PRIMARY KEY (ID))
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="ALTER TABLE EL_CELL ADD CONSTRAINT FK_EL_CELL_RIGHT_ID FOREIGN KEY (RIGHT_ID) REFERENCES EL_CELL (ID)")
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,667 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Connection(24778898)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--ALTER TABLE EL_CELL ADD CONSTRAINT FK_EL_CELL_RIGHT_ID FOREIGN KEY (RIGHT_ID) REFERENCES EL_CELL (ID)
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="ALTER TABLE EL_CELL ADD CONSTRAINT FK_EL_CELL_ACELLATTRIBUTE_ID FOREIGN KEY (ACELLATTRIBUTE_ID) REFERENCES CELLATTRIBUTE (ID)")
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,667 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Connection(163134)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--ALTER TABLE EL_CELL ADD CONSTRAINT FK_EL_CELL_ACELLATTRIBUTE_ID FOREIGN KEY (ACELLATTRIBUTE_ID) REFERENCES CELLATTRIBUTE (ID)
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="ALTER TABLE EL_CELL_EL_CELL ADD CONSTRAINT FK_EL_CELL_EL_CELL_references_ID FOREIGN KEY (references_ID) REFERENCES EL_CELL (ID)")
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,667 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Connection(14458186)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--ALTER TABLE EL_CELL_EL_CELL ADD CONSTRAINT FK_EL_CELL_EL_CELL_references_ID FOREIGN KEY (references_ID) REFERENCES EL_CELL (ID)
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="ALTER TABLE EL_CELL_EL_CELL ADD CONSTRAINT FK_EL_CELL_EL_CELL_peers_ID FOREIGN KEY (peers_ID) REFERENCES EL_CELL (ID)")
02:33:54,667 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,667 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.667--ServerSession(27187993)--Connection(19037441)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--ALTER TABLE EL_CELL_EL_CELL ADD CONSTRAINT FK_EL_CELL_EL_CELL_peers_ID FOREIGN KEY (peers_ID) REFERENCES EL_CELL (ID)
02:33:54,683 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.683--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="DROP SEQUENCE EL_CELL_SEQ")
02:33:54,683 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.683--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,683 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.683--ServerSession(27187993)--Connection(21788899)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--DROP SEQUENCE EL_CELL_SEQ
02:33:54,683 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.683--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ValueReadQuery(sql="CALL NEXT VALUE FOR EL_CELL_SEQ")
02:33:54,683 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.683--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,683 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.683--ServerSession(27187993)--Connection(19267380)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--CALL NEXT VALUE FOR EL_CELL_SEQ
02:33:54,683 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.683--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--CALL 1
02:33:54,698 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.698--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="CREATE SEQUENCE EL_CELL_SEQ START WITH 25 INCREMENT BY 25")
02:33:54,698 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:54.698--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:54,698 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:54.698--ServerSession(27187993)--Connection(18032521)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--CREATE SEQUENCE EL_CELL_SEQ START WITH 25 INCREMENT BY 25
02:33:55,525 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:55.525--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Canonical Metamodel class [org.eclipse.persistence.example.jpa.server.business.Cell_] not found during initialization.
02:33:55,525 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:55.525--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Canonical Metamodel class [org.eclipse.persistence.example.jpa.server.business.CellAttribute_] not found during initialization.
02:33:55,525 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.525--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--End deploying Persistence Unit example; session vfszip:/C:/opt/jboss600m1/server/default/deploy/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR.ear/org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEJB.jar/_example; state Deployed; factoryCount 1
02:33:55,604 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:55.604--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--client acquired
02:33:55,604 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:55.604--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--TX binding to tx mgr, status=STATUS_ACTIVE
02:33:55,604 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.604--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--PERSIST operation called on: org.eclipse.persistence.example.jpa.server.business.Cell@18722630( id: null state: null left: null right: null parent: HashSet@17563935 references: HashSet@17563935).
02:33:55,604 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.604--ClientSession(7812075)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ValueReadQuery(sql="CALL NEXT VALUE FOR EL_CELL_SEQ")
02:33:55,620 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.62--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:55,620 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.62--ServerSession(27187993)--Connection(32620783)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--CALL NEXT VALUE FOR EL_CELL_SEQ
02:33:55,620 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.62--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--sequencing preallocation for EL_CELL_SEQ: objects: 25 , first: 1, last: 25
02:33:55,620 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.62--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--assign sequence to the object (1 -> org.eclipse.persistence.example.jpa.server.business.Cell@18722630( id: null state: null left: null right: null parent: HashSet@17563935 references: HashSet@17563935))
02:33:55,698 INFO [STDOUT] [EL Example]: enterprise: ApplicationService persisting: org.eclipse.persistence.example.jpa.server.business.Cell@17563935( id: null state: null left: null right: null parent: HashSet@51815750 references: HashSet@51815750) on EM: org.jboss.jpa.tx.TransactionScopedEntityManager@d6d6d4
02:33:55,698 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.698--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--PERSIST operation called on: org.eclipse.persistence.example.jpa.server.business.Cell@17563935( id: null state: null left: null right: null parent: HashSet@51815750 references: HashSet@51815750).
02:33:55,698 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.698--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--assign sequence to the object (2 -> org.eclipse.persistence.example.jpa.server.business.Cell@17563935( id: null state: null left: null right: null parent: HashSet@51815750 references: HashSet@51815750))
02:33:55,698 INFO [STDOUT] [EL Example]: enterprise: ApplicationService persisting: org.eclipse.persistence.example.jpa.server.business.Cell@31344459( id: null state: null left: null right: null parent: HashSet@19312596 references: HashSet@19312596) on EM: org.jboss.jpa.tx.TransactionScopedEntityManager@d6d6d4
02:33:55,698 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.698--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--PERSIST operation called on: org.eclipse.persistence.example.jpa.server.business.Cell@31344459( id: null state: null left: null right: null parent: HashSet@19312596 references: HashSet@19312596).
02:33:55,698 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.698--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--assign sequence to the object (3 -> org.eclipse.persistence.example.jpa.server.business.Cell@31344459( id: null state: null left: null right: null parent: HashSet@19312596 references: HashSet@19312596))
02:33:55,698 INFO [STDOUT] [EL Example]: enterprise: ApplicationService persisting: org.eclipse.persistence.example.jpa.server.business.Cell@1748661( id: null state: null left: null right: null parent: HashSet@78539490 references: HashSet@78539490) on EM: org.jboss.jpa.tx.TransactionScopedEntityManager@d6d6d4
02:33:55,698 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.698--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--PERSIST operation called on: org.eclipse.persistence.example.jpa.server.business.Cell@1748661( id: null state: null left: null right: null parent: HashSet@78539490 references: HashSet@78539490).
02:33:55,698 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.698--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--assign sequence to the object (4 -> org.eclipse.persistence.example.jpa.server.business.Cell@1748661( id: null state: null left: null right: null parent: HashSet@78539490 references: HashSet@78539490))
02:33:55,698 INFO [STDOUT] [EL Example]: enterprise: ApplicationService persisting: org.eclipse.persistence.example.jpa.server.business.Cell@29631096( id: null state: null left: null right: null parent: HashSet@1748661 references: HashSet@1748661) on EM: org.jboss.jpa.tx.TransactionScopedEntityManager@d6d6d4
02:33:55,698 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.698--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--PERSIST operation called on: org.eclipse.persistence.example.jpa.server.business.Cell@29631096( id: null state: null left: null right: null parent: HashSet@1748661 references: HashSet@1748661).
02:33:55,698 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.698--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--assign sequence to the object (5 -> org.eclipse.persistence.example.jpa.server.business.Cell@29631096( id: null state: null left: null right: null parent: HashSet@1748661 references: HashSet@1748661))
02:33:55,698 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:55.698--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--TX beforeCompletion callback, status=STATUS_ACTIVE
02:33:55,698 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:55.698--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--begin unit of work commit
02:33:55,698 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:55.698--ClientSession(7812075)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--TX beginTransaction, status=STATUS_ACTIVE
02:33:55,713 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.713--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query InsertObjectQuery(org.eclipse.persistence.example.jpa.server.business.Cell@31344459( id: 3 state: null left: null right: null parent: HashSet@19312596 references: HashSet@19312596))
02:33:55,713 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.713--ClientSession(7812075)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:55,713 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.713--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL (ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID) VALUES (?, ?, ?, ?, ?)
    bind => [3, null, null, null, null]
02:33:55,713 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.713--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query InsertObjectQuery(org.eclipse.persistence.example.jpa.server.business.Cell@17563935( id: 2 state: null left: null right: null parent: HashSet@51815750 references: HashSet@51815750))
02:33:55,713 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.713--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL (ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID) VALUES (?, ?, ?, ?, ?)
    bind => [2, null, null, null, null]
02:33:55,713 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.713--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query InsertObjectQuery(org.eclipse.persistence.example.jpa.server.business.Cell@1748661( id: 4 state: null left: null right: null parent: HashSet@78539490 references: HashSet@78539490))
02:33:55,713 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.713--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL (ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID) VALUES (?, ?, ?, ?, ?)
    bind => [4, null, null, null, null]
02:33:55,713 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.713--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query InsertObjectQuery(org.eclipse.persistence.example.jpa.server.business.Cell@18722630( id: 1 state: null left: null right: null parent: HashSet@17563935 references: HashSet@17563935))
02:33:55,713 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.713--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL (ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID) VALUES (?, ?, ?, ?, ?)
    bind => [1, null, null, null, null]
02:33:55,713 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.713--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query InsertObjectQuery(org.eclipse.persistence.example.jpa.server.business.Cell@29631096( id: 5 state: null left: null right: null parent: HashSet@1748661 references: HashSet@1748661))
02:33:55,713 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.713--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL (ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID) VALUES (?, ?, ?, ?, ?)
    bind => [5, null, null, null, null]
02:33:55,713 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.713--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery()
02:33:55,729 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.729--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)
    bind => [2, 3]
02:33:55,729 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.729--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)")
02:33:55,729 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.729--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)
    bind => [4, 3]
02:33:55,729 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.729--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)")
02:33:55,729 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.729--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)
    bind => [4, 2]
02:33:55,729 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.729--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)")
02:33:55,729 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.729--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)
    bind => [1, 2]
02:33:55,729 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.729--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)")
02:33:55,729 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.729--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)
    bind => [3, 2]
02:33:55,729 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.729--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)")
02:33:55,729 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.729--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)
    bind => [2, 4]
02:33:55,729 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.729--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)")
02:33:55,729 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.729--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)
    bind => [5, 4]
02:33:55,729 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.729--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)")
02:33:55,729 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.729--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)
    bind => [3, 4]
02:33:55,729 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.729--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)")
02:33:55,729 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.729--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)
    bind => [2, 1]
02:33:55,729 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:55.729--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query DataModifyQuery(sql="INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)")
02:33:55,729 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:55.729--ClientSession(7812075)--Connection(26511049)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--INSERT INTO EL_CELL_EL_CELL (references_ID, peers_ID) VALUES (?, ?)
    bind => [4, 5]
02:33:55,744 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:55.744--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--TX afterCompletion callback, status=COMMITTED
02:33:55,744 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:55.744--UnitOfWork(30124985)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--end unit of work commit
02:33:55,760 INFO [STDOUT] FrontController.getApplicationService() JNDI lookup of org.eclipse.persistence.example.jpa.server.jboss.EnterpriseEAR/ApplicationService/local
02:33:56,072 INFO [STDOUT] _Test: JPA 2.0 Metamodel: MetamodelImpl@14689060 [ 5 Types: , 2 ManagedTypes: , 2 EntityTypes: , 0 MappedSuperclassTypes: , 0 EmbeddableTypes: ]
02:33:56,072 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:56.072--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--client acquired
02:33:56,072 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:56.072--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--TX binding to tx mgr, status=STATUS_ACTIVE
02:33:56,072 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.072--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadAllQuery(referenceClass=Cell sql="SELECT ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID FROM EL_CELL")
02:33:56,072 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.072--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,072 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.072--ServerSession(27187993)--Connection(28069432)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID FROM EL_CELL
02:33:56,088 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.088--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadAllQuery(name="references" referenceClass=Cell sql="SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.peers_ID = ?) AND (t1.ID = t0.references_ID))")
02:33:56,088 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.088--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,088 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.088--ServerSession(27187993)--Connection(32880029)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.peers_ID = ?) AND (t1.ID = t0.references_ID))
    bind => [1]
02:33:56,088 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.088--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadAllQuery(name="references" referenceClass=Cell sql="SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.peers_ID = ?) AND (t1.ID = t0.references_ID))")
02:33:56,088 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.088--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,088 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.088--ServerSession(27187993)--Connection(2749844)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.peers_ID = ?) AND (t1.ID = t0.references_ID))
    bind => [2]
02:33:56,088 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.088--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadAllQuery(name="references" referenceClass=Cell sql="SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.peers_ID = ?) AND (t1.ID = t0.references_ID))")
02:33:56,088 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.088--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,088 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.088--ServerSession(27187993)--Connection(606048)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.peers_ID = ?) AND (t1.ID = t0.references_ID))
    bind => [3]
02:33:56,088 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.088--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadAllQuery(name="references" referenceClass=Cell sql="SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.peers_ID = ?) AND (t1.ID = t0.references_ID))")
02:33:56,088 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.088--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,088 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.088--ServerSession(27187993)--Connection(7003891)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.peers_ID = ?) AND (t1.ID = t0.references_ID))
    bind => [4]
02:33:56,088 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.088--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadAllQuery(name="references" referenceClass=Cell sql="SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.peers_ID = ?) AND (t1.ID = t0.references_ID))")
02:33:56,088 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.088--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,088 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.088--ServerSession(27187993)--Connection(24639661)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.peers_ID = ?) AND (t1.ID = t0.references_ID))
    bind => [5]
02:33:56,088 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.088--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadObjectQuery(name="left" referenceClass=Cell sql="SELECT ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID FROM EL_CELL WHERE (RIGHT_ID = ?)")
02:33:56,088 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.088--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,088 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.088--ServerSession(27187993)--Connection(18949273)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID FROM EL_CELL WHERE (RIGHT_ID = ?)
    bind => [5]
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.088--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadAllQuery(name="peers" referenceClass=Cell sql="SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.references_ID = ?) AND (t1.ID = t0.peers_ID))")
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,103 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Connection(7199170)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.references_ID = ?) AND (t1.ID = t0.peers_ID))
    bind => [5]
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadObjectQuery(name="left" referenceClass=Cell sql="SELECT ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID FROM EL_CELL WHERE (RIGHT_ID = ?)")
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,103 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Connection(12029085)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID FROM EL_CELL WHERE (RIGHT_ID = ?)
    bind => [4]
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadAllQuery(name="peers" referenceClass=Cell sql="SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.references_ID = ?) AND (t1.ID = t0.peers_ID))")
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,103 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Connection(21506549)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.references_ID = ?) AND (t1.ID = t0.peers_ID))
    bind => [4]
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadObjectQuery(name="left" referenceClass=Cell sql="SELECT ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID FROM EL_CELL WHERE (RIGHT_ID = ?)")
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,103 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Connection(29021774)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID FROM EL_CELL WHERE (RIGHT_ID = ?)
    bind => [3]
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadAllQuery(name="peers" referenceClass=Cell sql="SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.references_ID = ?) AND (t1.ID = t0.peers_ID))")
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,103 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Connection(7197142)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.references_ID = ?) AND (t1.ID = t0.peers_ID))
    bind => [3]
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadObjectQuery(name="left" referenceClass=Cell sql="SELECT ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID FROM EL_CELL WHERE (RIGHT_ID = ?)")
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,103 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Connection(16059085)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID FROM EL_CELL WHERE (RIGHT_ID = ?)
    bind => [2]
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadAllQuery(name="peers" referenceClass=Cell sql="SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.references_ID = ?) AND (t1.ID = t0.peers_ID))")
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,103 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Connection(1000913)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.references_ID = ?) AND (t1.ID = t0.peers_ID))
    bind => [2]
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadObjectQuery(name="left" referenceClass=Cell sql="SELECT ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID FROM EL_CELL WHERE (RIGHT_ID = ?)")
02:33:56,103 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,103 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.103--ServerSession(27187993)--Connection(5883078)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT ID, STATE, TSEQ, RIGHT_ID, ACELLATTRIBUTE_ID FROM EL_CELL WHERE (RIGHT_ID = ?)
    bind => [1]
02:33:56,119 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.103--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--Execute query ReadAllQuery(name="peers" referenceClass=Cell sql="SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.references_ID = ?) AND (t1.ID = t0.peers_ID))")
02:33:56,119 INFO [STDOUT] [EL Finest]: 2010-02-12 02:33:56.119--ServerSession(27187993)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--reconnecting to external connection pool
02:33:56,119 INFO [STDOUT] [EL Fine]: 2010-02-12 02:33:56.119--ServerSession(27187993)--Connection(29433056)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--SELECT t1.ID, t1.STATE, t1.TSEQ, t1.RIGHT_ID, t1.ACELLATTRIBUTE_ID FROM EL_CELL_EL_CELL t0, EL_CELL t1 WHERE ((t0.references_ID = ?) AND (t1.ID = t0.peers_ID))
    bind => [1]
02:33:56,119 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:56.119--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--TX beforeCompletion callback, status=STATUS_ACTIVE
02:33:56,119 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:56.119--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--begin unit of work commit
02:33:56,119 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:56.119--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--TX afterCompletion callback, status=COMMITTED
02:33:56,119 INFO [STDOUT] [EL Finer]: 2010-02-12 02:33:56.119--UnitOfWork(19080825)--Thread(Thread[http-127.0.0.1-8080-1,5,jboss])--end unit of work commit
02:33:56,119 INFO [STDOUT] [EL Example]: enterprise: Object: org.eclipse.persistence.example.jpa.server.business.Cell@32403884( id: 1 state: null left: null right: null parent: HashSet@14384627 references: HashSet@14384627)

carl roberts wrote:
Ok,

I apologize for that. I am forwarding this response to the list.

Thanks,

Joe

On 2/11/2010 1:58 PM, Michael O'Brien wrote:
Carl,
    Discussion has been moved to the list.
    /michael

carl roberts wrote:
Hi Michael,

I tried doing my own lookup of the DMWS datasource and found it so it appears only eclipselink has a problem finding it with the same name.

In my code for the lookup I have java:/DMWS and I find it. When I use the same value in the persistence.xml file it comes back with the error I stated previously.

Anyway, I did try what you suggested and I still get the same error, but for the new datasource name (attached are my persistence.xml and web.xml):

13:53:51,687 ERROR [StandardContext] Context [/DMWS] startup failed due to previous errors
java.lang.RuntimeException: mapped-name is required for DefaultDS of deployment DMWS.war
        at org.jboss.web.tomcat.service.injection.WebResourceHandler.loadXmlResourceRefs(WebResourceHandler.java:178)
        at org.jboss.web.tomcat.service.injection.WebResourceHandler.loadXml(WebResourceHandler.java:327)
        at org.jboss.web.tomcat.service.TomcatInjectionContainer.processMetadata(TomcatInjectionContainer.java:550)
        at org.jboss.web.tomcat.service.WebCtxLoader.start(WebCtxLoader.java:158)
        at org.apache.catalina.core.StandardContext.start(StandardContext.java:4272)
        at org.jboss.web.tomcat.service.deployers.TomcatDeployment.performDeployInternal(TomcatDeployment.java:310)
        at org.jboss.web.tomcat.service.deployers.TomcatDeployment.performDeploy(TomcatDeployment.java:142)
        at org.jboss.web.deployers.AbstractWarDeployment.start(AbstractWarDeployment.java:461)
        at org.jboss.web.deployers.WebModule.startModule(WebModule.java:118)
        at org.jboss.web.deployers.WebModule.start(WebModule.java:97)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)
        at java.lang.reflect.Method.invoke(Method.java:597)
        at org.jboss.mx.interceptor.ReflectedDispatcher.invoke(ReflectedDispatcher.java:157)
        at org.jboss.mx.server.Invocation.dispatch(Invocation.java:96)
        at org.jboss.mx.server.Invocation.invoke(Invocation.java:88)
        at org.jboss.mx.server.AbstractMBeanInvoker.invoke(AbstractMBeanInvoker.java:264)
        at org.jboss.mx.server.MBeanServerImpl.invoke(MBeanServerImpl.java:668)
        at org.jboss.system.microcontainer.ServiceProxy.invoke(ServiceProxy.java:206)
        at $Proxy38.start(Unknown Source)
        at org.jboss.system.microcontainer.StartStopLifecycleAction.installAction(StartStopLifecycleAction.java:42)
        at org.jboss.system.microcontainer.StartStopLifecycleAction.installAction(StartStopLifecycleAction.java:37)
        at org.jboss.dependency.plugins.action.SimpleControllerContextAction.simpleInstallAction(SimpleControllerContextAction.java:62)
        at org.jboss.dependency.plugins.action.AccessControllerContextAction.install(AccessControllerContextAction.java:71)
        at org.jboss.dependency.plugins.AbstractControllerContextActions.install(AbstractControllerContextActions.java:51)
        at org.jboss.dependency.plugins.AbstractControllerContext.install(AbstractControllerContext.java:348)
        at org.jboss.system.microcontainer.ServiceControllerContext.install(ServiceControllerContext.java:286)
        at org.jboss.dependency.plugins.AbstractController.install(AbstractController.java:1631)
        at org.jboss.dependency.plugins.AbstractController.incrementState(AbstractController.java:934)
        at org.jboss.dependency.plugins.AbstractController.resolveContexts(AbstractController.java:1082)
        at org.jboss.dependency.plugins.AbstractController.resolveContexts(AbstractController.java:984)
        at org.jboss.dependency.plugins.AbstractController.change(AbstractController.java:822)
        at org.jboss.dependency.plugins.AbstractController.change(AbstractController.java:553)
        at org.jboss.system.ServiceController.doChange(ServiceController.java:688)
        at org.jboss.system.ServiceController.start(ServiceController.java:460)
        at org.jboss.system.deployers.ServiceDeployer.start(ServiceDeployer.java:163)
        at org.jboss.system.deployers.ServiceDeployer.deploy(ServiceDeployer.java:99)
        at org.jboss.system.deployers.ServiceDeployer.deploy(ServiceDeployer.java:46)
        at org.jboss.deployers.spi.deployer.helpers.AbstractSimpleRealDeployer.internalDeploy(AbstractSimpleRealDeployer.java:62)
        at org.jboss.deployers.spi.deployer.helpers.AbstractRealDeployer.deploy(AbstractRealDeployer.java:50)
        at org.jboss.deployers.plugins.deployers.DeployerWrapper.deploy(DeployerWrapper.java:171)
        at org.jboss.deployers.plugins.deployers.DeployersImpl.doDeploy(DeployersImpl.java:1439)
        at org.jboss.deployers.plugins.deployers.DeployersImpl.doInstallParentFirst(DeployersImpl.java:1157)
        at org.jboss.deployers.plugins.deployers.DeployersImpl.doInstallParentFirst(DeployersImpl.java:1178)
        at org.jboss.deployers.plugins.deployers.DeployersImpl.install(DeployersImpl.java:1098)
        at org.jboss.dependency.plugins.AbstractControllerContext.install(AbstractControllerContext.java:348)
        at org.jboss.dependency.plugins.AbstractController.install(AbstractController.java:1631)
        at org.jboss.dependency.plugins.AbstractController.incrementState(AbstractController.java:934)
        at org.jboss.dependency.plugins.AbstractController.resolveContexts(AbstractController.java:1082)
        at org.jboss.dependency.plugins.AbstractController.resolveContexts(AbstractController.java:984)
        at org.jboss.dependency.plugins.AbstractController.change(AbstractController.java:822)
        at org.jboss.dependency.plugins.AbstractController.change(AbstractController.java:553)
        at org.jboss.deployers.plugins.deployers.DeployersImpl.process(DeployersImpl.java:781)
        at org.jboss.deployers.plugins.main.MainDeployerImpl.process(MainDeployerImpl.java:702)
        at org.jboss.system.server.profileservice.repository.MainDeployerAdapter.process(MainDeployerAdapter.java:117)
        at org.jboss.system.server.profileservice.repository.ProfileDeployAction.install(ProfileDeployAction.java:70)
        at org.jboss.system.server.profileservice.repository.AbstractProfileAction.install(AbstractProfileAction.java:53)
        at org.jboss.system.server.profileservice.repository.AbstractProfileService.install(AbstractProfileService.java:361)
        at org.jboss.dependency.plugins.AbstractControllerContext.install(AbstractControllerContext.java:348)
        at org.jboss.dependency.plugins.AbstractController.install(AbstractController.java:1631)
        at org.jboss.dependency.plugins.AbstractController.incrementState(AbstractController.java:934)
        at org.jboss.dependency.plugins.AbstractController.resolveContexts(AbstractController.java:1082)
        at org.jboss.dependency.plugins.AbstractController.resolveContexts(AbstractController.java:984)
        at org.jboss.dependency.plugins.AbstractController.change(AbstractController.java:822)
        at org.jboss.dependency.plugins.AbstractController.change(AbstractController.java:553)
        at org.jboss.system.server.profileservice.repository.AbstractProfileService.activateProfile(AbstractProfileService.java:306)
        at org.jboss.system.server.profileservice.ProfileServiceBootstrap.start(ProfileServiceBootstrap.java:271)
        at org.jboss.bootstrap.AbstractServerImpl.start(AbstractServerImpl.java:461)
        at org.jboss.Main.boot(Main.java:221)
        at org.jboss.Main$1.run(Main.java:556)
        at java.lang.Thread.run(Thread.java:619)
Thanks,

Joe

On 2/11/2010 1:04 PM, Michael O'Brien wrote:
Carl,
    Re: bug# 302449
https://bugs.eclipse.org/bugs/show_bug.cgi?id=302449

    Hi, details on configuring the TX datasource are on the wiki (3 steps).
http://wiki.eclipse.org/EclipseLink/Examples/JPA/JBoss_Web_Tutorial#JNDI_JTA.2Fnon-JTA_Server_DataSource_Setup

    Note: To minimize configuration errors - try the already configured HSQL datasource that ships with JBoss

          java:/DefaultDS
-----------------------
    I should add using the default HSQL DefaultDS as well to this wiki.

    I would like to capture any new config details on the eclipselink tutorial wiki page for JBoss - so it can help a wider audience as well.

    Tom is moving this discussion to the list now.

    thank you
    /michael

    As a
carl roberts wrote:
Hi Michael,

How did you create your JNDI datasource in JBOSS 5.1.0 when you tested the bug I reported? Or, did you use driver and connection properties in the persistence.xml?

Reason, I am asking is that Tom asked me to copy the eclipselink.jar and persistence jar to the server\default\lib directory and that got me past the ClassCastException, although every once in a while it comes back but now I am getting an error stating this:

(I have tried using DMWS for the jndi name inside the oracle-ds.xml file and java:/DMWS for the jndi name inside the persistence.xml file and DMWS for the datasource name inside the web.xml file and get the error);

java.lang.RuntimeException: mapped-name is required for DMWS of deployment DMWS.war
        at org.jboss.web.tomcat.service.injection.WebResourceHandler.loadXmlResourceRefs(WebResourceHandler.java:178)
        at org.jboss.web.tomcat.service.injection.WebResourceHandler.loadXml(WebResourceHandler.java:327)
        at org.jboss.web.tomcat.service.TomcatInjectionContainer.processMetadata(TomcatInjectionContainer.java:550)
        at org.jboss.web.tomcat.service.WebCtxLoader.start(WebCtxLoader.java:158)
        at org.apache.catalina.core.StandardContext.start(StandardContext.java:4272)
        at org.jboss.web.tomcat.service.deployers.TomcatDeployment.performDeployInternal(TomcatDeployment.java:310)
        at org.jboss.web.tomcat.service.deployers.TomcatDeployment.performDeploy(TomcatDeployment.java:142)
        at org.jboss.web.deployers.AbstractWarDeployment.start(AbstractWarDeployment.java:461)
        at org.jboss.web.deployers.WebModule.startModule(WebModule.java:118)
        at org.jboss.web.deployers.WebModule.start(WebModule.java:97)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)
        at java.lang.reflect.Method.invoke(Method.java:597)
        at org.jboss.mx.interceptor.ReflectedDispatcher.invoke(ReflectedDispatcher.java:157)
        at org.jboss.mx.server.Invocation.dispatch(Invocation.java:96)
        at org.jboss.mx.server.Invocation.invoke(Invocation.java:88)
        at org.jboss.mx.server.AbstractMBeanInvoker.invoke(AbstractMBeanInvoker.java:264)
        at org.jboss.mx.server.MBeanServerImpl.invoke(MBeanServerImpl.java:668)
        at org.jboss.system.microcontainer.ServiceProxy.invoke(ServiceProxy.java:206)
        at $Proxy38.start(Unknown Source)
        at org.jboss.system.microcontainer.StartStopLifecycleAction.installAction(StartStopLifecycleAction.java:42)
        at org.jboss.system.microcontainer.StartStopLifecycleAction.installAction(StartStopLifecycleAction.java:37)
        at org.jboss.dependency.plugins.action.SimpleControllerContextAction.simpleInstallAction(SimpleControllerContextAction.java:62)
        at org.jboss.dependency.plugins.action.AccessControllerContextAction.install(AccessControllerContextAction.java:71)
        at org.jboss.dependency.plugins.AbstractControllerContextActions.install(AbstractControllerContextActions.java:51)
        at org.jboss.dependency.plugins.AbstractControllerContext.install(AbstractControllerContext.java:348)
        at org.jboss.system.microcontainer.ServiceControllerContext.install(ServiceControllerContext.java:286)
        at org.jboss.dependency.plugins.AbstractController.install(AbstractController.java:1631)
        at org.jboss.dependency.plugins.AbstractController.incrementState(AbstractController.java:934)
        at org.jboss.dependency.plugins.AbstractController.resolveContexts(AbstractController.java:1082)
        at org.jboss.dependency.plugins.AbstractController.resolveContexts(AbstractController.java:984)
        at org.jboss.dependency.plugins.AbstractController.change(AbstractController.java:822)
        at org.jboss.dependency.plugins.AbstractController.change(AbstractController.java:553)
        at org.jboss.system.ServiceController.doChange(ServiceController.java:688)
        at org.jboss.system.ServiceController.start(ServiceController.java:460)
        at org.jboss.system.deployers.ServiceDeployer.start(ServiceDeployer.java:163)
        at org.jboss.system.deployers.ServiceDeployer.deploy(ServiceDeployer.java:99)
        at org.jboss.system.deployers.ServiceDeployer.deploy(ServiceDeployer.java:46)
        at org.jboss.deployers.spi.deployer.helpers.AbstractSimpleRealDeployer.internalDeploy(AbstractSimpleRealDeployer.java:62)
        at org.jboss.deployers.spi.deployer.helpers.AbstractRealDeployer.deploy(AbstractRealDeployer.java:50)
        at org.jboss.deployers.plugins.deployers.DeployerWrapper.deploy(DeployerWrapper.java:171)
        at org.jboss.deployers.plugins.deployers.DeployersImpl.doDeploy(DeployersImpl.java:1439)
        at org.jboss.deployers.plugins.deployers.DeployersImpl.doInstallParentFirst(DeployersImpl.java:1157)
        at org.jboss.deployers.plugins.deployers.DeployersImpl.doInstallParentFirst(DeployersImpl.java:1178)
        at org.jboss.deployers.plugins.deployers.DeployersImpl.install(DeployersImpl.java:1098)
        at org.jboss.dependency.plugins.AbstractControllerContext.install(AbstractControllerContext.java:348)
        at org.jboss.dependency.plugins.AbstractController.install(AbstractController.java:1631)
        at org.jboss.dependency.plugins.AbstractController.incrementState(AbstractController.java:934)
        at org.jboss.dependency.plugins.AbstractController.resolveContexts(AbstractController.java:1082)
        at org.jboss.dependency.plugins.AbstractController.resolveContexts(AbstractController.java:984)
        at org.jboss.dependency.plugins.AbstractController.change(AbstractController.java:822)
        at org.jboss.dependency.plugins.AbstractController.change(AbstractController.java:553)
        at org.jboss.deployers.plugins.deployers.DeployersImpl.process(DeployersImpl.java:781)
        at org.jboss.deployers.plugins.main.MainDeployerImpl.process(MainDeployerImpl.java:702)
        at org.jboss.system.server.profileservice.repository.MainDeployerAdapter.process(MainDeployerAdapter.java:117)
        at org.jboss.system.server.profileservice.repository.ProfileDeployAction.install(ProfileDeployAction.java:70)
        at org.jboss.system.server.profileservice.repository.AbstractProfileAction.install(AbstractProfileAction.java:53)
        at org.jboss.system.server.profileservice.repository.AbstractProfileService.install(AbstractProfileService.java:361)
        at org.jboss.dependency.plugins.AbstractControllerContext.install(AbstractControllerContext.java:348)
        at org.jboss.dependency.plugins.AbstractController.install(AbstractController.java:1631)
        at org.jboss.dependency.plugins.AbstractController.incrementState(AbstractController.java:934)
        at org.jboss.dependency.plugins.AbstractController.resolveContexts(AbstractController.java:1082)
        at org.jboss.dependency.plugins.AbstractController.resolveContexts(AbstractController.java:984)
        at org.jboss.dependency.plugins.AbstractController.change(AbstractController.java:822)
        at org.jboss.dependency.plugins.AbstractController.change(AbstractController.java:553)
        at org.jboss.system.server.profileservice.repository.AbstractProfileService.activateProfile(AbstractProfileService.java:306)
        at org.jboss.system.server.profileservice.ProfileServiceBootstrap.start(ProfileServiceBootstrap.java:271)
        at org.jboss.bootstrap.AbstractServerImpl.start(AbstractServerImpl.java:461)
        at org.jboss.Main.boot(Main.java:221)
        at org.jboss.Main$1.run(Main.java:556)
        at java.lang.Thread.run(Thread.java:619)

--

Joe Roberts | Senior Applications Engineer, Insurance Global Business Unit
Phone: +1 770 910 8257 | Mobile: +1 678 439 6635

Oracle Insurance Global Business Unit
3353 Peachtree Road, NE | Suite 800 | Atlanta, GA 30326

_______________________________________________ eclipselink-users mailing list eclipselink-users@xxxxxxxxxxx https://dev.eclipse.org/mailman/listinfo/eclipselink-users
_______________________________________________
eclipselink-users mailing list
eclipselink-users@xxxxxxxxxxx
https://dev.eclipse.org/mailman/listinfo/eclipselink-users

Follow-Ups:
- Re: [eclipselink-users] Re: JBOSS JNDI DataSource - Bug 302449 - EclipseLink 2.0 on JBoss 5/6 OK
  - From: Michael O'Brien

References:
- [eclipselink-users] Re: JBOSS JNDI DataSource - Bug 302449
  - From: carl roberts
- Re: [eclipselink-users] Re: JBOSS JNDI DataSource - Bug 302449 - EclipseLink 2.0 on JBoss 5/6 OK
  - From: Michael O'Brien
- Re: [eclipselink-users] Re: JBOSS JNDI DataSource - Bug 302449 - EclipseLink 2.0 on JBoss 5/6 OK
  - From: carl roberts
- Re: [eclipselink-users] Re: JBOSS JNDI DataSource - Bug 302449 - EclipseLink 2.0 on JBoss 5/6 OK
  - From: carl roberts

Prev by Date: Re: [eclipselink-users] Re: JBOSS JNDI DataSource - Bug 302449 - EclipseLink 2.0 on JBoss 5/6 OK
Next by Date: Re: [eclipselink-users] Re: JBOSS JNDI DataSource - Bug 302449 - EclipseLink 2.0 on JBoss 5/6 OK
Previous by thread: Re: [eclipselink-users] Re: JBOSS JNDI DataSource - Bug 302449 - EclipseLink 2.0 on JBoss 5/6 OK
Next by thread: Re: [eclipselink-users] Re: JBOSS JNDI DataSource - Bug 302449 - EclipseLink 2.0 on JBoss 5/6 OK
Index(es):
- Date
- Thread

Breadcrumbs
