Re: [chemclipse-dev] Problem: Not equal gap of grid

[Philip Wenig <philip.wenig@xxxxxxxxxxxxx>]

Hi Trig,

this is due to the fact that more than one axis is used which sets . In your case retention time in minutes and milliseconds whereas the milliseconds scale is hidden.

Currently, I improve the charting capabilities. All charts are based on the fabulous SWTChart (http://www.swtchart.org) but offer some extensions to allow and synchronize multiple axis as well as an easier style to create and modify charts. The current improvements can be found here:

http://git.eclipse.org/c/chemclipse/org.eclipse.chemclipse.chemclipsecore.git/tree/chemclipse/plugins/org.eclipse.chemclipse.ui.service.swt?h=develop

Please don't use them yet until I've moved them to Eclipse EAVP. See also:
https://www.eclipsecon.org/france2017/session/charts-eclipse-people-making


Best,
Philip

Am 06.04.2017 um 12:22 schrieb Trig Chen:

Please attachment.

I don't know why the gaps of grid are not equal as other software shows.

Is there any api of Chart to set the grid gap equally?

Best regards,

Trig

_______________________________________________
chemclipse-dev mailing list
chemclipse-dev@xxxxxxxxxxx
To change your delivery options, retrieve your password, or unsubscribe from this list, visit
https://dev.eclipse.org/mailman/listinfo/chemclipse-dev

--
~~~~~~~~~~~~~~~~~~~~~~~~
OpenChrom - the open source alternative for chromatography / mass spectrometry
Dr. Philip Wenig » Founder » philip.wenig@xxxxxxxxxxxxx » http://www.openchrom.net
~~~~~~~~~~~~~~~~~~~~~~~~

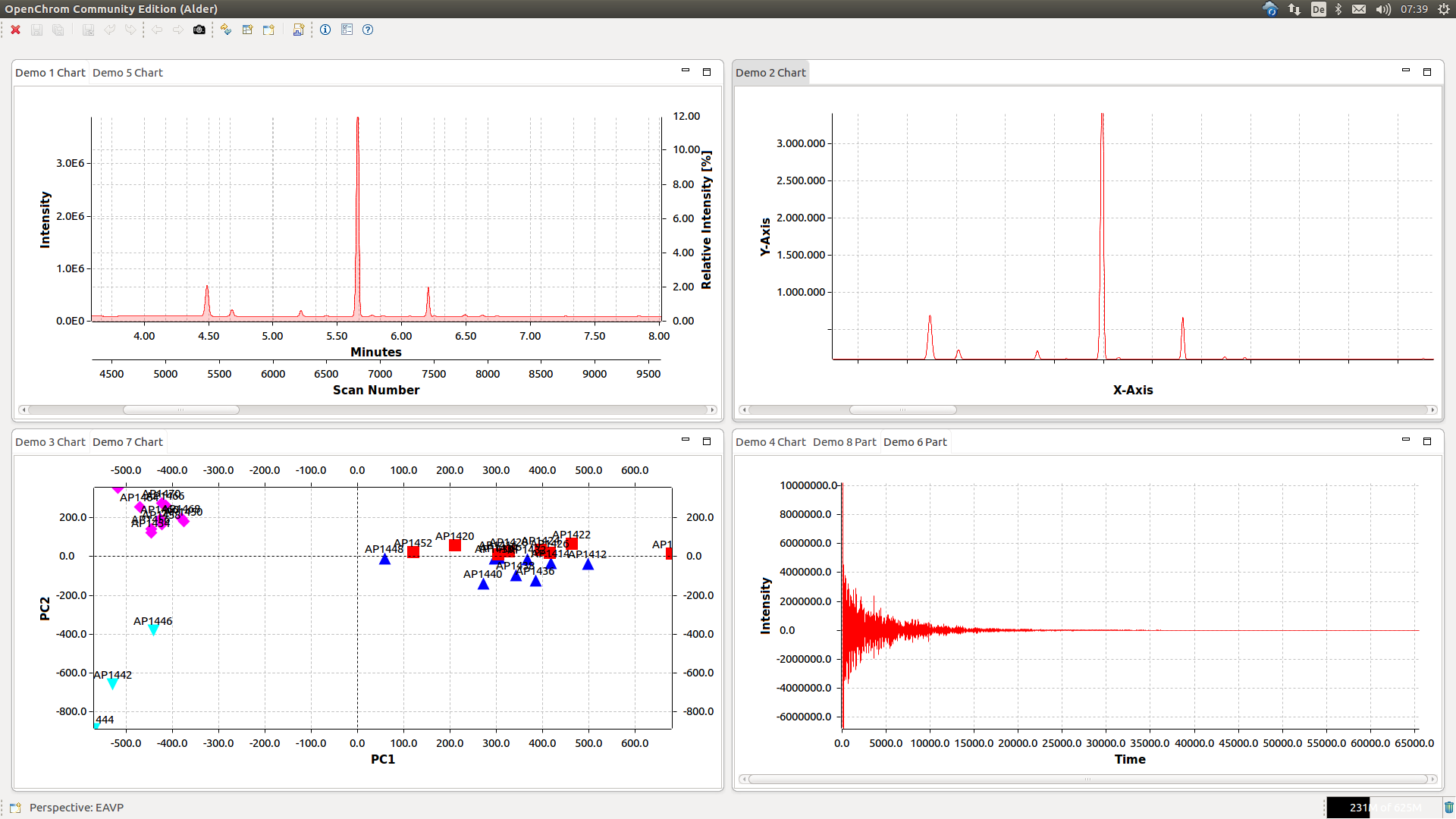

Attachment: Charting.png
Description: PNG image
