Hi Morty,

That would be a great improvement. I suppose once upon a time when includes were /usr/include having the full name all the time wasn't too much of an issue, but I agree the docker way is too long.

It would be merged (assuming it was well written/complete/etc). It is a CDT change - rather than point you at where to change, I have thrown together a first working version. You can use or discard it - its intention is to show you where to start looking:

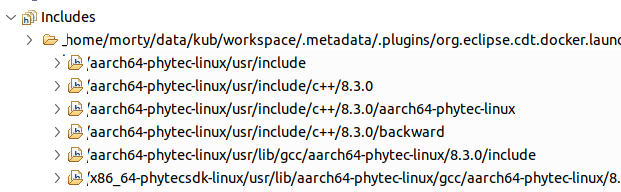

It gives this instead of flat:

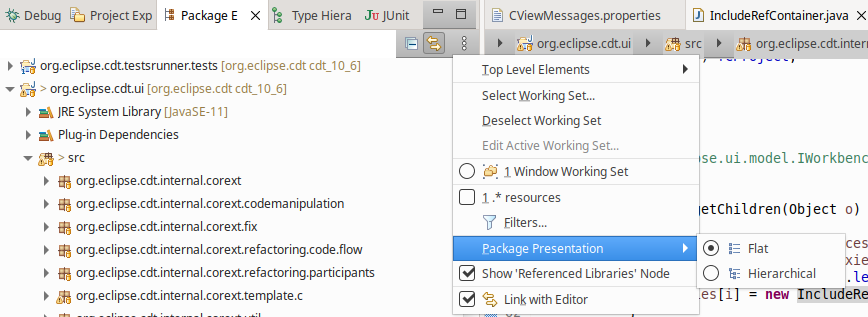

Doing something like JDT where there is a flat or hierarchical option may be a good idea:

But even better may be a semi-flattened semi-hierarchical where all the parents with just one child folder are collapsed to the same level in the tree (similar to your option 3 mock screenshot?).

I also really like your option 1 where in the UI you show the docker name of the folders rather than the .metadata name where they are copied. Hopefully you can play around to see what works best.

Here is the code - https://git.eclipse.org/r/c/cdt/org.eclipse.cdt/+/192262 - please feel free to use it as a starting point, or simply as a guide to what in the CDT code needs changing.

Let me know how I can help support you getting this feature implemented.

PS This is a pretty fun bit of the code to work in - you get to see visible changes quickly and most of the code changes are internal packages of CDT so you don't have some of the other headaches of API compatibility. You'll notice that this is also some of the oldest parts of CDT, dating back to the early 2000s, so feel free to modernize code where you find it appropriate. For review sake it would help if modernized code was presented in separate commits.

Jonah

~~~
Jonah Graham
Kichwa Coders
www.kichwacoders.com

On Fri, 25 Mar 2022 at 11:43, Moritz Strübe <moritz.struebe@xxxxxxxxxx> wrote:

Hey,

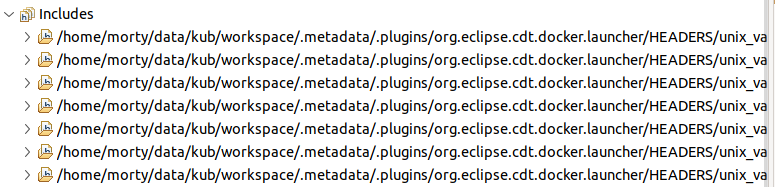

I finally have some time to work on docker improvements. One of the things bugging me are the include paths in the project. While they are already hard to read when they are no systems paths, but things get worse when they are copied from a docker image:



Thus: Is there an easy whey to fix this?
One of my ideas was to introduce some kind of mapping. Showing the actual path within the docker, but listing the copied files.
The second was to clip the paths on the left side instead of the right. But that is probably far from simple, because it breaks the rendering hierarchy, right?

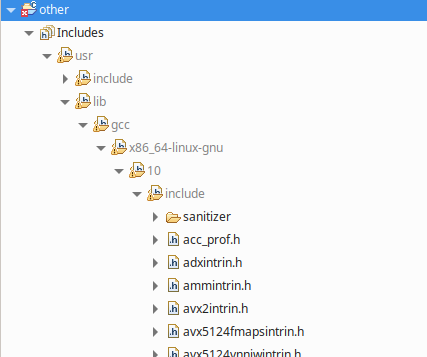

A third option would be to introduce a hierarchy level. Adding one when all paths share the same base-path (or some other magic):



Thinking about it, the third option is probably the most non-confusing for the end-user, while still being implementable with reasonable effort (this is a wild guess, though).

Any thoughts? Would a patch be merged? Can this be implemented in CDT or do I have to adjust Eclipse? Pointers to the code to look at are welcome, too. :)

Morty

--
