Hi Jonah, team,

If I want to create register groups in hierarchical manner during launch of debug session than how can I make use of the field ‘parent_id’ from group’s memento ?

I have extended RegisterGroupPersistance class but the groups seems to be created only in serial manner, so do not understand what is use of field ‘parent_id’ which is container_id internally. Is there a restriction ?

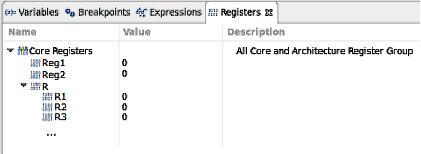

I want to create structure like (where ‘R’ could have ‘Core Registers’ group as container and could be set as ‘parent_id’ ?):


Please guide if this is easily possible ?

Thanks & Best Regards,
Shiva Sharma..
