Hi,
I tried “mvn package” command again and got
this error:
[INFO]
------------------------------------------------------------------------
[INFO] BUILD FAILURE
[INFO]
------------------------------------------------------------------------
[INFO] Total time: 02:15 min
[INFO] Finished at:
2020-01-08T14:26:51+08:00
[INFO]
------------------------------------------------------------------------
[ERROR] Failed to execute goal
org.apache.maven.plugins:maven-antrun-plugin:1.8:run (default)
on project org.eclipse.cdt.debug.dap: An Ant BuildException
has occured: The following error occurred while executing this
line:
[ERROR]
C:\Users\mcheng\git\org.eclipse.cdt\debug\org.eclipse.cdt.debug.dap\BuildDebugServers.xml:5:
Execute failed: java.io.IOException: Cannot run program "yarn"
(in directory
"C:\Users\mcheng\git\org.eclipse.cdt\debug\org.eclipse.cdt.debug.dap\debug-servers"):
CreateProcess error=2, The system cannot find the file
specified
[ERROR] around Ant part ...<ant
antfile="BuildDebugServers.xml"
target="BuildDebugServers"/>... @ 4:68 in
C:\Users\mcheng\git\org.eclipse.cdt\debug\org.eclipse.cdt.debug.dap\target\antrun\build-main.xml
[ERROR] -> [Help 1]
On my PC, I can use explore to access https://download.eclipse.org:443
The attached file has all detail
information generated from the command mvn.
Thanks.
Sent from
Mail for Windows 10

Maven Runtime can’t be changed. Should I
use an older Eclipse Committer?
Sent from
Mail for Windows 10

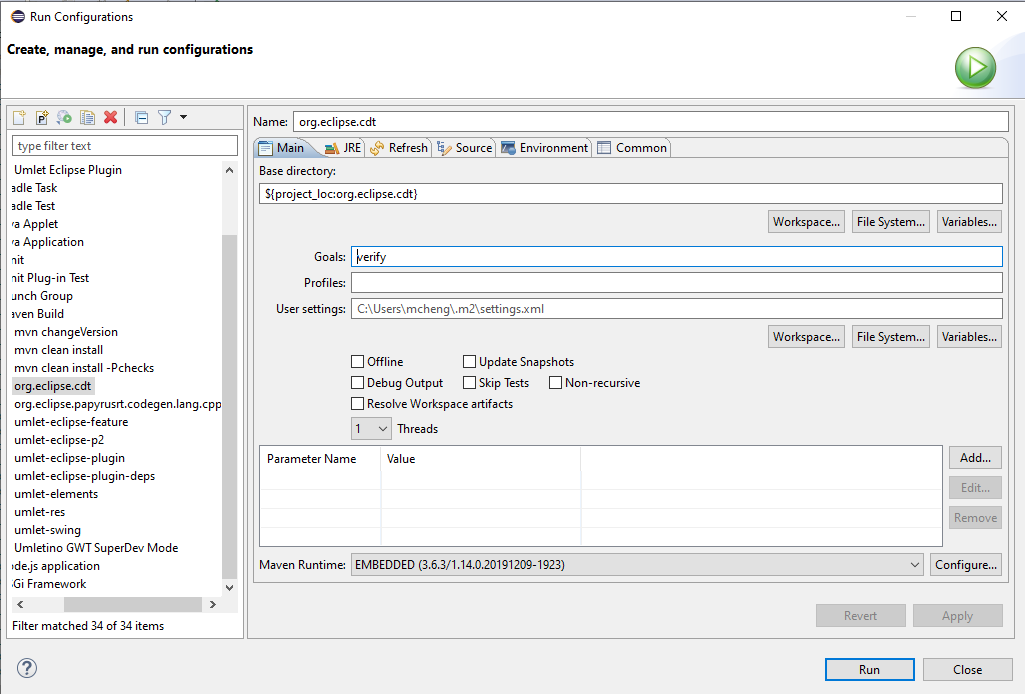

I also tried maven within Eclipse:
[INFO]
------------------------------------------------------------------------
[ERROR] Failed to execute goal
org.apache.maven.plugins:maven-enforcer-plugin:3.0.0-M3:enforce
(enforce-maven-version) on project
org.eclipse.cdt.core.native:
org.apache.maven.plugins.enforcer.RequireMavenVersion failed
with message:
[ERROR] Detected Maven Version: 3.6.3 is
not in the allowed range [3.6.0,3.6.0].
[ERROR] -> [Help 1]
[ERROR]
[ERROR] To see the full stack trace of the
errors, re-run Maven with the -e switch.
[ERROR] Re-run Maven using the -X switch to
enable full debug logging.
[ERROR]
[ERROR] For more information about the
errors and possible solutions, please read the following
articles:
[ERROR] [Help 1]
http://cwiki.apache.org/confluence/display/MAVEN/MojoExecutionException
Must be 3.6.0?
Thanks.
Sent from
Mail for Windows 10
Hi,
I followed the instruction below:
Building
the CDT p2 repository
You
can generate your own CDT zip using Maven.
·
Install
Maven if not already installed (mvn command). Maven 3.3 or
greater is required.
·
In
command line, change the directory to the cdt git
directory (the top folder that contains a pom.xml file)
·
Run
"mvn package". This will take a lot longer the first time
because it needs to download a lot of things. If it seems
stuck on a download and you're behind a proxy, make sure
that you set your
Maven proxy settings.
·
If
the build is succesful, the zip will be in
org.eclipse.cdt/releng/org.eclipse.cdt.repo/target/org.eclipse.cdt.repo.zip
·
Go
to Install new software, click Add, Archive and browse for
to the zip
You
should now be able to install or update CDT using your
modified code.
But encountered these error:
[ERROR] The build could not read 1 project
-> [Help 1]
[ERROR]
[ERROR] The project
org.eclipse.cdt:cdt-parent:9.10.0-SNAPSHOT
(/fs02/home/mcheng/workspace/org.eclipse.cdt/pom.xml) has 126
errors
[ERROR] Child module
/fs02/home/mcheng/workspace/org.eclipse.cdt/build/org.eclipse.cdt.build.gcc.core/pom.xml
of /fs02/home/mcheng/workspace/org.eclipse.cdt/pom.xml does
not exist
[ERROR] Child module
/fs02/home/mcheng/workspace/org.eclipse.cdt/build/org.eclipse.cdt.build.gcc.ui/pom.xml
of /fs02/home/mcheng/workspace/org.eclipse.cdt/pom.xml does
not exist
[ERROR] Child module
/fs02/home/mcheng/workspace/org.eclipse.cdt/build/org.eclipse.cdt.make.core/pom.xml
of /fs02/home/mcheng/workspace/org.eclipse.cdt/pom.xml does
not exist
Really there are no pom.xml under
org.eclipse.cdt.build.gcc.core etc.
I was advised not to use Maven to build CDT
p2 but so far not ok with Eclipse neither.
My interpretation of the
directory to the cdt git directory is org.eclipse.cdt
with these content:
[mcheng@pioneer org.eclipse.cdt]$ ls
build core debug
doc dsf-gdb launch lrparser memory pom.xml releng
testsrunner upc visualizer xlc
codan cross disable_intro_in_tests.ini
dsf jtag llvm lsp native qt remote
toolchains util windows
Thanks.
Sent from
Mail for Windows 10
We may ignore UMLet part. What I want to
achieve now is to compile original CDT code successfully. Then
I may add one comment line and can still compile ok. Hope make
sense.
Sent from
Mail for Windows 10
To me before I could change anything in CDT
src, what I want to achieve is:
- Get CDT src
from Eclipse repo
- Compile it
and get those jars.
Article/tutorial are all great but most
time they could not bring a newbie to be expert.
My Eclipse env
Eclipse IDE for Java Developers
Version: 2019-09 R (4.13.0)
Build id: 20190917-1200
CDT branch is 9.10.0.
What’s the ABC steps to generate all CDT
jars?
Thanks.
Sent from
Mail for Windows 10
I’ll go through the tutorial.
Now it’s an experimental try. If it’s
successful, it may become a internal tool (kind of commercial)
.
I asked UMLet, they did not bother.
Sent from
Mail for Windows 10
Have a look at this great tutorial on how
to write eclipse plugins. Some of it goes into issues that you
don't need to know about yet, so focus on chapters 1 to 5 to
start, and have a look at 17 to 22 for more topics. As you
become more experienced you can revisit the other chapters.
https://www.vogella.com/tutorials/EclipsePlugin/article.html
BTW, it sounds like your goal is to
extend umlet? Have you engaged anyone from that project yet?
As they already have eclipse plugins, they may have better
advice on how to edit their own code. I/we can try to point
you in the right direction of how to use CDT code, but as
you seem to be going off the beaten path you are probably
going to have to figure your own way through on most of
this.
PS what is the context of your work. For
example is this for a commercial product, open source
project or academic work?
·
In
the editor that just opened, click
Set as Target Platform on the top right.
Eclipse
will now download the required dependencies, which
may take some time the first time. Once this is
done, it should trigger a full build of your
workspace and a lot of errors should go away.
Issue
1
I
couldn’t Set
as Target Platform
on the top right.
However
I can see a lot of .class files being generated.
Launching
After
all the CDT projects have successfully built,
you'll probably want to run and/or do source-level
debugging of the CDT code. Open the PDE (Plug-in
Development Environment) perspective:
Window->Perspective->Other->"Plug in
Development". There, you'll see a project with the
name org.eclipse.cdt.ui, right click the
org.eclipse.cdt.ui project, select "Run
As"->"eclipse application". You should see a
new instance of eclipse - with the latest version
of eclipse CDT plugins.
Issue
2
I
couldn’t follow the above steps bcos I can’t find
a project with the name org.eclipse.cdt.ui.
Issue
3.
How
to generate jar files like these:
![]()
Sent
from
Mail for Windows 10
It's
in releng/org.eclipse.cdt.target, try importing it
directly. Here is the link to it in the git browser:
https://git.eclipse.org/c/cdt/org.eclipse.cdt.git/tree/releng/org.eclipse.cdt.target
o
set the target platform:
·
Expand
the "org.eclipse.cdt.target" project.
·
Double-click
on
cdt.target.
·
In
the editor that just opened, click
Set as Target Platform on the top
right.
When
clone and import, I selected all, but still
can’t see “org.eclipse.cdt.target"
project.
Now
I am using 9.10.0
Sent
from
Mail for Windows 10
Got
it and thanks Christian.
Sent
from
Mail for Windows 10
Ming
Cheng wrote:
> I don’t know how to dynamically debug
Eclipse plugin code
>
> ...
>
> I tried to build with command:
>
> mvn clean install
>
> but with a lot of error (please refer to
the attached file).
I'm not sure, but at a glance it could be that
your Maven and/or Tycho are too old for
pom-less building. Look inside the top-level
pom.xml, it mentions some versions.
However, for debugging it is more convenient
to build in Eclipse (PDE) than with Maven. It
is described very well in
https://wiki.eclipse.org/Getting_started_with_CDT_development .
-Christian
