RE: [cdt-dev] Debugging with EDC

Hi,

> Can you please tell me how can I use the GdbServerAgent coming with the “org.eclipse.cdt.debug.edc.linux.x86_1.0.0.201003091218” plugin?



If you're on a local Linux system, the agent will start automatically.  Otherwise, run "java -jar <path_to>/org.eclipse.cdt.debug.edc.linux.x86/os/linux/x86/GdbserverAgent.jar".  (Or, if you're developing and debugging this agent, run org.eclipse.cdt.debug.edc.agent.gdbserver.GdbserverAgent as a Java application on the Linux side.)

As I mentioned before, though, we haven't made this agent work with remote launching yet.  So, e.g., Windows paths will show up as-is on the Linux side and won't work.

-- Ed


From: Bhavana Babu [mailto:bhavana.babu@xxxxxxxxxxxxx]
Sent: Monday, March 15, 2010 11:22 PM
To: CDT General developers list.
Subject: RE: [cdt-dev] Debugging with EDC

Hi Ed,



Can you please tell me how can I use the GdbServerAgent coming with the “org.eclipse.cdt.debug.edc.linux.x86_1.0.0.201003091218” plugin?



Regards,

Bhavana



From: cdt-dev-bounces@xxxxxxxxxxx [mailto:cdt-dev-bounces@xxxxxxxxxxx] On Behalf Of Ed.Swartz@xxxxxxxxx
Sent: Monday, March 15, 2010 6:19 PM
To: cdt-dev@xxxxxxxxxxx
Subject: RE: [cdt-dev] Debugging with EDC



Hi,



Be sure you build with DWARF-2.  That's the only debug format supported in EDC at the moment (use the "-gdwarf-2" option when building).



-- Ed




From: Bhavana Babu [mailto:bhavana.babu@xxxxxxxxxxxxx]
Sent: Monday, March 15, 2010 12:35 AM
To: CDT General developers list.
Subject: RE: [cdt-dev] Debugging with EDC

>As it is, without an ARM-specific launch delegate, you probably selected the "EDC Create Process (Windows)" launcher. That says to use Windows as the >debug target.  So this is failing because Win32 can't run ELF.  (Or, ARM code, for that matter. ;)

>Again, this kind of support is imminently possible, but not on our schedule right now. If you're interested and want to work on it, we can help!



Hi Ed,



Thanks for the reply….



But I have tried this with an exe build with cygwin/Mingw .

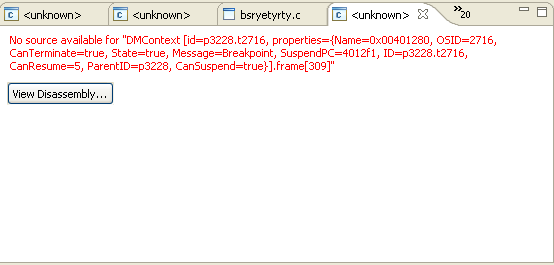

Thus I got the following display on editor:









No source is available while stepping. Can anyone tell me what is happening ?







 Regards,

Bhavana



From: cdt-dev-bounces@xxxxxxxxxxx [mailto:cdt-dev-bounces@xxxxxxxxxxx] On Behalf Of Ed.Swartz@xxxxxxxxx
Sent: Friday, March 12, 2010 7:37 PM
To: cdt-dev@xxxxxxxxxxx
Subject: RE: [cdt-dev] Debugging with EDC



Hi Bhavana,



> Can anyone tell me whether remote debugging is supported using EDC?

> We want to debug the code running in ARM target using gdbServer.

> Can anyone tell me how this is  possible using EDC?

> Any help will be appreciated.



This case is theoretically supported, since EDC is built on TCF and inherently supports remote debugging.  And, we have ARM support and gdbserver support.



But as of yet, we've only tested ARM on Symbian using the TRK protocol and gdbserver on a Linux/x86 local system.  We haven't yet done the gdbserver ARM targeting pieces or tested a gdbserver/ARM combination.  And the gdbserver support has only been tested on the local system so far and is bundled as a JAR.



To get this working, we'd need to handle, e.g., copying/mapping files to the remote system, launching the gdbserver agent remotely (and maybe changing it from a JAR file to a C/C++ agent), wiring up the gdbserver agent with the ARM targeting pieces, etc.



> I have imported a sample elf program( build for ARM ,using arm-none-eabi-gcc)  through “Import-àC/C++ Executable” option in Eclipse 3.6M5.

> Then I tried to debug it using ” EDC create process Launcher”, selected Win32 Debug Agent(TCP 10.1.11.75:1534(local running)) as TCF peer.

> But I got the following error :



As it is, without an ARM-specific launch delegate, you probably selected the "EDC Create Process (Windows)" launcher. That says to use Windows as the debug target.  So this is failing because Win32 can't run ELF.  (Or, ARM code, for that matter. ;)



Again, this kind of support is imminently possible, but not on our schedule right now. If you're interested and want to work on it, we can help!



-- Ed


From: Bhavana Babu [mailto:bhavana.babu@xxxxxxxxxxxxx]
Sent: Friday, March 12, 2010 4:08 AM
To: cdt-dev@xxxxxxxxxxx
Subject: [cdt-dev] Debugging with EDC

Hi all,



I have imported a sample elf program( build for ARM ,using arm-none-eabi-gcc)  through “Import-àC/C++ Executable” option in Eclipse 3.6M5.

Then I tried to debug it using ” EDC create process Launcher”, selected Win32 Debug Agent(TCP 10.1.11.75:1534(local running)) as TCF peer.

But I got the following error :





Error in final launch sequence.

org.eclipse.core.runtime.CoreException: TCF error report:

Command: Processes start "", "C:\\Simple.elf", ["C:\\Simple.elf"], ["USERPROFILE=...

Time: 2010-03-12 14:58:55.415

Error text: Unknown error

Error code: 1

Alt code: 193

Alt org: POSIX





Can anyone help me…



 Thanks in advance ,

Bhavana
