RE: [cdt-dev] Questions to Build Macro Tool Integrator interface
|
> Do you mean that the macro
references are kept unresolved in the makefile or they are resolved to
an empty string?
They are resolved to an empty
string, the call-back getMacro() is not called on my supplier.
> What
are the types of those options that contain your macros? Is that a STRING,
STRING-LIST, INCLUDE_PATH, etc. ?
The type of the option I tried
was a STRING-LIST, the type of the macro a STRING
> Did you try to use some
built-in configuration-specific and project-specific macros, e.g. ${ConfigName},
${ProjName}, etc.
> Do they get resolved correctly?
No I have not. I was starting
to play with what you have done, to test our extensions. I have not systematically
approached this. In fact what is there, works is good enough to validate
our proposal in a relevant use-case scenario.
> Are
you using the GnuMakefileGenerator or some other buildfile generator for
your tool-chains?
I have taken the GNU toolchain
plug-in as basis for a new plug-in, changed all the ID's and made some
modifications. I can send this to you, but it requires our CDT code to
be submitted to the CDT CVS first. I am not going to have time to do this
this week and wanted to get some more testing done before.
I have a question: can macros
also be used within definitions of the MBS grammar, or only in values?

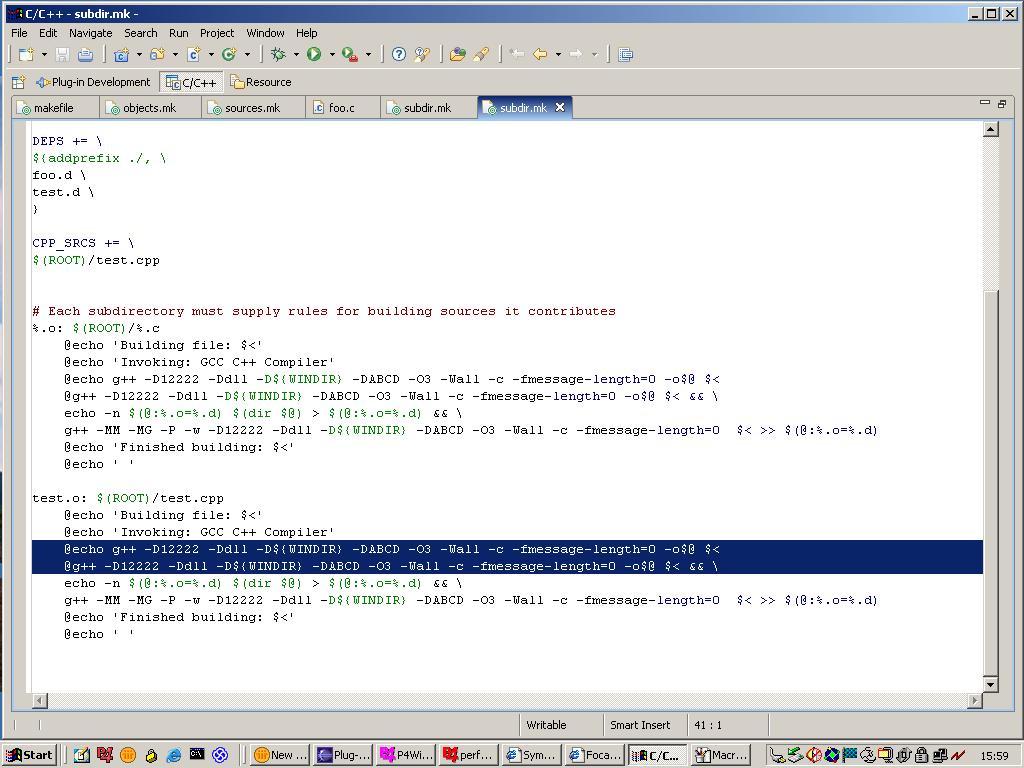

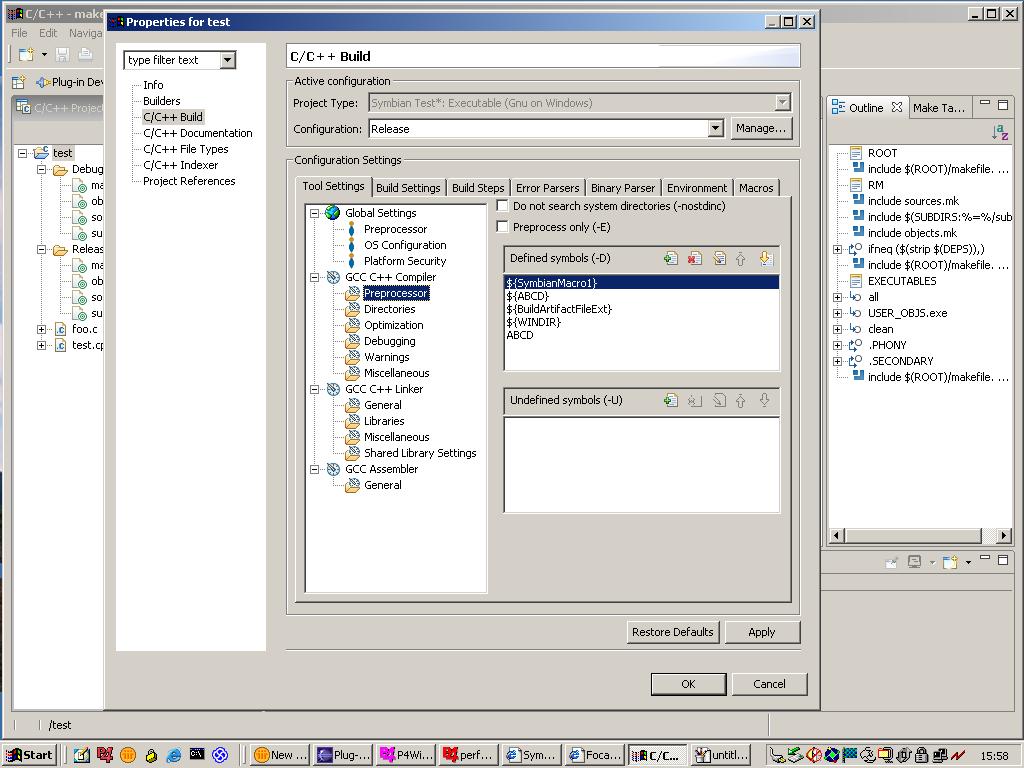

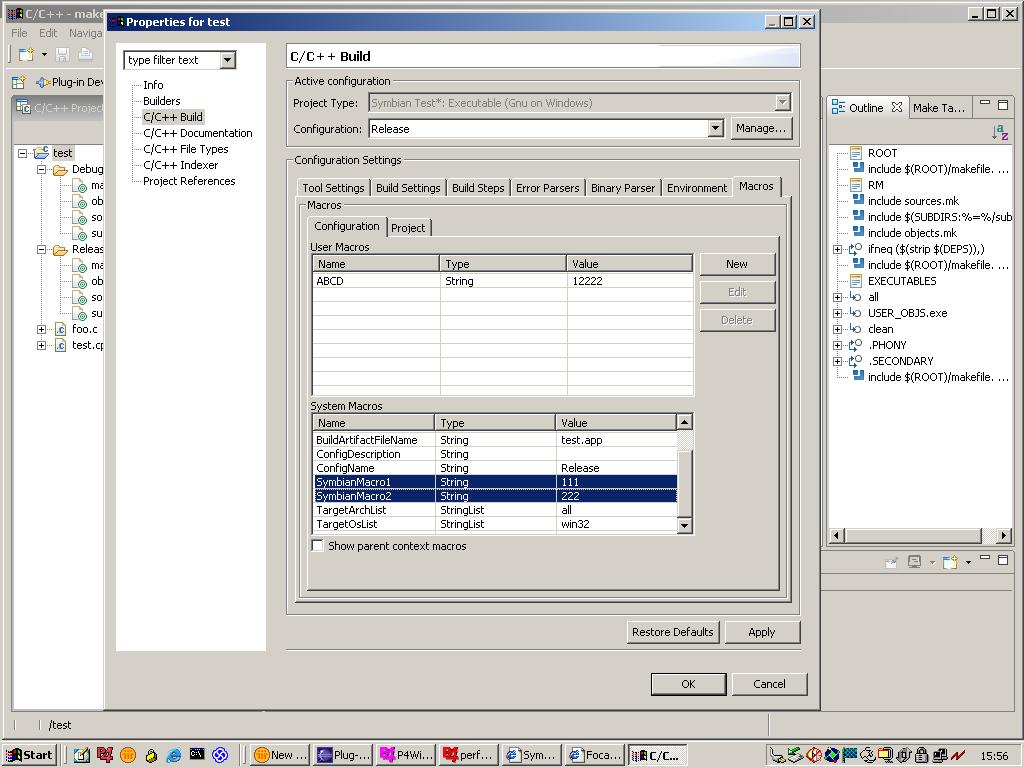

I have attached some code snippets
and screenshots to help you reproduce.
Best Regards
-- Lars
"Sennikovsky, Mikhail"
<mikhail.sennikovsky@xxxxxxxxx>
Sent by: cdt-dev-bounces@xxxxxxxxxxx
26/05/2005 14:20
Please respond to
"CDT General developers list." <cdt-dev@xxxxxxxxxxx> |
|
To
| "CDT General developers list."
<cdt-dev@xxxxxxxxxxx>
|
cc
|
|
Subject
| RE: [cdt-dev] Questions to Build Macro
Tool Integrator interface |
|
Hi Lars,
No, this is not a known issue.
I have tested the case you are talking about and everything seems to work
fine for me: the tool-intergator build macros are displayed in UI and resolved
in the makefile.
Could you provide me with some
more detailed information regarding your problem:
>(3) If I use macros in the MBS grammar
or option values they are NOT resolved, neither are any calls to getMacro()
nor getMacros() made
Do you mean that the macro
references are kept unresolved in the makefile or they are resolved to
an empty string?
E.g. if you have the “some
string ${YourMacro}” value for some option, does it appear in the makefile
as is (“some string ${YourMacro}”) or the build macro reference disappears
(“some string ”)?
What are the types of those
options that contain your macros? Is that a STRING, STRING-LIST, INCLUDE_PATH,
etc. ?
(4) If I use built-in macros such as ${BuildArtifactFileExt} they do get
resolved, while my own are not.
Did you try to use some built-in configuration-specific and project-specific
macros, e.g. ${ConfigName}, ${ProjName}, etc. Do they get resolved correctly?
The macro resolution should
be invoked in the buildfile generator while generating the buildfile. As
for the Gnu tool-chain, the macro resolution is invoked from within the
GnuMakefileGenerator. Are you using the GnuMakefileGenerator or some other
buildfile generator for your tool-chains?
Also the macro resolving behavior
depends on some attributes of the builder, namely “variableFormat”, “isVariableCaseSensitive”,
“reservedMacroNames” and a set of the “macroXXXValue” attributes. Actually
all these attributes should not affect the resolution of the tool-integrator
provided macros, but I suppose this might be not true in case there is
some bug in the code, so I have to check this also. What are those attributes
for your builder?
Thank you,
Mikhail
From: cdt-dev-bounces@xxxxxxxxxxx
[mailto:cdt-dev-bounces@xxxxxxxxxxx] On Behalf Of Lars.Kurth@xxxxxxxxxxx
Sent: Thursday, May 26, 2005 3:51 PM
To: CDT General developers list.
Cc: Bala.Torati@xxxxxxxxxxx
Subject: [cdt-dev] Questions to Build Macro Tool Integrator interface
Hi,
I have been trying out the IConfigurationBuildMacroSupplier interface of
the build macro code and am having some problems. First what works:
(1) The macros that I have defined appear in the build settings UI with
the correct values.
(2) The getMacros() and getMacro() calls are called correctly when the
UI is initialized
What doesn't work:
(3) If I use macros in the MBS grammar or option values they are NOT resolved,
neither are any calls to getMacro() nor getMacros() made
(4) If I use built-in macros such as ${BuildArtifactFileExt} they do get
resolved, while my own are not.
Is this a known issue? Any help would be appreciated.
Regards
-- Lars
**********************************************************************
Symbian Software Ltd is a company registered in England and Wales with
registered number 4190020 and registered office at 2-6 Boundary Row, Southwark,
London, SE1 8HP, UK. This message is intended only for use by the named
addressee and may contain privileged and/or confidential information. If
you are not the named addressee you should not disseminate, copy or take
any action in reliance on it. If you have received this message in error
please notify postmaster@xxxxxxxxxxx and delete the message and any attachments
accompanying it immediately. Neither Symbian nor any of its subsidiaries
accepts liability for any corruption, interception, amendment, tampering
or viruses occurring to this message in transit or for any message sent
by its employees which is not in compliance with Symbian corporate policy.
**********************************************************************
_______________________________________________
cdt-dev mailing list
cdt-dev@xxxxxxxxxxx
https://dev.eclipse.org/mailman/listinfo/cdt-dev
Attachment:
SymbianMacroSupplier.java
Description: Binary data
<projectType
name="%TargetName.cygw.exe"
id="test.cdt.managedbuild.target.gnu.cygwin.exe"
isTest="false"
isAbstract="false">
<configuration
name="%ConfigName.Dbg"
artifactExtension="exe"
cleanCommand="rm -rf"
errorParsers="org.eclipse.cdt.core.MakeErrorParser;org.eclipse.cdt.core.GCCErrorParser;org.eclipse.cdt.core.GLDErrorParser;org.eclipse.cdt.core.GASErrorParser"
id="test.cdt.managedbuild.config.gnu.cygwin.exe.debug">
<toolChain
archList="all"
configurationEnvironmentSupplier="org.eclipse.cdt.managedbuilder.gnu.cygwin.GnuCygwinConfigurationEnvironmentSupplier"
>>>>>>>>>>>>>>>> configurationMacroSupplier="com.symbian.mbs.test.macrosuppliers.SymbianMacroSupplier"
id="test.cdt.managedbuild.toolchain.gnu.cygwin.exe.debug"
isToolChainSupported="org.eclipse.cdt.managedbuilder.gnu.cygwin.IsGnuCygwinToolChainSupported"
name="%ToolChainName.Dbg"
osList="win32"
scannerConfigDiscoveryProfileId="test.org.eclipse.cdt.managedbuilder.core.GCCWinManagedMakePerProjectProfile"
targetTool="test.cdt.managedbuild.tool.gnu.c.linker.cygwin.exe.debug;cdt.managedbuild.tool.gnu.cpp.linker.cygwin.exe.debug">
Note that this is identical to org.eclipse.cdt.managedbuilder.gnu.ui only that all Id's are pre-fixed by "test." and some changes made by me
Attachment:
Description: JPEG image
Attachment:
Description: JPEG image
Attachment:
Description: JPEG image
