Re: [birt-report-designer-dev] how to draw rounded rectangles

Hi,

There's a image on the corners of the table. Take a look the piece of code below:

                                <cell id="85">
                                    <property name="style">SouthWestCorner</property>
                                    <property name="backgroundColor">#FFFFFF</property>
                                    <property name="fontSize">xx-small</property>
                                    <property name="textAlign">right</property>
                                    <property name="verticalAlign">top</property>
                                    <image id="145">
                                        <property name="height">10px</property>
                                        <property name="width">10px</property>
                                        <property name="source">embed</property>
                                        <property name="imageName">sw.gif</property>
                                    </image>
                                </cell>

The sw.gif is an image with the properties height and the width defined. This image is a corner.
There's a ccs defined too:

    <styles>
        <style name="NorthWestCorner" id="147">
            <property name="backgroundPositionX">left</property>
            <property name="backgroundPositionY">top</property>
            <property name="fontSize">xx-small</property>
            <property name="paddingTop">0pt</property>
            <property name="paddingLeft">0pt</property>
            <property name="paddingBottom">0pt</property>
            <property name="paddingRight">0pt</property>
        </style>
        <style name="NorthEastCorner" id="148">
            <property name="backgroundColor">#FFFFFF</property>
            <property name="backgroundPositionX">right</property>
            <property name="backgroundPositionY">top</property>
            <property name="fontSize">xx-small</property>
            <property name="paddingTop">0pt</property>
            <property name="paddingLeft">0pt</property>
            <property name="paddingBottom">0pt</property>
            <property name="paddingRight">0pt</property>
        </style>
        <style name="SouthWestCorner" id="149">
            <property name="backgroundColor">#DDDDDD</property>
            <property name="backgroundPositionX">right</property>
            <property name="backgroundPositionY">bottom</property>
            <property name="paddingTop">0pt</property>
            <property name="paddingLeft">0pt</property>
            <property name="paddingBottom">0pt</property>
            <property name="paddingRight">0pt</property>
        </style>
        <style name="SouthEastCorner" id="150">
            <property name="backgroundColor">#FFFFFF</property>
            <property name="backgroundPositionX">left</property>
            <property name="backgroundPositionY">bottom</property>
            <property name="fontSize">xx-small</property>
            <property name="paddingTop">0pt</property>
            <property name="paddingLeft">0pt</property>
            <property name="paddingBottom">0pt</property>
            <property name="paddingRight">0pt</property>
        </style>
        <style name="BorderRow" id="151">
            <property name="backgroundColor">#DDDDDD</property>
            <property name="fontSize">xx-small</property>
            <property name="paddingTop">0pt</property>
            <property name="paddingLeft">0pt</property>
            <property name="paddingBottom">0pt</property>
            <property name="paddingRight">0pt</property>
        </style>
    </styles>

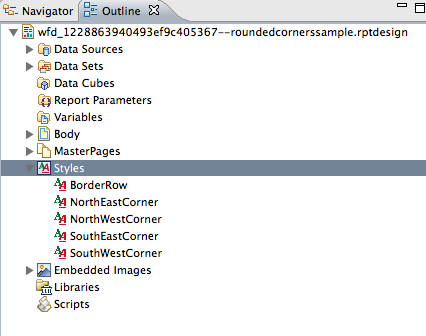

The styles can be edited in the outline tab take a look on the picture attached.

[]'s

On Thu, May 17, 2012 at 9:41 AM, Sachdev, Hina <hina.sachdev@xxxxxxxxxx> wrote:

Hi,

I wanted to create a rounded rectangle using BIRT but unable to do it.     I searched the internet and got one .rptdesign but unable to understand the code. I am attaching the same here.

Pls help me out with it.

Thanks
