How to prevent associations to parent containers [message #1835614]

Tue, 08 December 2020 15:53

Eclipse User

Hello,

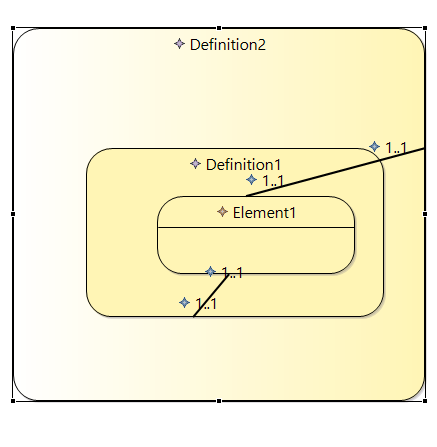

I am trying to figure out how to set the connection complete precondition that will prevent this type of association from being allowed in my model:

index.php/fa/39495/0/

When I am in the editor I can use the interpreter to figure out all of the ancestors of Element1 using [self.ancestors()/] but I do not know how to translate this to aql for use in the Connection Complete Preconditions box for my edge creation tool. I tried aql: preTarget.differs(preSource.ancestors()) similar to what is in the example here: https://wiki.eclipse.org/Sirius/Tutorials/AdvancedTutorial#Precondition, but it unfortunately doesn't work.

Some guidance would be greatly appreciated

Attachment: Screenshot 2020-12-08 154854.png
(Size: 15.22KB, Downloaded 315 times)

Re: How to prevent associations to parent containers [message #1835711 is a reply to message #1835614]

Thu, 10 December 2020 14:51

Eclipse User

Figured out that the command I wanted was aql: preSource.ancestors() ->excludes(preTarget).
