| Description with images? [message #1831130] |
Wed, 12 August 2020 04:33  |
Eclipse User |
|
|
|
Hello,
I have been playing around with Capella lately. I want to generate documentation from my model using M2Doc, and for this reason I am trying to put as much information into the model as I can - notably in the description of elements and diagrams.
I am using version 1.4.0 of Capella.

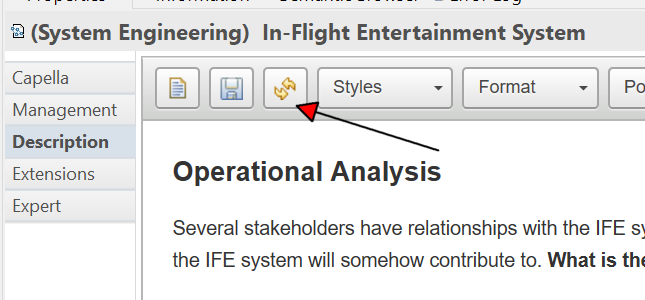

When editing the description of an element, there is a small button on the upper right that can be used to add images. My problem is that it does not work. When clicking on the button, I get the pop-up to indicate the URL. I have tried both absolute path and relative path, and all different kinds of images with different extensions, but when I click "OK" in the Add Image pop-up, nothing happens.
Is this a known bug? Or am I doing something else wrong?
I would also like to add tables to some of the descriptions; is this something you plan on adding? Or will adding an image of the table be my only option for the foreseeable future?
Thank you
|
|
|
|
