State Fragments are doubled [message #1819056]

Mon, 06 January 2020 08:54

Eclipse User

Hello,

I tried to retrieve the list of functions used in an Exchanged Scenario Diagram, but the functions are doubled in the result of the aql expression I'm using:

(self being a Scenario - Exchange Scenario, not the diagram itself)

aql: self.ownedInteractionFragments->filter(interaction::InteractionState)

Result:
InteractionState 1
InteractionState 1
InteractionState 2
InteractionState 2
InteractionState 3
InteractionState 3
.... etc

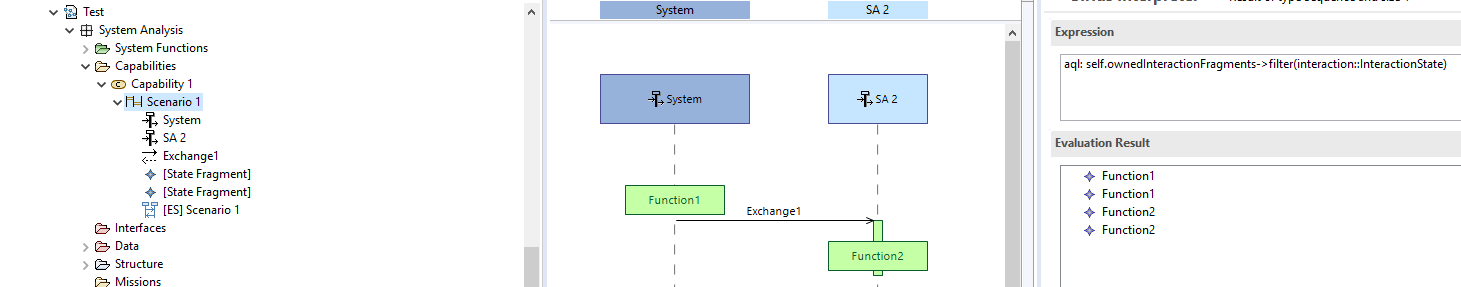

index.php/fa/37091/0/

Note that InteractionState with the same name have a different id, but point toward the same Function:

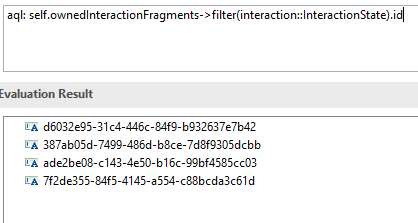

index.php/fa/37092/0/

Is it expected to have twice the number of State Fragment in the model ?

Attachment: Error.PNG
(Size: 23.33KB, Downloaded 347 times)
Attachment: Error2.PNG
(Size: 7.08KB, Downloaded 306 times)
Attachment: Error3.PNG
(Size: 8.79KB, Downloaded 300 times)

Re: State Fragments are doubled [message #1819119 is a reply to message #1819056]

Wed, 08 January 2020 04:06

Eclipse User

For the model question I have no clue.
But to remove duplicates from you expression you can use ->asOrderedSet() for instance:

self.ownedInteractionFragments->filter(interaction::InteractionState).relatedAbstractFunction->asOrderedSet()

Re: State Fragments are doubled [message #1819123 is a reply to message #1819119]

Wed, 08 January 2020 07:16

Eclipse User

I figured what was the issue.

While I don't know what those "Interaction States" are, the elements I was looking for were actually "StateFragment", which are not duplicated.

scenario2.eAllContents()->filter(interaction::StateFragment)

But thanks anyway, I had no idea that "asOrderedSet" was removing the duplicates !

Re: State Fragments are doubled [message #1819144 is a reply to message #1819123]

Wed, 08 January 2020 13:10

Eclipse User

Mathias,
If that helps, you'll find in the embedded Capella help a complete reference of the Acceleo Query Language used in M2Doc.
Stéphane
