Unwanted child nodes resize [message #1766571] Fri, 23 June 2017 08:12 Go to next message
Aurelien Didier is currently offline Aurelien DidierFriend
Messages: 13
Registered: April 2015
Junior Member

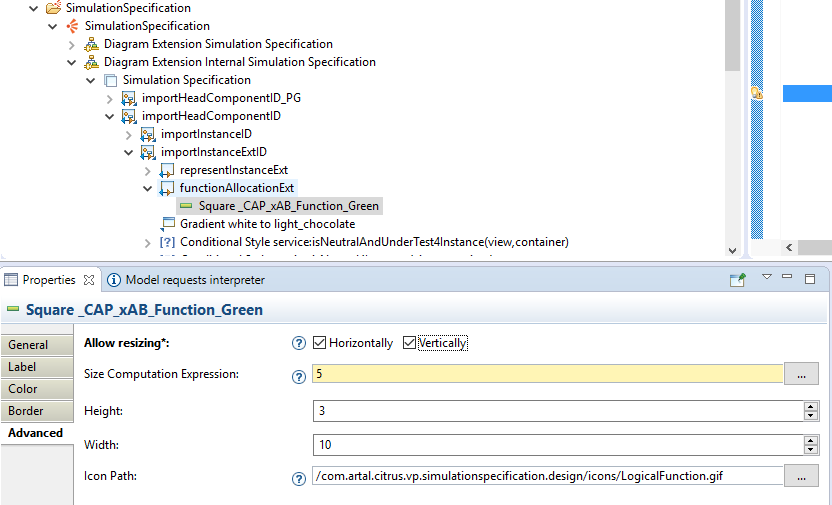

Layouting my diagram using default arange all or any ELK layouts leads to unwanted nodes resize that are styled with this square.

index.php/fa/29772/0/

Is there a way to avoid this behavior ?

Noticed a SiriusDiagramUiInternalPreferencesKeys.PREF_AUTOSIZE_ON_ARRANGE pref which setting it to false didn't avoid the resize.

Any idea is welcome.

Report message to a moderator

Re: Unwanted child nodes resize [message #1766573 is a reply to message #1766571] Fri, 23 June 2017 08:29 Go to previous messageGo to next message
Christoph Daniel Schulze is currently offline Christoph Daniel SchulzeFriend
Messages: 98
Registered: September 2015
Member
Hi Aurelien,

which size did they have at the start, and which size did they end up with after ELK layout?

Cheers,
Chris

Report message to a moderator

Re: Unwanted child nodes resize [message #1766605 is a reply to message #1766573] Fri, 23 June 2017 12:19 Go to previous messageGo to next message
Aurelien Didier is currently offline Aurelien DidierFriend
Messages: 13
Registered: April 2015
Junior Member
size constantly increases of about 10px in height/width each layout invokation

[Updated on: Fri, 23 June 2017 12:46]

Report message to a moderator

Re: Unwanted child nodes resize [message #1766861 is a reply to message #1766605] Wed, 28 June 2017 10:42 Go to previous messageGo to next message
Christoph Daniel Schulze is currently offline Christoph Daniel SchulzeFriend
Messages: 98
Registered: September 2015
Member
Do you set any paddings on your nodes?

Report message to a moderator

Re: Unwanted child nodes resize [message #1766875 is a reply to message #1766861] Wed, 28 June 2017 12:50 Go to previous message
Aurelien Didier is currently offline Aurelien DidierFriend
Messages: 13
Registered: April 2015
Junior Member
Here are my option and invocation (using ElkPadding) :

DiagramLayoutEngine.Parameters params = new DiagramLayoutEngine.Parameters();

params.getGlobalSettings()

.setProperty(CoreOptions.ANIMATE, animation)
.setProperty(CoreOptions.LAYOUT_ANCESTORS, false)
.setProperty(CoreOptions.NODE_SIZE_MINIMUM, new KVector(100d, 50d))
.setProperty(CoreOptions.NODE_SIZE_CONSTRAINTS, SizeConstraint.fixed())
.setProperty(CoreOptions.HIERARCHY_HANDLING, HierarchyHandling.INCLUDE_CHILDREN)
.setProperty(CoreOptions.NODE_SIZE_OPTIONS, EnumSet.of(SizeOptions.DEFAULT_MINIMUM_SIZE))
.setProperty(CoreOptions.PROGRESS_BAR, progressDialog)
.setProperty(CoreOptions.ZOOM_TO_FIT, zoomToFit)
.setProperty(CoreOptions.PADDING, new ElkPadding(24, 12, 12, 12))
.setProperty(CoreOptions.ALGORITHM, "org.eclipse.elk.layered.layered")
;

params.addLayoutRun().configure(ElkNode.class)


.setProperty(LayeredOptionsOpt1.SPACING_NODE_NODE, 10d)
.setProperty(LayeredOptionsOpt1.DIRECTION, Direction.RIGHT)
.setProperty(LayeredOptionsOpt1.EDGE_THICKNESS, 10d)
.setProperty(LayeredOptionsOpt1.LAYERING_STRATEGY, LayeringStrategy.NETWORK_SIMPLEX)
.setProperty(LayeredOptionsOpt1.COMPACTION_CONNECTED_COMPONENTS, true)
.setProperty(LayeredOptionsOpt1.EDGE_ROUTING, EdgeRouting.ORTHOGONAL)
.setProperty(LayeredOptionsOpt1.PADDING, new ElkPadding(24, 12, 12, 12))
.setProperty(LayeredOptionsOpt1.LAYERING_NODE_PROMOTION_STRATEGY, NodePromotionStrategy.NONE)
.setProperty(LayeredOptionsOpt1.NODE_PLACEMENT_NETWORK_SIMPLEX_NODE_FLEXIBILITY, NodeFlexibility.NONE)
.setProperty(LayeredOptionsOpt1.NODE_SIZE_CONSTRAINTS, SizeConstraint.fixed())
.setProperty(LayeredOptionsOpt1.NODE_SIZE_OPTIONS, EnumSet.of(SizeOptions.DEFAULT_MINIMUM_SIZE))
.setProperty(LayeredOptionsOpt1.PORT_BORDER_OFFSET, 0d)
.setProperty(LayeredOptionsOpt1.SPACING_COMPONENT_COMPONENT, 0d)
.setProperty(LayeredOptionsOpt1.SPACING_NODE_NODE, 0d)
.setProperty(LayeredOptionsOpt1.BOX_PACKING_MODE, PackingMode.SIMPLE)
.setProperty(LayeredOptionsOpt1.LAYERING_LAYER_CONSTRAINT, LayerConstraint.NONE)
.setProperty(LayeredOptionsOpt1.PORT_LABELS_PLACEMENT, PortLabelPlacement.INSIDE)
;

DiagramLayoutEngine.invokeLayout(editorPart, diagramPart, null, params);
