Inconsistency in SVG export [message #1613375] Thu, 12 February 2015 11:09 Go to next message
Eclipse UserFriend
Hi,

We seem to have some inconsistencies when exporting our diagram to SVG. In some cases, we see that some labels in the diagram do not appear. I have attached examples where it occurs and where it does not occur. I have also attached their original diagram files as a reference.

All labels in t217-2 appear correctly, but t217 is missing a label. The attached jpg file of t217 has the correct behavior.

Thanks,
-Peter
  • Attachment: t217.svg
    (Size: 6.02KB, Downloaded 364 times)
  • Attachment: t217.pattern
    (Size: 7.77KB, Downloaded 242 times)

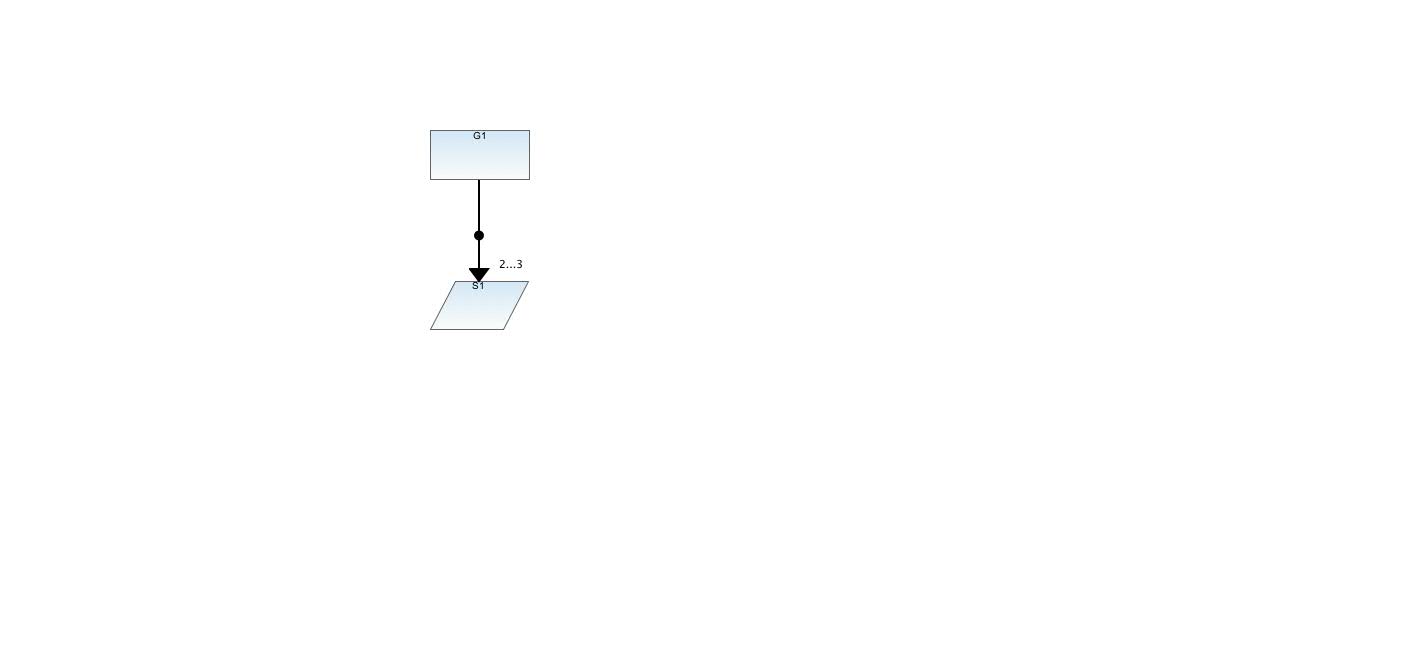

  • Attachment: t217.jpg
    (Size: 17.16KB, Downloaded 255 times)
  • Attachment: t217-2.svg
    (Size: 11.49KB, Downloaded 367 times)
  • Attachment: t217-2.pattern
    (Size: 15.11KB, Downloaded 247 times)
Re: Inconsistency in SVG export [message #1614836 is a reply to message #1613375] Fri, 13 February 2015 09:32 Go to previous messageGo to next message
Eclipse UserFriend
Peter,

yes, that is a known issue. We use the GEF SVG export, that is not 100%
excact and has bugs. For more on that and a proposed option see
https://bugs.eclipse.org/bugs/show_bug.cgi?id=423018

Michael
Re: Inconsistency in SVG export [message #1622740 is a reply to message #1614836] Wed, 18 February 2015 13:12 Go to previous messageGo to next message
Eclipse UserFriend
Michael,

We use the SVG export as an input to batik's PDF transcoder. Are there any other alternative methods that can produce a scalable PDF out of a Graphiti Diagram? We would really like to hammer out this issue. Having other options would help us out a lot.

-Peter
Re: Inconsistency in SVG export [message #1625646 is a reply to message #1622740] Fri, 20 February 2015 09:37 Go to previous message
Eclipse UserFriend
Sorry, none that I'm actually aware of besides implementing an SVG exported
on our own as mentioned in the bug.

Michael
