GroupBox Column Count and Layout [message #1506456]

Wed, 10 December 2014 21:49

Jeremie Bresson

Messages: 1252
Registered: October 2011

Senior Member

I have a group box with 5 columns:

@Override
protected int getConfiguredGridColumnCount() {
  return 5;
}

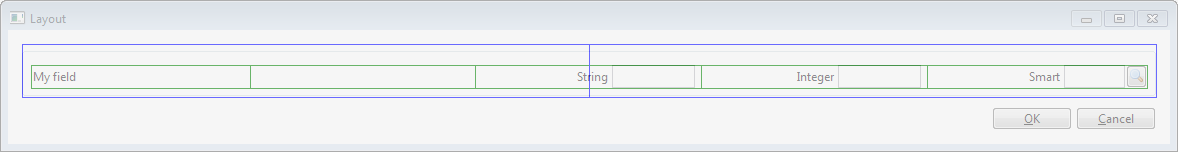

If have some fields that fill the columns, everything work fine:
* A label Field getConfiguredGridW() => 2
* A String field
* A Integer field
* A Smart field

index.php/fa/20200/0/

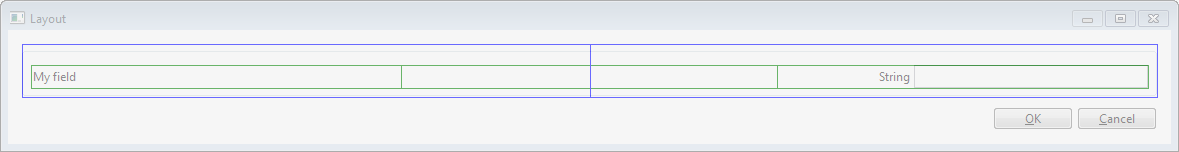

Now if the Integer and the Smart fields are not visible. The GroupBox takes the liberty to redefine its number of columns:

index.php/fa/20201/0/

(column count is now 3)

Do I have a way to prevent this dynamic redefinition of column count? Is the Layout manager responsible for that?

My current workaround is to have 2 placeholder fields that I set to visible when the Integer and Smart field are hidden.

Attachment: Grid_5_columns.png
(Size: 6.79KB, Downloaded 332 times)
Attachment: Grid_3_columns.png
(Size: 5.81KB, Downloaded 321 times)
