creating a RULE just to rename a ClassUNIT [message #1421444]

Thu, 11 September 2014 11:23

Rafael Durelli

Messages: 72
Registered: September 2012

Member

Hello,

i'm new to ATL so sorry for any dumb questions. First let me contextualize what I like to do. I'm working with an instance of the KDM, which was generated by MODisco. I would like to use this instance of KDM and create a rule in ATL to rename an specifies ClassUnit. I tried the code below. But the this code runs and creates a separate ClassUnit excluding all other elements of the KDM.


-- @nsURI MM=http://www.eclipse.org/MoDisco/kdm/code
-- @nsURI MM1=http://www.eclipse.org/MoDisco/kdm/code

module teste;
create OUT : MM1 from IN : MM;

rule renameClass {
	from
		s : MM!ClassUnit (s.name = 'Client')
	using {
	newName : String = 'newName';
}
		to
		t : MM1!ClassUnit (
			name <- newName
		)

}

Does anyone know how to rename a element (ClassUnit) and just keep the other without change after the transformation?

Could you show me a basic example?

Thank you so much.

[Updated on: Thu, 11 September 2014 11:28]

Report message to a moderator

Re: creating a RULE just to rename a ClassUNIT [message #1422172 is a reply to message #1421444]

Fri, 12 September 2014 12:34

Rafael Durelli

Messages: 72
Registered: September 2012

Member

Any suggestion?

Report message to a moderator

Re: creating a RULE just to rename a ClassUNIT [message #1422240 is a reply to message #1422172]

Fri, 12 September 2014 14:42

Dennis Wagelaar

Messages: 606
Registered: September 2012
Location: Belgium

Senior Member

Sounds like you want to use refining mode:
https://wiki.eclipse.org/ATL/User_Guide_-_The_ATL_Language#ATL_Refining_Mode

Cheers,
Dennis

Report message to a moderator

Re: creating a RULE just to rename a ClassUNIT [message #1424218 is a reply to message #1422240]

Mon, 15 September 2014 17:03

Rafael Durelli

Messages: 72
Registered: September 2012

Member

Thanks Dennis, I didn't know about it. I gonna try it out then I let you know if it worked. Thanks again.

Report message to a moderator

Re: creating a RULE just to rename a ClassUNIT [message #1424239 is a reply to message #1424218]

Mon, 15 September 2014 17:49

Rafael Durelli

Messages: 72
Registered: September 2012

Member

Hello again Dennis, I tried what you told me. However, when I execute the source code below I get an empty XMI. My launch configuration is attached. Can you please help me out? THanks again have a good one.


-- @nsURI MM=http://www.eclipse.org/MoDisco/kdm/code
-- @nsURI MM1=http://www.eclipse.org/MoDisco/kdm/code

module teste;
create OUT : MM1 refining IN : MM;

rule renameClass {
	from
		s : MM!ClassUnit

		to
		t : MM1!ClassUnit (
			name <- 'NewName'
		)

}

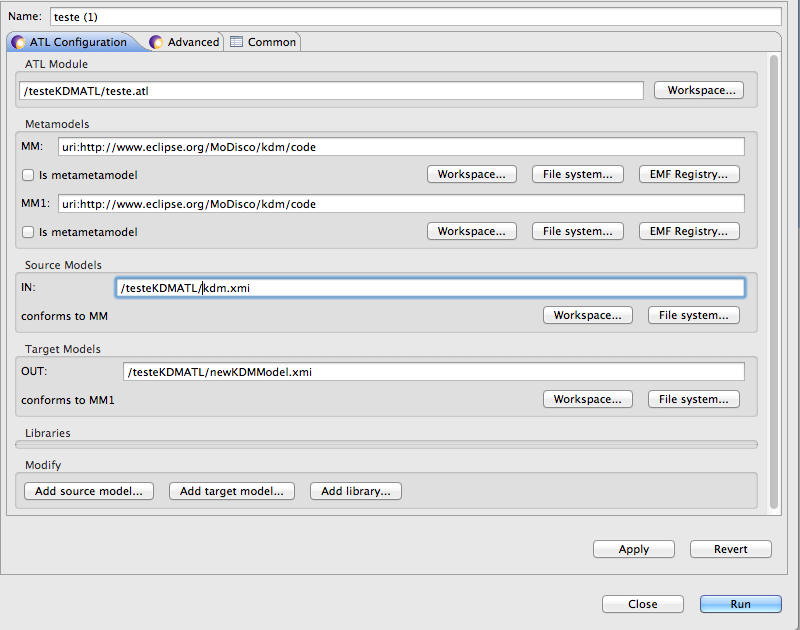

Attachment: Screen Shot 2014-09-15 at 2.48.05 PM.png
(Size: 76.13KB, Downloaded 183 times)

Report message to a moderator

Re: creating a RULE just to rename a ClassUNIT [message #1424268 is a reply to message #1424239]

Mon, 15 September 2014 18:45

Dennis Wagelaar

Messages: 606
Registered: September 2012
Location: Belgium

Senior Member

The metamodels have to be the same for the input and output model:

create OUT : MM refining IN : MM;

Cheers,
Dennis

Report message to a moderator

Re: creating a RULE just to rename a ClassUNIT [message #1424297 is a reply to message #1424268]

Mon, 15 September 2014 19:41

Rafael Durelli

Messages: 72
Registered: September 2012

Member

Hello Dennis, I did what you told me but it didn't work. When I put -- @atlcompiler emftvm on the ATL file I get I error saying "Errors occurred during the build.". I don't know what to do anymore, can you please send me a basic example of "refining model" with ATL, that would be great.

Thank you.

Report message to a moderator

Re: creating a RULE just to rename a ClassUNIT [message #1424306 is a reply to message #1424297]

Mon, 15 September 2014 19:59

Rafael Durelli

Messages: 72
Registered: September 2012

Member

Dennis I made the followings steps, but it didn't work......

1 - I installed ATL/EMFTVM..
2 - Then I put -- @atlcompiler emftvm on the head of my ATL file, but it always get an error..
3 - Then I set up the ATL/EMFTVM launch as shown in the attached picture
4 - Then when I ask it to run I get the following message "org.eclipse.m2m.atl.emftvm.util.VMException: Error during module loading: Module rename not found"

[code]
-- @atlcompiler emftvm
-- @nsURI MM=http://www.eclipse.org/MoDisco/kdm/code

module rename;
create OUT : MM refining IN : MM;

rule renameClass {
from
s : MM!ClassUnit (s.name = 'Client')
using {
newName : String = 'newName';
}
to
t : MM!ClassUnit (
name <- newName
)

}
[\code]

Does I need to use the -- @atlcompiler emftvm???

Thanks

Report message to a moderator

Re: creating a RULE just to rename a ClassUNIT [message #1424871 is a reply to message #1424306]

Tue, 16 September 2014 14:36

Dennis Wagelaar

Messages: 606
Registered: September 2012
Location: Belgium

Senior Member

You don't have to use EMFTVM per sé, but it should definitely work. Unfortunately, I cannot see your attachment with the launch config. I've attached a zipped test Eclipse project that shows how to use EMFTVM for this scenario. Let me know if that works for you!
