How to update GUI from Inherit Class [message #1395194]

Sun, 06 July 2014 14:37

Phat Hong Chan

Messages: 2
Registered: July 2014

Junior Member

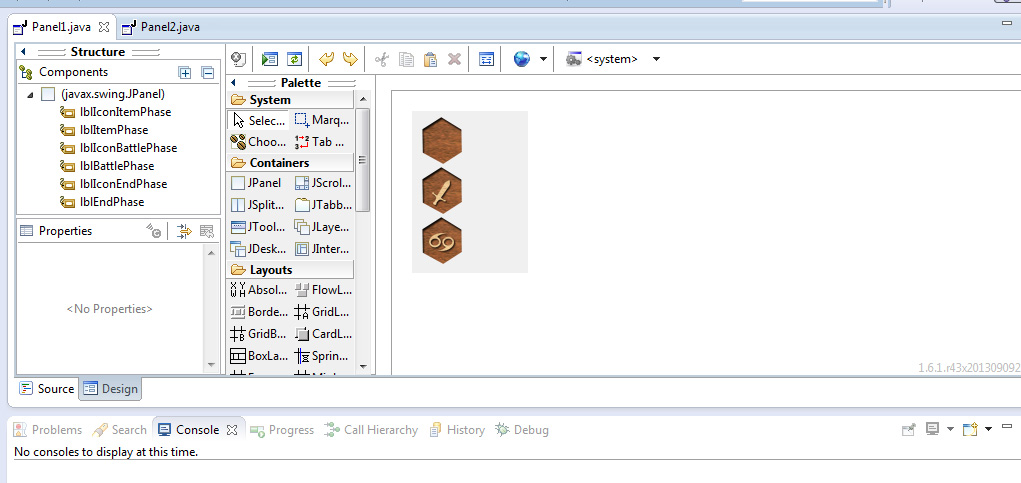

I have 2 panels: Panel1 and Panel2, the Panel2 inherit from Panel1. In constructor of Panel1, I create 3 JLabels and display them in order Label1-Label2-Label3. When I switch from Source Tab to Design Tab, the Preview Window display corectly what I want
index.php/fa/18475/0/

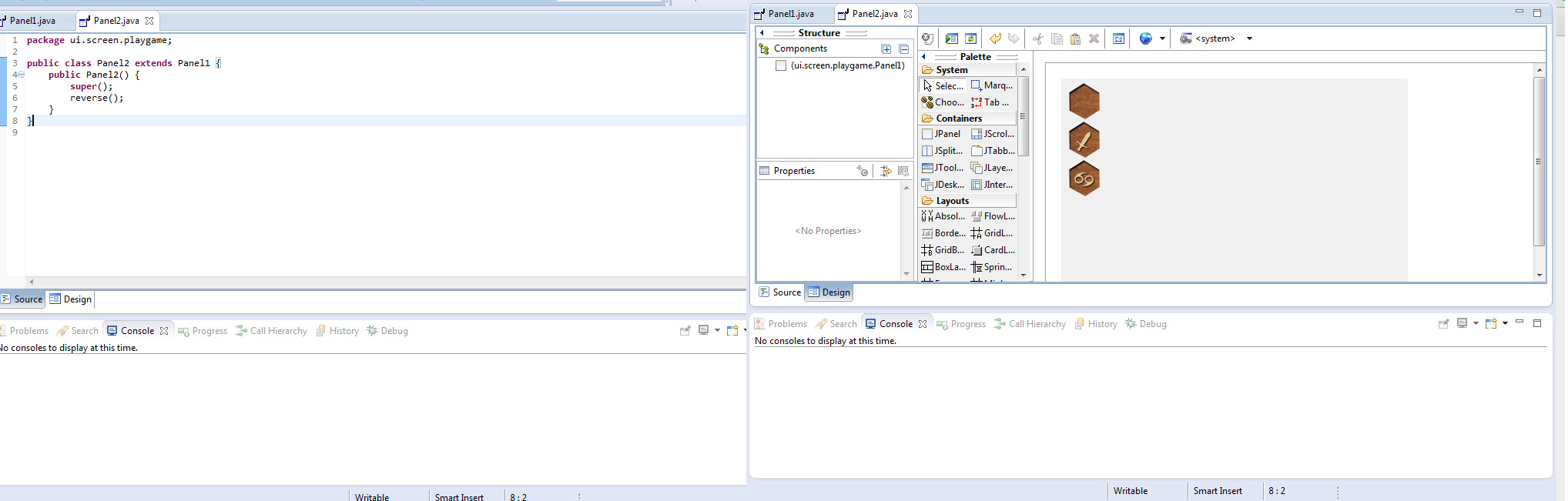

In constructor of Panel2, I want to custom Panel1, so, I change order of 3 JLabels, like this:
public class Panel2 extends Panel1 {
public Panel2() {
super();
reverse();
}
}

but when I switch from Source Tab to Design Tab, int Preview Window, nothing change
index.php/fa/18476/0/

Attachment: Panel2.java
(Size: 0.11KB, Downloaded 125 times)
Attachment: 1.jpg
(Size: 125.37KB, Downloaded 754 times)
Attachment: 2.jpg
(Size: 204.42KB, Downloaded 591 times)
Attachment: Panel1.java
(Size: 2.31KB, Downloaded 231 times)

Report message to a moderator

Re: How to update GUI from Inherit Class [message #1396746 is a reply to message #1395194]

Tue, 08 July 2014 18:22

Eric Clayberg

Messages: 979
Registered: July 2009
Location: Boston, MA

Senior Member

The method, reverse(), means precisely nothing to WIndowBuilder.

WIndowBuilder is a design time tool, and the reverse() method is pure runtime behavior.

Report message to a moderator

Re: How to update GUI from Inherit Class [message #1398289 is a reply to message #1396746]

Thu, 10 July 2014 22:39

Guilherme Oliveira de Carvalho

Messages: 1
Registered: July 2014

Junior Member

So, there is no way of doing polymorphism(eg.: Inheriting properties and components from other class) in WindowBuider?

Report message to a moderator

Re: How to update GUI from Inherit Class [message #1399051 is a reply to message #1398289]

Sat, 12 July 2014 00:49

Eric Clayberg

Messages: 979
Registered: July 2009
Location: Boston, MA

Senior Member

Sure. All statically defined components and properties are inherited (as you can see by the fact that the widgets all show up in the subclass).

If you embed Panel2 in another class as a custom component, it will show up with those components reversed as you wish.

At design time, however, the reverse() method means nothing and is ignored.

Report message to a moderator
