Ecore Tools 2.0 Outline "link with Editor" button [message #1387885] Wed, 25 June 2014 18:36 Go to next message
joss Pf H is currently offline joss Pf HFriend
Messages: 21
Registered: May 2011
Junior Member
Hello everybody,
I want to know where is the "link with Editor"?
The previous version of Ecore has this button in the Outline view. I used this button to show the current class that i filter in the outline but currently only select the class on the diagram but it does not show it automatically

regards!
Re: Ecore Tools 2.0 Outline "link with Editor" button [message #1388522 is a reply to message #1387885] Thu, 26 June 2014 15:06 Go to previous messageGo to next message
Cedric Brun is currently offline Cedric BrunFriend
Messages: 430
Registered: July 2009
Senior Member
I'm not sure I understand completely your question.

The Outline view is automatically synchronized with the selection of the diagram meaning if you select an EClass in the diagram, the corresponding element in the outline view will be selected.

The "link with Editor" in the Model Explorer view on the other hand will reveal the diagram instance within the model hiearchy.

A picture is worth a thousand words :

http://i.imgur.com/1QROir7.png

If you are looking for a way to quickly find a given EClass in a diagram CTRL+O is way better than using the outline and you can access it even when using the tool in fullscreen.


http://cedric.brun.io news and articles on eclipse and eclipse modeling.
Re: Ecore Tools 2.0 Outline "link with Editor" button [message #1388541 is a reply to message #1388522] Thu, 26 June 2014 15:44 Go to previous messageGo to next message
joss Pf H is currently offline joss Pf HFriend
Messages: 21
Registered: May 2011
Junior Member
thanks for answering

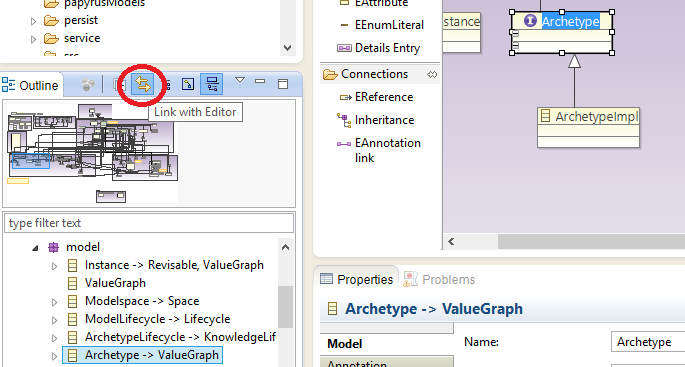

the OutLine view had a "link with Editor" button, with this button select the Eclass AND it show me the current Eclass automatically, imagine if you has a huge model where only select a EClass is not enough.
If i select a EClass in the Outine View then the diagram moves toward the EClass.
I miss this behavior

index.php/fa/18373/0/
regards!
Re: Ecore Tools 2.0 Outline "link with Editor" button [message #1389071 is a reply to message #1388541] Fri, 27 June 2014 09:34 Go to previous messageGo to next message
Cedric Brun is currently offline Cedric BrunFriend
Messages: 430
Registered: July 2009
Senior Member
You are right, when double-clicking on the element I would have expected Sirius to reveal it in the diagram. Right now it only selects the element.
I tracked an enhancement request in Sirius : https://bugs.eclipse.org/bugs/show_bug.cgi?id=438359


http://cedric.brun.io news and articles on eclipse and eclipse modeling.
Re: Ecore Tools 2.0 Outline "link with Editor" button [message #1399046 is a reply to message #1389071] Sat, 12 July 2014 00:39 Go to previous message
joss Pf H is currently offline joss Pf HFriend
Messages: 21
Registered: May 2011
Junior Member
Currently i am building a large ecore diagram and i used your advice to quickly find a given EClass using CTRL+O and i noticed that Sirius reveals it in the diagram.
So, i have not to search my Eclass by scrolling Smile
