How to show stereotype properties in a class diagram? [message #1341059] Thu, 08 May 2014 05:52 Go to next message
Eclipse UserFriend
Hello everybody,

I have a class diagram with stereotypes applied on some of the classes. These stereotypes define a few properties of their own (accessible in the Profile tab of the Properties view). How can these properties (and their values) by displayed in the class properties area?

Thank you.
Re: How to show stereotype properties in a class diagram? [message #1341198 is a reply to message #1341059] Thu, 08 May 2014 07:19 Go to previous message
Eclipse UserFriend
Hi,

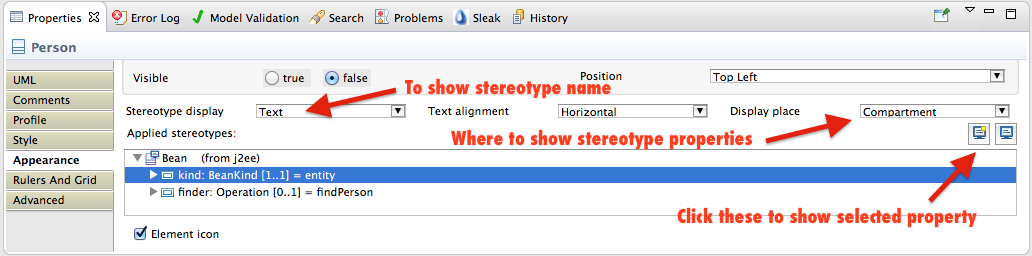

Select a class in the diagram. Then, in the Appearance tab of the
Properties view, scroll to the stereotype appearance properties (near
the bottom of the scroll area):



Also, this is all documented in the on-line help:

Papyrus Guide
User Guide
Using Profiles
Profile Application and Usage
Using the Stereotypes of a Profile
Display options of a stereotype application

HTH,

Christian

On 2014-05-08 09:52:07 +0000, Luís de Sousa said:

> Hello everybody,
>
> I have a class diagram with stereotypes applied on some of the classes.
> These stereotypes define a few properties of their own (accessible in
> the Profile tab of the Properties view). How can these properties (and
> their values) by displayed in the class properties area?
>
> Thank you.
