Display of {redefines} in composition member end [message #1168803]

Sun, 03 November 2013 15:33

Tomas Sandkvist

Messages: 149
Registered: October 2013

Senior Member

In some examples of SYSMOD I have seen that a redefinition of a property is displayed at the member end of a composition. I have not found the possibility to do the same in Papyrus, but I have found the means to register the redefined property.

Perhaps this is supposed to be tool-dependent, or is it something that should be possible?

Regards,
Tomas Sandkvist

Report message to a moderator

Re: Display of {redefines} in composition member end [message #1170634 is a reply to message #1168803]

Mon, 04 November 2013 19:45

Klaas Gadeyne

Messages: 165
Registered: July 2009

Senior Member

Select the property on the diagram, select the "appearance" tab, and select "modifiers" in the "label customization" section.

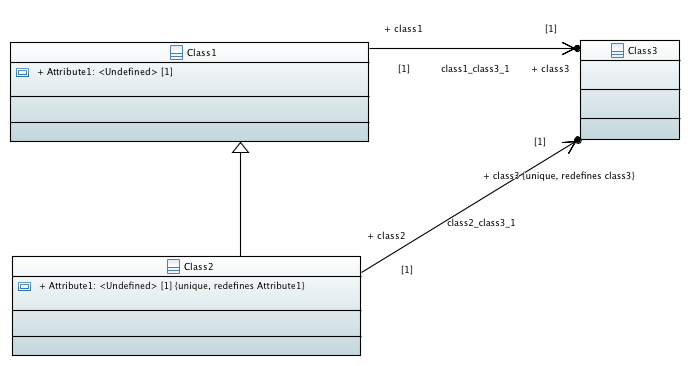

See the attached screenshot for an example (both on the association end, and as a part of the property description in the property compartment)

HTH,

Klaas

Attachment: RedefinesExample.png
(Size: 20.36KB, Downloaded 153 times)

Report message to a moderator

Re: Display of {redefines} in composition member end [message #1171557 is a reply to message #1170634]

Tue, 05 November 2013 10:09

Tomas Sandkvist

Messages: 149
Registered: October 2013

Senior Member

Hi Klaus!

Ok, Now I understand how to do it, at least in a class diagram. However does none of the associations available (as far as I can see at least) in a SysML block diagram NOT give the possibility to change label customization.

Bug or feature?

Any workaround suggestions?

Regards,
Tomas

Report message to a moderator

Re: Display of {redefines} in composition member end [message #1173420 is a reply to message #1171557]

Wed, 06 November 2013 14:04

Klaas Gadeyne

Messages: 165
Registered: July 2009

Senior Member

Tomas Sandkvist wrote on Tue, 05 November 2013 05:09

Hi Klaus!

Ok, Now I understand how to do it, at least in a class diagram. However does none of the associations available (as far as I can see at least) in a SysML block diagram NOT give the possibility to change label customization.

Bug or feature?

A bug IMO (or at least a _missing_ feature Smile

. Please submit it to the papyrus bugzilla.

Quote:

Any workaround suggestions?

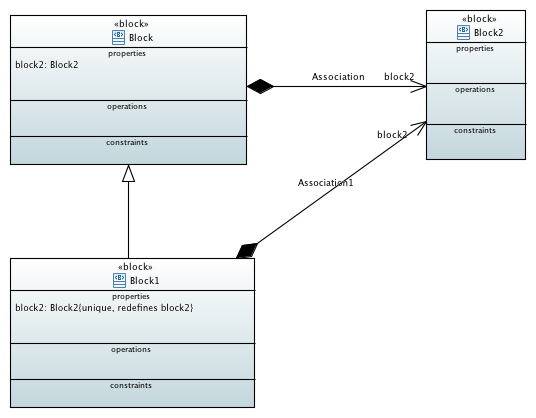

It seems like it is possible to display the {Redefines} on the properties of the property compartment, so you could visualise it there (see attached screenshot)

HTH

Attachment: SysMLRedefinesProblem.png
(Size: 22.27KB, Downloaded 132 times)

Report message to a moderator
