Why does the arrow decoration of a link not display? [message #162096]

Thu, 22 November 2007 11:00

Eclipse User

Hi.
I have added an "Arrow" decoration as the target decoration of a
connection. But when I draw the link in the generated editor, the arrow is
not displayed. I have debugged it for a while, but found nothing. Can
anybody give me a clue?
I am very grateful for your help!
Best wishes.
Michael.

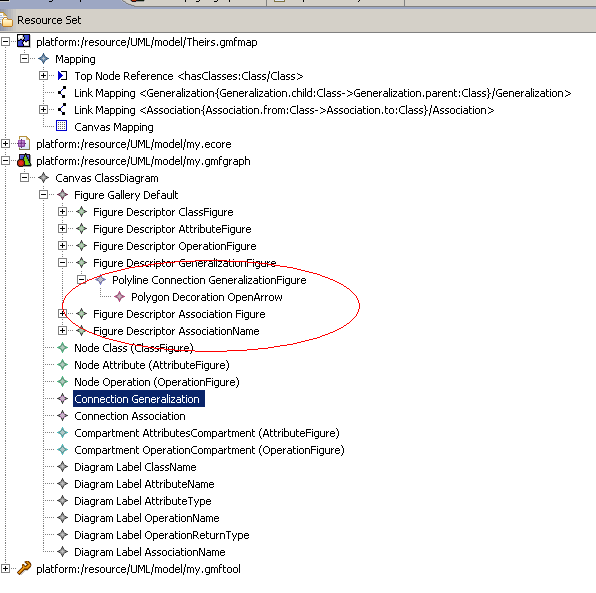

Attachment: untitled.PNG
(Size: 23.81KB, Downloaded 142 times)

Re: Why does the arrow decoration of a link not display? [message #162110 is a reply to message #162096]

Thu, 22 November 2007 11:18

Eclipse User

Check the target decoration property of the parent polyline connection.
Having the decoration as a child element does not automatically add it to
the list.

- Rich

On 11/22/07 11:00 AM, in article fi492e$9re$1@build.eclipse.org, "Michael"
<my25@macs.hw.ac.uk> wrote:

> Hi.
> I have added an "Arrow" decoration as the target decoration of a
> connection. But when I draw the link in the generated editor, the arrow is
> not displayed. I have debugged it for a while, but found nothing. Can
> anybody give me a clue?
> I am very grateful for your help!
> Best wishes.
> Michael.
>
>
