Home » Modeling » Papyrus » ItemFlows on SysML IBD(Adding ItemFlows to Connectors Betweeen Parts)
ItemFlows on SysML IBD [message #1029515] Fri, 29 March 2013 20:20 Go to next message
pete k is currently offline pete kFriend
Messages: 2
Registered: March 2013
Junior Member
Hi All,

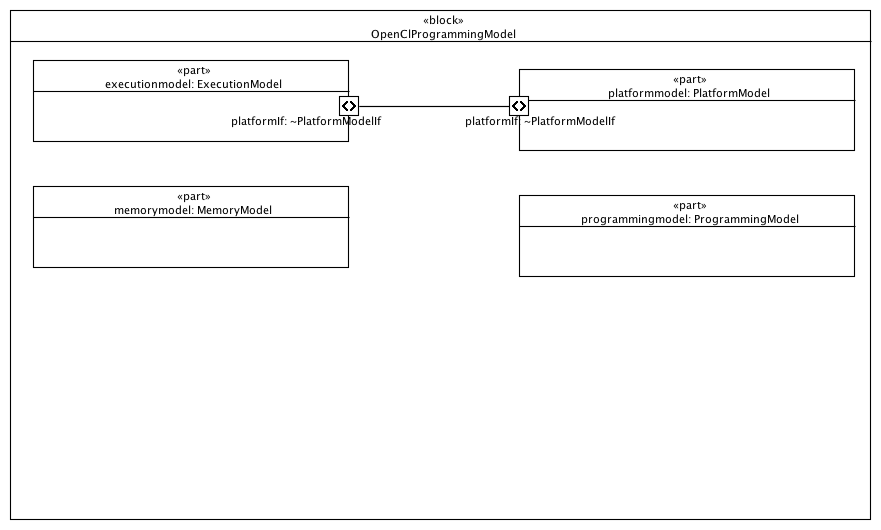

I am using Eclipse 4.3 with Papyrus 0.10.0.v2. I have a connector between two flow ports on a SysML IBD. The flow ports are typed by the same flow specification. One part has the flow specification as conjugated. I would like to show the ItemFlows between the parts on the connector but I cannot figure out how to do this. The attached image shows this. I know that in version 1.3 of the SysML specification flow ports and flow specifications are deprecated but this should still work.

index.php/fa/14193/0/
  • Attachment: model.png
    (Size: 15.20KB, Downloaded 1298 times)

Report message to a moderator

Re: ItemFlows on SysML IBD [message #1057831 is a reply to message #1029515] Thu, 09 May 2013 07:15 Go to previous messageGo to next message
Alessandro Romero is currently offline Alessandro RomeroFriend
Messages: 4
Registered: May 2013
Junior Member
Hi Pete,

I have the same issue. Have you found an alternative?

Regards,
Alessandro Romero.

Report message to a moderator

Re: ItemFlows on SysML IBD [message #1058120 is a reply to message #1057831] Sat, 11 May 2013 21:21 Go to previous messageGo to next message
pete k is currently offline pete kFriend
Messages: 2
Registered: March 2013
Junior Member
I have not found a workaround for this. Without this it is not possible to claim compliance to the SysML specification.

Report message to a moderator

Re: ItemFlows on SysML IBD [message #1708889 is a reply to message #1058120] Tue, 22 September 2015 09:31 Go to previous messageGo to next message
Tristan Faure is currently offline Tristan FaureFriend
Messages: 448
Registered: July 2009
Senior Member
Do you have some hints for item flows creation in Papyrus ?



Report message to a moderator

Re: ItemFlows on SysML IBD [message #1709243 is a reply to message #1708889] Fri, 25 September 2015 08:30 Go to previous messageGo to next message
Patrick Tessier is currently offline Patrick TessierFriend
Messages: 266
Registered: July 2009
Location: Paris Saclay, France
Senior Member
In fact in this fersion of papyrus representation of item flow in this diagram are not supported.
362481: [Block Diagram, IBD] Itemflow not supported
https://bugs.eclipse.org/bugs/show_bug.cgi?id=362481

We work to support it in SysML1.4

Report message to a moderator

Re: ItemFlows on SysML IBD [message #1709244 is a reply to message #1709243] Fri, 25 September 2015 08:33 Go to previous messageGo to next message
Tristan Faure is currently offline Tristan FaureFriend
Messages: 448
Registered: July 2009
Senior Member
OK thank you for the answer.
SysML 1.4 will be supported in NEON version ?



Report message to a moderator

Re: ItemFlows on SysML IBD [message #1709249 is a reply to message #1709244] Fri, 25 September 2015 08:51 Go to previous message
Camille Letavernier is currently offline Camille LetavernierFriend
Messages: 935
Registered: February 2011
Senior Member
Hi Tristan,

SysML 1.4 is a work-in-progress; there is no precise schedule for its official support in Papyrus yet. However, we expect to be able to release it before Neon (In a Mars maintenance release, most likely)

Regards,
Camille

Camille Letavernier

Report message to a moderator
