Two label layout in a Rectangle [message #148101]

Tue, 28 August 2007 10:20

Eclipse User

Hello,

I'm attemping to lay out two labels in a Rectangle like so:

______________
I I
I Label1 I
I Label2 I
I____________ I

so that they stay centred.

I can do it easily for a single label using a Stack Layout
but for two or more, they simply lay over each other.
Flow Layout doesn't seem to help either as it lays them to
the Left hand side, even when setting Major and Minor
Alignment to CENTER.

I've also tried using two contained rectangles, but no luck.

Can anyone advise on this before I go mad?!

Thanks,

Andy

Re: Two label layout in a Rectangle [message #148126 is a reply to message #148101]

Wed, 29 August 2007 04:17

Eclipse User

Try using a GridLayout( 1 column) for the parent Rectangle and
GridlayoutData for each label...

ase a écrit :
> Hello,
>
> I'm attemping to lay out two labels in a Rectangle like so:
>
> ______________
> I I
> I Label1 I
> I Label2 I
> I____________ I
>
> so that they stay centred.
>
> I can do it easily for a single label using a Stack Layout
> but for two or more, they simply lay over each other.
> Flow Layout doesn't seem to help either as it lays them to
> the Left hand side, even when setting Major and Minor
> Alignment to CENTER.
>
> I've also tried using two contained rectangles, but no luck.
>
> Can anyone advise on this before I go mad?!
>
> Thanks,
>
> Andy
>
>
>
>

Re: Two label layout in a Rectangle [message #148510 is a reply to message #148126]

Thu, 30 August 2007 06:29

Eclipse User

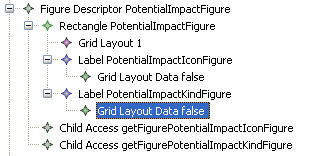

I've tried that now - see attached gmfgraph and result,
but the result is left hand placement of the labels.

Have I got the structure right?

Any other suggestions welcome!

Andy
"Gilles Cannenterre" <gilles.cannenterre@anyware-tech.com> wrote in message
news:fb3a2l$9ie$1@build.eclipse.org...
> Try using a GridLayout( 1 column) for the parent Rectangle and
> GridlayoutData for each label...
>
> ase a

Attachment: gmfgraph.jpg
(Size: 17.39KB, Downloaded 116 times)
Attachment: result.jpg
(Size: 2.80KB, Downloaded 106 times)

Re: Two label layout in a Rectangle [message #148524 is a reply to message #148510]

Thu, 30 August 2007 07:22

Eclipse User

Hello ase,

For each of the grid layout data set
Grab excess horizontal space : true
Horizontal alignement : CENTER
it should work...

ase a écrit :
> I've tried that now - see attached gmfgraph and result,
> but the result is left hand placement of the labels.
>
> Have I got the structure right?
>
> Any other suggestions welcome!
>
> Andy
> "Gilles Cannenterre" <gilles.cannenterre@anyware-tech.com> wrote in message
> news:fb3a2l$9ie$1@build.eclipse.org...
>> Try using a GridLayout( 1 column) for the parent Rectangle and
>> GridlayoutData for each label...
>>
>> ase a écrit :
>>> Hello,
>>>
>>> I'm attemping to lay out two labels in a Rectangle like so:
>>>
>>> ______________
>>> I I
>>> I Label1 I
>>> I Label2 I
>>> I____________ I
>>>
>>> so that they stay centred.
>>>
>>> I can do it easily for a single label using a Stack Layout
>>> but for two or more, they simply lay over each other.
>>> Flow Layout doesn't seem to help either as it lays them to
>>> the Left hand side, even when setting Major and Minor
>>> Alignment to CENTER.
>>>
>>> I've also tried using two contained rectangles, but no luck.
>>>
>>> Can anyone advise on this before I go mad?!
>>>
>>> Thanks,
>>>
>>> Andy
>>>
>>>
>>>
>>>
>
>

Re: Two label layout in a Rectangle [message #148580 is a reply to message #148524]

Thu, 30 August 2007 11:25

Eclipse User

Hi Giles,

That does seem to work. Although now I get the labels centred but
towards the top of the rectangle. I've tried setting grab excess vertical
space: true but no effect. Any thoughts?

Andy

"Gilles Cannenterre" <gilles.cannenterre@anyware-tech.com> wrote in message
news:fb699p$fmc$1@build.eclipse.org...
> Hello ase,
>
> For each of the grid layout data set
> Grab excess horizontal space : true
> Horizontal alignement : CENTER
> it should work...
>
> ase a
