Home » Modeling » GMF (Graphical Modeling Framework) » [GMF tooling] Figure with affixed children and internal children
[GMF tooling] Figure with affixed children and internal children [message #1012850] Fri, 22 February 2013 10:28 Go to next message
Cedric Moonen is currently offline Cedric MoonenFriend
Messages: 274
Registered: August 2009
Senior Member
Hello,

I am trying to have an element with both affixed children (e.g. something similar as ports on a component) and internal children too.

In my graphical model (*.gmfgraph) my figure has a child Rectangle with an XYLayout on it and I defined a child access to that rectangle.
In the node definition for this element, I selected this child access for the "Content Pane" property.

Additionally, in my affixed child node definition, I specify the "Affixed Parent Side" to be NSEW.

If I generate the code, I can indeed add my affixed children which are displayed properly and I can also add children inside my figure, but unfortunately, they are stretched to fill the entire figure automatically (as if there was a fill layout).

After looking at the generated code, I realized that the content pane is not returned properly. In order to fix this, I added this method in the XXXEditPart (the edit part for the element with both affixed and internal children):

	@Override
	protected IFigure getContentPaneFor(IGraphicalEditPart editPart) {
		if (editPart instanceof IBorderItemEditPart) {
			return getBorderedFigure().getBorderItemContainer();
		} else {
			return getContentPane();
		}
	}


So I override the getContentPane of AbstractBorderedShapeEditPart which was simply never calling getContentPane but was calling getMainFigure instead.

This solves the problem, but is this a bug or am I doing something wrong here ?

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1014653 is a reply to message #1012850] Tue, 26 February 2013 08:16 Go to previous messageGo to next message
Thomas Beyer is currently offline Thomas BeyerFriend
Messages: 55
Registered: February 2013
Member
Hi Cedric,

in your generated gmfgen file, please check the appropriate Gen Compartment, that holds the figures which seem to be stretched.
Check if the property List Layout is set to true. If so, toggle to false and regenerate the code.
Let us know the result for further investigation.

Regards
Thomas

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1015028 is a reply to message #1012850] Wed, 27 February 2013 08:51 Go to previous messageGo to next message
Cedric Moonen is currently offline Cedric MoonenFriend
Messages: 274
Registered: August 2009
Senior Member
Hello Thomas,

Thanks for the reply. I don't use compartments, I simply have a figure that is used as the content pane for my top level figure (I don't know if this is clear or not).

So, I don't have a Gen Compartment in the gfmgen file.

Do I have to make a small example (eocre mode + all GMF models) that illustrates the problem ?

Thanks,
Cédric

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1015044 is a reply to message #1015028] Wed, 27 February 2013 09:36 Go to previous messageGo to next message
Thomas Beyer is currently offline Thomas BeyerFriend
Messages: 55
Registered: February 2013
Member
Hi Cedric,

I am not aware of the solution you are describing to realize a container-child behavior, since the required compartment-editparts usually take care of this. And they have corresponding compartment figures associated, which they control. These compartment-figures are also responsible for the layout of their children.

So yes, if you provide the gmf-models, it will indeed help to take a closer look.

Reagards
Thomas

[Updated on: Wed, 27 February 2013 09:37]

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1015068 is a reply to message #1015044] Wed, 27 February 2013 11:05 Go to previous messageGo to next message
Cedric Moonen is currently offline Cedric MoonenFriend
Messages: 274
Registered: August 2009
Senior Member
Hi Thomas,

Actually, I'm not really aware of a solution neither, since I am a bit experimenting (I didn't found any good documentation anywhere about GMF tooling, except for a couple of basic tutorials).

If you don't use affixed children for a specific figure, all the children will automatically added inside the figure you specified. You don't need to create a compartment for that.
I thought that it would be similar when some of the children have to be affixed and the others not, but apparently it is not the case. So I tried to force directing the content pane to the rectangle figure which should contain the nested children but it didn't work. I'm attaching an example so that you can have a better idea of what I'm talking about.

In the example, I have components that can have two types of children: ports and ContainedElements. The ports should be positioned outside the components (at the border) and ContainedElements should be positioned inside the components (using a XY layout). By default, if I specify NONE for the Affixed Parent Side of the Port Node in the gmfgraph file, it works fine and the ports and the contained elements can be added to a Component (and they are positioned where I drop them).
Now if I try to specify NSEW for the Affixed Parent Side of the Port Node, then when I try to add a ContainedElement in a Component, it is stretched all over the component (and thus I can't even add new ContainedElement in the component).

In the zip file I added the EMF project and the GMF project (without the sources), so that you don't have to spend too much time recreating the projects. You simply have to generate the EMF code (+ the edit plug-in) and the diagram code.

Hope this helps.

Cédric

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1015076 is a reply to message #1015068] Wed, 27 February 2013 11:25 Go to previous messageGo to next message
Thomas Beyer is currently offline Thomas BeyerFriend
Messages: 55
Registered: February 2013
Member
Hi Cedric,

the components.ecore and components.genmodel files weren't in the archive. Since those reflect the domain model and are referenced by the gmf-models, I would also need to have at look at them.
Source code is not necessary, just the model files.

Regards
Thomas

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1015086 is a reply to message #1015076] Wed, 27 February 2013 11:56 Go to previous messageGo to next message
Cedric Moonen is currently offline Cedric MoonenFriend
Messages: 274
Registered: August 2009
Senior Member
Hi Thomas,

Sorry, I added the edit project instead of the model project in the zip file. This is fixed in the attached zip file.

Regards,
Cédric

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1015311 is a reply to message #1015086] Thu, 28 February 2013 08:10 Go to previous messageGo to next message
Thomas Beyer is currently offline Thomas BeyerFriend
Messages: 55
Registered: February 2013
Member
Hi Cedric,

as supposed earlier, you don't create a compartment for your componentfigure.

So I would really advise you to study http://wiki.eclipse.org/Graphical_Modeling_Framework/Tutorial/Part_2#Compartments
as it covers exactly, what you want to achieve.

In your case, I think the domain model seems setup ok.

Summing up:
1. In your gmfgraph-model
(a) you need to extend your componentfigure-descriptor with a compartmentfigure (most likely a rectangle)
(b) add a child access for this figure
(c) create a compartment node (something like "componentcompartment") next to Node Component and assign the componentfigure (Figure-attribute) to it, and the created child acces in Accessor-Property.

2. in your gmfmap-model
(a) add a compartmentmapping to the Component node-mapping
(b) set the componentcompartment as the compartment
(c) in the childreference of your ContainedElement, set the compartmentmapping (created in step (a)) as the compartment

That should be it.

Regenerate the gmfgen-model and regenerate code.

Let's go from there.


Regards Thomas

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1015334 is a reply to message #1015311] Thu, 28 February 2013 09:31 Go to previous messageGo to next message
Cedric Moonen is currently offline Cedric MoonenFriend
Messages: 274
Registered: August 2009
Senior Member
Hi Thomas,

Thanks for the reply.

I also tried earlier with a compartment approach but didn't succeed. It seems strange to me that if you don't have affixed children, you don't need to create a compartment in order to have children inside your figure, but as soon as you have affixed children, you need to create a compartment in order to handle to inner children. This doesn't seem consistent...

Anyway, I tried again with the compartment approach following the steps that you described and I can't end up with a correct solution: my ContainerElements are stretched to fill the full component (so you don't even see them). If I remove the XYLayout (see the gmfgraph file) on the compartment layout, then I can't add ports to the component and the inner children are layout using a flow layout.

I attached the modified GMF model file so that you can have a look at what I'm doing wrong.

Thanks,
Cédric

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1015362 is a reply to message #1015334] Thu, 28 February 2013 11:01 Go to previous messageGo to next message
Thomas Beyer is currently offline Thomas BeyerFriend
Messages: 55
Registered: February 2013
Member
Hi Cedric,

I could not use your last attached files, since the ecore-stuff was missing again.

However, I slightly modified the gmfgraph, gmfmap and gmfgen file of your components example.
Find the attached zip. Make sure to put the files back in their proper projects again, so that the references amongst them can be resolved correctly.
Simply regenerate model, edit and diagram code.

I did exactly what I wrote in my former post. Also I disabled the ListLayout of the Compartment-Figure in the gmfgen-model to allow a free positioning an sizing of the ContainedElements.

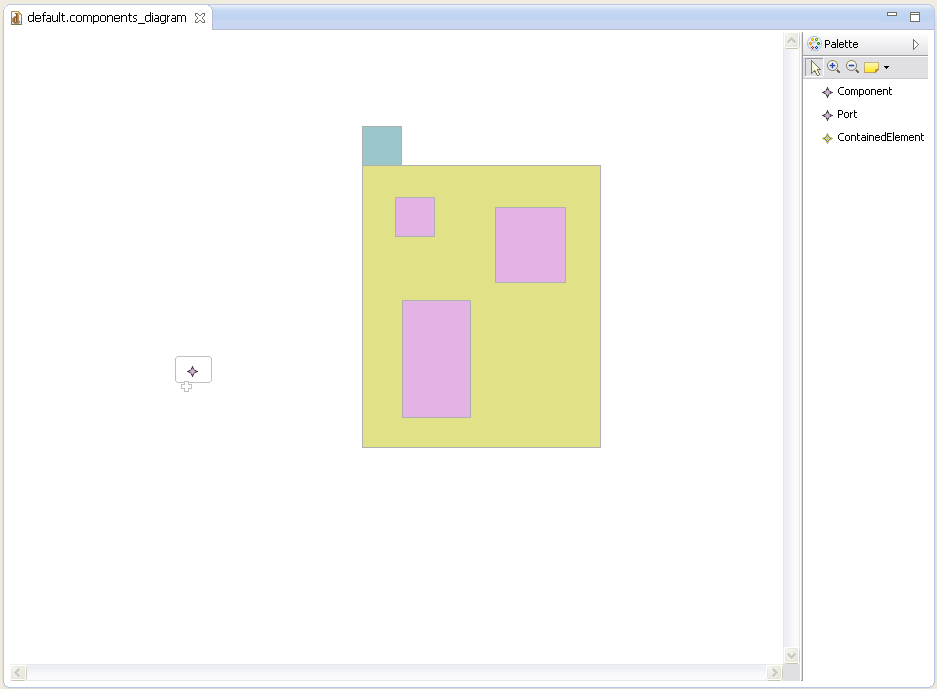

As you can see in the attached screenshot, this is what comes out and hopefully what you desired Smile
The yellow rectangle is your Component. The purple rectangles are the ContainedElements and the blue one is the Port.

Just to be clear, as I believe there were confusions about the affixed children and compartments.
Affixed children and Compartments (resp. Containments) are two different things and totally independent of each other. You can combine both approaches in one element though, in your example the Component.
-> the affixed child does not need a compartment, since it aligns itself to the node, it is attached to.
-> If you want to put a node inside another node, the containernode (in your case the Component) needs a compartment (which is somewhat the container), that controls its children (in your case the ContainedElements).
So as a result, you have a node, that can have both affixed children (Port) and contained children (ContainedElement).

HTH
Thomas

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1015380 is a reply to message #1015362] Thu, 28 February 2013 12:36 Go to previous messageGo to next message
Cedric Moonen is currently offline Cedric MoonenFriend
Messages: 274
Registered: August 2009
Senior Member
Quote:
I could not use your last attached files, since the ecore-stuff was missing again.


Sorry, I thought I would not attach it again since it didn't change...

Quote:
However, I slightly modified the gmfgraph, gmfmap and gmfgen file of your components example.
Find the attached zip. Make sure to put the files back in their proper projects again, so that the references amongst them can be resolved correctly.
Simply regenerate model, edit and diagram code.


I already tried something very similar as you did but without success. Anyway, I regenerated the code and indeed, this doesn't work properly: the contained elements can be added to the component (and resized and all, so that works fine), but I can't add any port to my component: this is simply not accepted. When I hover over the rectangle I have a tooltip saying "ComponentCompartment" so, it is logical that I can't add ports to it (the compartment is probably stretched all over the component figure, making it impossible to add ports to the component).

Quote:
As you can see in the attached screenshot, this is what comes out and hopefully what you desired


This is indeed what I would like to have. Strange that you don't have the problem of adding ports to the component... I'm using GMF tooling 3.0.2.201301191623.

Quote:
Just to be clear, as I believe there were confusions about the affixed children and compartments.
Affixed children and Compartments (resp. Containments) are two different things and totally independent of each other. You can combine both approaches in one element though, in your example the Component.
-> the affixed child does not need a compartment, since it aligns itself to the node, it is attached to.
-> If you want to put a node inside another node, the containernode (in your case the Component) needs a compartment (which is somewhat the container), that controls its children (in your case the ContainedElements).
So as a result, you have a node, that can have both affixed children (Port) and contained children (ContainedElement).


I understood the difference between affixed children and compartments. The only thing that confused me is that if you don't have affixed children, you can perfectly have children inside a figure without having to define compartments (so, if I remove the ports or make them non affixed, I don't need to create a container in order to have the children inside the component figure).
Maybe this is not desired by GMF and you should always have a compartment if you want to nest children inside your figure ? This would in fact be something that works but was not supposed to work in this way ?

Additionally, I find it strange that the layout that you specified on your compartment in the gmfgraph is not taken into account: you have to go into the gmfgen file and disable the list layout. Why can't the layout that you specified in the gmfgraph taken into account (you can have a layout on the component rectangle figure and one on the compartment figure in your gmfgraph).

Anyway, thanks for your answers.
Cédric

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1015541 is a reply to message #1015380] Fri, 01 March 2013 08:18 Go to previous messageGo to next message
Thomas Beyer is currently offline Thomas BeyerFriend
Messages: 55
Registered: February 2013
Member
Hi Cedric,

Quote:
I already tried something very similar as you did but without success. Anyway, I regenerated the code and indeed, this doesn't work properly: the contained elements can be added to the component (and resized and all, so that works fine), but I can't add any port to my component: this is simply not accepted. When I hover over the rectangle I have a tooltip saying "ComponentCompartment" so, it is logical that I can't add ports to it (the compartment is probably stretched all over the component figure, making it impossible to add ports to the component).

The overlapping really is the case.
You can add as many ports as you like though.
To test this, you could make your compartment collapsible (gmfgen-model-attribibute).
If you collapse the compartment, the "parent"rectangle is adressed and you can add ports via the popuphandles or the palette.

Quote:
I understood the difference between affixed children and compartments. The only thing that confused me is that if you don't have affixed children, you can perfectly have children inside a figure without having to define compartments (so, if I remove the ports or make them non affixed, I don't need to create a container in order to have the children inside the component figure).
Maybe this is not desired by GMF and you should always have a compartment if you want to nest children inside your figure ? This would in fact be something that works but was not supposed to work in this way ?

Yes, GMF requires compartments to allow the placement of figures inside figures. It is always possible to find and implement different solutions. In order to fully leverage from the GMF-concepts, use compartments.

Quote:
Additionally, I find it strange that the layout that you specified on your compartment in the gmfgraph is not taken into account: you have to go into the gmfgen file and disable the list layout. Why can't the layout that you specified in the gmfgraph taken into account (you can have a layout on the component rectangle figure and one on the compartment figure in your gmfgraph).

The layouts that you define in your gmfgraph-model are only used to create (complex) figures and not propagated to be used within compartments.
At the moment, GMF supports ListCompartments (ListLayout) and ShapeCompartments (XYLayout). However, you are absolutely free to implement your own LayoutManager.

For example to modify a ShapeCompartment (as it is for your componentcompartment) your could take at look at
ShapeCompartmentEditPart's
	/**
	 * Creates a scrollpane (with auto scrollbars) in which the children are
	 * drawn. The factory hint property is used to set this compartments label.
	 */
	protected IFigure createFigure() {
		ShapeCompartmentFigure scf = new ShapeCompartmentFigure(getCompartmentName(), getMapMode());
		scf.getContentPane().setLayoutManager(getLayoutManager());
        scf.getContentPane().addLayoutListener(LayoutAnimator.getDefault());

		return scf;
	}


for modifications.

Regards
Thomas

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1015590 is a reply to message #1015541] Fri, 01 March 2013 10:14 Go to previous messageGo to next message
Cedric Moonen is currently offline Cedric MoonenFriend
Messages: 274
Registered: August 2009
Senior Member
Hello Thomas,

Thanks for your answer.

Quote:
The overlapping really is the case.
You can add as many ports as you like though.
To test this, you could make your compartment collapsible (gmfgen-model-attribibute).
If you collapse the compartment, the "parent"rectangle is adressed and you can add ports via the popuphandles or the palette.


Ok, that's where the confusion is Smile. My use case is in fact that for the user point of view, he shouldn't see the compartments: for the user, a component can have ports and ContainedElements but how this is implemented in GMF is not his problem. He simply needs to add ports and ContainedElements to the component.
So, I would like to make the compartment concept "invisible" to the end user (so the compartment is not collapsible). Furthermore, the user should still be able to add ports to the component even if the compartment is expanded over the full component.

Would something like this be possible in GMF ?

Thanks for the other clarifications too !

Cédric

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1015604 is a reply to message #1012850] Fri, 01 March 2013 11:03 Go to previous messageGo to next message
Cedric Moonen is currently offline Cedric MoonenFriend
Messages: 274
Registered: August 2009
Senior Member
I tried your solution with the compartment and in fact it does work fine if you have only 1 port. As soon as you try to add a second port, an exception is thrown and the port is positioned at the origin of the diagram (because the exception is thrown while trying to locate the port on the border).

Here is the full stack trace:
org.eclipse.swt.SWTException: Failed to execute runnable (java.lang.IllegalArgumentException: Invalid side argument: 0. Should be the value from PositionConstants: WEST, EAST, NORTH or SOUTH)
	at org.eclipse.swt.SWT.error(SWT.java:4361)
	at org.eclipse.swt.SWT.error(SWT.java:4276)
	at org.eclipse.swt.widgets.Synchronizer.runAsyncMessages(Synchronizer.java:138)
	at org.eclipse.swt.widgets.Display.runAsyncMessages(Display.java:4144)
	at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:3761)
	at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine$9.run(PartRenderingEngine.java:1053)
	at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:332)
	at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine.run(PartRenderingEngine.java:942)
	at org.eclipse.e4.ui.internal.workbench.E4Workbench.createAndRunUI(E4Workbench.java:86)
	at org.eclipse.ui.internal.Workbench$5.run(Workbench.java:588)
	at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:332)
	at org.eclipse.ui.internal.Workbench.createAndRunWorkbench(Workbench.java:543)
	at org.eclipse.ui.PlatformUI.createAndRunWorkbench(PlatformUI.java:149)
	at org.eclipse.ui.internal.ide.application.IDEApplication.start(IDEApplication.java:124)
	at org.eclipse.equinox.internal.app.EclipseAppHandle.run(EclipseAppHandle.java:196)
	at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.runApplication(EclipseAppLauncher.java:110)
	at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.start(EclipseAppLauncher.java:79)
	at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:353)
	at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:180)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
	at java.lang.reflect.Method.invoke(Unknown Source)
	at org.eclipse.equinox.launcher.Main.invokeFramework(Main.java:629)
	at org.eclipse.equinox.launcher.Main.basicRun(Main.java:584)
	at org.eclipse.equinox.launcher.Main.run(Main.java:1438)
	at org.eclipse.equinox.launcher.Main.main(Main.java:1414)
Caused by: java.lang.IllegalArgumentException: Invalid side argument: 0. Should be the value from PositionConstants: WEST, EAST, NORTH or SOUTH
	at org.eclipse.gmf.runtime.diagram.ui.figures.BorderItemLocator.calculateNextNonConflictingPosition(BorderItemLocator.java:447)
	at org.eclipse.gmf.runtime.diagram.ui.figures.BorderItemLocator.locateOnBorder(BorderItemLocator.java:394)
	at org.eclipse.gmf.runtime.diagram.ui.figures.BorderItemLocator.relocate(BorderItemLocator.java:550)
	at org.eclipse.draw2d.DelegatingLayout.layout(DelegatingLayout.java:75)
	at org.eclipse.draw2d.Figure$LayoutNotifier.layout(Figure.java:1976)
	at org.eclipse.draw2d.Figure.layout(Figure.java:1093)
	at org.eclipse.draw2d.Figure.validate(Figure.java:1896)
	at org.eclipse.gmf.runtime.diagram.ui.internal.figures.BorderItemContainerFigure.validate(BorderItemContainerFigure.java:340)
	at org.eclipse.draw2d.Figure.validate(Figure.java:1898)
	at org.eclipse.gmf.runtime.diagram.ui.figures.BorderedNodeFigure.validate(BorderedNodeFigure.java:262)
	at org.eclipse.draw2d.Figure.validate(Figure.java:1898)
	at org.eclipse.gmf.runtime.diagram.ui.figures.BorderItemsAwareFreeFormLayer.validate(BorderItemsAwareFreeFormLayer.java:183)
	at org.eclipse.gmf.runtime.diagram.ui.editparts.DiagramEditPart$1.validate(DiagramEditPart.java:157)
	at org.eclipse.draw2d.Figure.validate(Figure.java:1898)
	at org.eclipse.gmf.runtime.diagram.ui.figures.BorderItemsAwareFreeFormLayer.validate(BorderItemsAwareFreeFormLayer.java:183)
	at org.eclipse.draw2d.Figure.validate(Figure.java:1898)
	at org.eclipse.draw2d.Figure.validate(Figure.java:1898)
	at org.eclipse.draw2d.Figure.validate(Figure.java:1898)
	at org.eclipse.draw2d.FreeformViewport$FreeformViewportLayout.calculatePreferredSize(FreeformViewport.java:25)
	at org.eclipse.draw2d.AbstractLayout.getPreferredSize(AbstractLayout.java:110)
	at org.eclipse.draw2d.AbstractHintLayout.getPreferredSize(AbstractHintLayout.java:90)
	at org.eclipse.draw2d.Figure.getPreferredSize(Figure.java:807)
	at org.eclipse.draw2d.ScrollPaneSolver.solve(ScrollPaneSolver.java:82)
	at org.eclipse.draw2d.FigureCanvas.layoutViewport(FigureCanvas.java:325)
	at org.eclipse.draw2d.FigureCanvas.access$4(FigureCanvas.java:323)
	at org.eclipse.draw2d.FigureCanvas$3.notifyValidating(FigureCanvas.java:292)
	at org.eclipse.draw2d.UpdateManager.fireValidating(UpdateManager.java:143)
	at org.eclipse.draw2d.DeferredUpdateManager.performValidation(DeferredUpdateManager.java:214)
	at org.eclipse.gmf.runtime.diagram.ui.parts.DiagramGraphicalViewer$ToggleUpdateManager.performValidation(DiagramGraphicalViewer.java:116)
	at org.eclipse.draw2d.DeferredUpdateManager.performUpdate(DeferredUpdateManager.java:190)
	at org.eclipse.gmf.runtime.diagram.ui.parts.DiagramGraphicalViewer$ToggleUpdateManager.performUpdate(DiagramGraphicalViewer.java:106)
	at org.eclipse.draw2d.DeferredUpdateManager$UpdateRequest.run(DeferredUpdateManager.java:44)
	at org.eclipse.swt.widgets.RunnableLock.run(RunnableLock.java:35)
	at org.eclipse.swt.widgets.Synchronizer.runAsyncMessages(Synchronizer.java:135)
	... 24 more


Just to be sure, I attached the model project and the diagram project so that you can easily reproduce the problem (I removed the generated source files).

EDIT: if I remove the compartment (so having the ContainedElements as affixed children too and completely removing the compartment figure, node and mapping), this works fine: I can add more than 1 child.

Thanks,
Cédric

[Updated on: Fri, 01 March 2013 11:16]

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1015917 is a reply to message #1015604] Mon, 04 March 2013 09:27 Go to previous messageGo to next message
Thomas Beyer is currently offline Thomas BeyerFriend
Messages: 55
Registered: February 2013
Member
Hi Cedric,

the error is thrown, because you have to explicitely use a direction of type NORTH, EAST, WEST, SOUTH or NONE for the Affixed Parent Side attribute of the Port Figure within your gmfgraph model. Other attributes than those will throw the error.
(I modified the model after providing it in my former reply without mentioning that. Sry about that).

Regarding your other question:
Quote:
So, I would like to make the compartment concept "invisible" to the end user (so the compartment is not collapsible). Furthermore, the user should still be able to add ports to the component even if the compartment is expanded over the full component.

Would something like this be possible in GMF ?


Sure, it is.
1. disable the collapsible-attribute of the compartment (and regenerate).
2. modify your generated ComponentComponentCompartmentEditPart and delegate the creationrequest of the Port to its parent, that is capable of creating the Port.
@Override
	public Command getCommand(Request request) {
		if (request instanceof CreateViewAndElementRequest) {
			CreateViewAndElementRequest cver = (CreateViewAndElementRequest) request;
			CreateElementRequestAdapter adapter = cver
					.getViewAndElementDescriptor()
					.getCreateElementRequestAdapter();
			CreateElementRequest cer = (CreateElementRequest) adapter
					.getAdapter(CreateElementRequest.class);
			if (cer.getElementType() == ComponentsElementTypes.Port_3001)
				return getParent().getCommand(request);
		}
		return super.getCommand(request);
	}


Regards
Thomas

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1016952 is a reply to message #1015917] Fri, 08 March 2013 10:26 Go to previous messageGo to next message
Cedric Moonen is currently offline Cedric MoonenFriend
Messages: 274
Registered: August 2009
Senior Member
Thomas,

Thanks for your answer (sorry for the late answer but I have been busy on something else).

This indeed fixes the problem. However, I don't particularly like the idea that I have to modify the generated code and furthermore the visual ID is subject to change when you modify the gmfmap or the gmfgraph model, producing compilation errors (once the project becomes bigger, this also becomes a maintenance hell).

So, instead of modifying the generated code, I was thinking of using dynamic templates so that I modify the code generation templates (as explained here) using aspects. I simply have to add a method, so this is something that can easily be done via aspects.

However, the tricky part is that I don't want to hardcode the affixed children or the visual ID (again, for maintenance reasons). So, I modified a bit the code that you supplied in this way:

@Override
	public Command getCommand(Request request) {
		if (request instanceof CreateViewAndElementRequest) {
			CreateViewAndElementRequest cver = (CreateViewAndElementRequest) request;
			CreateElementRequestAdapter adapter = cver
					.getViewAndElementDescriptor()
					.getCreateElementRequestAdapter();
			CreateElementRequest cer = (CreateElementRequest) adapter
					.getAdapter(CreateElementRequest.class);
			if (cer.getElementType() == ComponentsElementTypes.ContainedElement_3001)
				return super.getCommand(request);
                        else
                               return getParent().getCommand(request);
		}
		return super.getCommand(request);
	}


(note: the visual ID of the contained element is not valid, so this code won't compile, this was just to show you). So, the difference is that I check whether the element to be created is of type of the contained elements of the compartment. If this is false, I simply delegate the call to the parent edit part.

So, why does it make a difference ? In fact it is much easier to generate this code than the code that you showed me since here I have a direct access to the contained children of the compartment in the GMFGen model.

So, my aspect for the CompartmentEditPart looks like this:

«IMPORT 'http://www.eclipse.org/gmf/2009/GenModel'»

«AROUND additions FOR gmfgen::GenCompartment-»
«IF self.editPartClassName = 'ContainerEditPart' -»
	«EXPAND xpt::Common::generatedMemberComment»
	public org.eclipse.gef.commands.Command getCommand(org.eclipse.gef.Request request) {
		if (request instanceof org.eclipse.gmf.runtime.diagram.ui.requests.CreateViewAndElementRequest) {
			org.eclipse.gmf.runtime.diagram.ui.requests.CreateViewAndElementRequest cver = (org.eclipse.gmf.runtime.diagram.ui.requests.CreateViewAndElementRequest) request;
			org.eclipse.gmf.runtime.diagram.core.edithelpers.CreateElementRequestAdapter adapter = cver
					.getViewAndElementDescriptor()
					.getCreateElementRequestAdapter();
			org.eclipse.gmf.runtime.emf.type.core.requests.CreateElementRequest cer = (org.eclipse.gmf.runtime.emf.type.core.requests.CreateElementRequest) adapter
					.getAdapter(org.eclipse.gmf.runtime.emf.type.core.requests.CreateElementRequest.class);
			if («FOREACH self.containedNodes AS containedNode SEPARATOR(' || ')»cer.getElementType() == components.diagram.providers.ComponentsElementTypes.«containedNode.getClassNamePrefix()»_«containedNode.visualID»«ENDFOREACH») {
				return super.getCommand(request);
			} else {
				return getParent().getCommand(request);
			}
		}
		return super.getCommand(request);
	}
«ENDIF -»
«ENDAROUND»

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1016988 is a reply to message #1016952] Fri, 08 March 2013 13:41 Go to previous messageGo to next message
Thomas Beyer is currently offline Thomas BeyerFriend
Messages: 55
Registered: February 2013
Member
Hi Cedric,

I am glad, that you found a good solution.
You are absolutely right, modifying generated code by hand is also something, I never do. (just wanted to point out more or less, what can be done in order to achieve what you desire)
I even think, overlapping figures are a quiet common case, that lots of toolsmiths might be confronted with.
Why don't you open a bugzilla to initiate a discussion on how this effort can make it into gmf (tooling most likely).

Regards Thomas

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1017010 is a reply to message #1016952] Fri, 08 March 2013 15:04 Go to previous messageGo to next message
Cedric Moonen is currently offline Cedric MoonenFriend
Messages: 274
Registered: August 2009
Senior Member
Quote:
I even think, overlapping figures are a quiet common case, that lots of toolsmiths might be confronted with.


Indeed, that's what I thought originally and I was a bit amazed that such a scenario is not supported.

Quote:
Why don't you open a bugzilla to initiate a discussion on how this effort can make it into gmf (tooling most likely).

Done: https://bugs.eclipse.org/bugs/show_bug.cgi?id=402747. However, I didn't find a GMF-tooling component so I've added it under GMF-Runtime (but this is actually a tooling issue).

BTW, which technique are you using when you have to modify for instance the NodeEditPart but only for a specific edit part ? For instance in this case I modified the CompartmentEditPart but I would like to restrict it only to the Component compartments. What I did is have an IF condition based on the edit part name but this doesn't feel very robust. I was just wondering what the best technique would be here...

Report message to a moderator

Re: [GMF tooling] Figure with affixed children and internal children [message #1017191 is a reply to message #1017010] Sun, 10 March 2013 21:42 Go to previous message
Thomas Beyer is currently offline Thomas BeyerFriend
Messages: 55
Registered: February 2013
Member
Hi Cedric,
Quote:
BTW, which technique are you using when you have to modify for instance the NodeEditPart but only for a specific edit part ? For instance in this case I modified the CompartmentEditPart but I would like to restrict it only to the Component compartments. What I did is have an IF condition based on the edit part name but this doesn't feel very robust. I was just wondering what the best technique would be here...

I am not sure, whether there is an appropriate answer to what is THE BEST solution, but querying for the editpart's class-name is definitely a working one.
I usually check the gmfgen.ecore to see, what attributes I can use to test for.
I prefer to query for the domain-element though, since my genmodels usually have more than one instance of the same compartmenteditpart's class which would result in tests for name equivalence of ComponentCompartmentEditPart, ComponentCompartment2EditPart, etc.
In my cases this reduces the error-proneness and complexity of the templates, but doesn't take of that fact, that GMF generates a lot of redundant boilerplate code for these multiple classes, which noticeably increases the memory footprint of the entire packaged application.
Maybe there will be more code abstracted/shifted to the base runtime-classes in the future.
I will also support your bugzilla.

Regards
Thomas

Report message to a moderator

Previous Topic:[Zest] Different Connections
Next Topic:The value of semanticAdapter
Goto Forum:


[ Syndicate this forum (XML) ] [ RSS ]

Current Time: Thu Jan 23 00:51:37 GMT 2025

Powered by FUDForum. Page generated in 0.04856 seconds
.:: Contact :: Home ::.

Powered by: FUDforum 3.0.2.
Copyright ©2001-2010 FUDforum Bulletin Board Software

Back to the top

Sign up to our Newsletter

A fresh new issue delivered monthly
