Add multiple shapes with connectors at ones [message #988742]

Sun, 02 December 2012 11:54

Michael Germany

Messages: 2
Registered: December 2012

Junior Member

Hello Community,

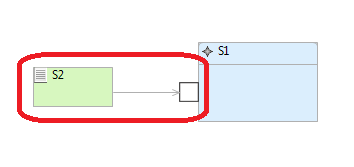

I have to implement a modelling editor for a special language. In this language there are main shapes(S1) with affixed nodes(pins (P)) and other shapes(S2). Connections (->) between shapes S1 and S2 are only possible via these Pins. Now I want to improve user experience by creating at ones a chain P->S2.

index.php/fa/12565/0/

I know that I should extend a method addChild in class S1EditPart, but I still have no idea how to implement this behaviour.

Thanks

Attachment: 3shapes.png
(Size: 3.17KB, Downloaded 166 times)

Report message to a moderator

Re: Add multiple shapes with connectors at ones [message #988795 is a reply to message #988742]

Mon, 03 December 2012 08:59

Ralph Gerbig

Messages: 702
Registered: November 2009

Senior Member

Hi,

if it is about adding childe you can get the job done in gmfmap. Add a FeatureSeqInitializer and ReferenceNewElement to your model element. You can set this up by addinf a further FeatureSweInitializer and FeatureValueSpecs to this newly created model element.

Ralph
