how to chnage the color of diagram elements [message #128355]

Wed, 23 May 2007 03:56

Eclipse User

Originally posted by: bhatia1984.yahoo.com

hiiii

i want to give some default color to my diagram element when they are
created For eg yellow .By default GMF gave white color to diagram element.

when i try to set the defaule color to yellow then i am not able to change
there color to sum other color.

i also want that user cn change the color of diagram element acc to his
own choice .

thanks
Varun Bhatia

Re: how to chnage the color of diagram elements [message #128435 is a reply to message #128355]

Wed, 23 May 2007 04:48

Eclipse User

Originally posted by: fbanica.soluta.net

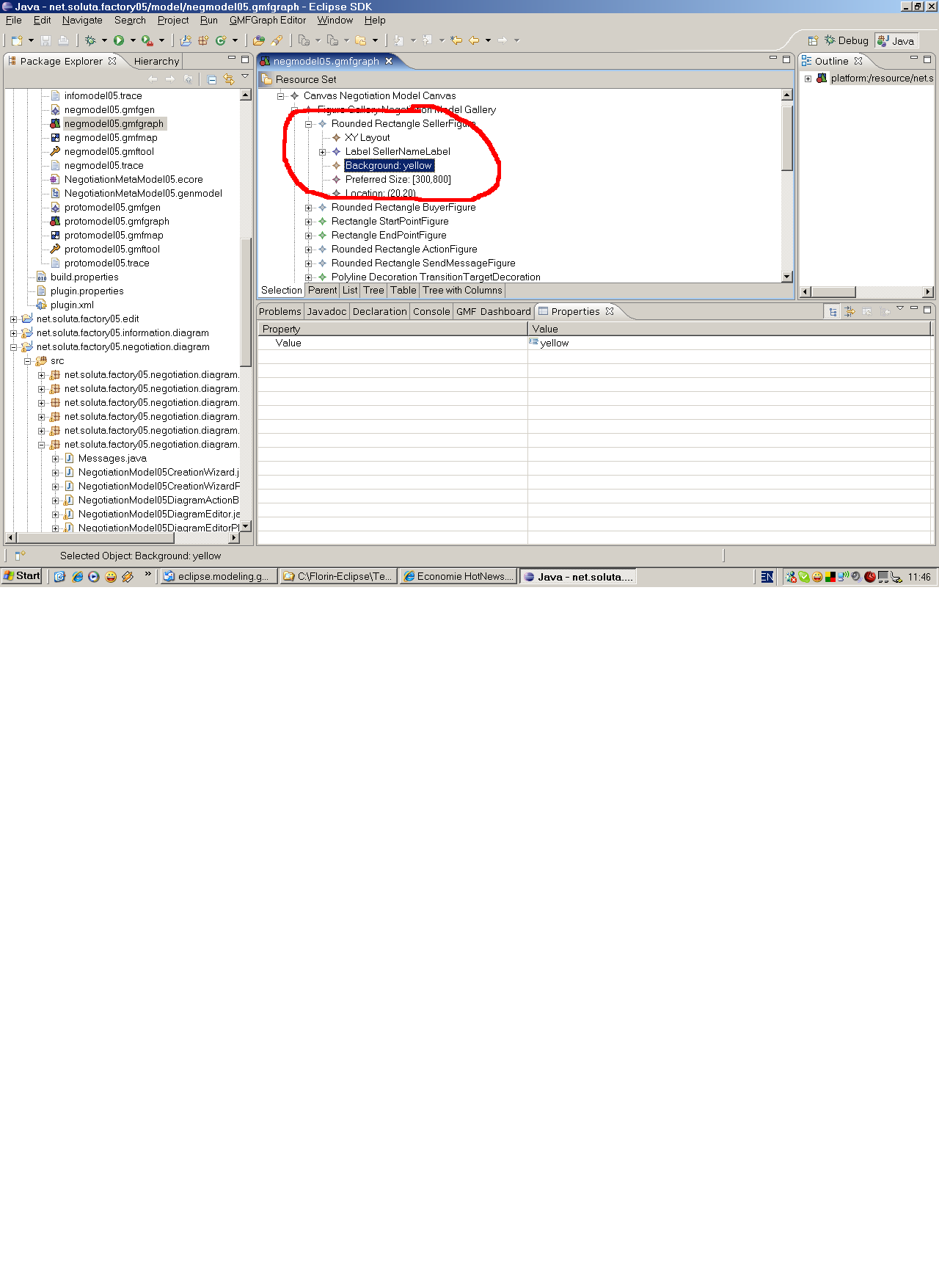

Look in the attachment. Does it ring a bell? :-)

"varun" <bhatia1984@yahoo.com> wrote in message
news:a975d0fd417650f615cb2119ec953cce$1@www.eclipse.org...
> hiiii
>
> i want to give some default color to my diagram element when they are
> created For eg yellow .By default GMF gave white color to diagram element.
>
> when i try to set the defaule color to yellow then i am not able to change
> there color to sum other color.
>
> i also want that user cn change the color of diagram element acc to his
> own choice .
>
> thanks
> Varun Bhatia
>

Attachment: BackgroundColor.PNG
(Size: 115.54KB, Downloaded 239 times)

Re: how to chnage the color of diagram elements [message #128451 is a reply to message #128435]

Wed, 23 May 2007 05:40

Eclipse User

hi
How can I see the attachment,it just display as below

///////////////////////////////////////////////

Attachment: BackgroundColor.PNG
(Size: 115.54KB, Downloaded 211 times)

Re: how to chnage the color of diagram elements [message #128477 is a reply to message #128451]

Wed, 23 May 2007 06:49

Eclipse User

Originally posted by: r.c.ladan.tue.nl

shawn wrote:
> hi
> How can I see the attachment,it just display as below

[snipped image]

Looks like your news/mail client doesn't properly recognize base64
encoded attachments.

Re: how to chnage the color of diagram elements [message #128612 is a reply to message #128451]

Wed, 23 May 2007 08:23

Eclipse User

Originally posted by: fbanica.soluta.net

Try the "Paint" program (Start/Programs/Accessories/Paint - for Windows
users)

"shawn" <xingshaomin@gmail.com> wrote in message
news:a3d3f5605cdbb7063da2e05a82d8dd6f$1@www.eclipse.org...
> hi
> How can I see the attachment,it just display as below
>
> ///////////////////////////////////////////////
>

Re: how to chnage the color of diagram elements [message #128664 is a reply to message #128355]

Wed, 23 May 2007 08:56

Eclipse User

Hello varun,

Modify generated ???ViewFactory.createStyles() and set default color value
there.

-----------------
Alex Shatalin

Re: how to chnage the color of diagram elements [message #129038 is a reply to message #128664]

Thu, 24 May 2007 01:07

Eclipse User

Originally posted by: bhatia1984.yahoo.com

hi Alex

i have modify generated createStyle() method in view factory bt still the
default color is white.

does i hv to make any change in ???EditPart class also.

these are the chnages i hv done in createStyle() method:

protected List<Style> createStyles(View view) {

List<Style> styles = new ArrayList<Style>();

FillStyle style = NotationFactory.eINSTANCE.createFillStyle();

style.setFillColor(12632256);
styles.add(style);

return styles;
}

Thanks
Varun Bhatia

Re: how to chnage the color of diagram elements [message #129116 is a reply to message #129038]

Thu, 24 May 2007 04:01

Eclipse User

Originally posted by: 5d5.mail.ru

This should work for the newly created elements; don't expect to reopen
diagram and see all existing nodes in other colour.

varun wrote:
> hi Alex
>
> i have modify generated createStyle() method in view factory bt still
> the default color is white.
>
> does i hv to make any change in ???EditPart class also.
>
> these are the chnages i hv done in createStyle() method:
>
> protected List<Style> createStyles(View view) {
>
> List<Style> styles = new ArrayList<Style>();
>
> FillStyle style = NotationFactory.eINSTANCE.createFillStyle();
>
> style.setFillColor(12632256);
> styles.add(style);
>
> return styles;
> }
>
> Thanks
> Varun Bhatia
>

Re: how to chnage the color of diagram elements [message #129322 is a reply to message #129116]

Thu, 24 May 2007 07:18

Eclipse User

Originally posted by: bhatia1984.yahoo.com

hiiii

Even for newly created element it doesnt changing the color.

I print the style instance which i hv created in createStyle() method &
style instance in inner class ???Figure of Editpart class both style
object hv same refernce bt in createStyle() methid it shows fill color id
8905185(this is what i am setting)

but in edit part class it shows 16777215.this is the default color id
which GMF provides.

thanks
varun bhatia

Re: how to chnage the color of diagram elements [message #129370 is a reply to message #129322]

Thu, 24 May 2007 08:36

Eclipse User

Hello varun,

Sorry for pointing you to the wrong place. Try setting correct color in ???ViewFactory.decorateView()
method _after_ calling super.decorateView(). This call (super.decorateView())
will change the color value to the default one stored in preferences.

-----------------
Alex Shatalin

Re: how to chnage the color of diagram elements [message #129740 is a reply to message #129370]

Fri, 25 May 2007 01:15

Eclipse User

Originally posted by: bhatia1984.yahoo.com

Thanks Alex ! It works

Re: how to chnage the color of diagram elements [message #1220859 is a reply to message #129370]

Sat, 14 December 2013 09:35

Eclipse User

Hi,

Is this solution outdated? I cannot find any ???ViewFactory in my newer diagram plugins.
I guess I would instead change the create??? methods in a ???ViewProvider now.

However, I think it would be nicer to have some default colours but let my user change the default preferences in her installation so I overrode the fillColor setting in initDefaults in my generated DiagramAppearancePreferencePage. The downside is that this default is for all kinds of nodes in my diagram. I guess I could set up preferences for each of my node kinds in this class? Does this sound a good way to go?

Thanks
Colin
